UNI-T UT512 Digital Insulation Resistance Tester 500V/1000V/1500V/2500V with USB PC Software - High Voltage PI DAR Tester for Electrical Maintenance, Industrial Testing & Home DIY Projects

$149.5

$271.82

Safe 45%

UNI-T UT512 Digital Insulation Resistance Tester 500V/1000V/1500V/2500V with USB PC Software - High Voltage PI DAR Tester for Electrical Maintenance, Industrial Testing & Home DIY Projects

UNI-T UT512 Digital Insulation Resistance Tester 500V/1000V/1500V/2500V with USB PC Software - High Voltage PI DAR Tester for Electrical Maintenance, Industrial Testing & Home DIY Projects

$149.5

$271.82

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

15 people viewing this product right now!

SKU: 10609620

Guranteed safe checkout

Description

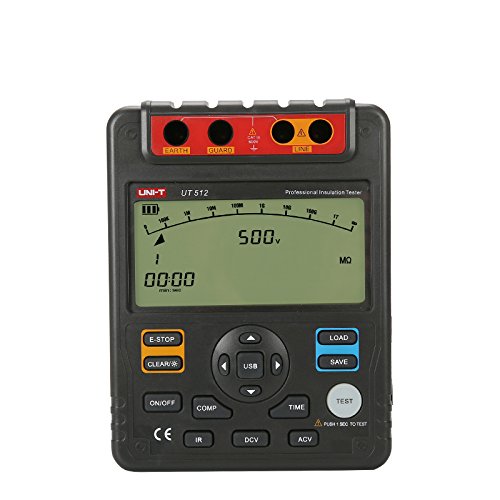

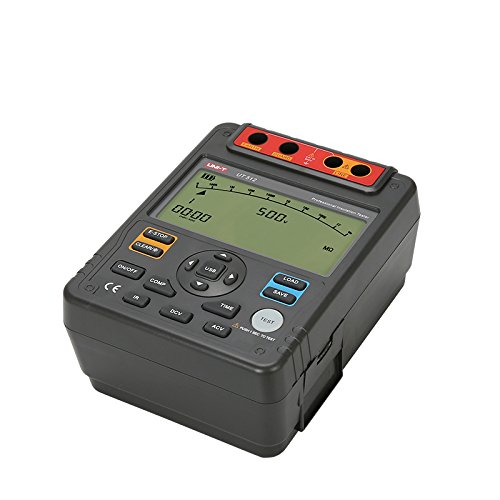

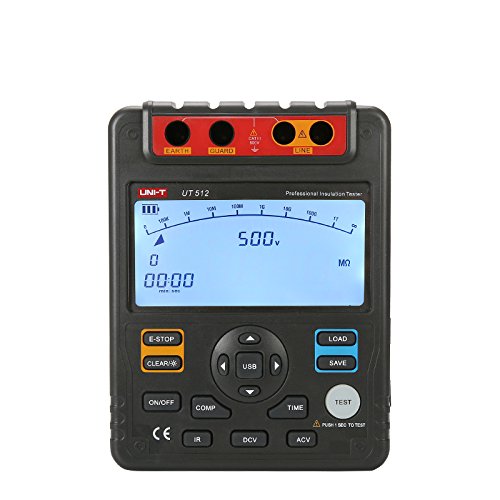

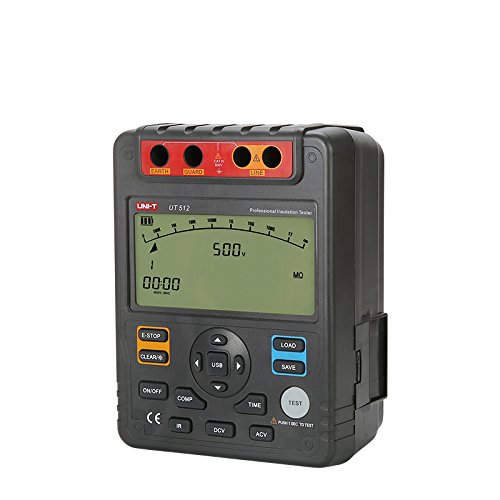

Introduction UT510 series testers measure insulation resistance of large transformers, generators, high-voltage motors and more. They can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. Specification Model: UT512 Insulation Resistance (Ω) Test Voltage: 500V/1000V/1500V/2500V 0%～20%　 500V: 1MΩ~5GΩ ±(3%+5) 1000V: 2MΩ~10GΩ ±(3%+5) 1500V: 5MΩ~20GΩ ±(3%+5) 2500V: 10MΩ~100GΩ ±(3%+5) Short Circuit Current: <1.8mA DC Voltage (V): 600V ±(2%+5) AC Voltage (V): 600V ±(2%+5) Features Auto Range: √ Auto Power Off: √ Low Battery Indication: √ Data Storage: 18 Comparison: √ DAR: √ USB Interface: √ PI: √ LCD Backlight: √ Analog Bar Graph: 30 Overload Indication: √ High Voltage Indication: √ Timer: Around 15 Minutes General Characteristics Power: 1.5V Batteries (LR14) x 8 LCD Size: 123mm x 58mm Product Color: Red and Grey Product Weight: 1.2kg Product Size: 202mm×155mm×94mm Standard Accessories 2pcs of one plug test lead to one alligator clip (Black and Green) 1pcs of two plugs test lead to one alligator clip (Red) Batteries, Tool Box, USB Cable, PC Software CD, Power Adaptor

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Large 9999 display with 30-segment analog bar graph & PI/DAR measurements;

Comparison, upper and lower limit functions & Continuous measurement mode;

Auto power off & 18-group data storage; USB interface and PC software;

Backlight & Auto current discharge and high-voltage output alarm;

Timer measurement mode, auto measure within 15 minutes & Low battery and over range indications.
