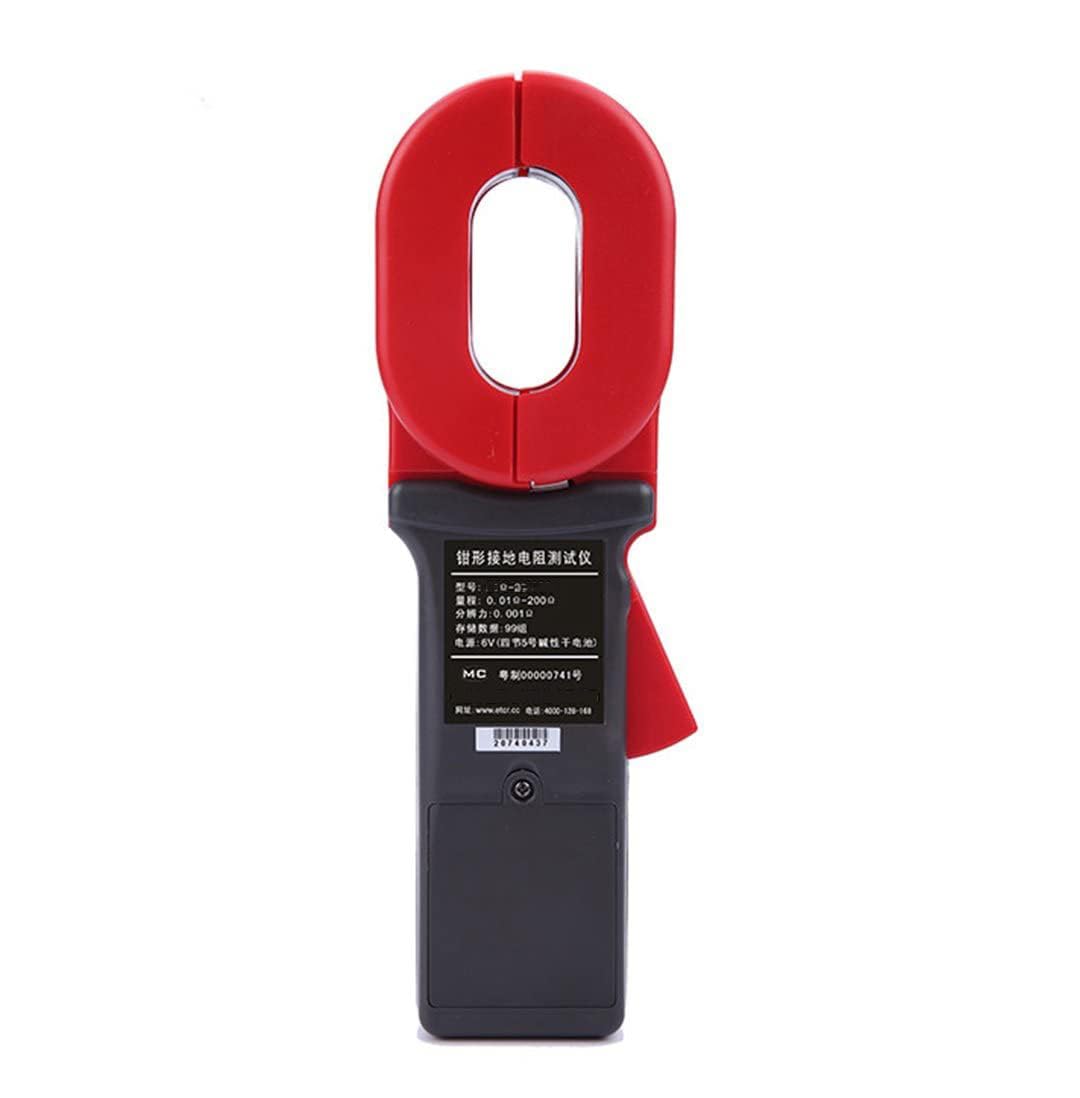

Professional Clamp-On Earth Ground Resistance Tester - 0.01 to 200 Ohm Measuring Range - Ideal for Electrical Safety Testing & Industrial Maintenance

$134.19

$243.99

Safe 45%

Professional Clamp-On Earth Ground Resistance Tester - 0.01 to 200 Ohm Measuring Range - Ideal for Electrical Safety Testing & Industrial Maintenance

Professional Clamp-On Earth Ground Resistance Tester - 0.01 to 200 Ohm Measuring Range - Ideal for Electrical Safety Testing & Industrial Maintenance

$134.19

$243.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

27 people viewing this product right now!

SKU: 11022136

Guranteed safe checkout

Description

Shipping Policy : Battery not Included During the Shipping Technical Specifications * Function:Ground resistance test, Loop resistance test * Clamp Size: 65mm×32mm * Liquid crystal display: 4 bit LCD digital display, 47mm(L) x 28.5mm(W) * Resistance Range: 0.01-200Ω * Resistance Resolution:0.001Ω * Highest Resistance Accuracy:±1%±0.01Ω * Data memory:99 Sets * Auto Power-off: 5 minutes after Boot up * Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours * Working Temperature and Humidity: -20℃-55℃;20%RH-90%RH * Storage Temperature and Humidity: -20℃~60℃；90%rh * Alarm Threshold Setting Range:Resistance: 1-199Ω * Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. * Interference Signal Recognition: “Beep-beep-beep” tone, NOISE symbol blinking * Protection Level: Dual Insulation * Structural Feature: Clamp CT * Shifting: Automatic shifting * External magnetic field: 1KHz * Measured current frequency: 50/60Hz Automatic measurement * Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V * Memory Full Indication: MEM symbol blinks when all 99 sets memory is full * Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A” * Clamp Dimension: L×W×T: 285mm×85mm×56mm * Tester Weight: 1160g * Power Supply: 4 PCS of LR6 lkaline batteries（Battery not included in the package） * Standard Accessories: Meter:, Test Ring, Suitcase, manual

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

◆ Clamp Size; 65mm×32mm; LCD display; 4 Digits LCD display, Screen L×W 47mm×28.5mm

◆ Range0.010Ω~200Ω; Resolution 0.001Ω; Accuracy ±1%±0.01Ω; Data memory 99 sets

◆ ETCR Clamp Earth Resistance Tester is widely applied in ground resistance measurement, loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil field, architecture and industrial electrical equipment, etc.

◆ When measuring ground system with loop, there is no need to disconnect the ground wire without auxiliary electrode, which means safer and faster.

◆ ETCR Clamp Earth Resistance Tester can measure the ground fault which can not be measured by traditional method, can apply in the occasion where traditional methods are unworkable;
