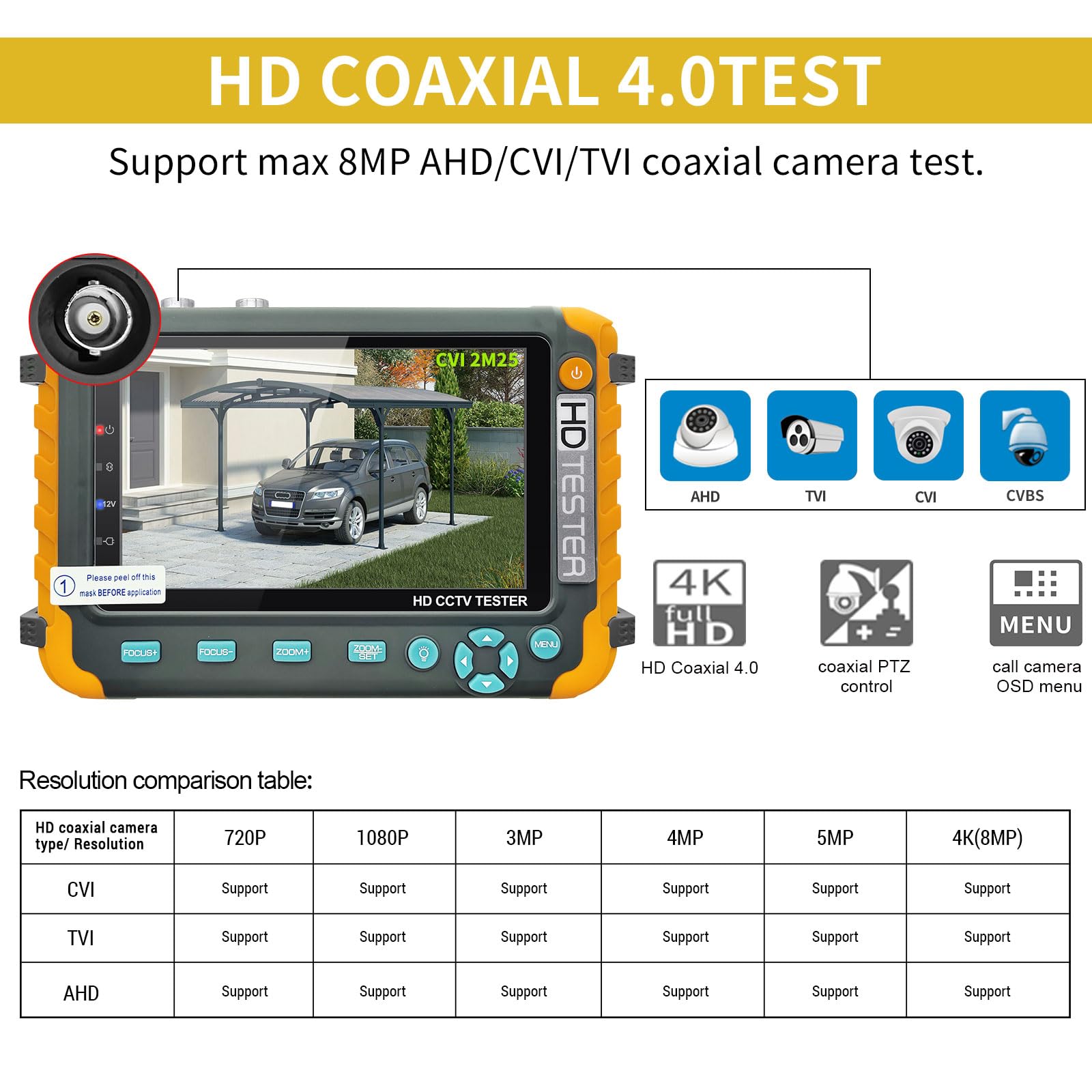

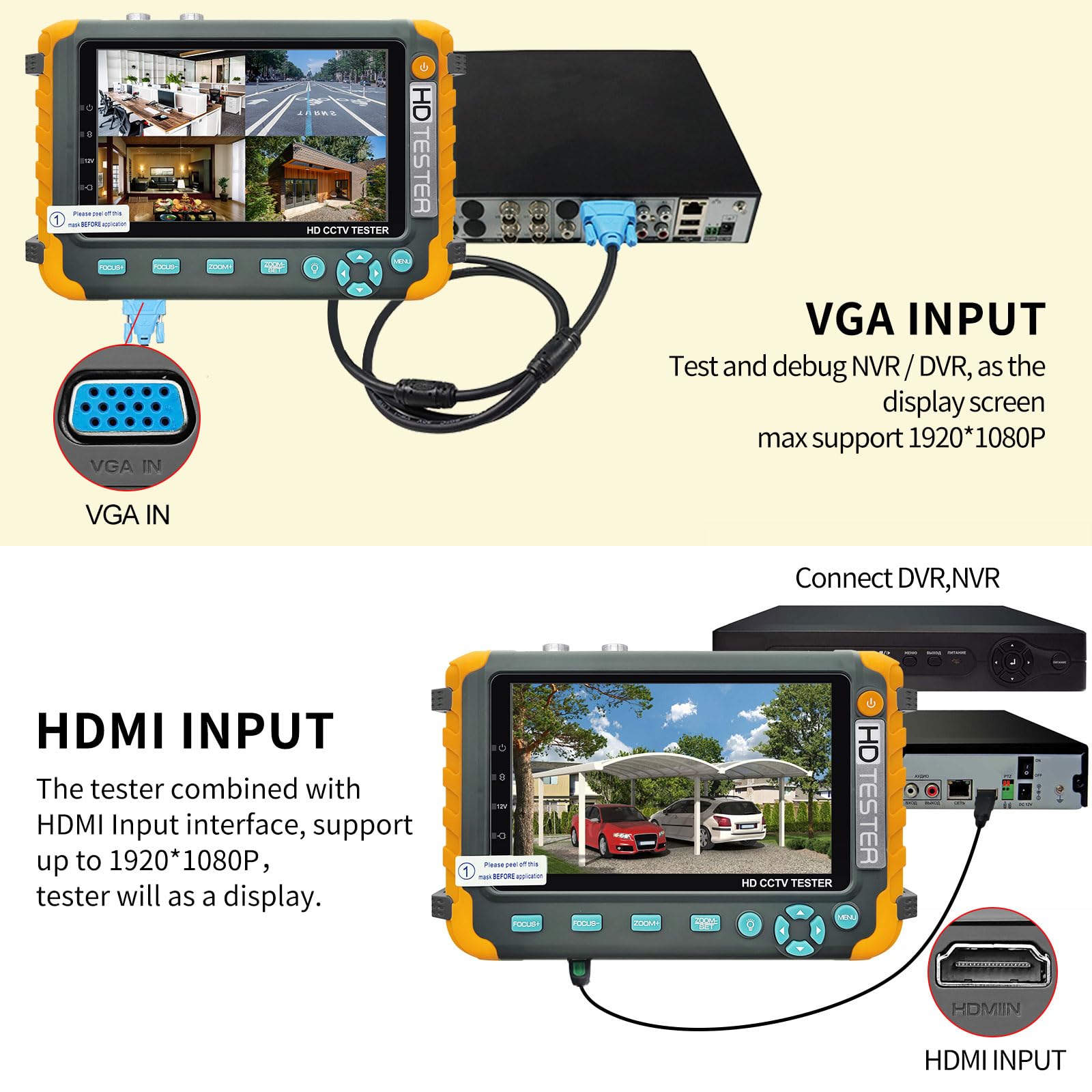

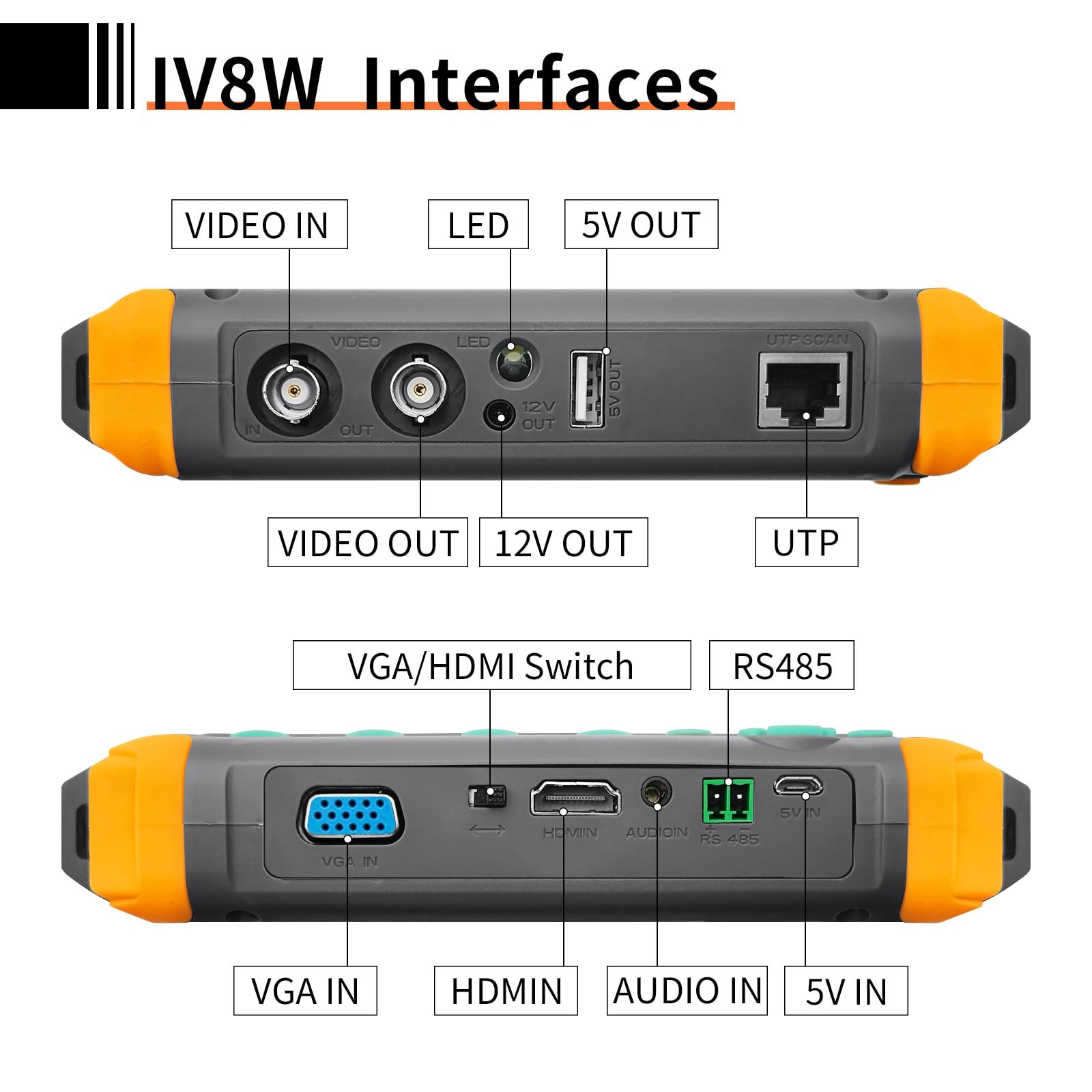

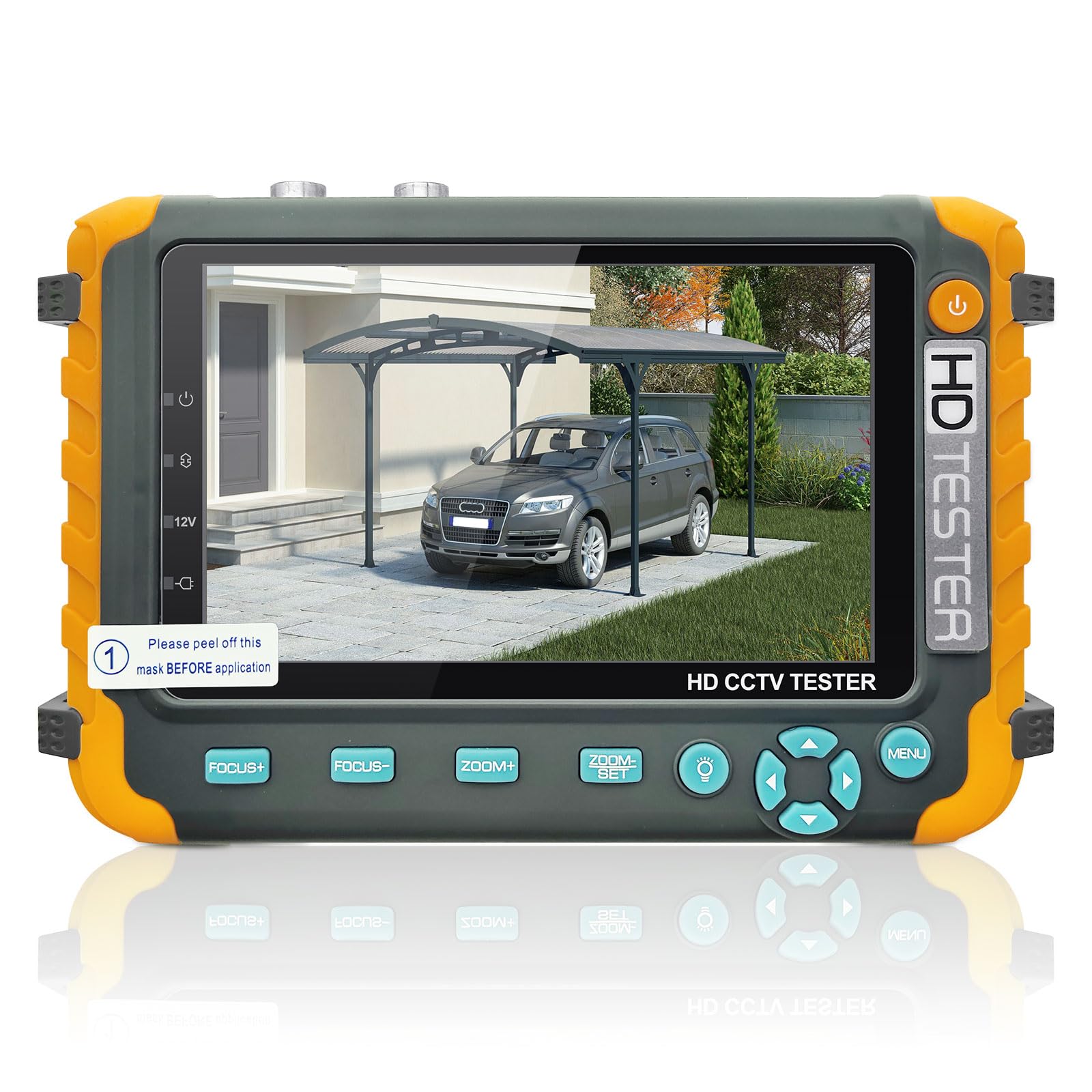

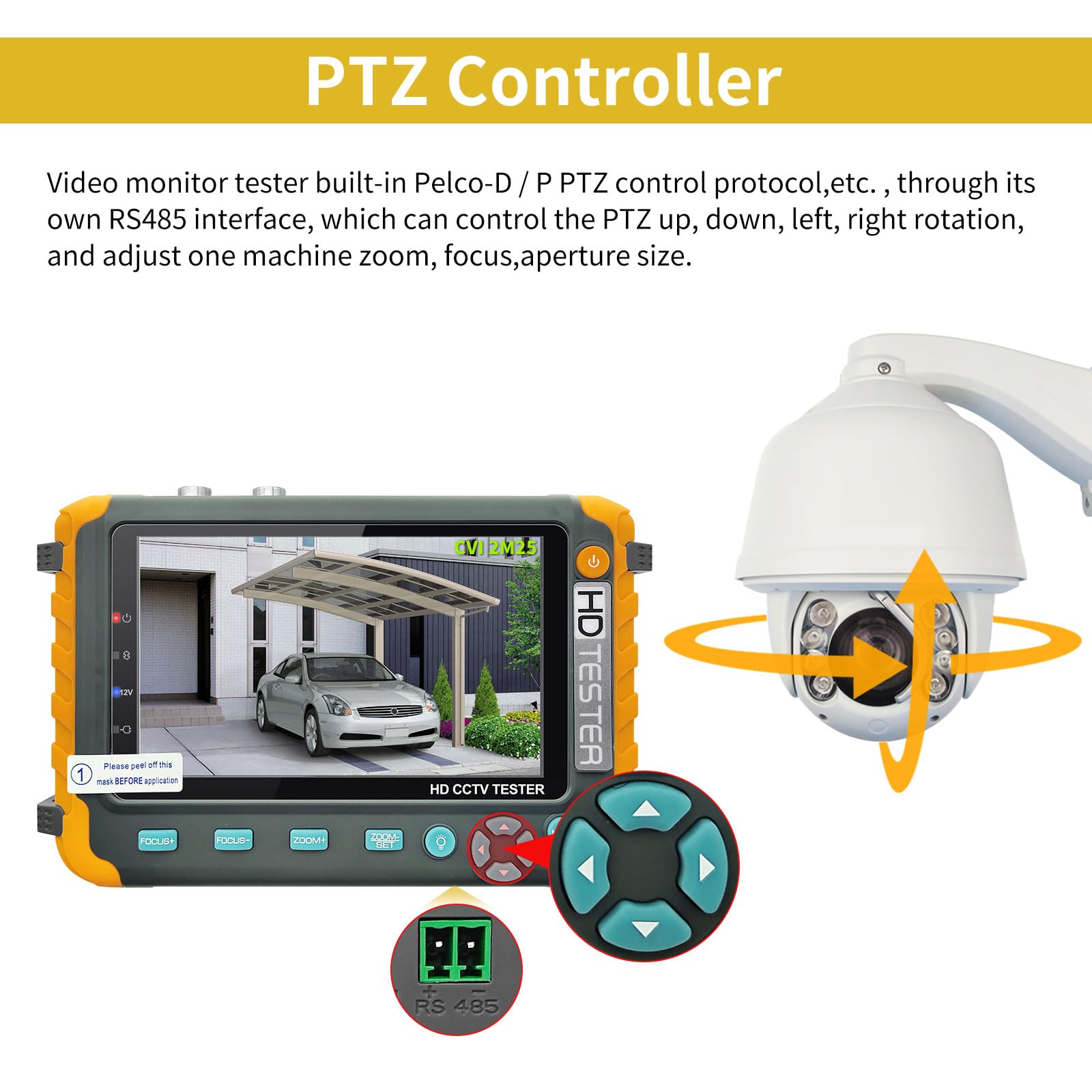

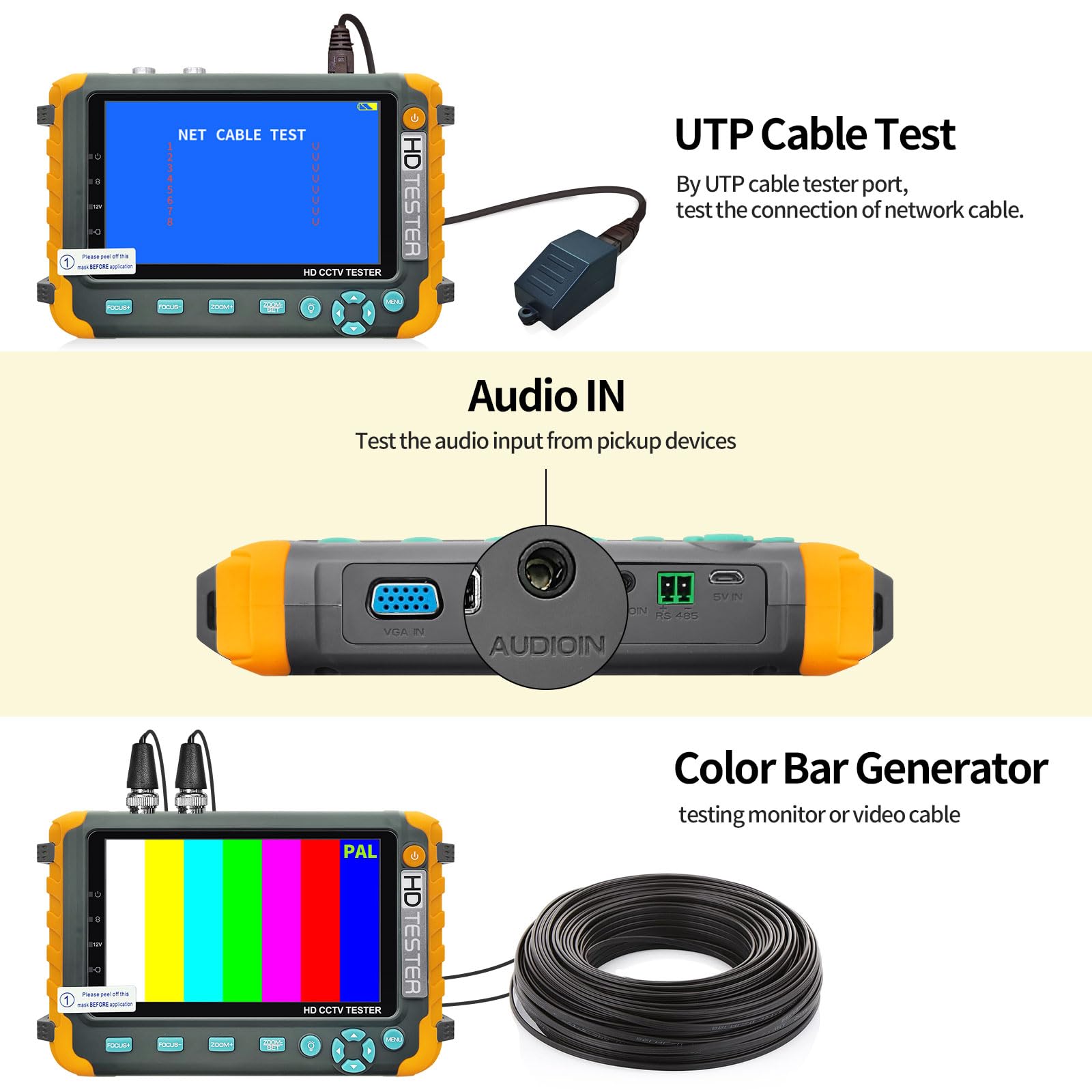

Henkion Multifunction CCTV Tester Monitor Coaxial Camera Tester The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). The 800*480 resolution enables it to display HD cameras and analog cameras in high resolution.It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc. 4 in 1 CCTV Tester Monitor Max 8MP TVI CVI AHD CVBS Coaxial Camera Tester HD code stream coaxial monitoring and testing instrument, supports Max 8MP ADH, TVI, CVI coaxial camera. ●TVI camera test. TVI coaxial high-definition video surveillance test, supporting 720P/960P/1080P/3MP/4M/5MP/8MP Resolution camera image test ●AHD camera test AHD coaxial high-definition video surveillance test, supporting 720P/960P/1080P/3MP/4M/5MP/8MP resolution camera image test ●CVI camera test CVI coaxial high-definition video surveillance test, supports 720P/960P/1080P/3MP/4M/5MP/8MP resolution camera image test. CVBS camera test: 1 channel BNC input, NTSC/PAL (Auto adapt). CVBS video format, supports up to 8MP high-definition video. Please note: 1. Only some cameras below 2MP are supported to display the OSD menu. Press and hold the menu button for 5 seconds to display the OSD menu of the camera. Other cameras do not support OSD menu. 2. CVI TVI AHD cannot automatically recognize and switch, and can only be manually switched and matched through the tester menu. 3. Please fully charge before use to avoid affecting your work experience. If there is a battery charging issue, please replace the battery for charging. VGA Input & HDMI Input VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode, Tester will be as a display. ●VGA input Support VGA video input, resolution supports 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 ●HDMI input Support HDMI video input, resolution supports 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 PTZ Controller The video surveillance tester has built-in PTZ control protocols such as Pelco-D/P. RS485 interface can control the up, down, left, right, zoom, focus, and aperture of the pan/tilt. UTP Cable Test Display UTP cable connection status cable typer and the sequence of wires as well as read the number of the test box. Color Bar Generator Image generator: Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section. LED & Audio Input Built-in LED lamp, it is useful for the engineer to install and maintain security system at night. 1 channel audio signal input, connect the tester and pickup device with the audio cable. Test whether the audio is normal. Interfaces Tester bright, vontrast, color saturation can be adjusted. Select your desired language, English, Chinese, Spanish Mode: TVI/CVI/AHD vedio format, please select the corresponding camera mode for testing. Packing Listing 1*HD coaxial CCTV tester monitor. 1*Adapter DC5V 1A (with USB cable) 1*International Standard 2600ma battery 1*BNC cable 1*RS485 connector 1*Power output conversion cable 1*Audio cable 1*Lanyard 1*Tool bag 1*Instruction Manual
