JRready ST5239-HT250 Portable Connector Inspection Tool Kit - Automotive Contact Retention Dynamometer & Removable Electrical System Tester Set for Wiring Harness, ECU Diagnostics (Ideal for Mechanics & DIY Auto Repair)

$136.95

$249

Safe 45%

JRready ST5239-HT250 Portable Connector Inspection Tool Kit - Automotive Contact Retention Dynamometer & Removable Electrical System Tester Set for Wiring Harness, ECU Diagnostics (Ideal for Mechanics & DIY Auto Repair)

$136.95

$249

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

25 people viewing this product right now!

SKU: 17314542

Guranteed safe checkout

Description

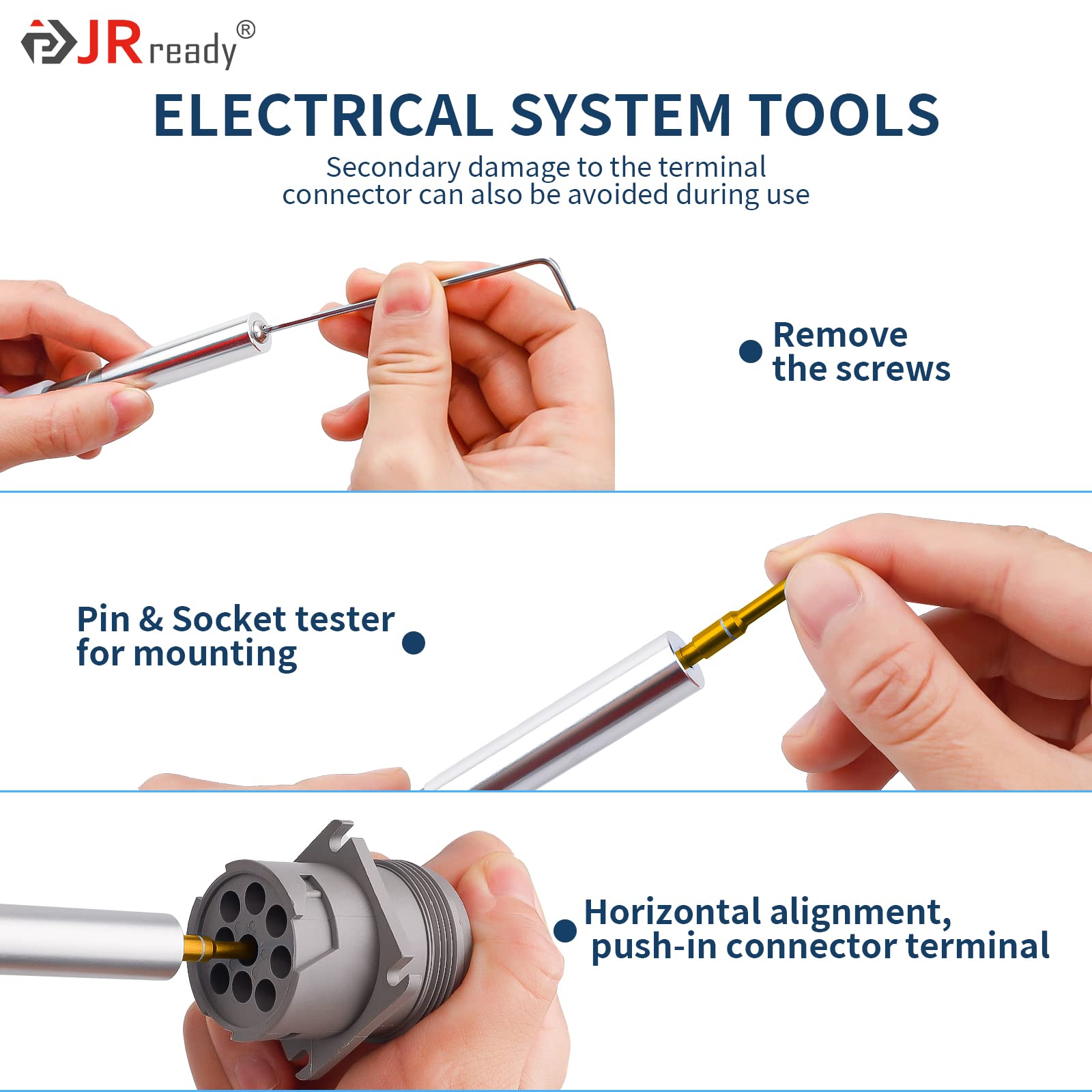

PLEASE NOTE 1. Each tool in the factory when its force value has been adjusted, if necessary, please adjust its force value 2. Remove the protective cap and loosen the lock nut (5/16" spanner) so that the adjusting screw can be freely adjusted 3. Place the tool on the tension tester to adjust the force, if there is no suitable tester, you can adjust manually Each Tool Has A Line Force Indicator That Has Been Set At The Factory 1. Insert the tester into the contact head. the tool must be in a straight line with the contact. 2. Using the standard, set the tool to the required force. 3. Wear safety glasses when using. 4. Apply pressure towards contact until slide aligns with indicator line and hold tester in position for at least 2 seconds, contact should remain in place if retention force is up to standard. 5. The tool should be checked every 2000 times to verify the force of the indicator line, and should be returned to the tool box in a dry and clean place when used up. 6.Tips fit standard M39029. ST6260 ST6255 ST5211 ST5236 ST6327-2 ST6328 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 156 4.7 out of 5 stars 360 4.6 out of 5 stars 573 4.7 out of 5 stars 172 4.6 out of 5 stars 236 4.4 out of 5 stars 16 Price $30.99$30.99 $15.99$15.99 $21.99$21.99 $49.00$49.00 $13.49$13.49 $36.89$36.89 ST6260 DTM Series Connector Closed Barrel Terminals Kit ST6255 Deutsch Stamped Contacts DT Connector Terminal Kit Size 16 Terminal Extractor Tool for Weather Pack/Metri Pack Connector Series Terminal Extractor Tool for Deutsch DT,DTM,DTP Series Deutsch 2 Pin DT Connector Kit, Gray Waterproof DT Connector 2 Pin(5 Pairs), Size 16 Stamped Contacts JRready ST6328 Deutsch Waterproof DT Connector 2, 3, 4, 6, 8, 12 Pin

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Package IncludeHT250-1+HT250-2+HT250-3+HT250-4+HT250-5+HT250-6+67-008-1+68-008-1+67-012-1+68-012-1+67-016-1+68-016-1+67-020-1+68-020-1+67-022-1+68-022-1+67-023-1+68-023-1+67-024-1+68-024-1+67-026-1+68-026-1

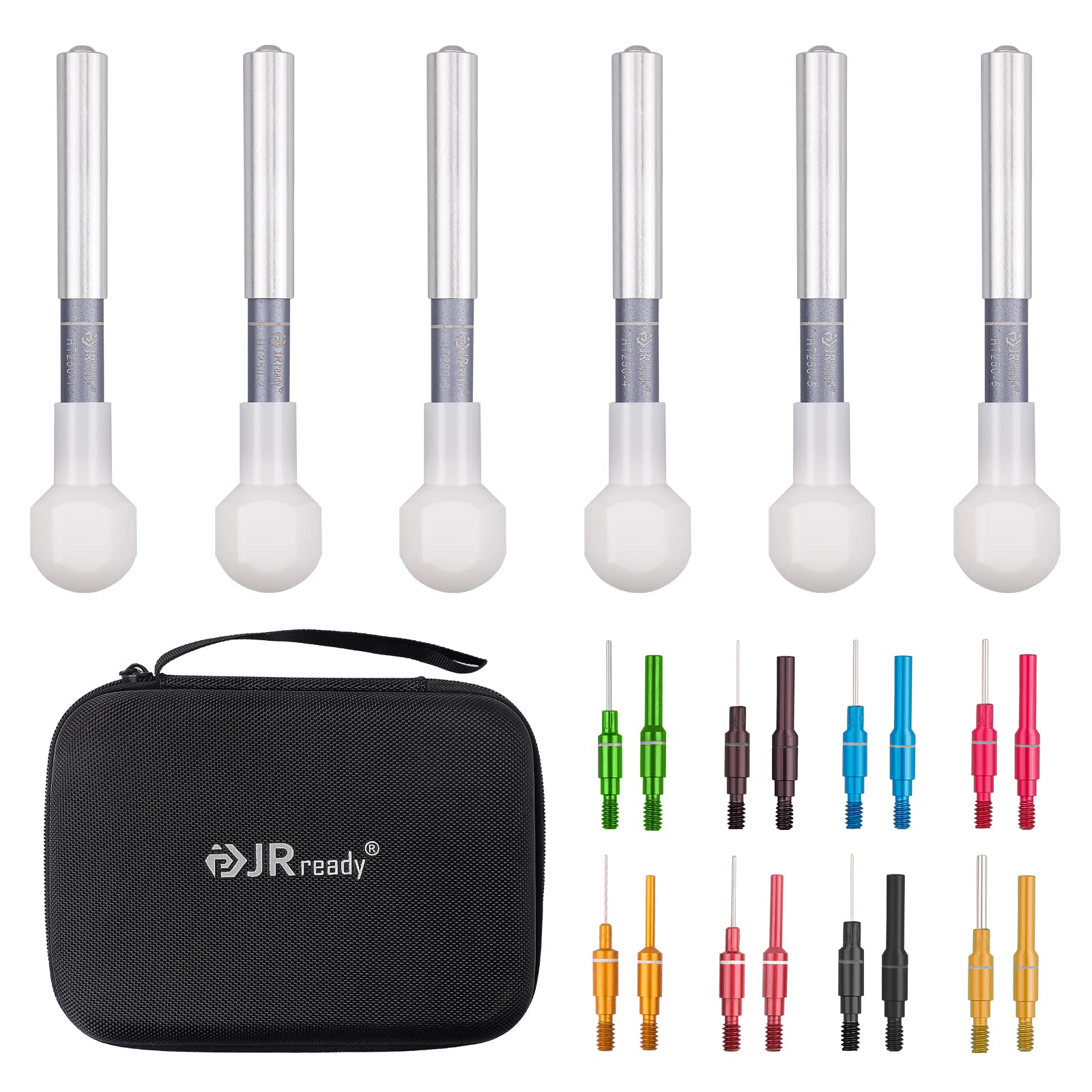

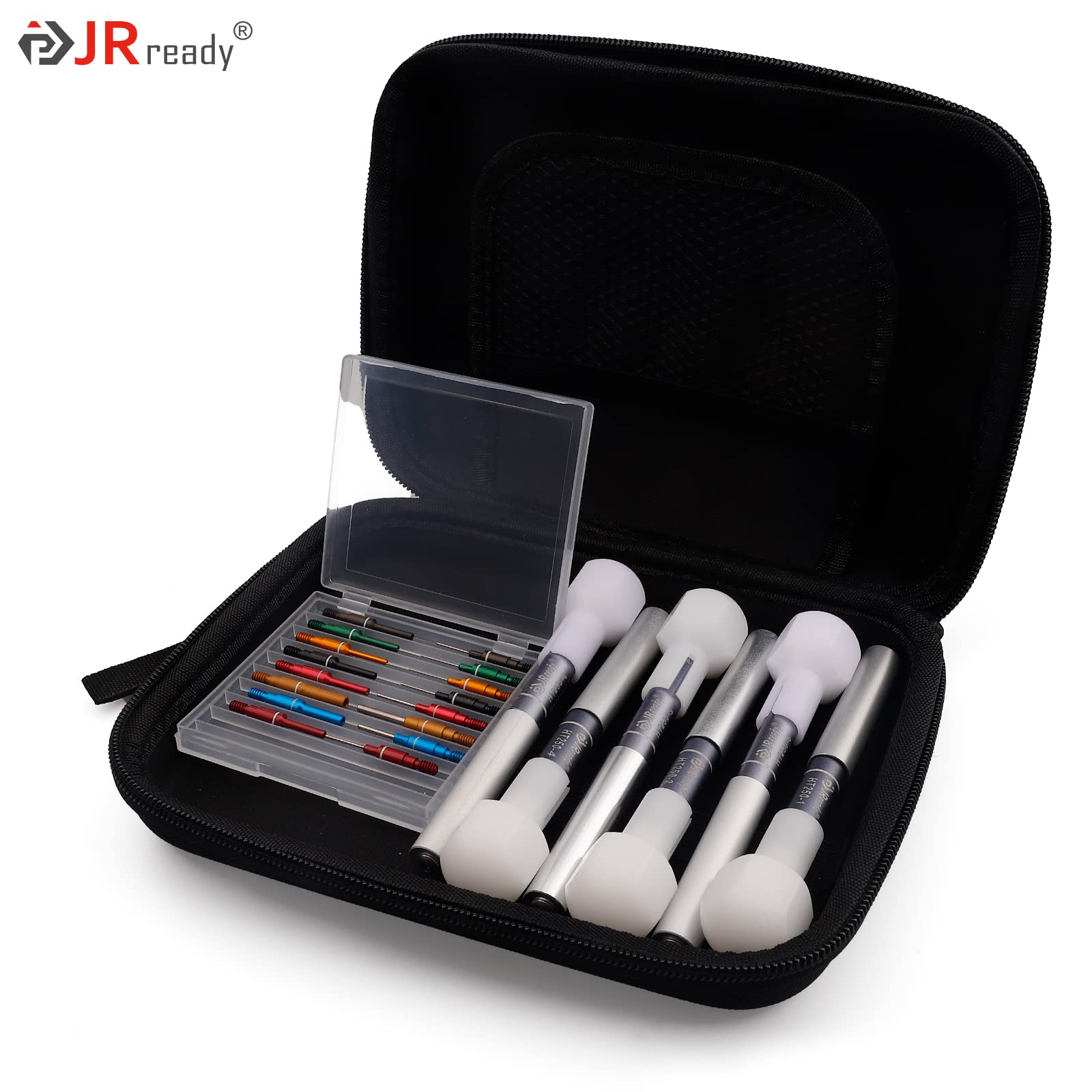

Upgraded And Professional Tool Kit：22-in-1 contact retention test tool set design，equipped with a storage case, easy to carry 6 force retention test tool and 16 force socket & pin tester tip devices

Small & Powerful This small electrical tool kit is easy to use,insert the contact tester tool into the terminal head of the connector. Keep the same axis horizontal and increase the force.You can see if the retention force in the connector is adequate

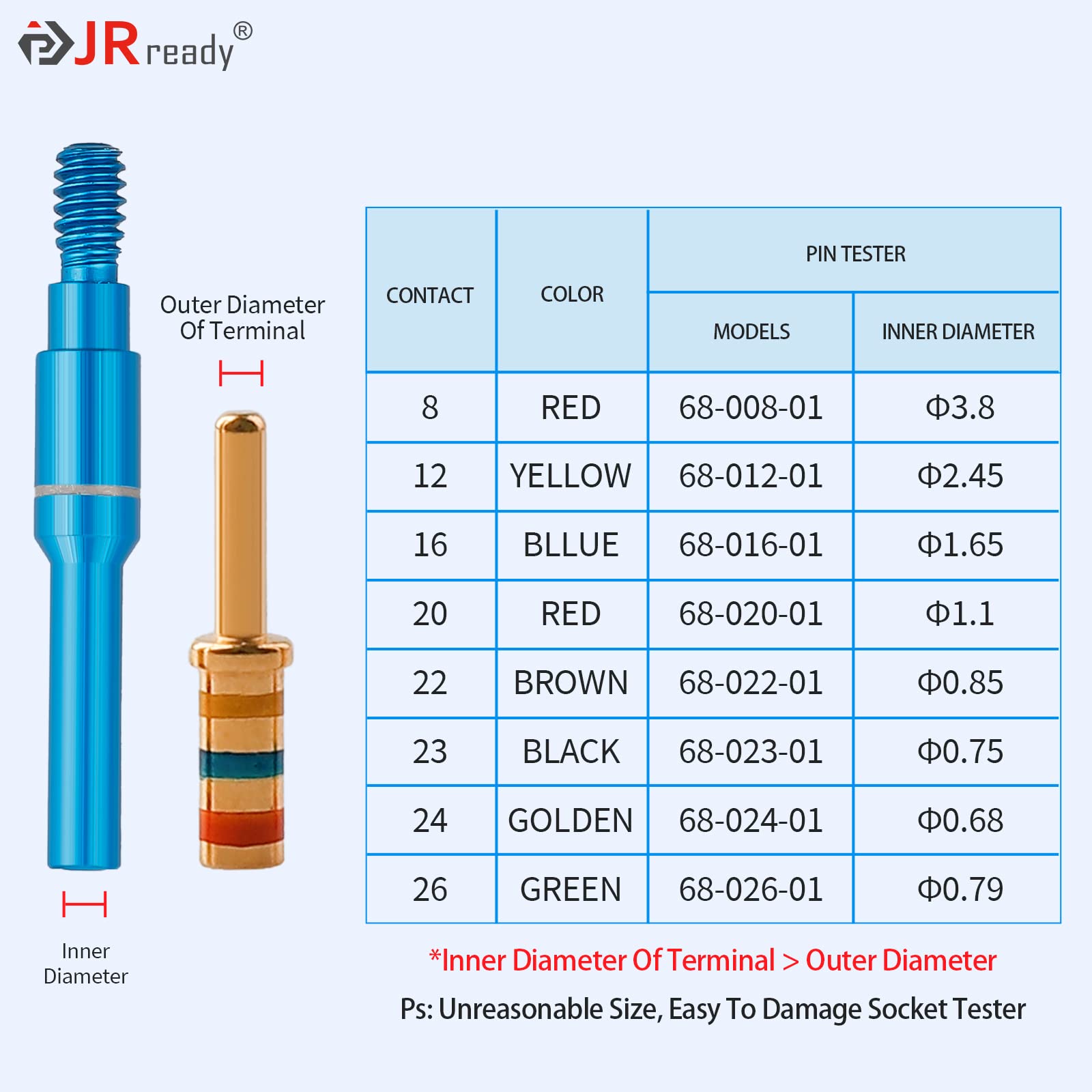

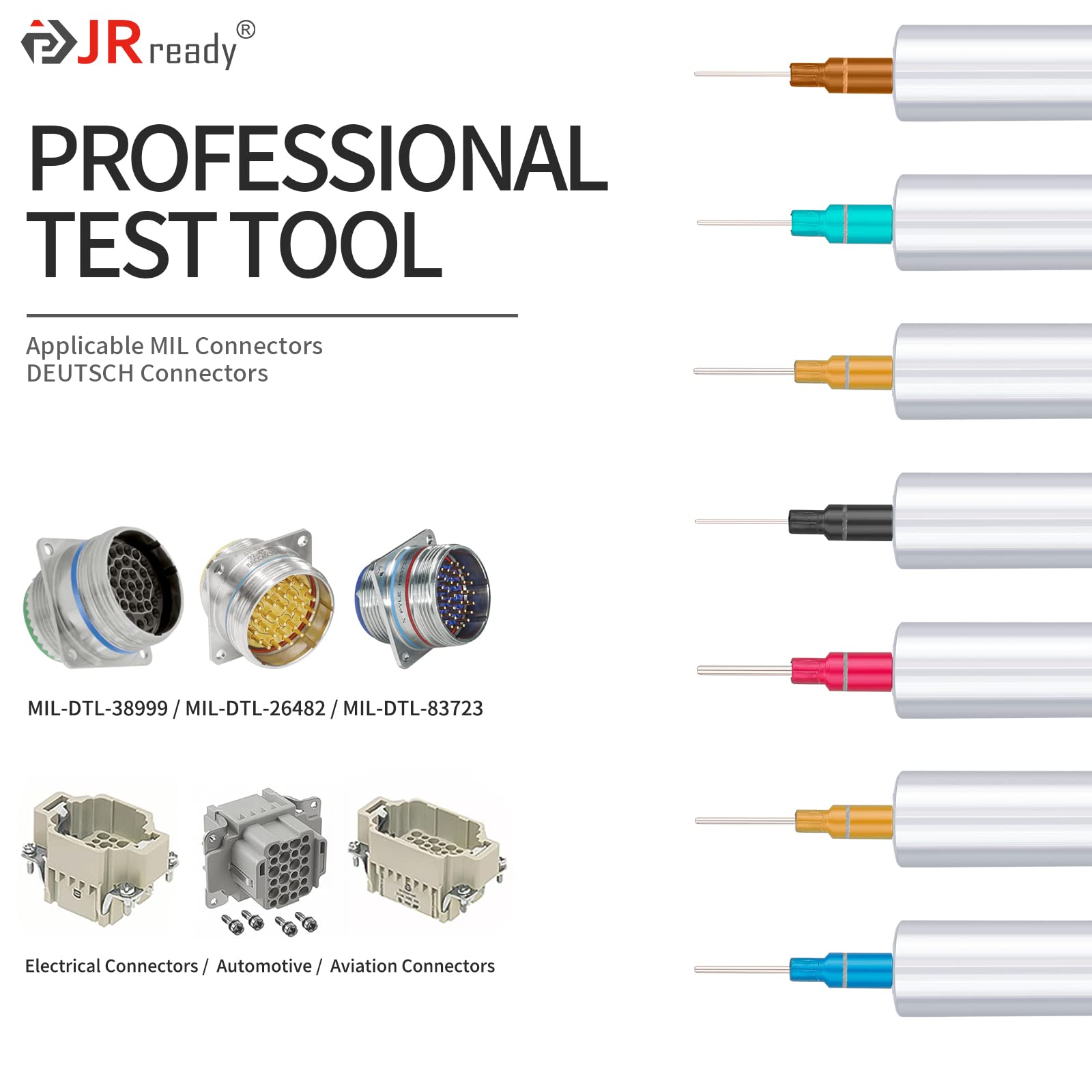

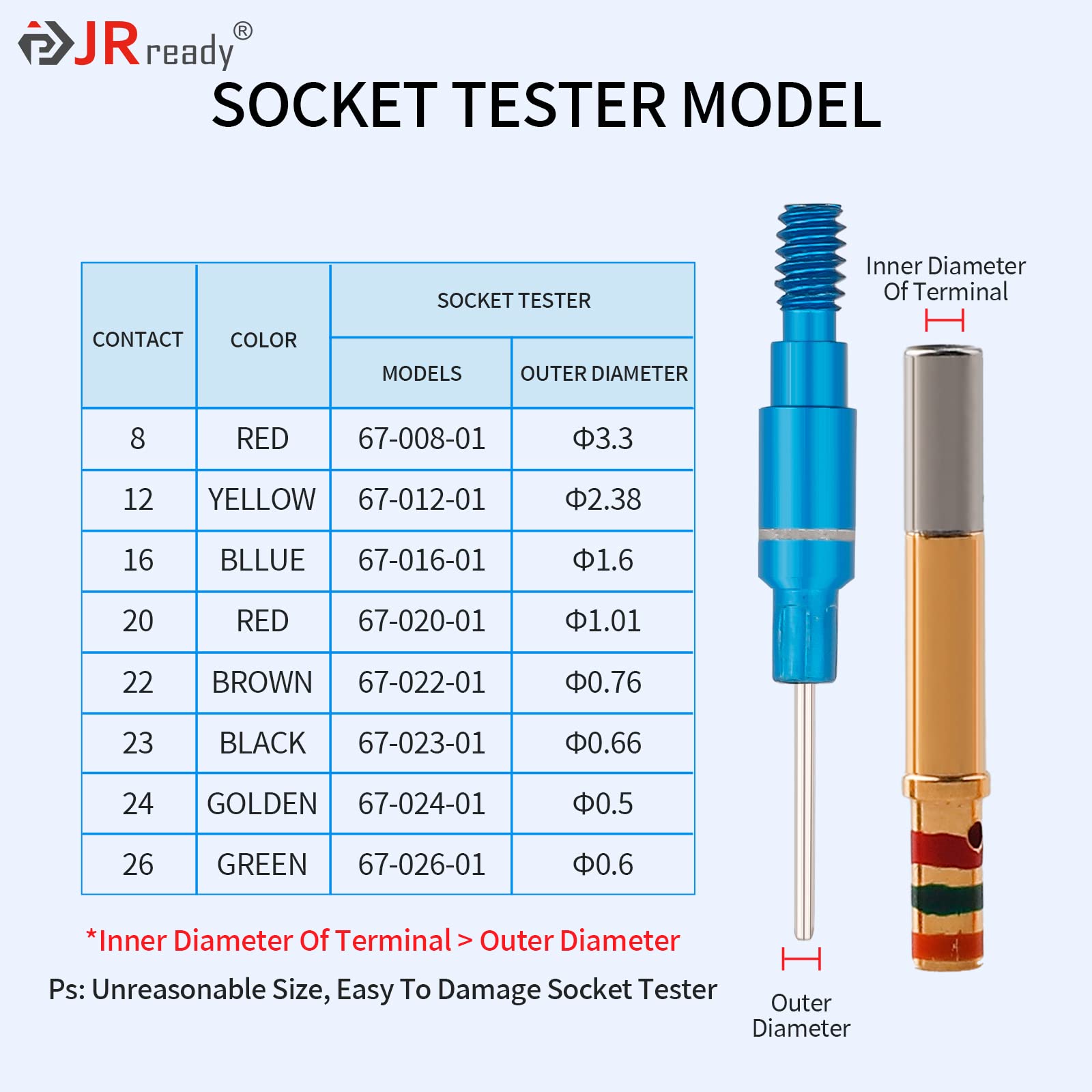

The appailcation pin and socket tester tips for 8# 12# 16# 20# 22# 22M# 22D# 23# 24# 26 #contact，Various specifications of the connector inspection (Socket&Pin Tester Tip) kit can easily meet different needs，Suitable for the harness electrical connector terminal aerospace etc

Standards indicator line and durable Automotive contact tester has comfortable grip and standard line design, and all retention test tools are made of aluminium alloy with small size, light weight, good corrosion resistance

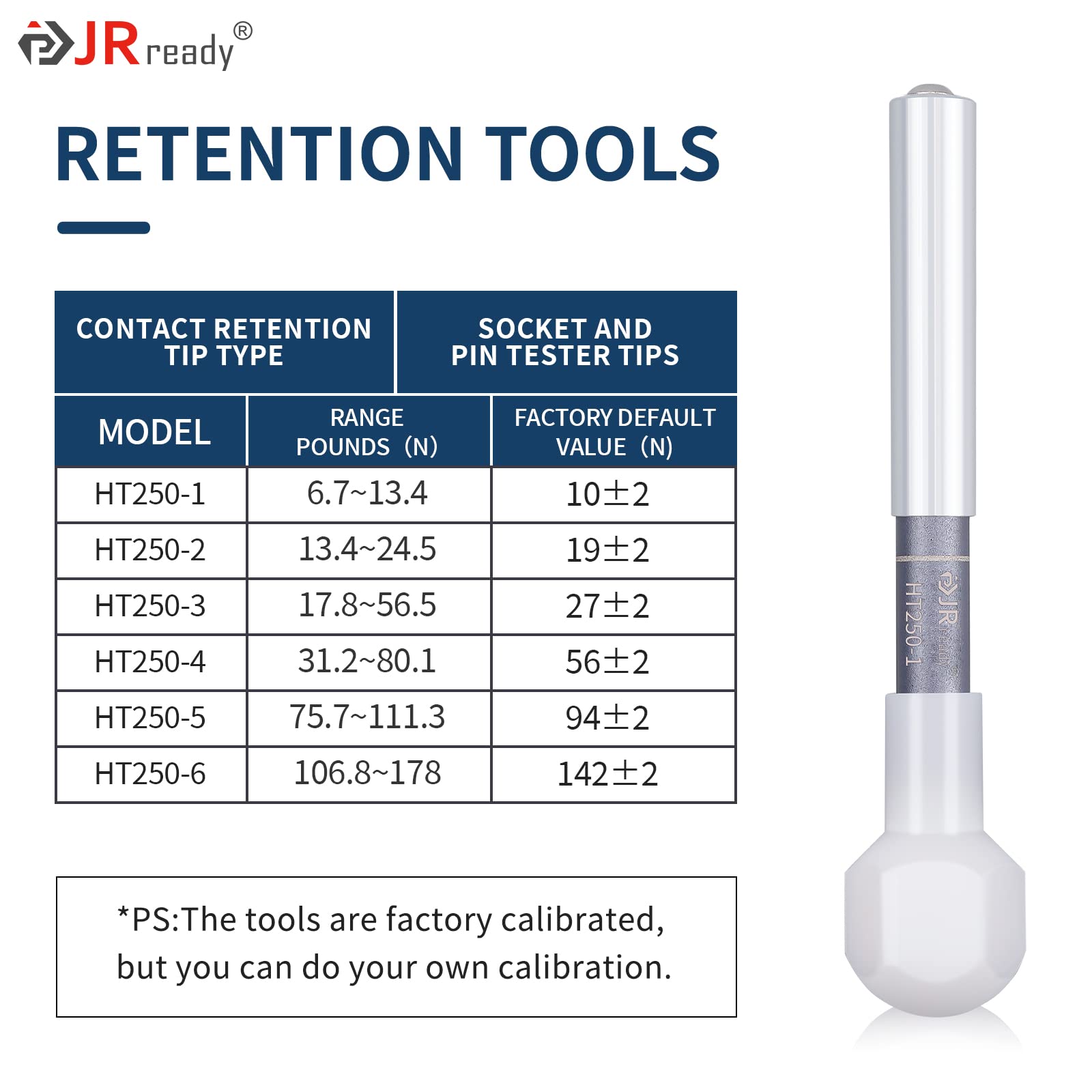

Retention Test Calibrated Force =1.5 THRU 3.0 & 3.2 THRU 5.5 & 4.0 THRU 8.0 & 7.0 THRU 18.0 & 17.0 THRU 25.0 & 24.0 THRU 40.0
