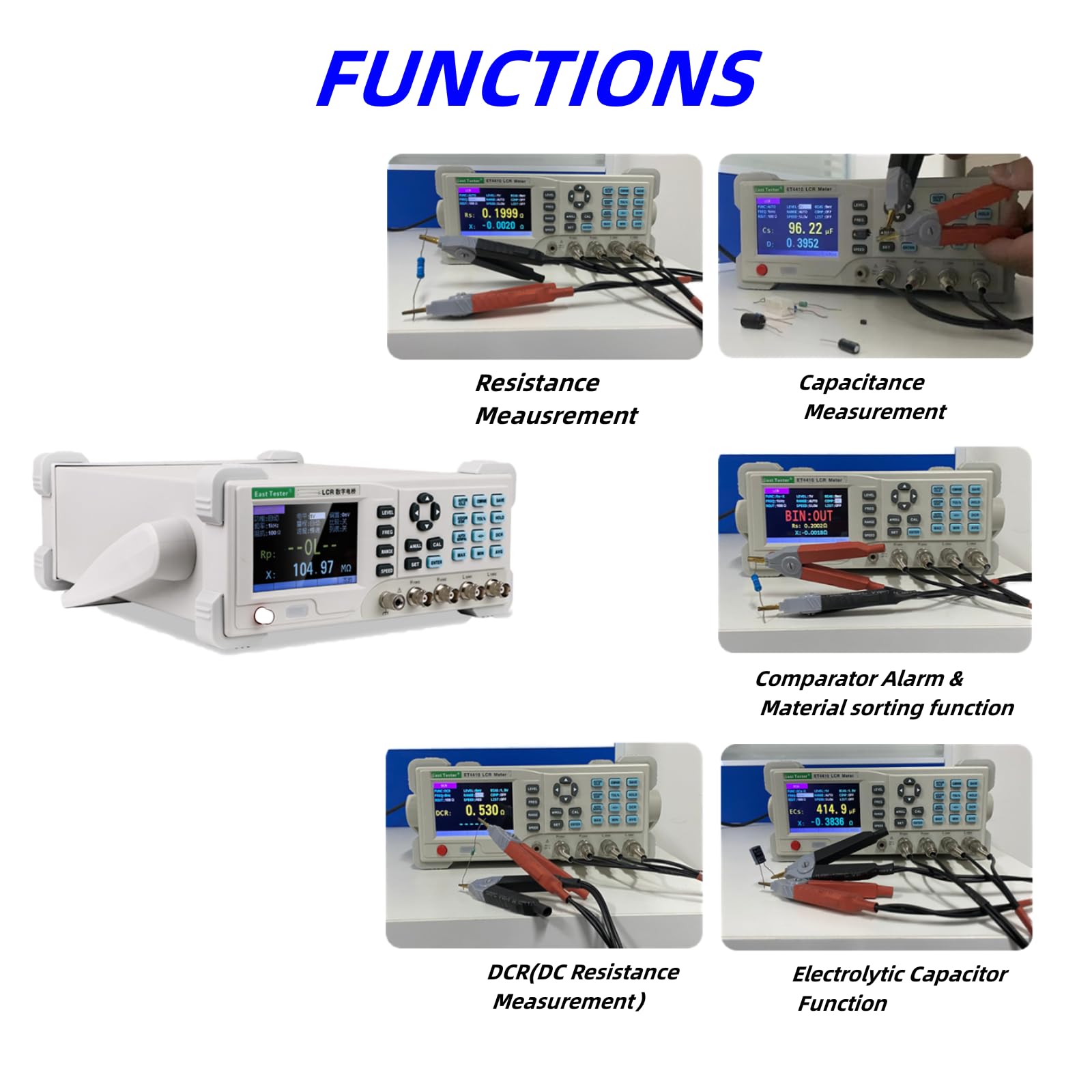

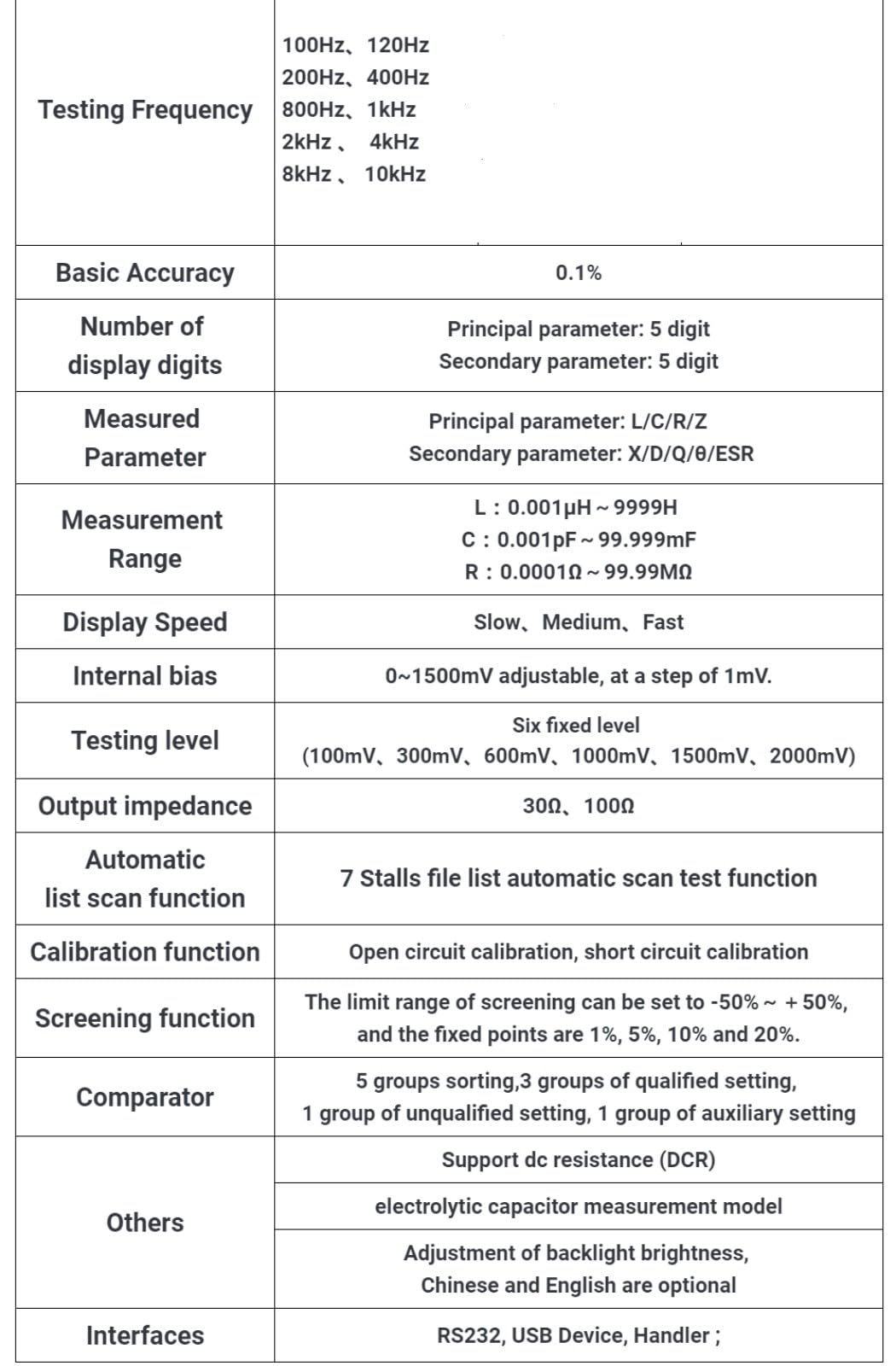

ET1090A LCR digital bridge is a component parameter analyzer based on the principle of automatic balancing bridge. Its 100Hz-10kHz test bandwidth, frequency continuous adjustable, 0.1% basic measurement accuracy and the file classification function provided by the instrument provide accurate and complete measurement and analysis for most components and materials, which are widely suitable. Used in product development, component inspection, product on-line inspection and other applications. Product characteristics:¤ The highest measuring frequency is 10kHz, as 100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K；¤ Test level 0.1V, 0.3V, 0.6V, 1V, 1.5V, 2V; ¤ Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement; ¤ Internal bias voltage output 0mV~1500mV; ¤ 3.5-inch TFT display, 5-bit display; ¤ Data recording function (maximum, minimum, average); ¤ Supporting SCPI Communication Protocol; ¤ Provide system settings to configure Chinese or English, buzzer, screen brightness, etc; ¤ The basic measurement accuracy is 0.1%; ¤ Manual and automatic range; ¤ With open circuit and short circuit calibration function; ¤ Comparator sorting (5 gears), alarm function.
