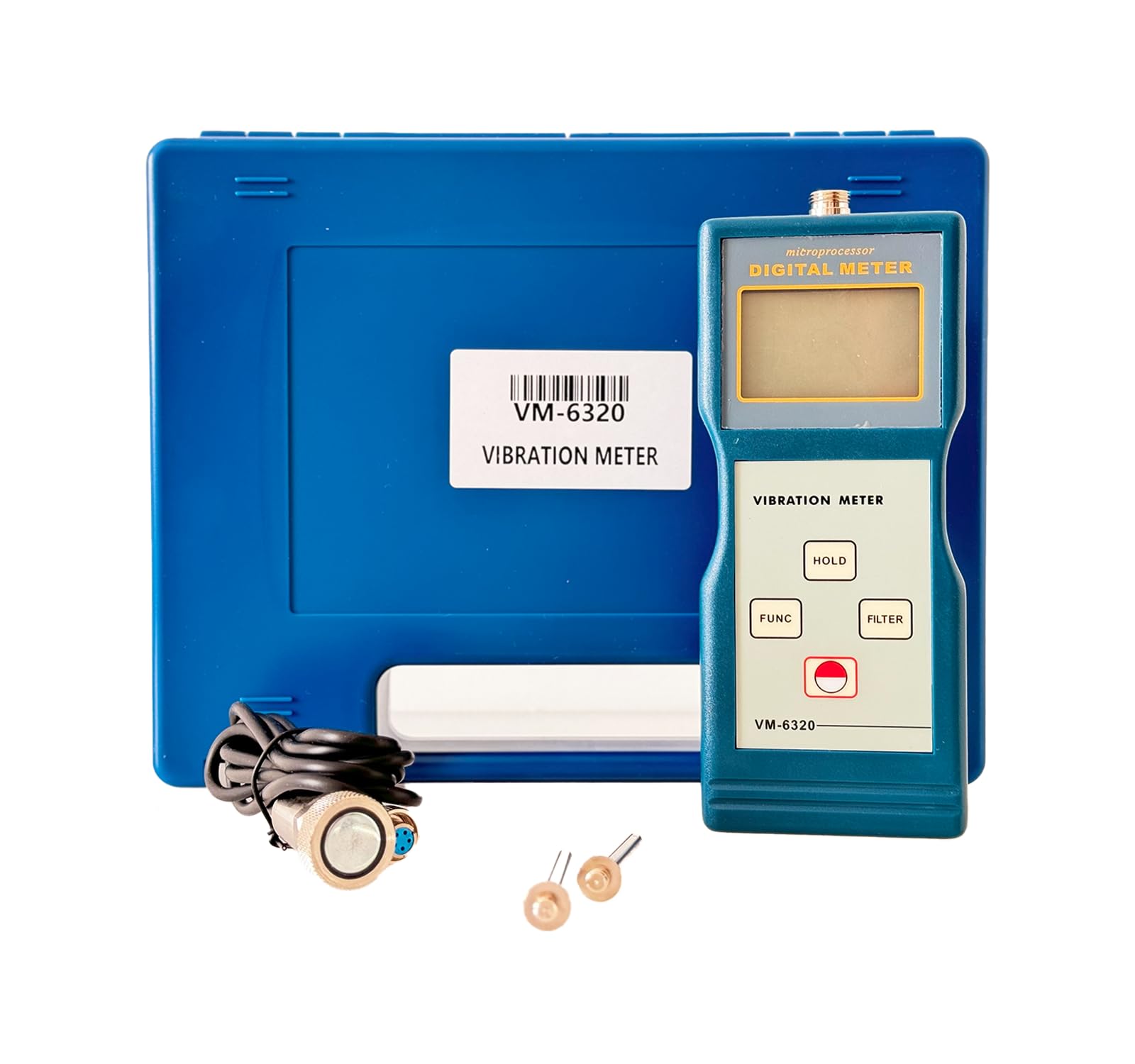

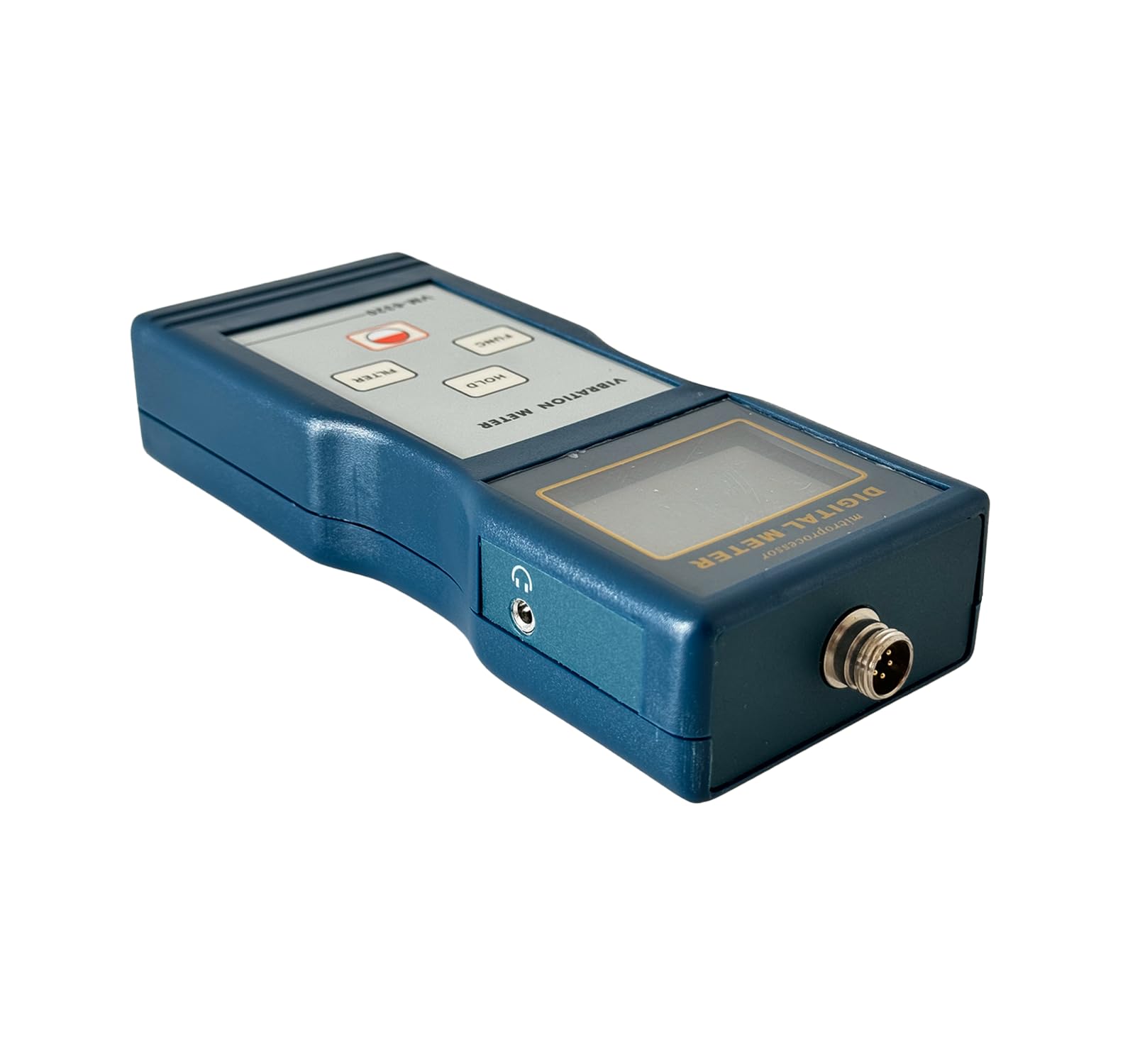

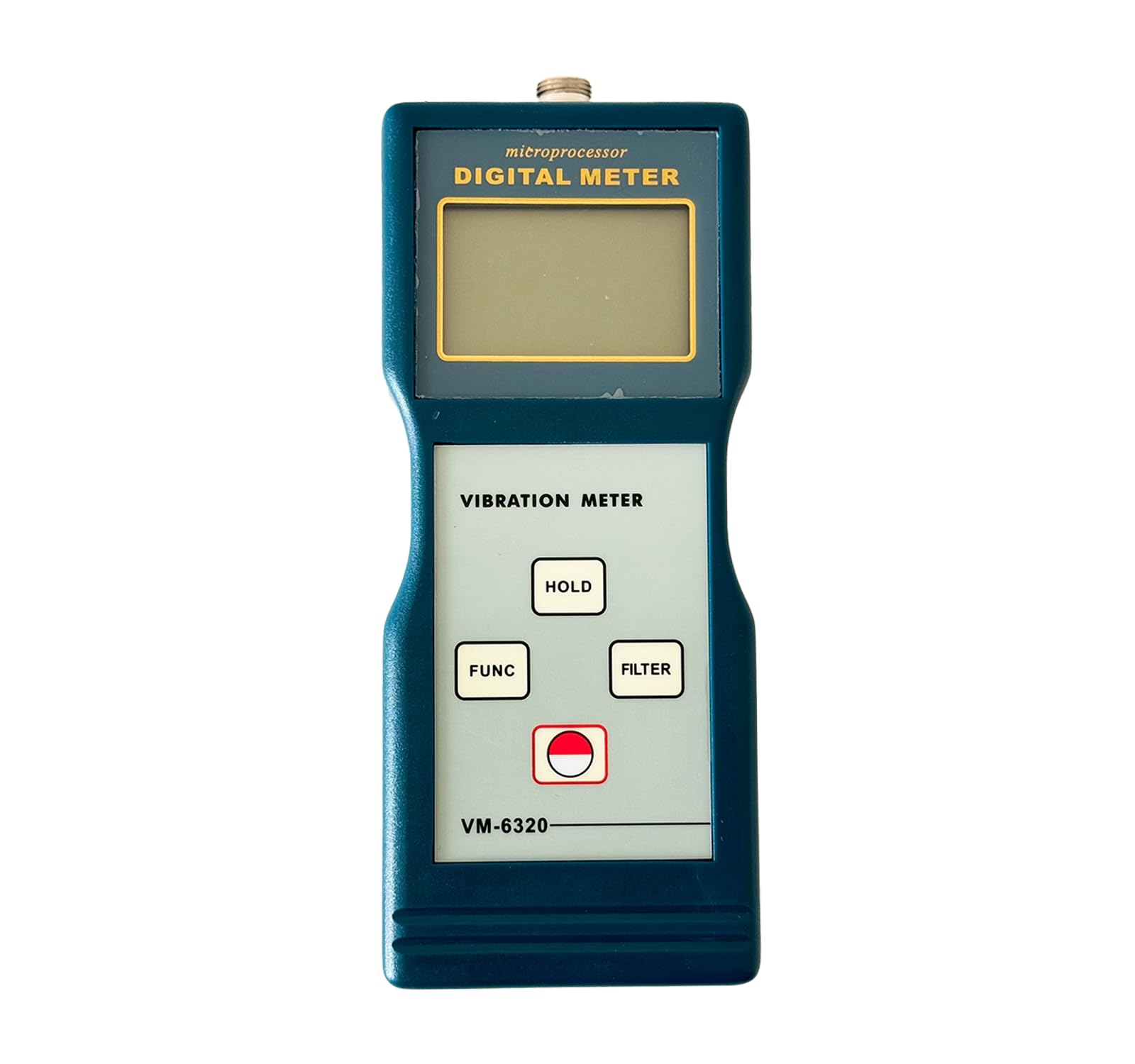

VM-6320 Digital Vibration Meter Tester | Portable Vibration Gauge for Machinery Monitoring | Measure Mechanical Vibrations in Motors, Pumps & Rotating Equipment | Industrial Maintenance & Equipment Diagnostics Tool

$142.17

$258.5

Safe 45%

VM-6320 Digital Vibration Meter Tester | Portable Vibration Gauge for Machinery Monitoring | Measure Mechanical Vibrations in Motors, Pumps & Rotating Equipment | Industrial Maintenance & Equipment Diagnostics Tool

$142.17

$258.5

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

14 people viewing this product right now!

SKU: 25964139

Guranteed safe checkout

Description

Features In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.VM-6320 digital vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.Individual high quality ccelerometer for accurate and repeatable measurements.Bearing condition monitoring function.Use USB/RS-232 data output to connect with PC. (optional accessory) Model Comparision VM6310 VM6320 VM6360 VM6370 VM6380 Software Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $180.00$180.00 $258.50$258.50 $289.52$289.52 $305.00$305.00 $422.50$422.50 $87.00$87.00 Sensor Piezoelectric Transducer Piezoelectric Transducer Piezoelectric Transducer Piezoelectric Transducer 3-Axis Piezoelectric Accelerometer This software is also compatible with VM series vibration meters. Measuring Range (Acceleration) ✘ 0.1~199.9 m/s2 Equivalent Peak 0.1~400 m/s2 Equivalent Peak 0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak 0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak no data Measuring Range (Velocity) 0.01~199.9 mm/s True RMS 0.01~199.9 mm/s True RMS 0.01~400 mm/s True RMS 0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS 0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS no data Measuring Range (Displacement) ✘ 0.001~1.999 mm Equivalent Peak-peak 0.001~4.0 mm Equivalent Peak-peak 0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak 0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak no data Frequency Range (Acceleration) ✘ 10Hz~10kHz 10Hz~10kHz 10Hz~10kHz 10Hz~10kHz no data Frequency Range (Velocity) 10Hz~1kHz 10Hz~1kHz 10Hz~1kHz 10Hz~1kHz 10Hz~1kHz no data Frequency Range (Displacement) ✘ 10Hz~1kHz 10Hz~1kHz 10Hz~1kHz 10Hz~1kHz no data

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

VM-6320 vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

VM6320 vibration meter is in accordant with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

Acceleration 0.1m/s²-199.9m/s² Equivalent Peak; Velocity 0.01mm/s -199.9mm/s True RMS; Displacement 0.001mm-1.999mm Equivalent Peak-peak.

10Hz-10kHz wide frequency range in acceleration mode.

VM-6320 vibration meter is specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

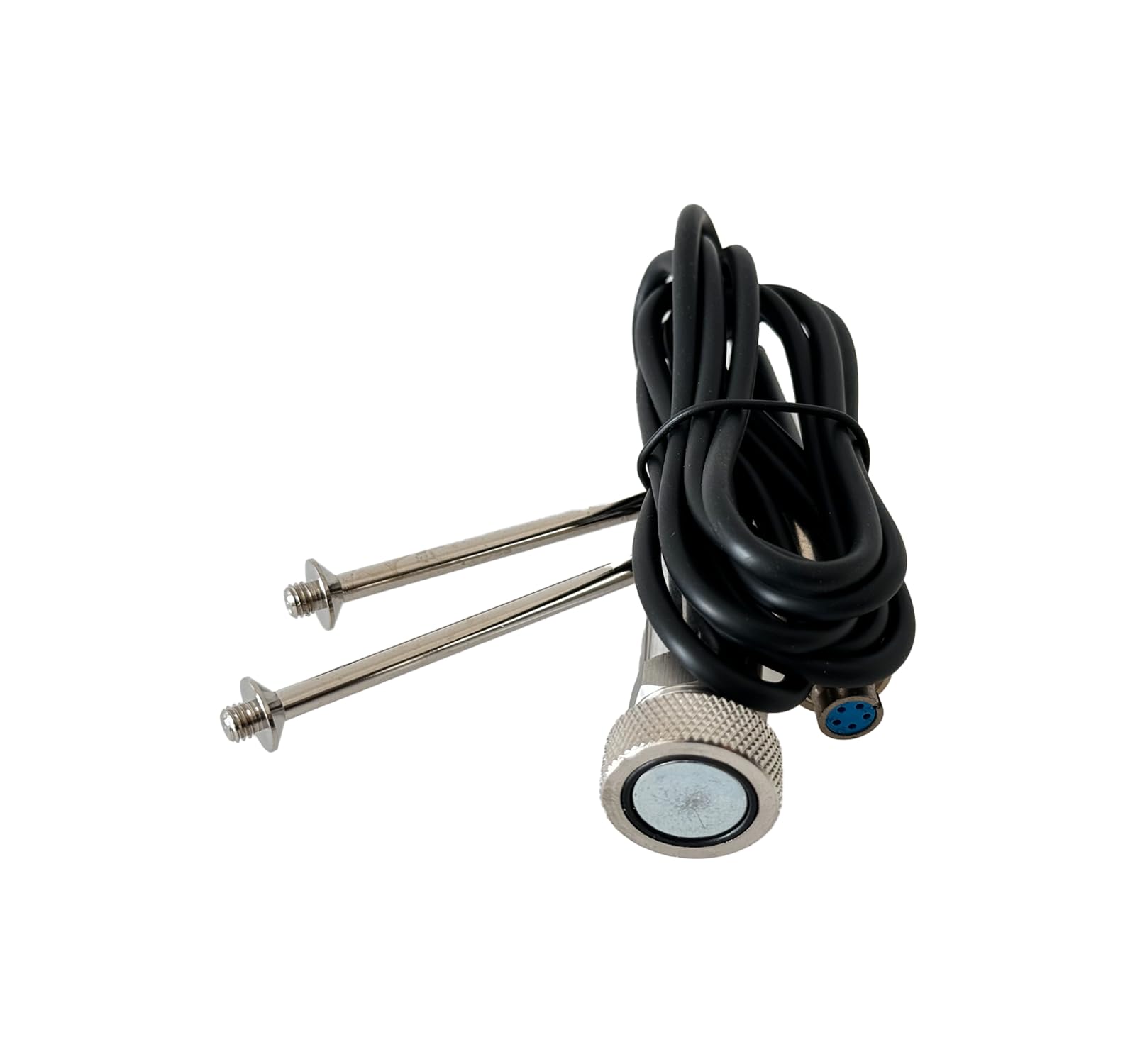

Individual high quality ccelerometer for accurate and repeatable measurements.

Bearing condition monitoring function.
