High Accuracy 0.3% LCR Meter - Handheld Digital Bridge with TFT Display, Capacitance & Inductance Tester, Portable Multifunction Multimeter with Rechargeable Battery for Resistance & Transistor Testing (ET430) - Perfect for Electronics Repair, Lab Testing & Component Analysis

$82.49

$149.99

Safe 45%

High Accuracy 0.3% LCR Meter - Handheld Digital Bridge with TFT Display, Capacitance & Inductance Tester, Portable Multifunction Multimeter with Rechargeable Battery for Resistance & Transistor Testing (ET430) - Perfect for Electronics Repair, Lab Testing & Component Analysis

$82.49

$149.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

17 people viewing this product right now!

SKU: 28044881

Guranteed safe checkout

Description

ET430B LCR Meter ET430 LCR Meter ET431 LCR Meter ET432 LCR Meter ET433 LCR Meter Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 4 5.0 out of 5 stars 4 5.0 out of 5 stars 4 5.0 out of 5 stars 4 5.0 out of 5 stars 4 Price $149.99$149.99 $149.99$149.99 $179.99$179.99 $209.99$209.99 $329.99$329.99 Test Frequency 10kHz 100kHz 10kHz 100kHz 100kHz Frequency Quantity 4 6 4 6 1Hz Continuous Adjustable Frequency Point 100Hz,120Hz,1kHz,10kHz 100Hz, 120Hz,1kHz,10kHz,40kHz,100kHz 100Hz, 120Hz,1kHz,10kHz 100Hz,120kHz,1kHz,10kHz,40kHz,100kHz 100Hz-100kHz,1Hz Continuous Adjustable Basic Accuracy 0.3% 0.3% 0.2%% 0.2% 0.2% Filter Function ✓ ✓ ✓ ✓ ✓ Deviation Measurement ✓ ✓ ✓ ✓ ✓ Electrolytic Capacitor no data ✓ ✓ ✓ ✓ DCR no data no data ✓ ✓ ✓ Interior Collocation no data no data 0-500mV, 1mV Continuous Step Adjustable 0-500mV, 1mV Continuous Step Adjustable 0-500mV, 1mV Continuous Step Adjustable Testing Level 0.6V 0.3V,0.6V 0.1V,0.3V,0.6V,1V 0.1V,0.3V,0.6V,1V 0.01V-1.1V 1mV Continu ous Step Adjustable ET430/ET431/ET432/ET433 Multifunction Handheld LCR Digital Bridge Meter Capacitance Inductance Resistance Meter Tester ET43 series hand-held bridge sets 2.8 inch TFT display, flexible and convenient button operation and full speed USB communication in one; large capacity lithium battery can ensure long-term work. Functionally, it has not only comprehensive measurement parameters, but also deviation measurement and screening. The output frequency can be continuously adjusted. High Precision Measurement The measurement accuracy can reach 0.3%.Main parameter resolution is four and a half digits.Secondary parameter resolution is 0.0001.Measurement frequency:100Hz,120Hz,1kHz,10kHz, 40KHz,100Khz.Measurement level: 0.6Vrms,0.3Vrms. 3 Measuring Speeds & TFT Color Display LCR meter supports manual range and automatic range. Choose the appropriate measurement speed according to the nature of automatic components. Screen has a backlight and the brightness is adjustable, so you can read accurately even in dark condition. USB Data Transmission & PC Remote Control LCR tester can transmit the measured data to the PC for easy storage, viewing or analysis of data. Multimeter supports SCPI protocol, which can realize the remontrol of the device by PC. Data Hold and Record The data hold function is used to freeze the displayed data, and the data on the screen will not be updated as the measurement pro" ceed. If the measured data of the device under test has poor stability and fluctuates, data recording can be used to acquire readings. High Precision Measurement 3 Measuring Speeds & TFT Color Display USB Data Transmission & PC Remote Control Data Hold and Record Handheld Digital LCR Meter Specification Information Removable Silicone Sheath & Support Frame The meter is designed with a retractable and hidden support frame. Anti-collision, anti-dust,anti-high temperature removable protective cover for easy cleaning. Fix alligator test clips to prevent loss. Weight & Size Weight :400g. Size:7.28*3.35*1.57inches. Small and light, easy to carry when working. Multiple Measurements LCR meter supports DC resistance, inductance and capacitance measurement, automatic identification of component measurement, and screening and deviationmeasurement. Packing List LCR Meter Multimeter Tester*1, LCR Meter instruction manual*1, Short Circuit Plate*1, Alligator Test Clip*1 CD*1, Power Plug*1, USB data cable*1, Color box packing. Kelvin alligator pliers test line * 1 Open/Short Ciycuit Correction Open circuit reset Eliminate stray admittance of test line, test fixture and tested component in parallel Short circuit reset Eliminate the residual impedance between the test line and the test fixture in series with the tested element Adjustable Measuring Speed Handheld digital LCR meter automatic range can displays the results in the fast, medium, or slow modes. Provide System Settings Set LCR bridge multimeter language type, automatic shutdown, screen brightness adjustment, power on setting, buzzer function. Low Power Rechargeable Battery & Automatic Shutdown Bullt-In 2600mAh large-capacity rechargeable battery, low power consumptlon, providing you with longer use time and standby. Multiple time periods are optional to be set(5)15/30/60 minutes) to shut down.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

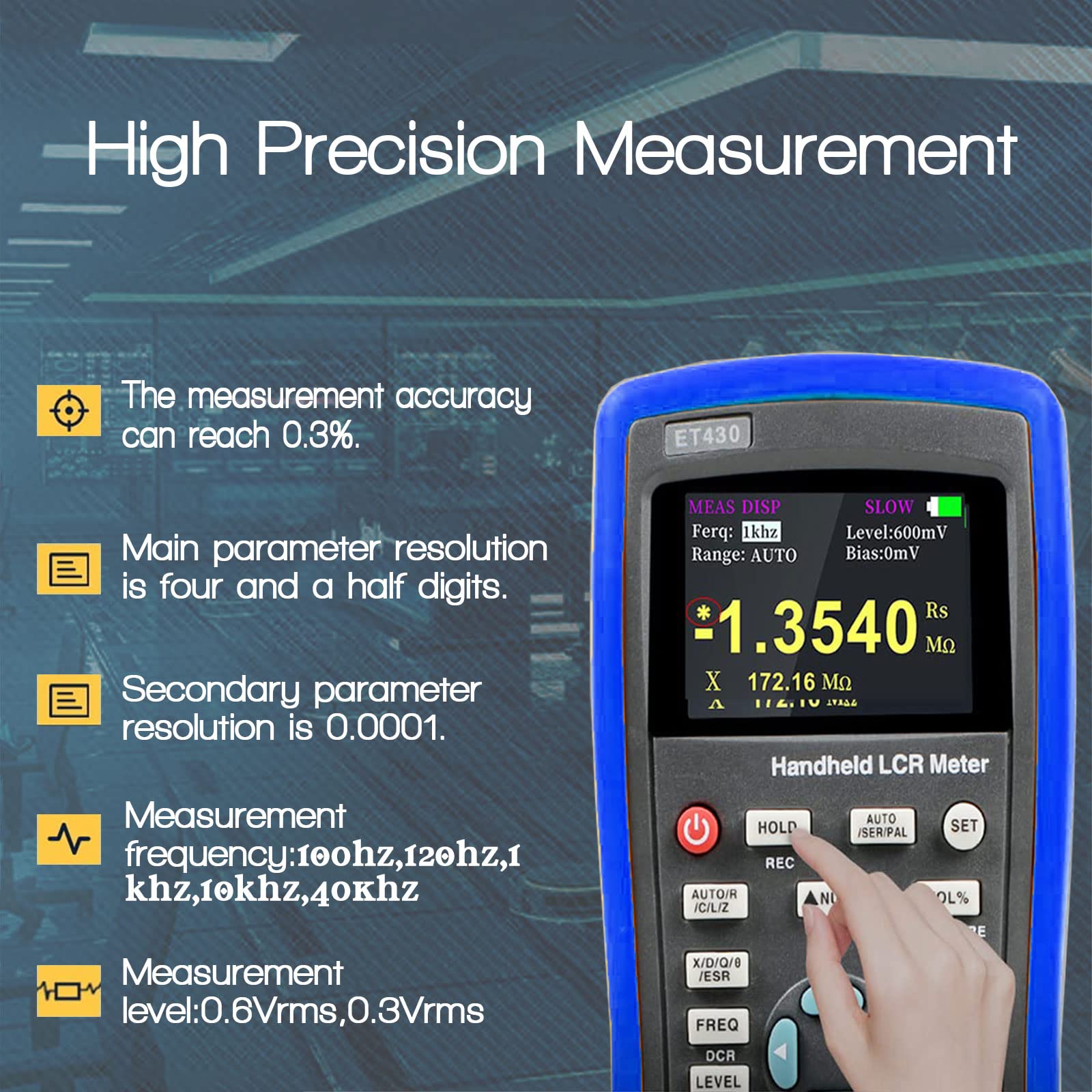

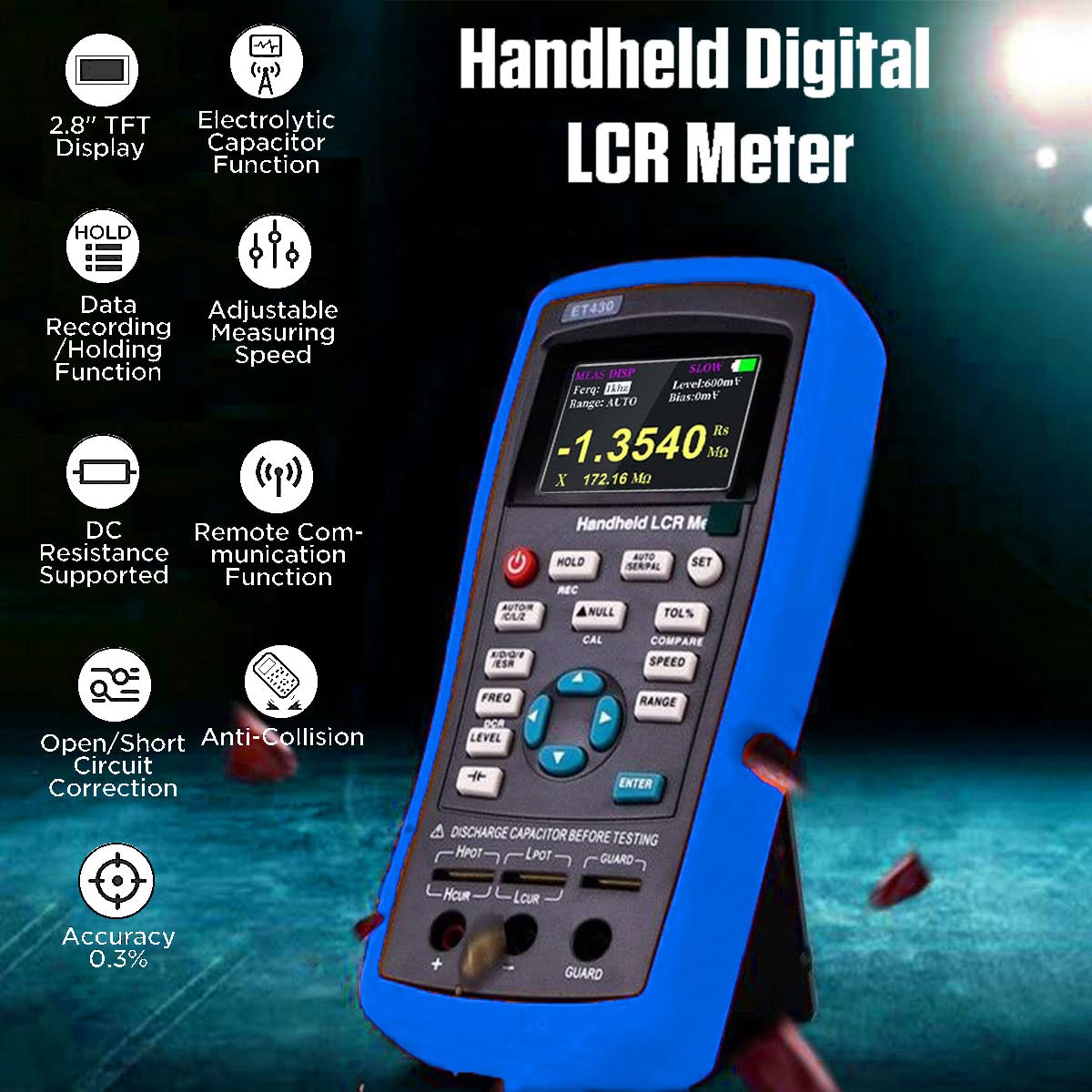

【Multiple Accurately Measurements LCR Meter】LCR meter supports DC resistance, inductance, Measurement of impedance and capacitance measurement, automatic identification of component measurement, and screening and deviation measurement. LCR meter has 2 test level points, 6 test frequency points, measurement frequency is up to 100KHz, and accuracy is up to 0.3%. It can be widely used in electronic equipment maintenance, electronic engineering development, technology R&D and other fields.

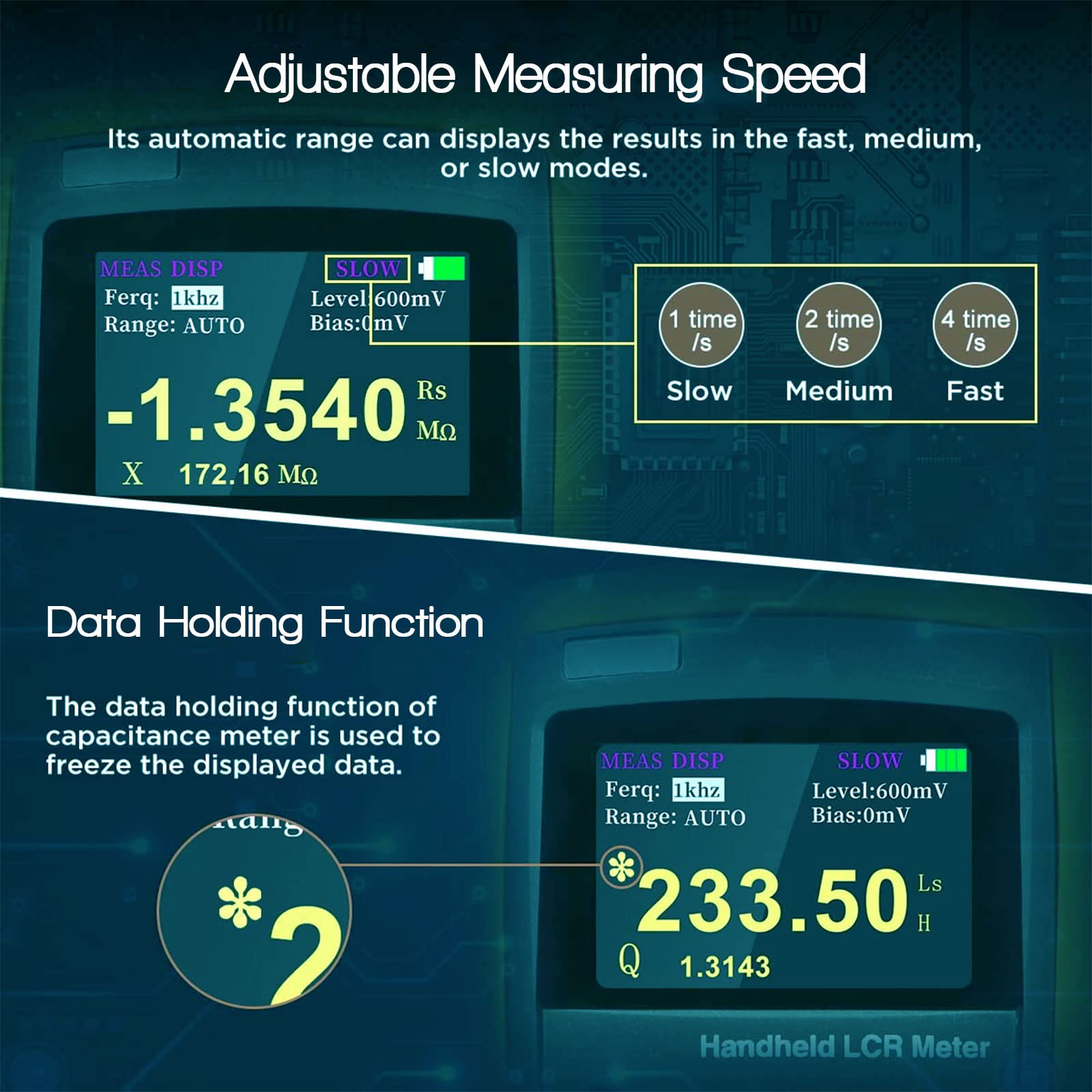

【3 Measuring Speeds&TFT Color Display】LCR meter supports manual range and automatic range.There are 3 measuring speeds available for adjustment slow, medium and fast.You can choose the appropriate measurement speed according to the nature of automatic components. LCR meter has a 2.8-inch TFT LCD color high-definition display with 4.5 digits. The screen has a backlight and the brightness is adjustable, so you can read accurately even at night. And the buzzer can be set according to your needs.

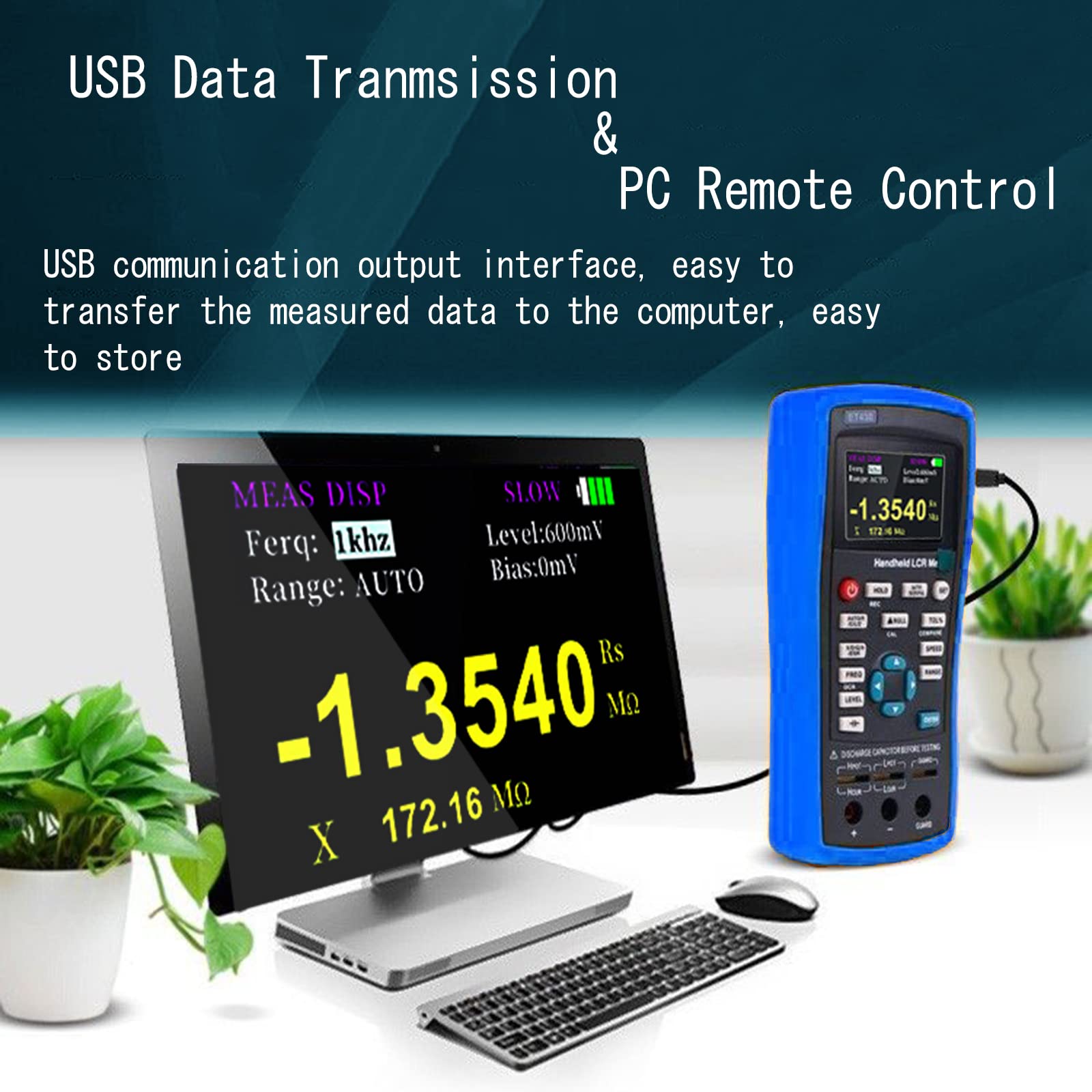

【Data Recording/Holding&Remote Communication】LCR meter holding function of capacitance meter is used to freeze the displayed data.The measurement is still in progress,but the data on the LCD is not be updated as the measurement proceed.In the reading hold mode,the maximum/minimum/average values can be dynamically obtained within a certain range.In addition,LCR Meter has remote communication function.Connect it to PC through Mini USB cable to realize remote control and data collection.

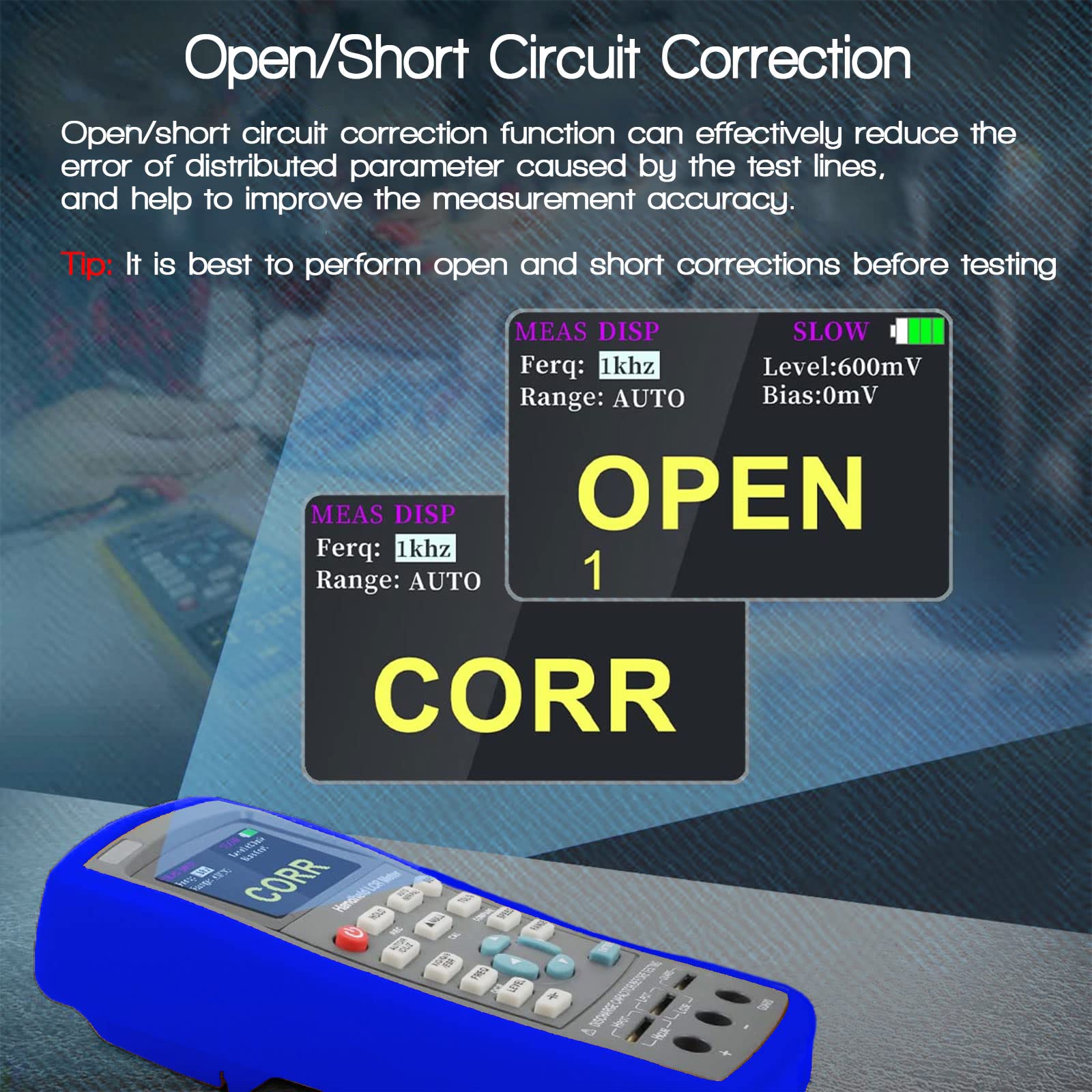

【Open/Short Circuit Correction & USB Communication Interface】LCR meter open/short circuit correction function can effectively reduce the error of distributed parameter caused by the test lines. Capacitor tester adopts USB communication interface,which can connect the computer and battery charging with USB data cable,and supports SCPI protocol.

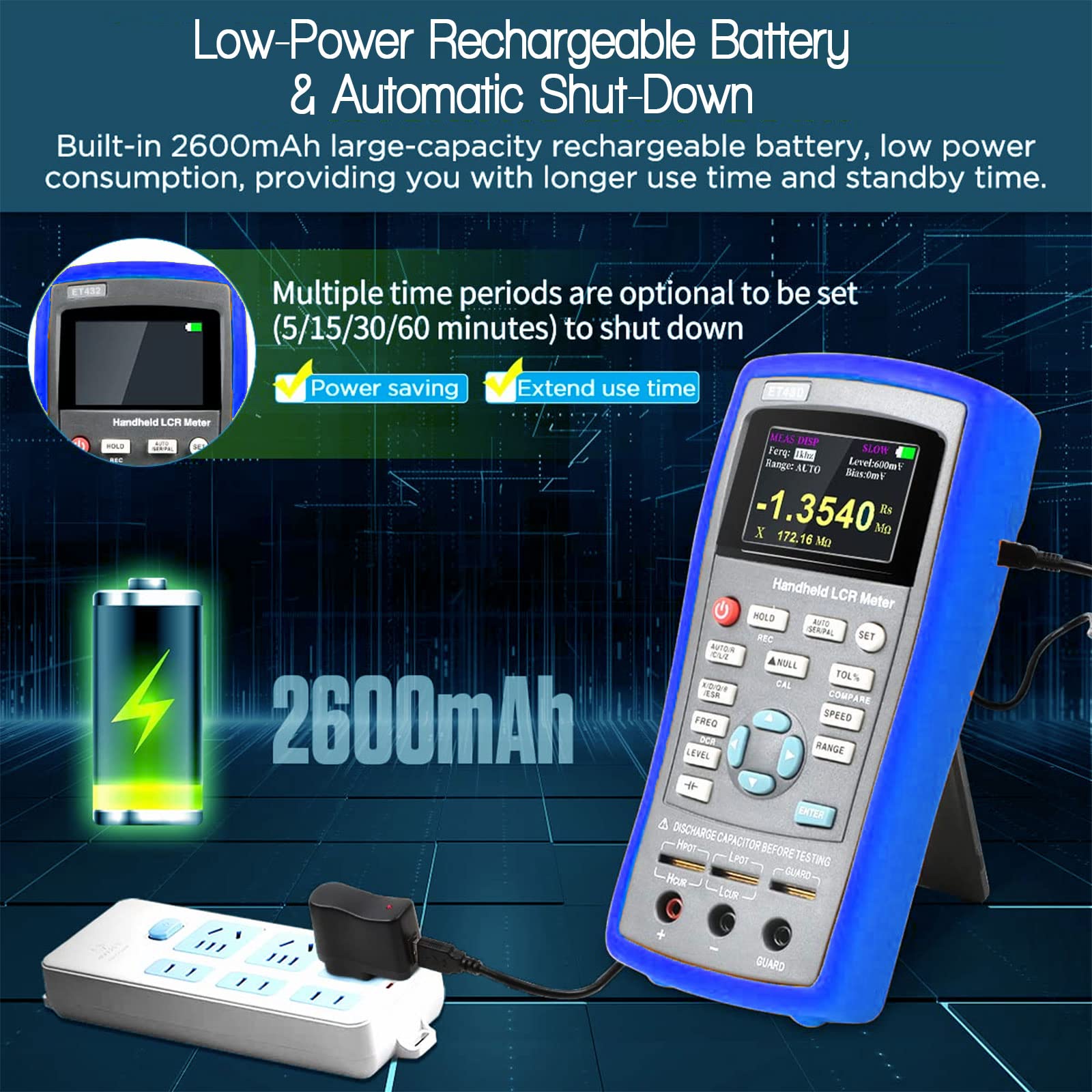

【Low-power Rechargeable Battery&Foldable Stand&Silicone Protective Cover】Frequency LCR meter has a built-in 2600mAh large-capacity rechargeable battery, low power consumption, providing you with longer use time and longer standby time. The foldable stand behind the capacitance meters makes it easy for you to view the data. Inductance meter is equipped with a silicone protective cover, shock absorption and drop resistance, protect the LCR meter and prolong its service life.
