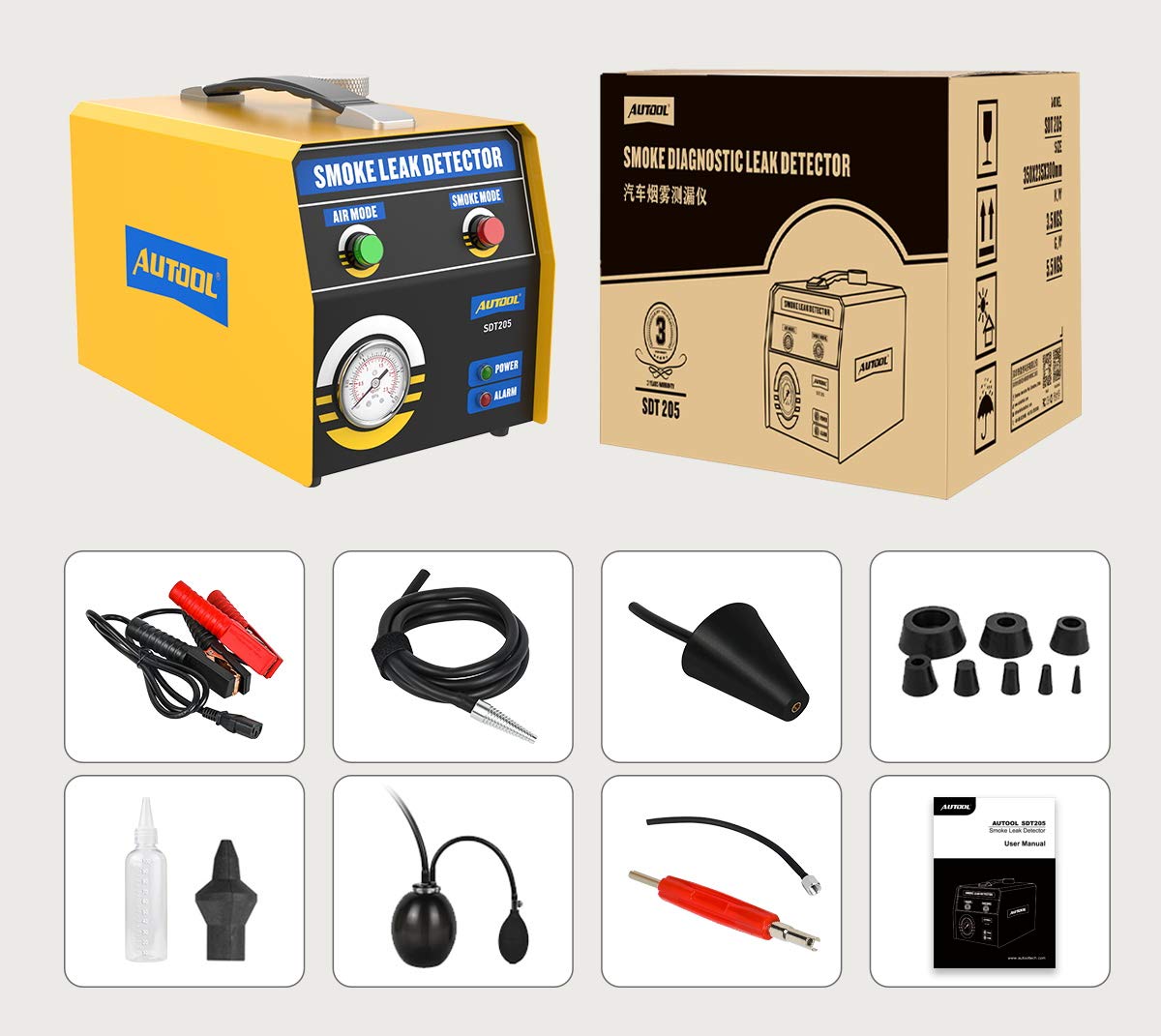

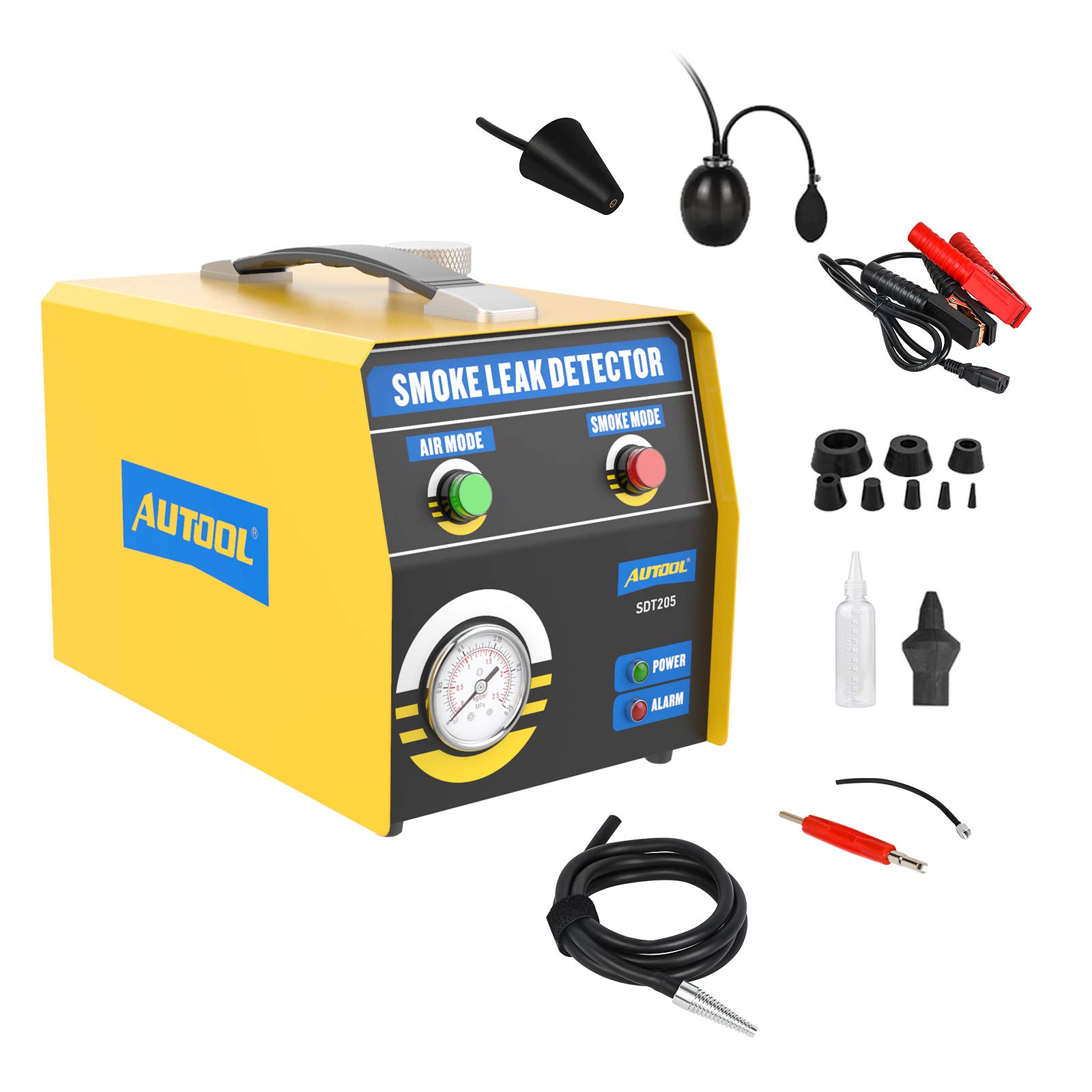

The EVAP Smoke Machine is designed to be a universal leak pipe systems detector for all vehicles. It can do smoke leak test of various systems, such as EVAP Systems, Intake Systems, Cooling / Exhaust / EGR Systems, Crankshaft Systems, Fuel Tank Systems, Engine Air-tightness, Vacuum Leaks, Low Pressure Turbo Leaks. Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and speedboats, etc. Using together with auto diagnostic tool, you can find the vehicle problem accurately and diagnose fault, equipped several kinds of connectors almost meet all your needs. Advanced Technology Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust. List of Accessories Smoke Leak Detector Locator Standard Cone Adapter: φ30-85mm, used to seal the airintake ports & introduce smokeinto the exhaust system.Power Cord Clamp: The cable length is 1.5m with 10A rated current. used to connectthe device to the battery powersupply.Valve Core Wrench: The double heads measure φ4mm/6mm with an overall length of 122mm & used as a tool to removeand install the EVAP service portvalve core.Hook: Used for hanging products.EVAP Special Connector: φ12.7mm, connects to the car's EVAP access port. which then introduces smoke.Test Oil Refill Bottle: The capacity is 100ml & usedfor adding smoke test oil.Rubber Connector Parts: The bigger side is φ16/10mmand smaller one is φ4/3mm.used to conetct the hose mouth to a smaller interface.Universal Airbag Adapter: Its minimum is φ25mm & maximum expansion is φ110-mm,used to seal the air inlet.Smoke Hose: Length is 1.5m, oil-resistanthose with φ6x9mm taperedcouplings, for conducting air & smoke.Hard Rubber Hose Plug: Used for sealing the hose. (φ5/10mm, φ9/15mm, φ25/35mm, φ32/45mm, φ45/60mm, φ60/75mm.)Soft Rubber Hose Plug: Used for sealing the hose. (φ9mm/φ12mm/φ16mm/φ17mm/φ20mm/φ25mm/φ31.5mm/φ50mm.) Large Amount of Smoke Automotive EVAP Machine Leak Detector has its own air pump, so it does not have to rely on other air machines.Connect the detector with DC12V battery,it can output losts of smoke within 30 seconds after turning on. Specifications Power Supply: DC12V±2Output Pressure: 15psiOutput Smoke Value: 1-6L/minAmbient Temperature: -10℃ ~ + 40℃Relative Humidity: ＜85%Test Oil: Mineral oil or baby oilAir Pressure Output: Built-in air pumpDual modes: Smoke mode & air modeMulti Protections: Oil outlet, over-heat and over-load protection Package List 1* Car Smoke Leak Detector Main Unit1* Power Cord Clamp1* Smoke hose1* Standard Cone adapter1* Hard rubber kits1* 30ml Test oil refill bottle1* Valve Cord wrench1* Universal airbag adapter1* EVAP special connector1* User manual Overheat & Anti-frost Protection Overheat ProtectionWhen the temperature of thedevice exceeds 75°C,powerprotection will be intelligentlyactivated to turn it off. Anti-frost ProtectionThe device can also work normally at -20°C. Independent Switch Control Design Smoke Mode button is to control the smoke generator independently, generate smoke faster than last generation, reducing diagnostic time.Air Mode button is to control the air pump independently, adapt smoke grade to locate the small and hard to find leaks. Wide Range of Applications Car fuel smoke Fuel Pipe Leak Tester For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models. How to leak test? Step 1: Fill proper test oil into the detectorStep 2: Disconnect these pipes that need to be connected with detectorStep 3: Connect detector with DC 12V batteryStep 4: After pipe filled with smoke, check leaks by the changes of pressure gauge changesNOTICE: Both mineral oil and baby oil are OK, oil is not included. Operational Steps for EVAP System Test:Find the carbon canister on the car, and disconnect the fuel inlet/outlet tubing. Take out the special adapter for EVAP system from the accessory box and connect it to the tubing you want to test.Remove the oil filler cap, add 10ml of test oil into it, and tighten the cap.Turn on the power switch. Then press the air mode button and the smoe mode button respectively.Block the smoke nozzle and watch the pressure gauge.When the pressure reaches 0.8kg / cm2, connect the smoke nozzle with the special adapter for EVAP system.After that, you can find out if there is smoke coming out from the leak point of the EVAP system.Attention: Please make sure there are no open flames in the process of EVAP system test. SDT 106 SDT 202 SDT 205 SDT 205S SDT 206 AUTOOL SDT 208 Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Buying Options Customer Reviews 4.2 out of 5 stars 78 4.2 out of 5 stars 71 4.3 out of 5 stars 36 5.0 out of 5 stars 2 4.6 out of 5 stars 76 3.1 out of 5 stars 4 Price $109.00$109.00 $159.00$159.00 $189.00$189.00 — no data $269.00$269.00 — no data Output pressure 9-11PSI 10-13PSI 15PSI 15PSI 0-23PSI 10-35PSI Overheating protector ✓ ✓ ✓ ✓ ✓ ✓ Smoke control switch ✓ ✓ ✓ ✓ ✓ ✓ Smoke outlet quick conector ✓ ✓ ✓ ✓ ✓ ✓ Pressure gauge no data ✓ ✓ ✓ ✓ ✓ Air flowmeter no data no data no data ✓ ✓ ✓ Oil level gauge no data no data no data no data ✓ ✓ Oil drain outlet & Alarm indicator no data no data ✓ ✓ ✓ ✓ Split air supply system no data no data ✓ ✓ ✓ ✓ Independent switch control design no data no data ✓ ✓ ✓ ✓
