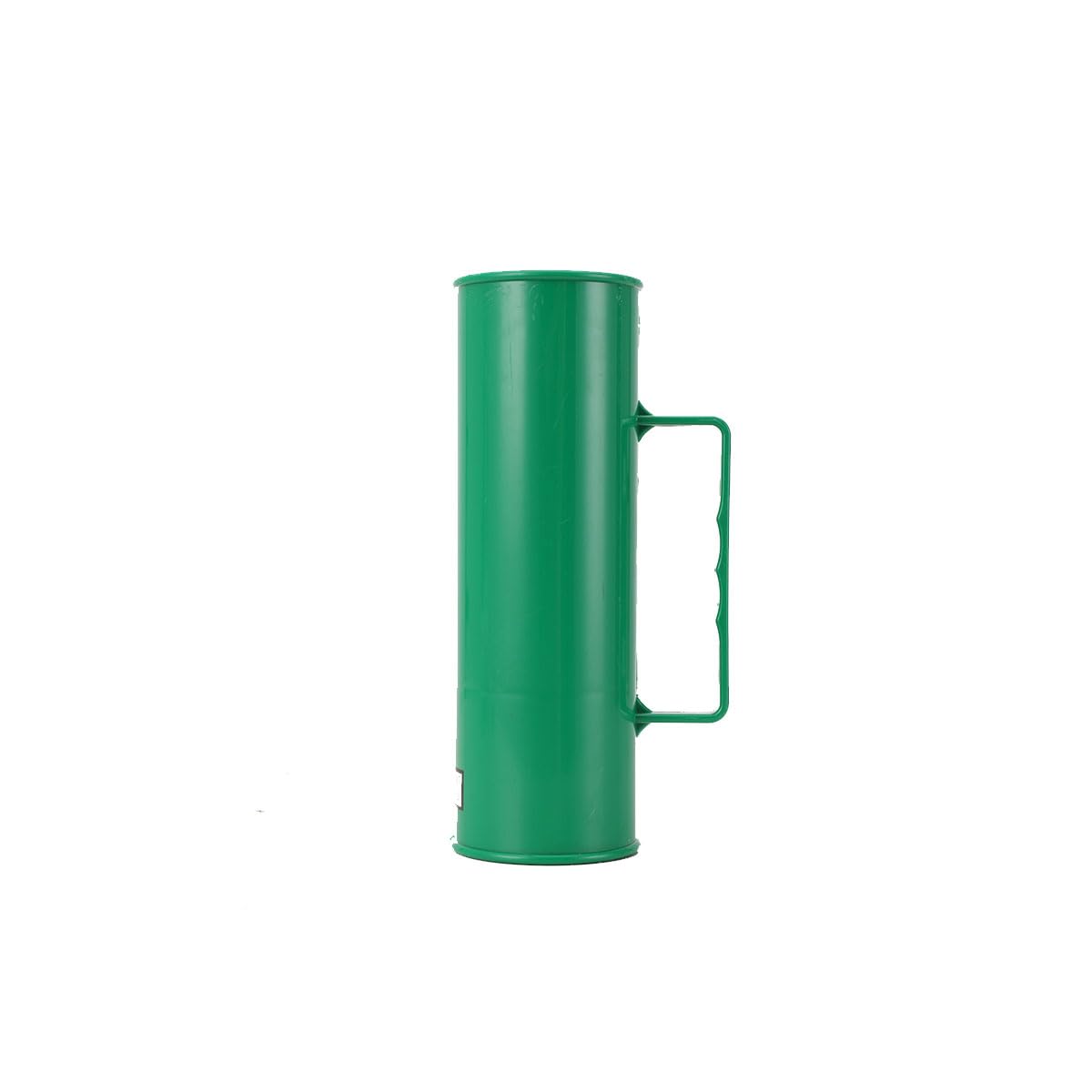

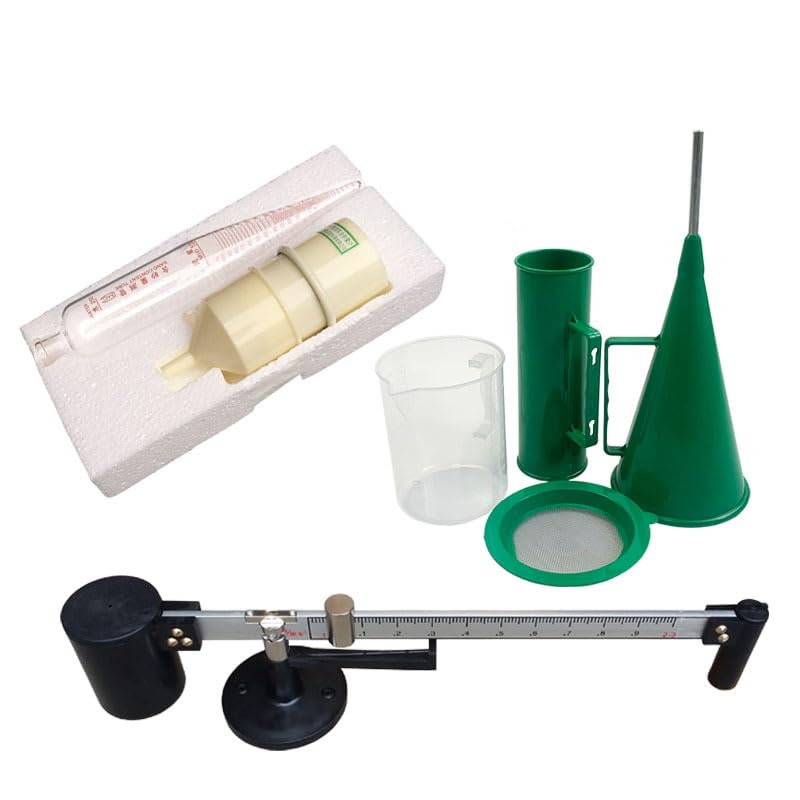

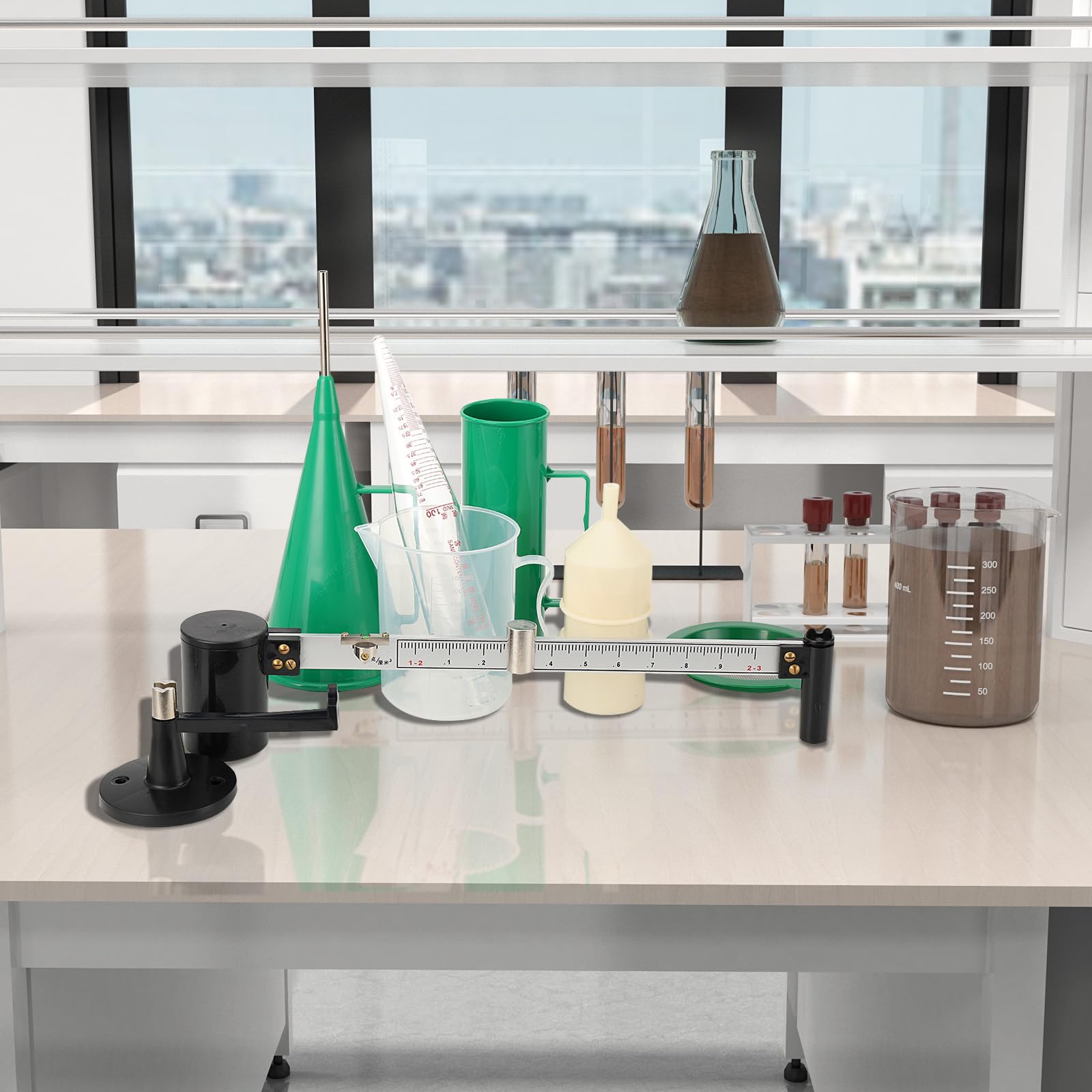

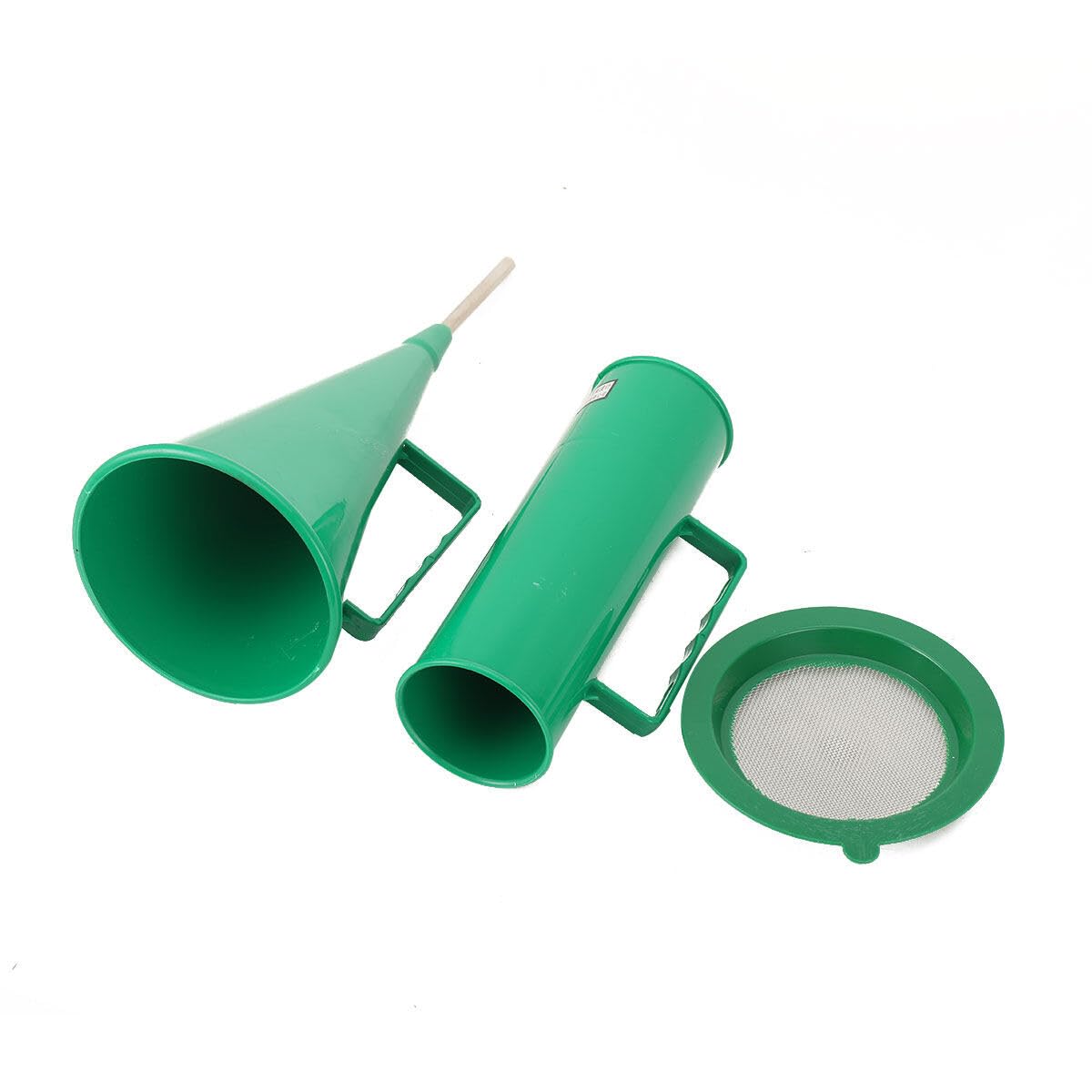

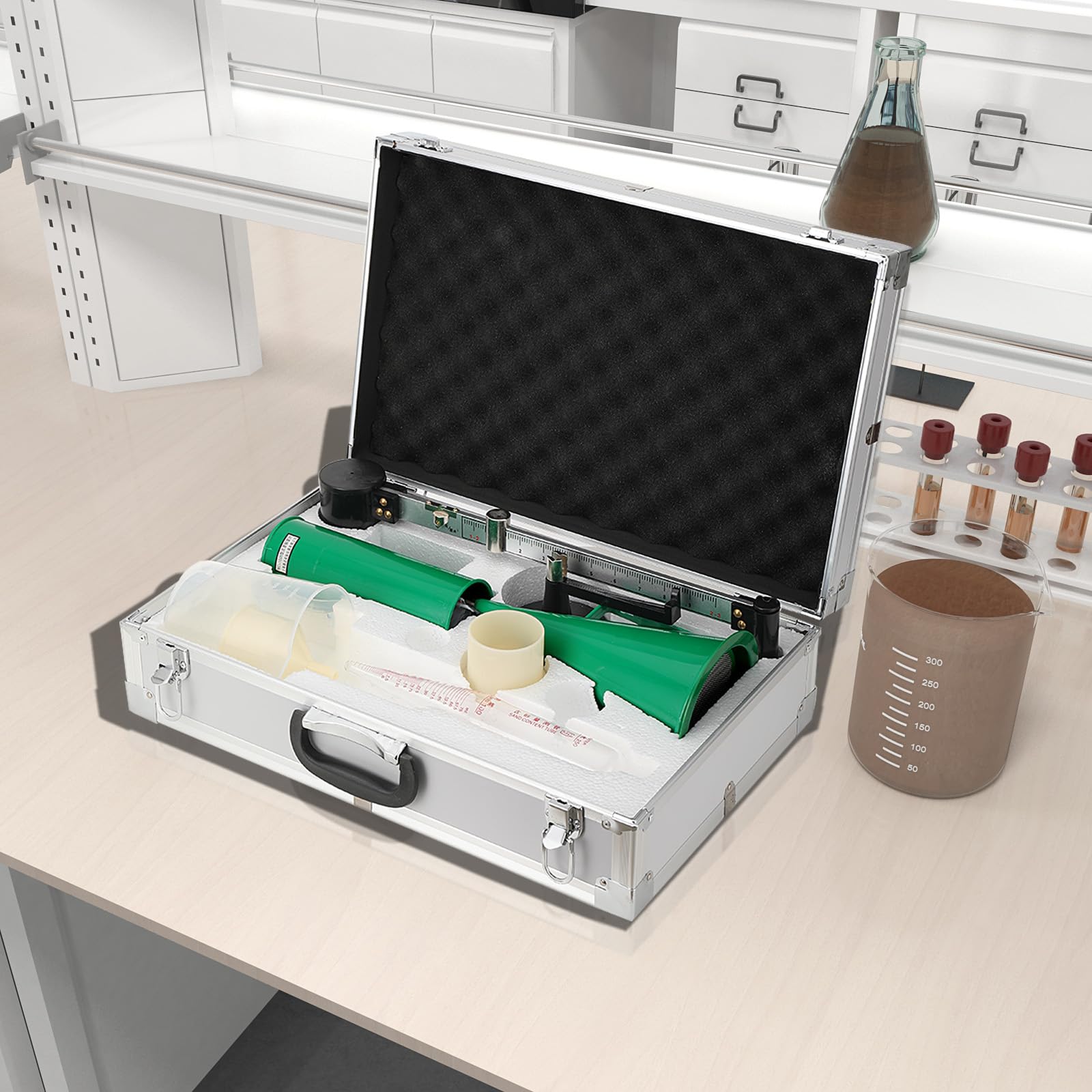

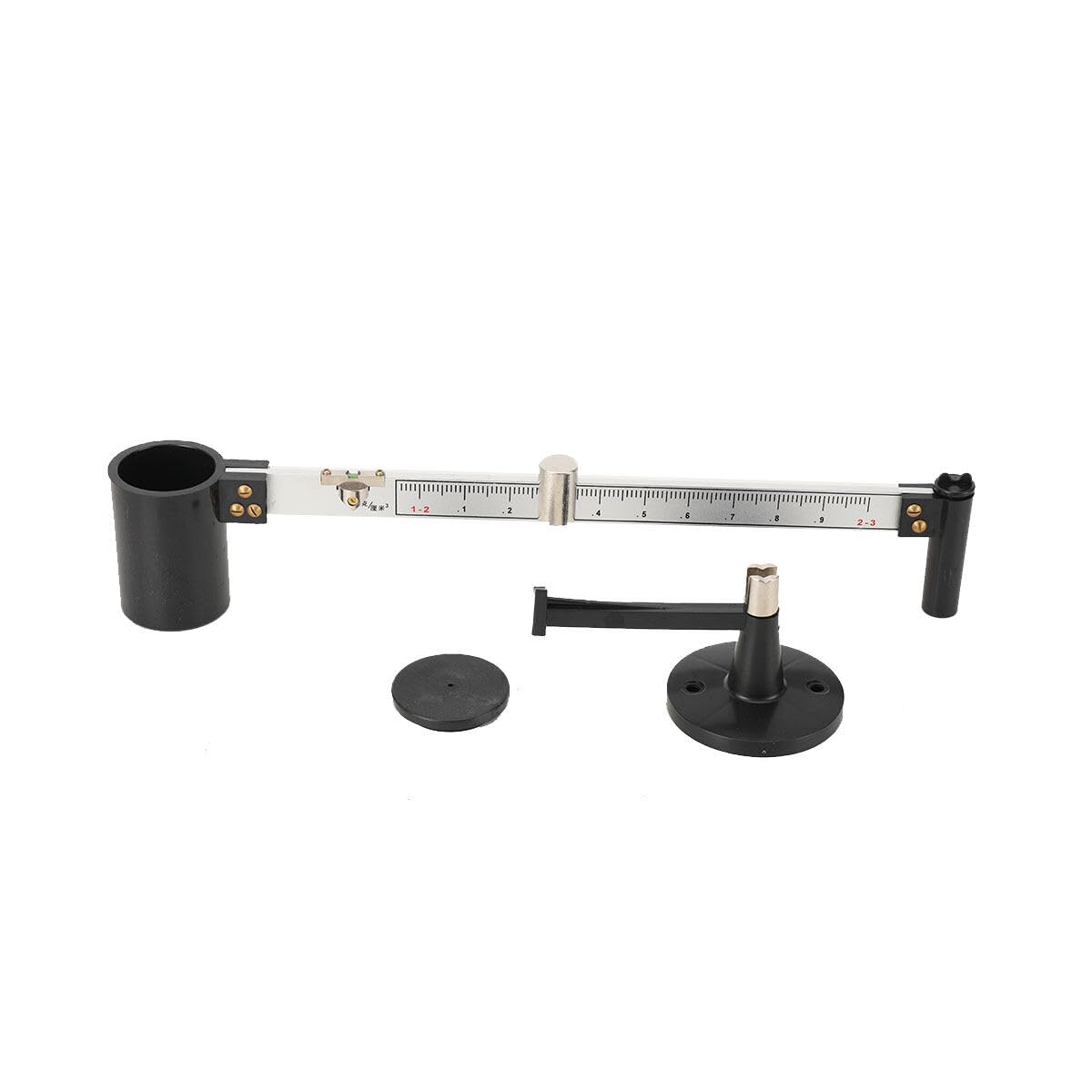

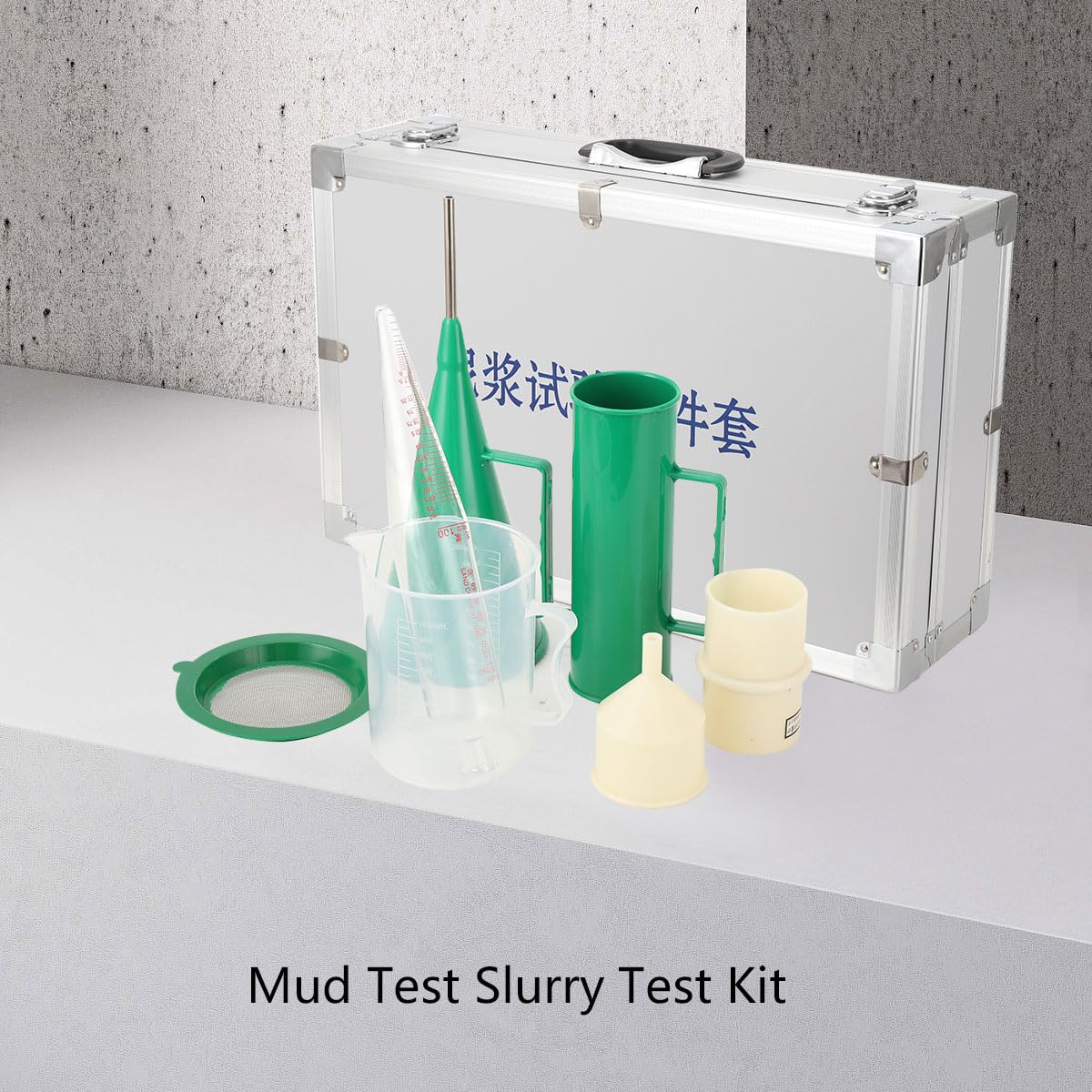

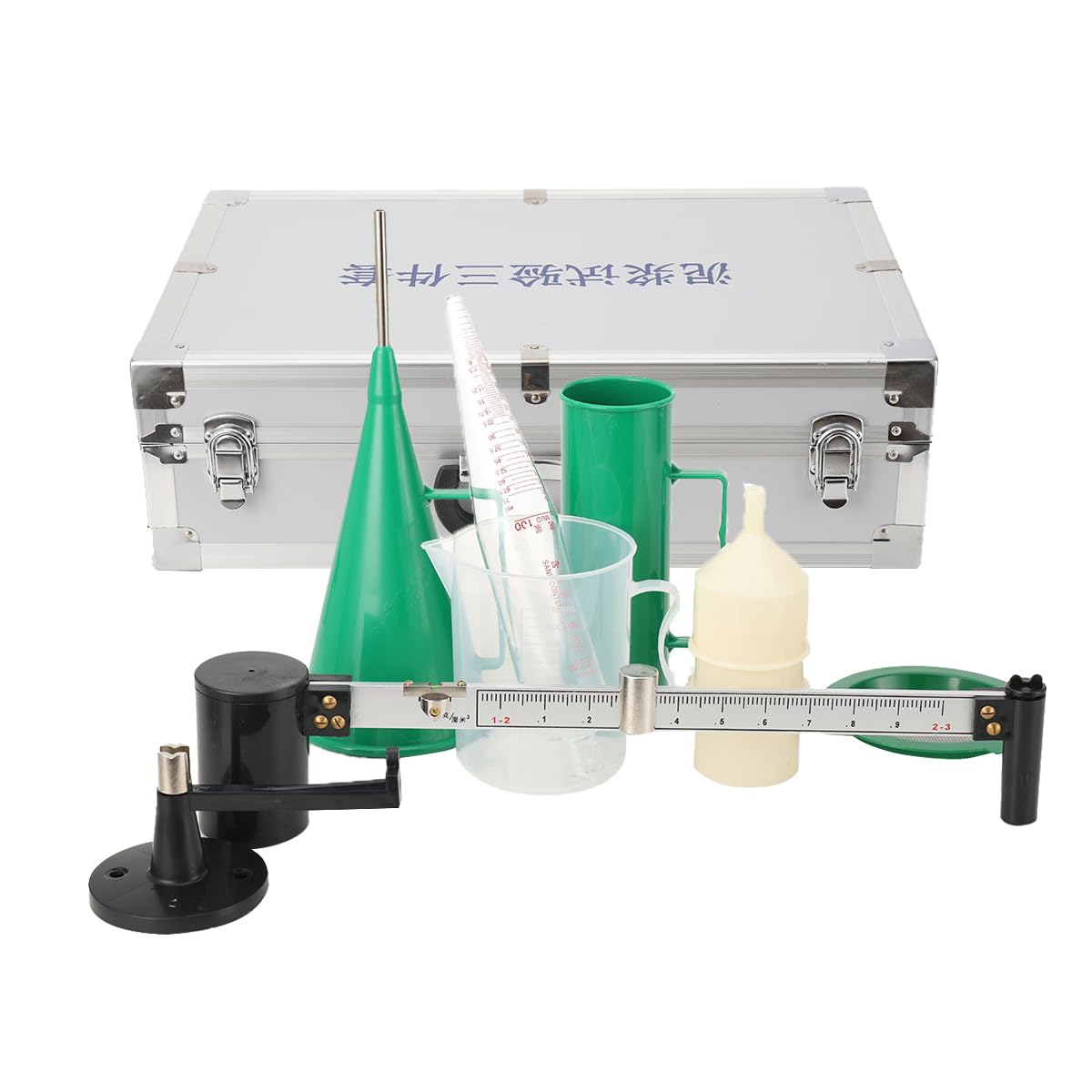

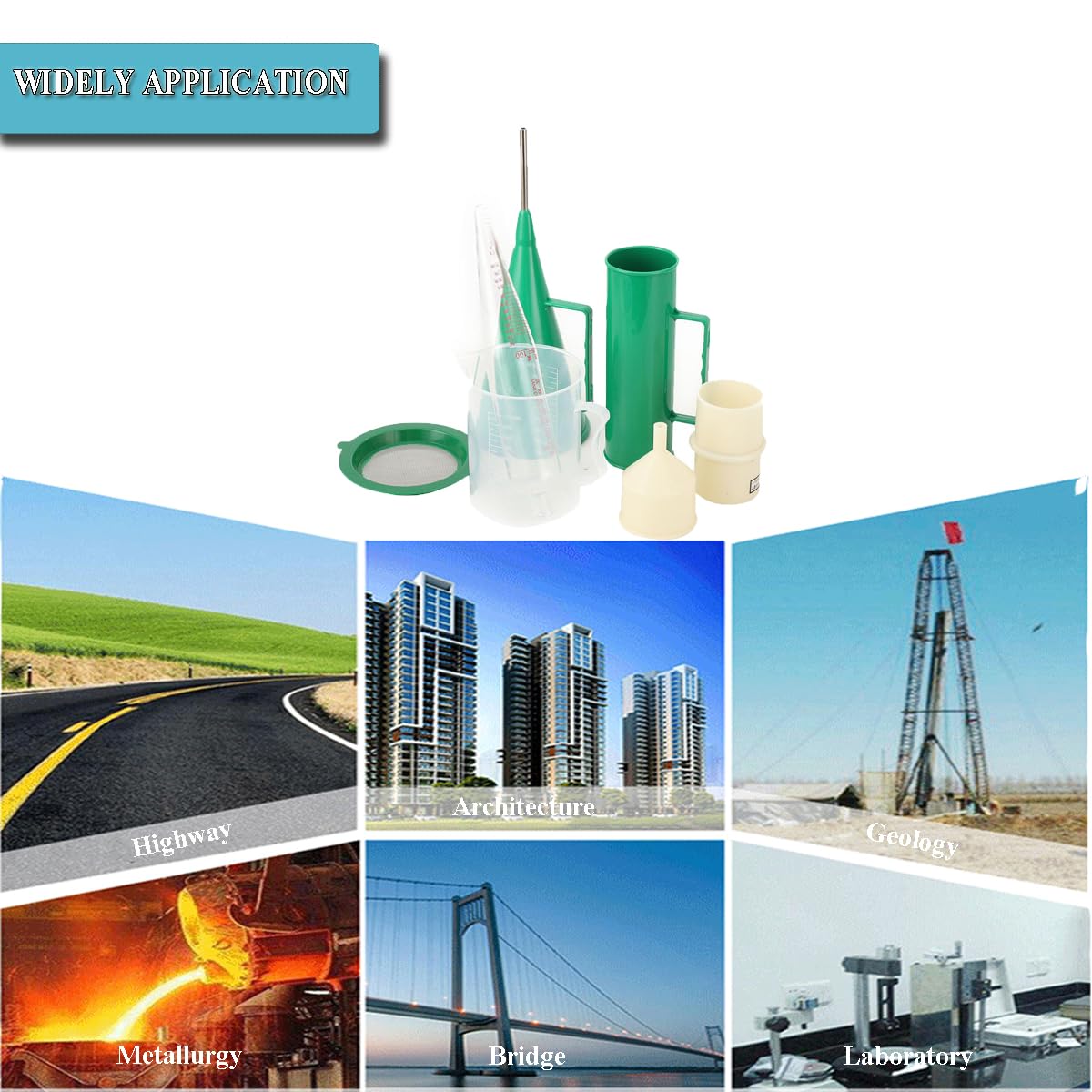

Slurry Test Kit This tester is made in accordance with industry standards and has a wide range of applicability， Mud Hydrometer can be used for mud analysis and weight measurement in highway construction site, bridge, mixing station or laboratory NB-1 Mud Hydrometer Measurement range is 0.96~3 g/cm 3 The scale indexing value is 0.0l g/cm 3 The capacity of the mud cup is 140cm 3 Instrument size:500L*100W*100H(mm) 1006 Mud Viscometer Diameter of outlet pipe hole is 5mm,length is 100mm Water value: 15±0.5s The capacity of the measuring cup is 500ml at one end, 200ml at the other end NA-1 Sand Flow Meter Filter mesh specification: 200 mesh Sand content scale: 0% ~ 15% for each small cell 0.5%, 15% ~ 30% for each small cell 1% Storage Box All testing instruments are contained in a aluminium carrying case; The case is durable, compact, and provides convenient storage. Brief instructions for use of mud viscometer: 1. Before measuring the viscosity, wash the viscometer with water and put the mud to be tested into the mud mixer for 1 minute. 2. Pour 500ml and 200ml(700ml) of mud through the sieve in a measuring cup into the viscometer, and block the flow outlet of the viscometer with your finger to prevent it from flowing out. 3. Measurement: place the 500ml measuring cup under the flow exit, and start the stopwatch when releasing the finger blocking the exit. 4. When the measuring cup full of 500ml mud flow reaches its edge, stop the stopwatch and record the time of mud outflow, that is, the viscosity of mud. Note: It is convenient to hang the viscometer up for experiment.
