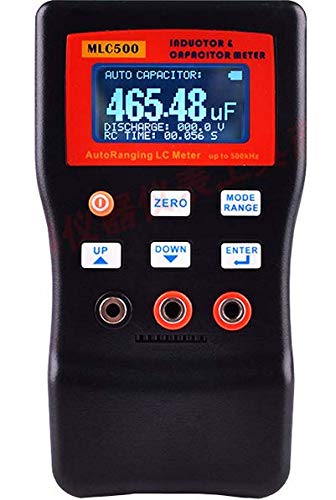

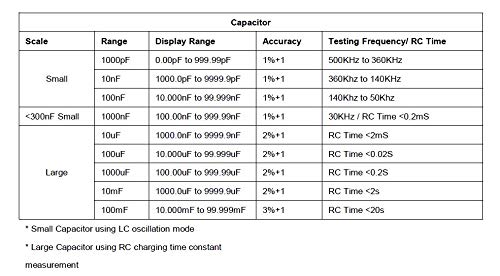

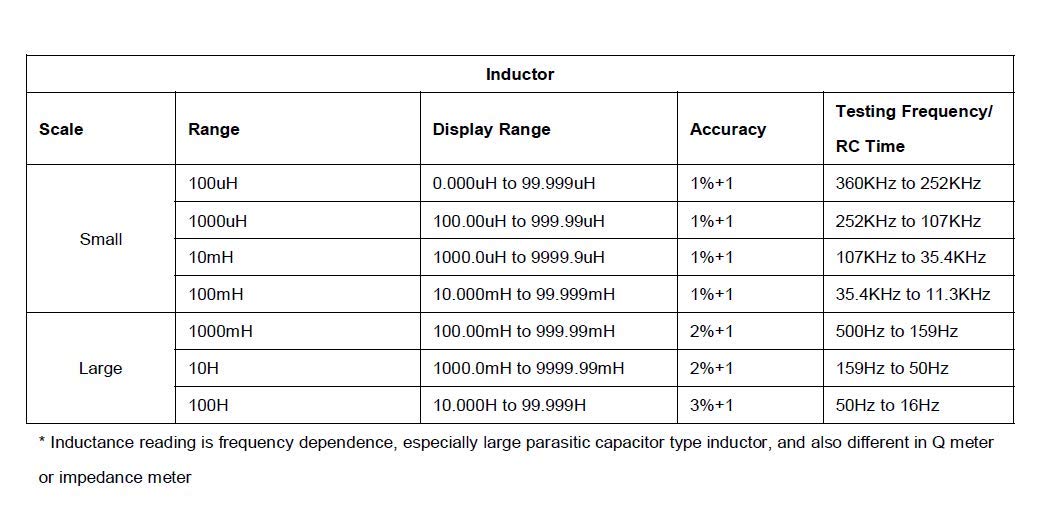

MeterTo MeterTo mainly offers instruments and tools. Please confirm the product is offered by our store MeterTo when purchasing, otherwise we can't ensure the quality and after-sale service. Introduction MLC500 LC meter is auto-ranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. Meter can measure 0.00pF to 100.00mF capacitance and 0.000uH to 100.00H. This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance. Specification Model: MLC500 LC Meter Series LCR Testing Parameter: Main Parameter: L / C Testing frequency: C: 10 to 500Khz; L: 10 to 360Khz Testing Method: Auto select LC and RC Oscillation Calibration: Power on auto calibrate with internal reference capacitor Testing voltage: ~1.5Vrms Best Tolerance: L: 1% +1 Digit; C: 1% +1 Digit LCD update or Testing time (* vary on component value): <3/s， (e.g. 100mF Capacitor <30s) Range Selection: Automatically Zeroing: Open / short circuit Terminal: Mini-USB(Virtual Com Port) Display Range: C: 0.00pF ～100.000mF (pF/nF/uF/mF); L: 0.000uH ～ 100.000H (uH/mH/H); Hz (LC Oscillation Frequency): 0 to 900000Hz; (s) (RC Constant Time): 0.000 to 99.999 LCD Display: 128X64 Dot Matrix, with backlight Fuse Protection: No Battery: 2XAA 1.5V battery Number of Testing Terminal: Main 3, Secondary 2 Reading Display: Max. 99999 *Discharge Capacitor before Testing! * Please don't connect under testing device during power on, it will affect the initialization.
