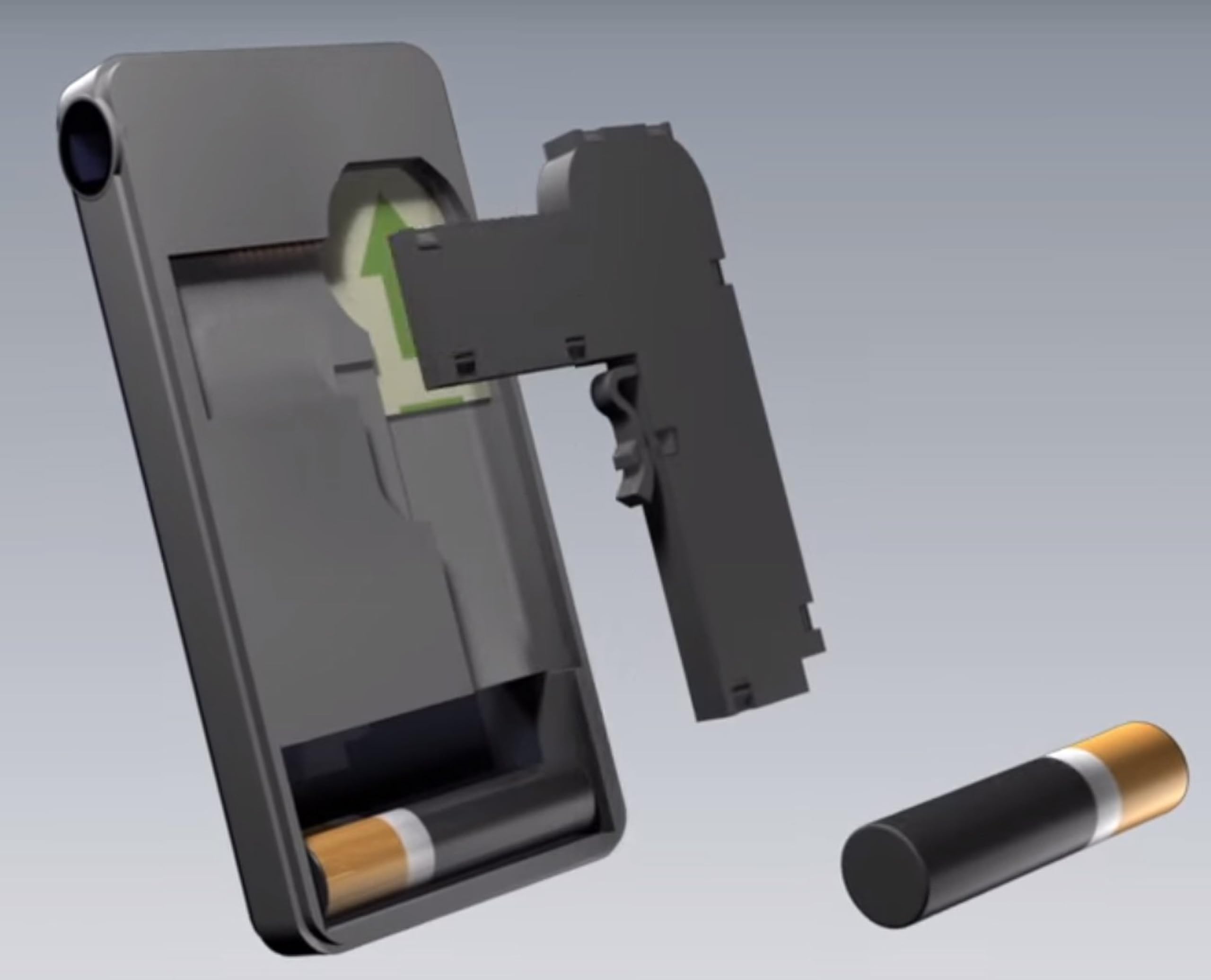

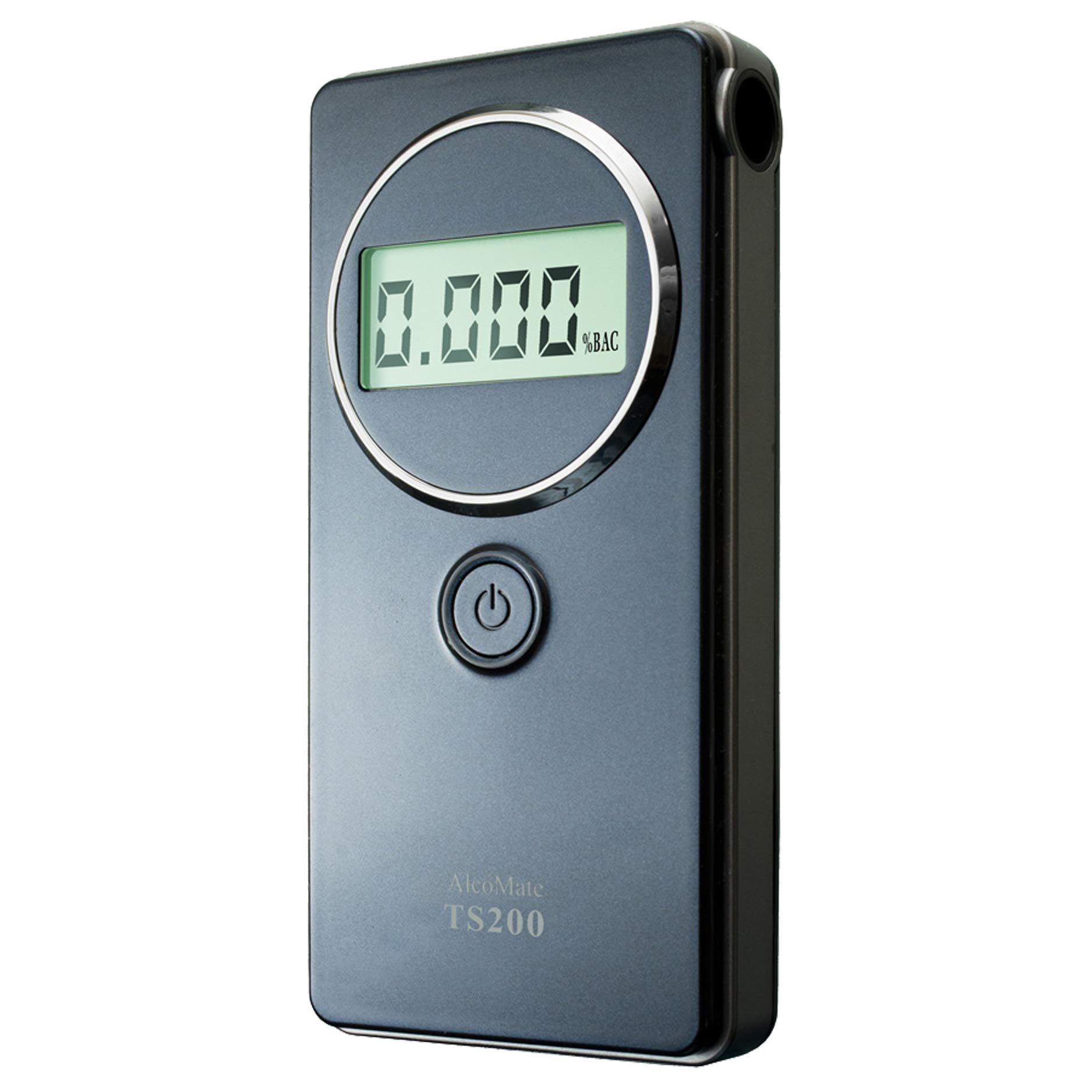

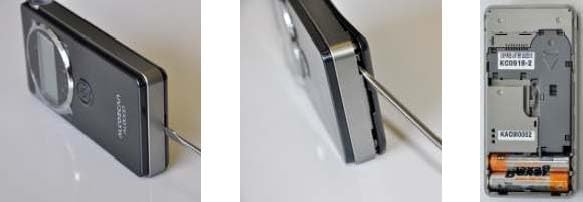

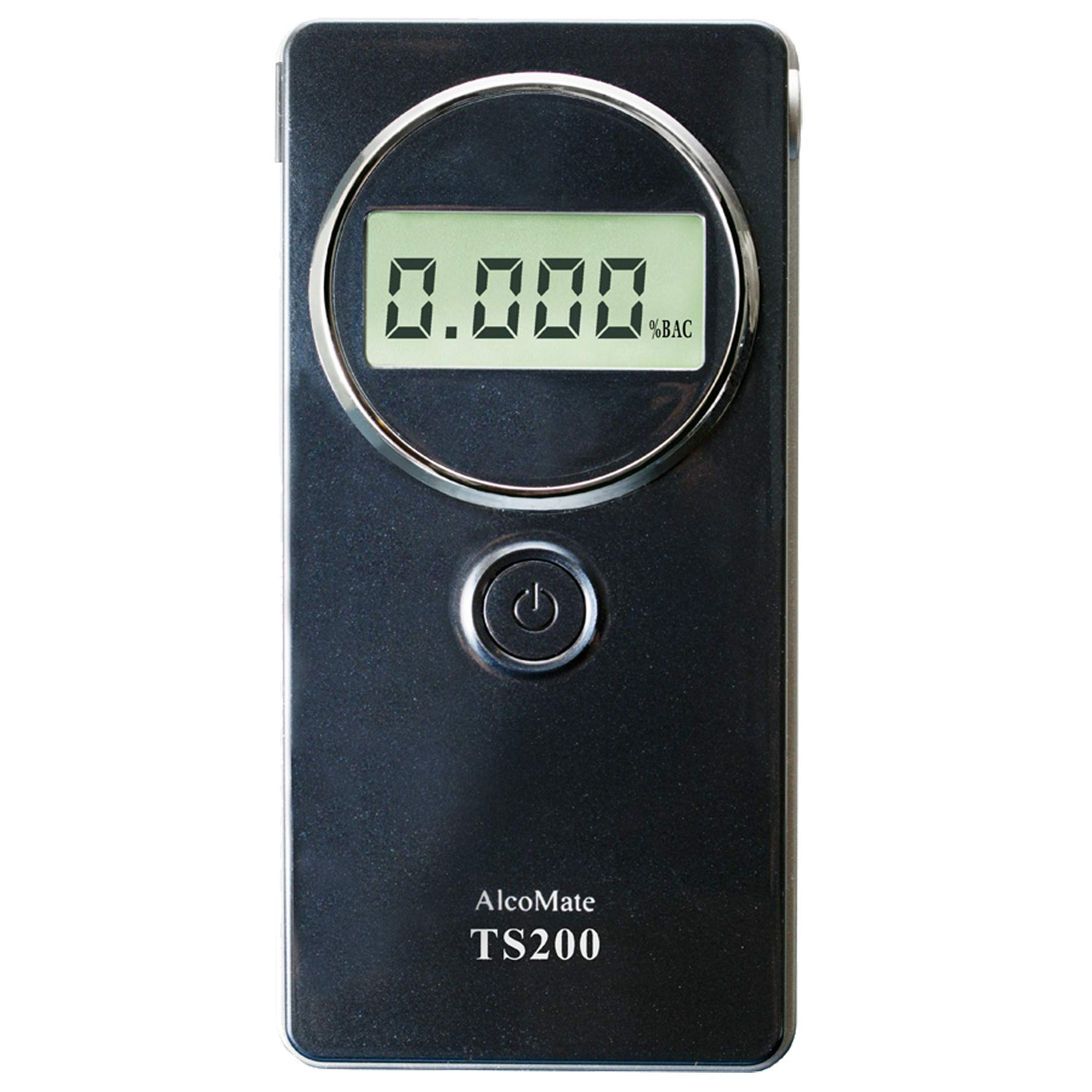

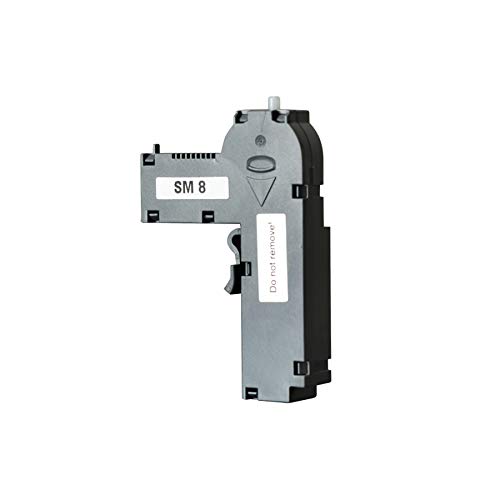

Ultimate Precision, AlcoMate Revo TS200 Revo TS200 Breathalyzer Advanced Fuel-Cell Alcohol Sensor Ideal for professional locations requiring especially high precision and/or especially high-volume testing, or for the pro-sumer. The Revo sensor module provides up to 1,000 tests or one continuous year of testing (whichever comes first) before requiring replacement. Accuracy: +/- 0.005 at 0.10 g/dL (%BAC) DETECTION RANGE : 0.000 - 0.400% BAC (G/DL) AlcoMate Professional Breathalyzer Revo TS200 with Replaceable Fuel Cell Sensor Professional-Grade for Law Enforcement The AlcoMate Revo was designed for maximum accuracy. The combination of PRISM (sensor module) technology and state-of-the-art fuel-cell breath alcohol sensing offers a reliable, convenient and accurate commercial breathalyzer. The Revo is perfect for use in a variety of professional testing applications, and is also an ideal choice for pro-sumers looking for performance that rivals police-issue devices. Replaceable Advanced Fuel-Cell Alcohol Sensor Sleek and State-of-the-Art Precisioin Active Pressure Sensor Deep Lung Air Sampling Single-source Selection by the US Navy and Marine Global patent including US Patent No. US 7.841.224 B2 & US 8.250.900 B2 How to replace AlcoMate Revo TS200 fuel-cell sensor module Pry open the rear cover. Carefully use a flathead screwdriver (approx. 1/8" head with) to pry open the rear cover at the notch located at the bottom. You can then fully remove the cover by separating it from the device along one of the longer (vertical) edges. Remove the sensor module from the device. Remove the rear cover, then remove the batteries FIRST. Otherwise, it may damage the circuit of sensor while replacing. Use your finger to hold down the small tab highlighted to the left, and pull the sensor module straight down. You can then simply lift the module up from the device. Install a new sensor module. To install a new sensor module, place the portion of the sensor module highlighted to the left flush against the section of the slot also highlighted. You can then simply slide the sensor module up into place. Ensure the tab is locked in place against the small gray locking nub near the center of the device. Replace batteries and back cover. Make sure replace batteries and then replace back cover. * The Revo sensor module provides up to 1000 tests or one continuous year of testing (whichever comes first) before requiring replacement. AlcoMate Revo TS200 AlcoMate Premium AL7000 AlcoMate Prestige AL6000 AlcoMate AccuCell AL9000 AlcoMate TS100 AlcoMate TS600 Add to Cart Add to Cart Add to Cart Buying Options Buying Options Buying Options Customer Reviews 3.5 out of 5 stars 22 4.1 out of 5 stars 209 3.4 out of 5 stars 57 4.4 out of 5 stars 14 — — Price $219.95$219.95 $159.95$159.95 $109.95$109.95 — no data — no data — no data Sensor Type Advanced Fuel Cell Oxide Semiconductor Oxide Semiconductor Advanced Fuel Cell Advanced Fuel Cell Advanced Fuel Cell Accuracy +/-0.005 at 0.10 g/dL (%BAC) +/-0.01 at 0.10 g/dL (%BAC) +/-0.01 at 0.10 g/dL (%BAC) +/-0.005 at 0.10 g/dL (%BAC) +/-0.005 at 0.10 g/dL (%BAC) +/-0.005 at 0.10 g/dL (%BAC) Calibration needed No (PRISM Technology) No (PRISM Technology) No (PRISM Technology) Yes Yes No (PRISM Technology) Dimensions (inches) 4.0" x 2.0" x 0.6" 4.0" x 2.0" x 0.8" 4.8" x 2.8" x 1.5" 4.0 x 2.0 x 0.6 in 4.75 x 2.5 x 1.5 in 5.24 x 2.52 x 1.29 in Weight (ounces) 3.1 3.9 3.9 3.9 3.1 6.98 Display Type 4-Digit LCD 4-Digit LCD 3-Digit LED 4-Digit LCD 3-Digit LED 4-Digit LCD Batteries (included) 1.5V AAA (x2) 1.5V AA (x2) 1.5V AA (x2) 1.5V AAA (x2) 1.5V AAA (x2) 1.5V AA (x2) Users US Coast Guard, US Navy & US Marines, Law Enforcement, Medical Professionals, School Administrators, Corporate Employers, Commercial & Industrial, Prosumers US Coast Guard, US Navy & US Marines, Law Enforcement, Medical Professionals, School Administrators, Corporate Employers, Prosumers Medical Professionals School Administrators Corporate Employers Prosumers Commercial, Corporate, Industrial, Law Enforcement, Medical, Military, Pro-consumers School Administrators, Corporate Employers, Medical Professionals, Prosumers Commercial, Corporate, Industrial, Law Enforcement, Medical, Military, Pro-consumers Sensor life span Every 1,000 tests (or fewer depending on use) or at least once per year Every 200 tests (or fewer depending on use) or at least once per year Every 200 tests (or fewer depending on use) or at least once per year Every 1,000 tests (or fewer depending on use) or at least once per year Every 1,000 tests (or fewer depending on use) or at least once per year Every 1,000 tests (or fewer depending on use) or at least once per year Testing purpose Screening Screening Screening Screening Screening Test of evidence There are some related organic substances that may cause a false positive* or higher-than-actual reading in some cases. For example, diabetics exhibiting acetone or ketones on their breath can trigger this behavior. AlcoMate Revo TS200 is free of false positive! High false plus readings? Use with alcohol-based santizers Recently, it is reported that breathalyzer shows the high false positive readings of +0.012BAC% up to +0.018BAC%, even when you test a brand new device without drinking. This is because the active ingredient of ethyl alcohol in hand sanitizer may affect the sensor sensitivity of breathalyzers. If you use alcohol based hand sanitizers with breathalyzer, please avoid enclosed spaces where the contaminated air is full. If you can't avoid it, ventilate contaminated air enough to make sure there is no contaminated air, prior to using breathalyzer. Poor ventilation may also lengthen the time required for warm up between tests. The breathalyzer unit contains a sensitive alcohol sensor that is continuously exposed to the environment. The sensor may degrade faster than normal if used in a poorly ventilated area. The alcohol sensor can be damaged upon contact with silicon, rubber, volatile chemicals and chlorine-based chemicals. Prevent exposure of the sensor to the such items. Although the unit is designed to minimize the casual intake of some moisture, excessive liquid flow (i.e. excess saliva, liquid alcohol from the mouth) can damage the sensor or render the sensor immediately inaccurate. The sensor may degrade faster than normal if used in a poorly ventilated area. Avoid testing in high wind or enclosed spaces If you can't avoid it, ventilate contaminated air enough to make sure there is no contaminated air. Keep your device away from the contact with silicon, rubber, volatile and chlorine-based chemicals. Common error codes or messages encountered in the device Error Code "bat" This issue is caused by low battery power. Replace the batteries with a new pair. Always use a brand new pair of batteries. Error Code "Err2" If this error code appears in the display the device is reporting a general problem with the alcohol sensor or that the device has been physically damaged. Replace sensor module to ensure the sensor module is in good working condition. If the problem is not fixed and continues please contact AK GlobalTech Technical Support for troubleshooting. Error Code "Err6/Err9" The device is reporting that power is insufficient to complete test. Replace batteries with a brand new pair. If the problem is not fixed and continues please contact AK GlobalTech Technical Support for troubleshooting. Warning Code "Flow" If this warning code appears in the display the breath sample was not strong or long enough for measurement. As soon as you start blowing into the device you will hear a long beep indicating how long you should blow. It requires 3 seconds of moderate blow. Warning Code "Cal" If this warning code appears in the display the device needs a new sensor module. If the cumulative test counter reaches 300 tests the device will display "Cal" automatically. Please replace it with a new sensor module.
