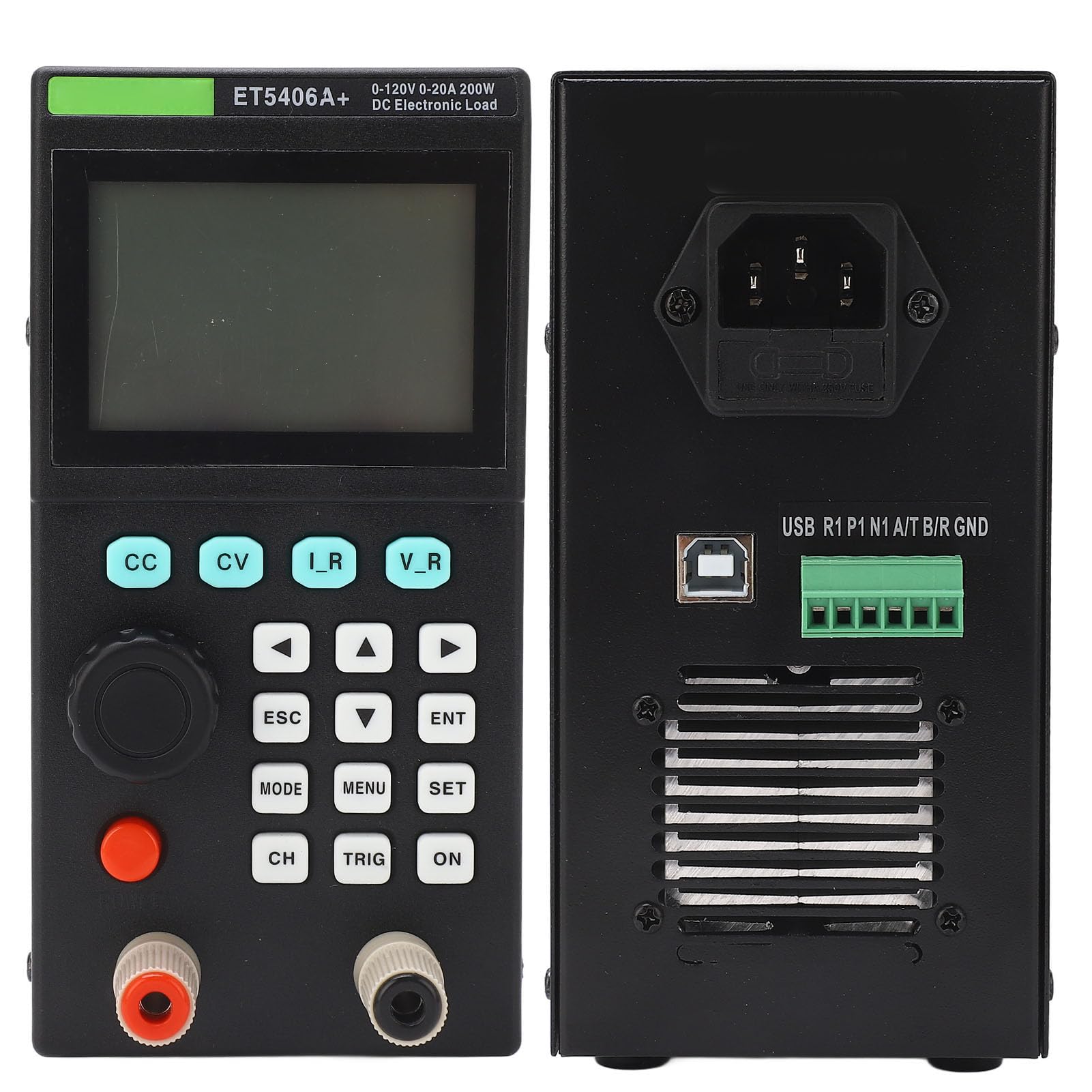

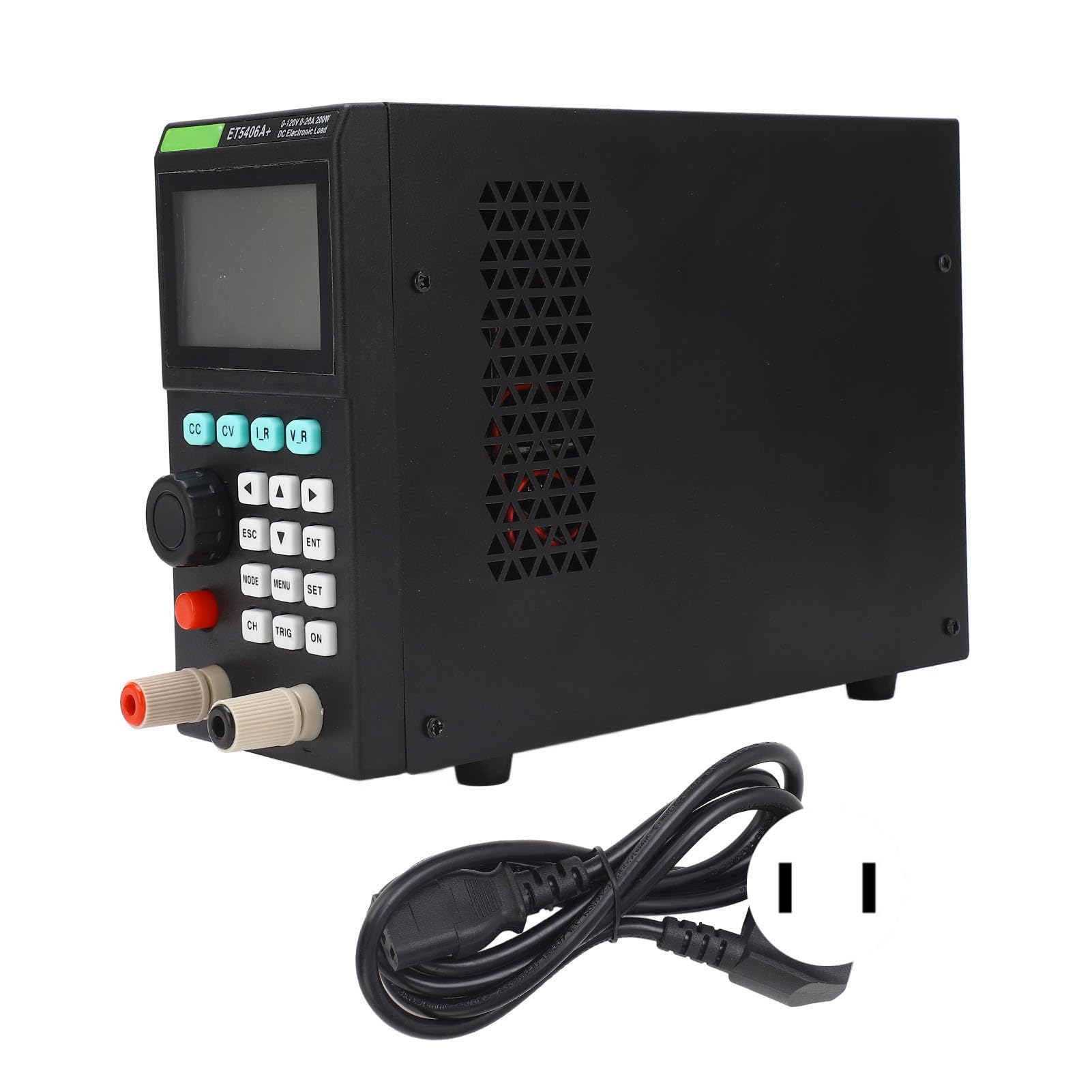

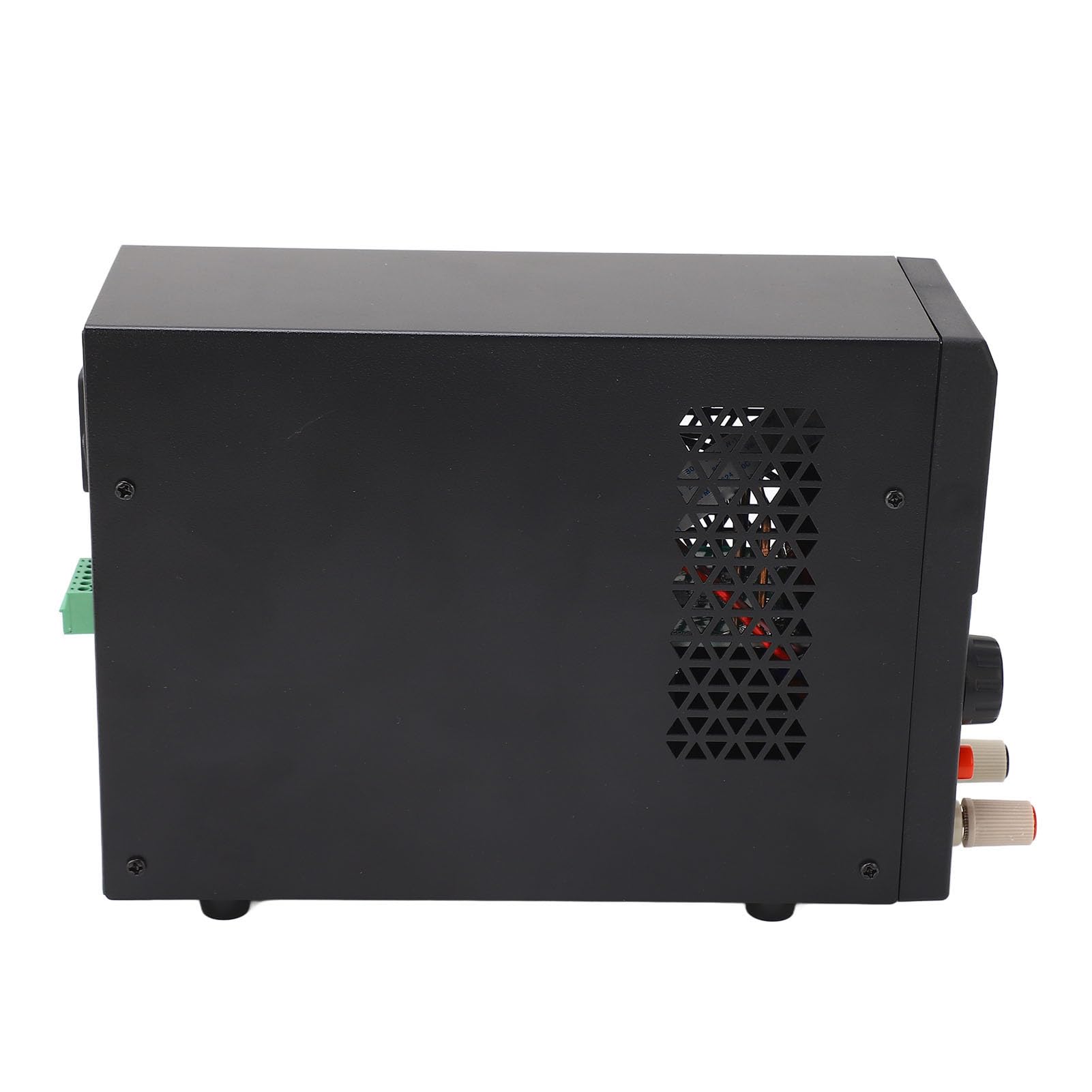

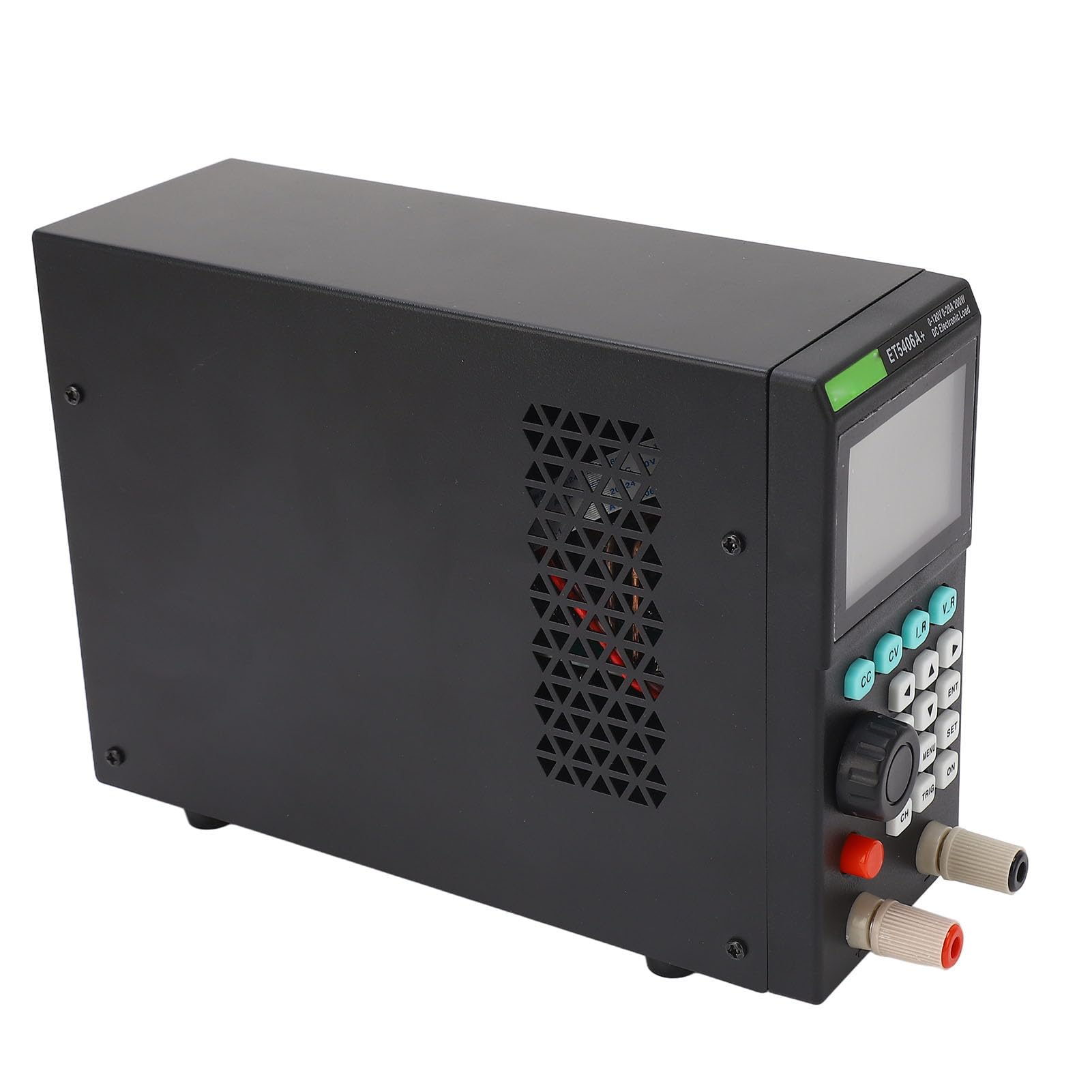

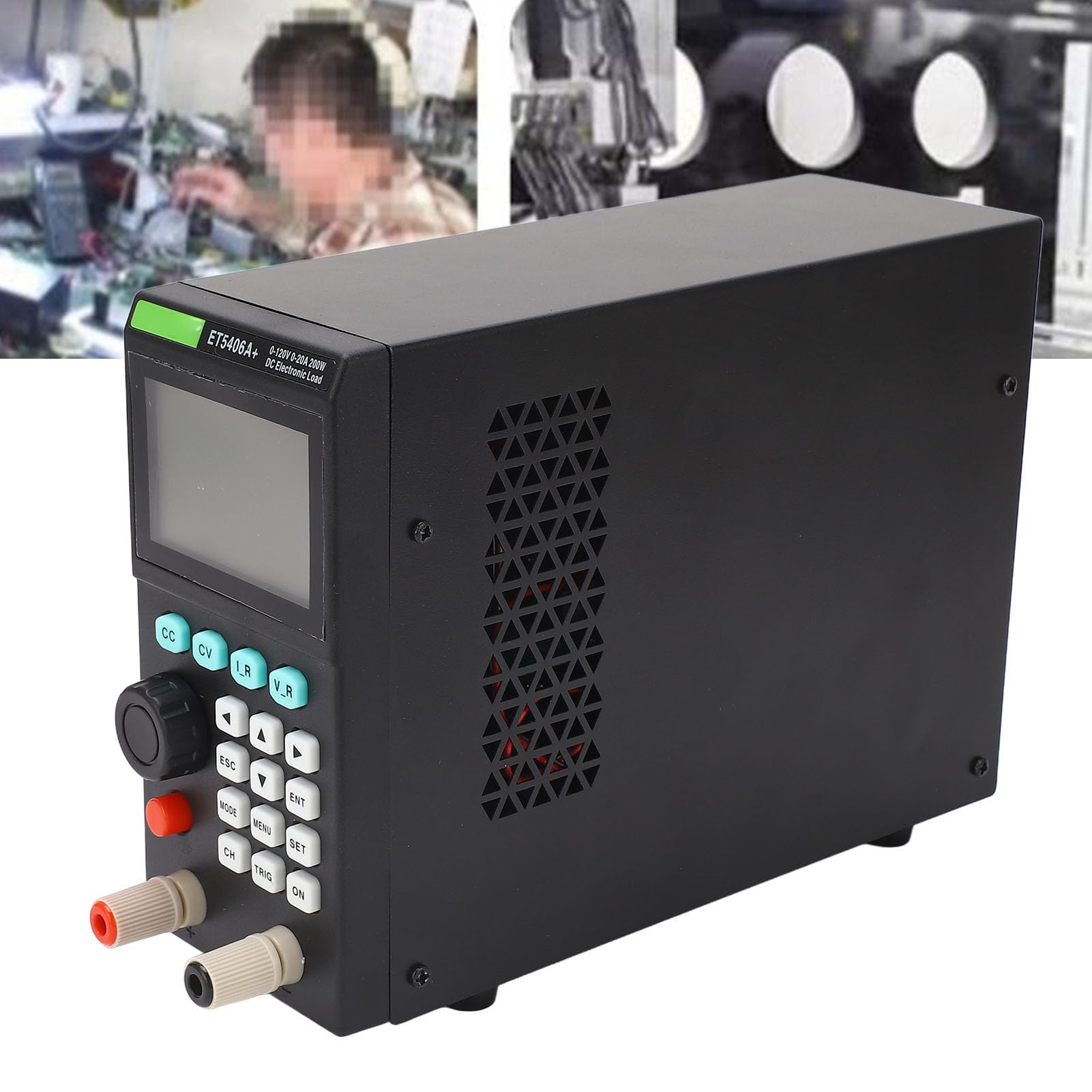

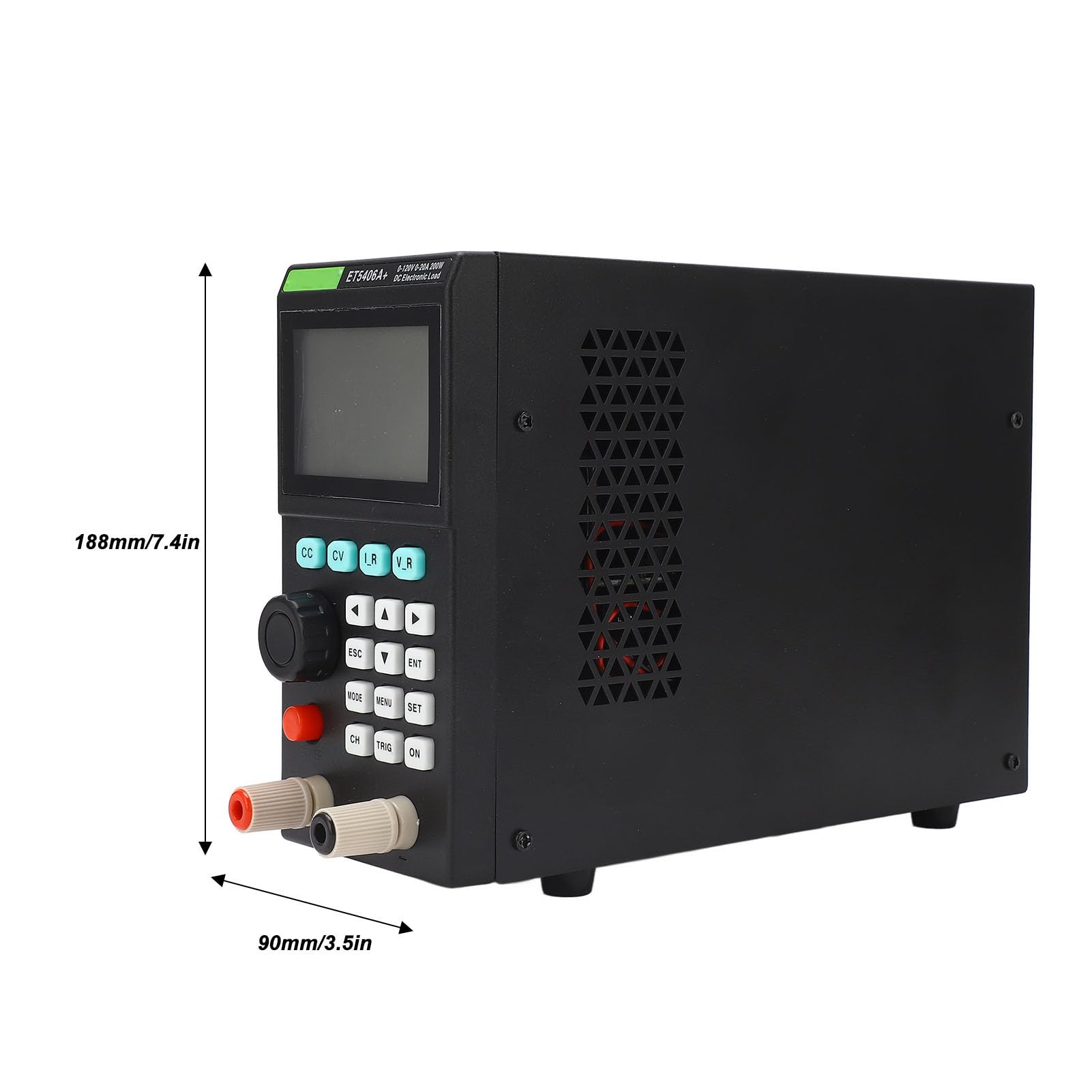

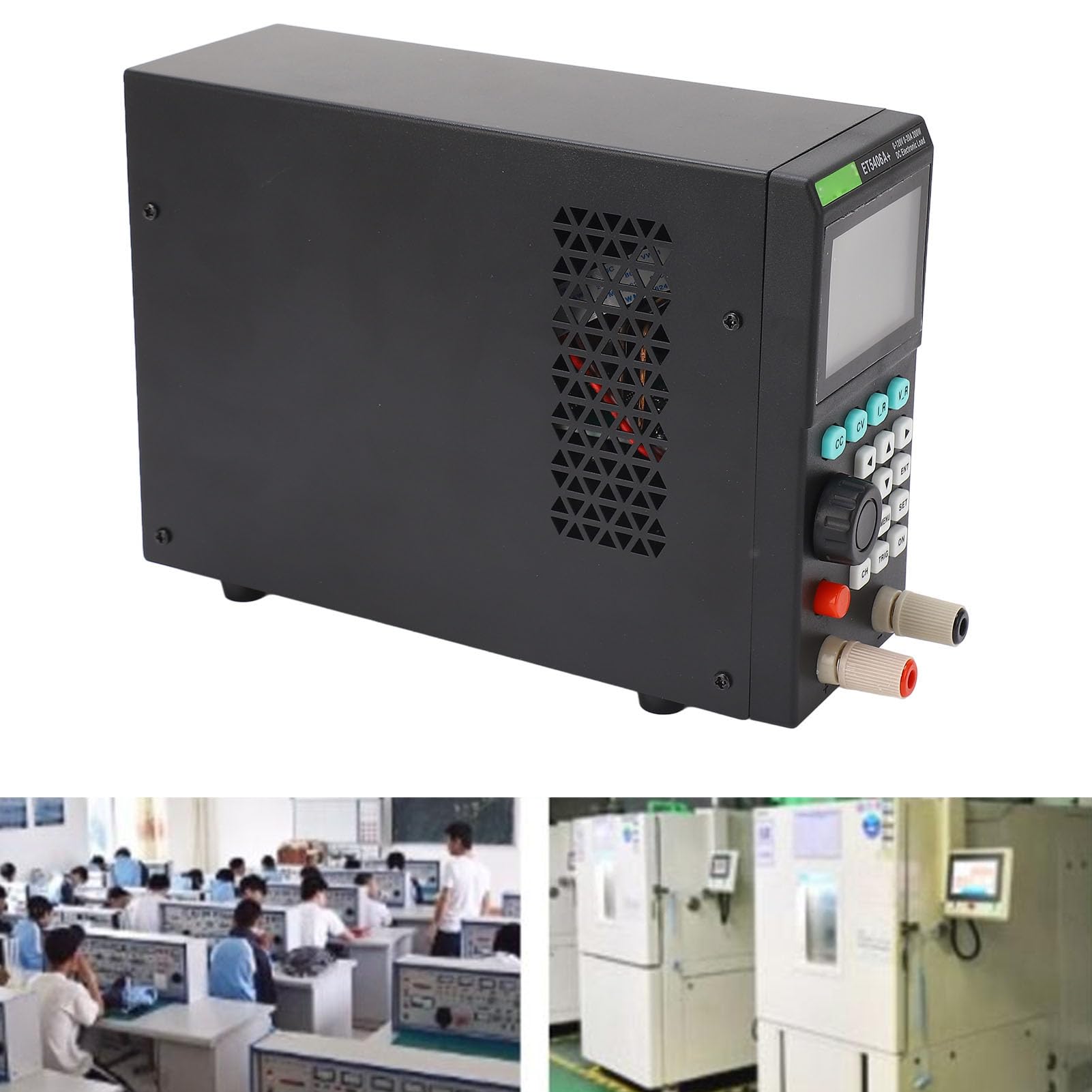

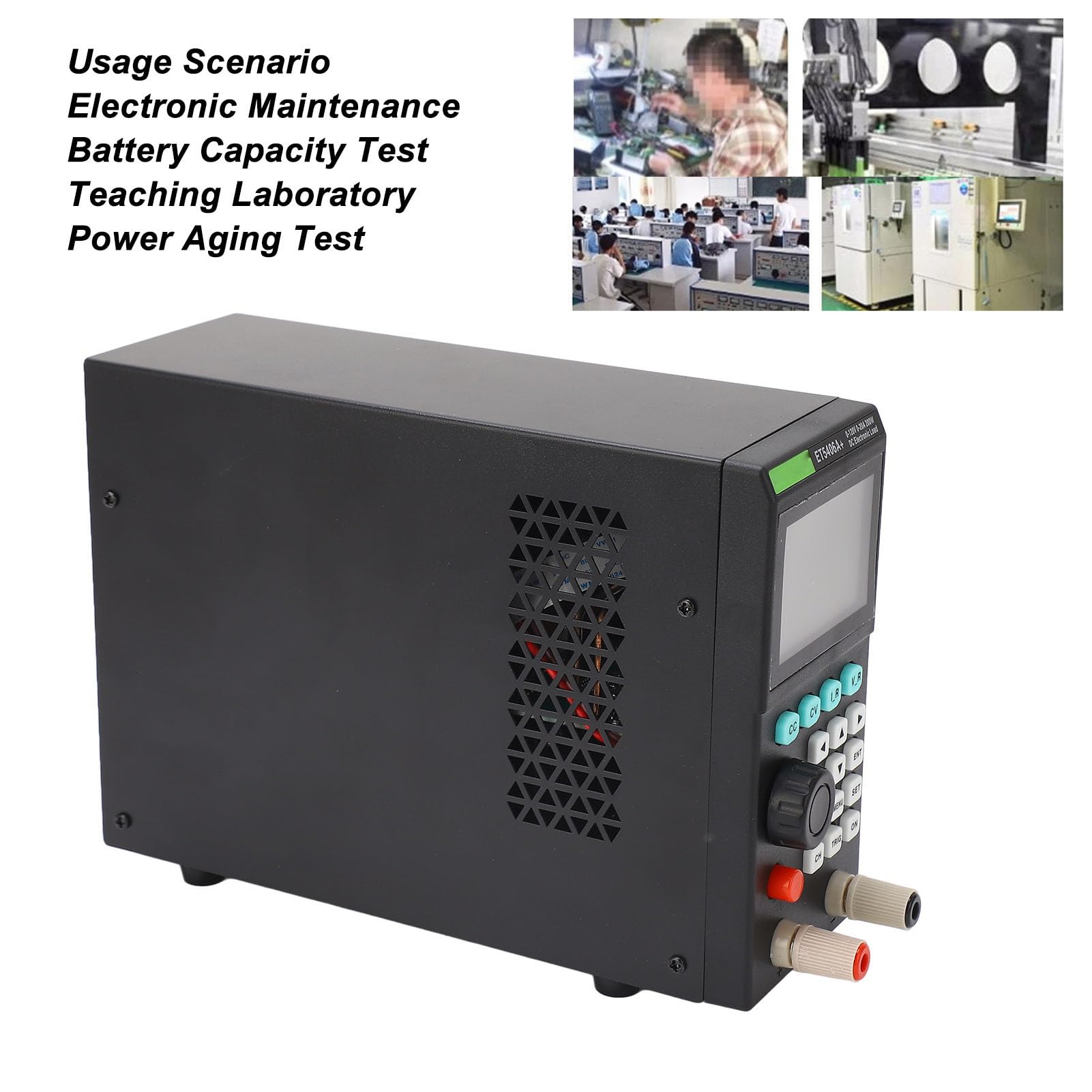

High-Precision DC Electronic Load Tester - 0-120V 0-20A 200W Battery Capacity Detector with US Plug (110V) - Perfect for Lithium Battery Testing, Power Supply Evaluation & DIY Electronics Projects

$96.04

$174.62

Safe 45%

High-Precision DC Electronic Load Tester - 0-120V 0-20A 200W Battery Capacity Detector with US Plug (110V) - Perfect for Lithium Battery Testing, Power Supply Evaluation & DIY Electronics Projects

High-Precision DC Electronic Load Tester - 0-120V 0-20A 200W Battery Capacity Detector with US Plug (110V) - Perfect for Lithium Battery Testing, Power Supply Evaluation & DIY Electronics Projects

$96.04

$174.62

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

11 people viewing this product right now!

SKU: 49238399

Guranteed safe checkout

Description

Spec:Item Type: Electronic Load TesterMaterial: Aluminum AlloyRated Input Power 200W Input Voltage 0-120V Input Current 0-20A Constant Voltage Mode Range 0.1~19.999V, 0.1~120.00V Resolution 1mV, 10mV Accuracy ±(0.05%+0.02%FS) Constant Current Mode Range 0~3.000A，0~20.00A Resolution 1mA, 10mA Accuracy ±(0.05%+0.05%FS) Constant Mode Range 0.05Ω~4.50kQ Resolution 10mΩ, 1Ω Accuracy ±(0.1%+0.5%FS) Constant Power Mode Range 0~200W Resolution 10mW Accuracy ±(0.1%+0.5%FS) Dynamic Test Function Mode CC, CV T1 and T2 0.05s~99.999s Battery Test Function Discharge Mode CC, CR Maximum Discharge Capacity 9999Ah Resolution 1mA, 10mA, 10mQ, 1Ω Measuring Range Voltage Read Back Value Range 0~19.999V, 0~120.00V Resolution 1mV, 10mV Accuracy ±(0.05%+0.1%FS) Current Read Back Value Range 0~3.000A, 0~20.00A Resolution 1mA, 10mA Accuracy ±(0.05%+0.1%FS) Power Read Back Value Range 200W Resolution 10mW Accuracy ±(0.1%+0.5%FS) Range of Overvoltage Greater than 21V or 125V overvoltage Overcurrent Greater than 3.1A or 21A overcurrent Overpower 210W Overtemperature 85℃Package List:1 x Electronic Load Tester1 x Plug

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

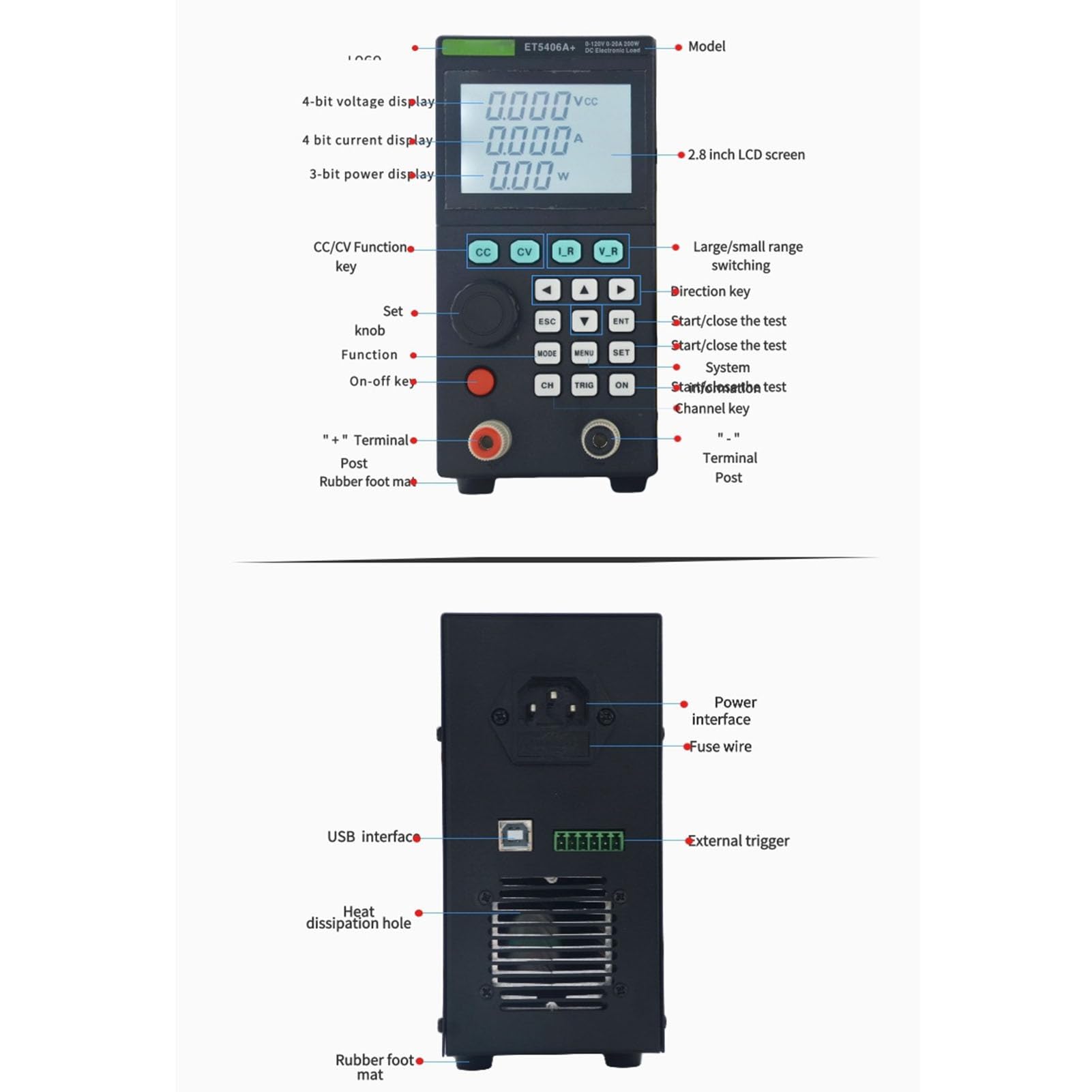

[CLEAR LCD DISPLAY] Easily monitor and view test results and parameters on the adjustable backlit LCD display, even in low light conditions.

[ACCURATE MEASUREMENT MODES] Choose from CC, CV, CR, and CP modes to accurately measure and evaluate the performance of your power sources.

[VERSATILE ELECTRONIC LOAD TESTER] Test and analyze the performance of various DC power sources with this programmable DC load tester.

[REMOTE OPERATION AND DATA STORAGE] Control and monitor the load tester remotely through multiple interfaces, while conveniently storing test data for analysis.

[DEDICATED BATTERY TESTING] Test the capacity, efficiency, and performance of batteries with the dedicated battery testing feature.
