HUIOP 8-Channel 18650 Battery Tester with 2.4" TFT Display - Multi-Mode Capacity Tester for Li-ion/NiMH Batteries | Enhanced Safety & Intuitive Interface | Perfect for DIY Electronics, RC Toys & Power Tool Maintenance
$47.07
$85.59
Safe 45%
HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4 HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4
HUIOP 8-Channel 18650 Battery Tester with 2.4" TFT Display - Multi-Mode Capacity Tester for Li-ion/NiMH Batteries | Enhanced Safety & Intuitive Interface | Perfect for DIY Electronics, RC Toys & Power Tool Maintenance
$47.07
$85.59
45% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
22 people viewing this product right now!
SKU: 49465647
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description

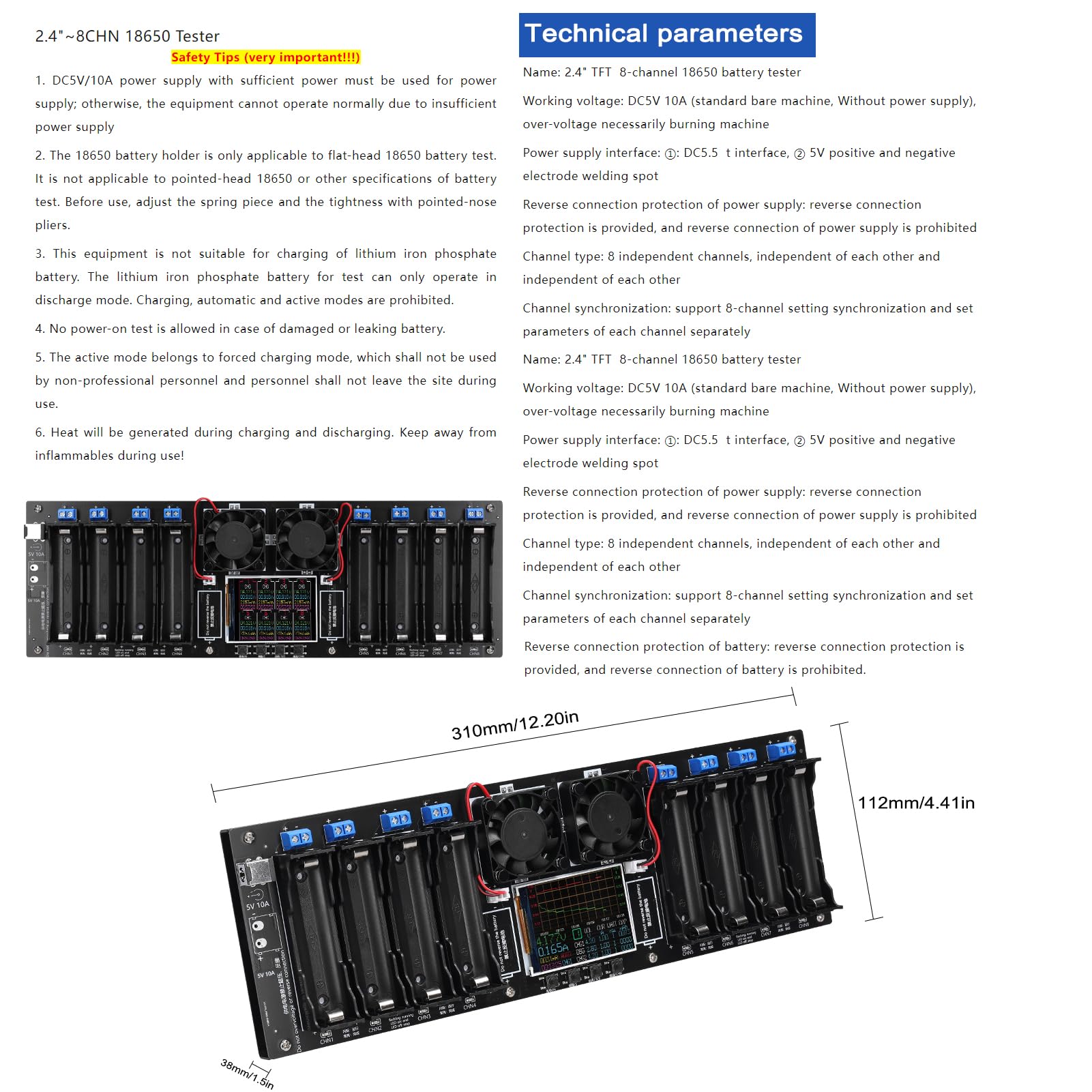

of each channel separately Charging current: each channel is independent of about 1A non-constant current charging, and the charging current is not adjustable. Charging (stop) voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 6 gears adjustable Recharge (stop) voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 13 gears adjustable Charging end current: 100mA, 200mA, 300mA, adjustable Discharge current: each channel is independent of about 1A non-constant current discharge, and the discharge current is not adjustable (Discharge) Stop voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 17 gears adjustable Standstill time: 1-5min adjustable Channel status preview: support 1-screen preview of 8-channel status Single channel detail display: support Single-channel charging and discharging curve display: support Internal resistance detection: two-wire method (direct current) for internal resistance measurement, only used for sorting and analogy of the same batch Heat dissipation mode: active heat dissipation Overheat protecting: support Cyclic charging and discharging: only one charging - discharging - charging cycle is supported in automatic mode, and multiple cycles are not supported. External test: it supports external discharge through 2P terminal. A single channel only supports one of the battery base or external test, and cannot use the battery base and external battery for test at the same time Reverse connection protective function of battery: reverse connection is protected, and reverse connection of battery is prohibited Item size: 310 * 112 * 38mm / 12.20 * 4.41 * 1.50in Item weight: 397g / 0.88lb Package size: 335 * 115 * 60mm / 13.19 * 4.53 * 2.36in Package weight: 508g / 1.12lb Packing List: 1 * Battery Tester
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

【Multi-Functional Operation Modes & Customizable Parameters】 The tester offers versatile operating modes of Automatic, Charging, Discharging, and Activation, with customizable parameters such as voltage, current, and time settings. This flexibility enables precise testing and conditioning of batteries, catering to diverse testing needs.

【8 Independent Channels with Synchronization Capabilities】 Featuring 8 independent channels, each capable of conducting separate parameters setting simultaneously, and the function for channel synchronization simplifies the testing process and maximizes the efficiency.

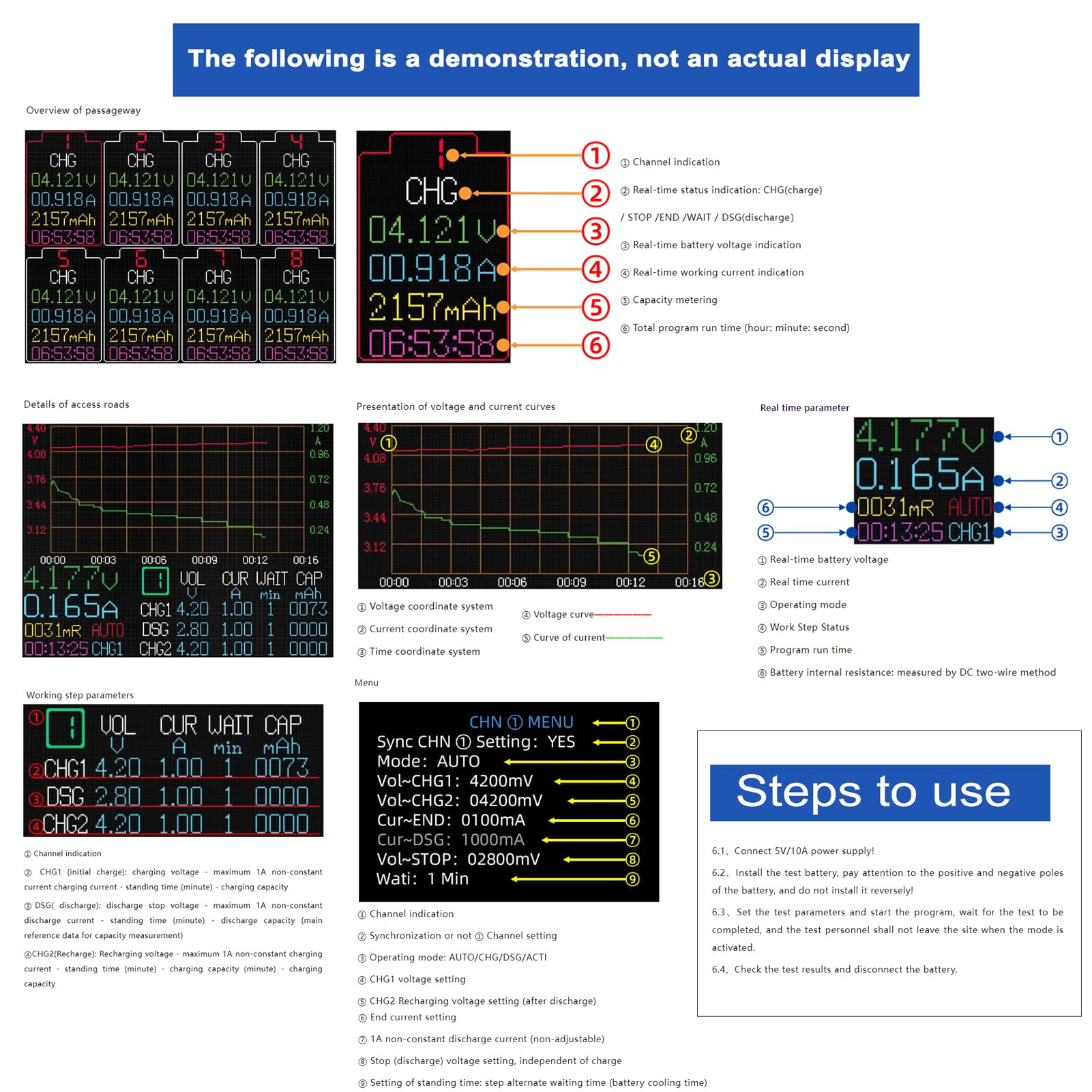

【Intuitive TFT Display & Comprehensive Data】 The 2.4-inch TFT display provides real-time viewing of battery voltage, current, and operational status, alongside capacity metering and total program runtime. This detailed information empowers users with insights into battery state and performance during testing.

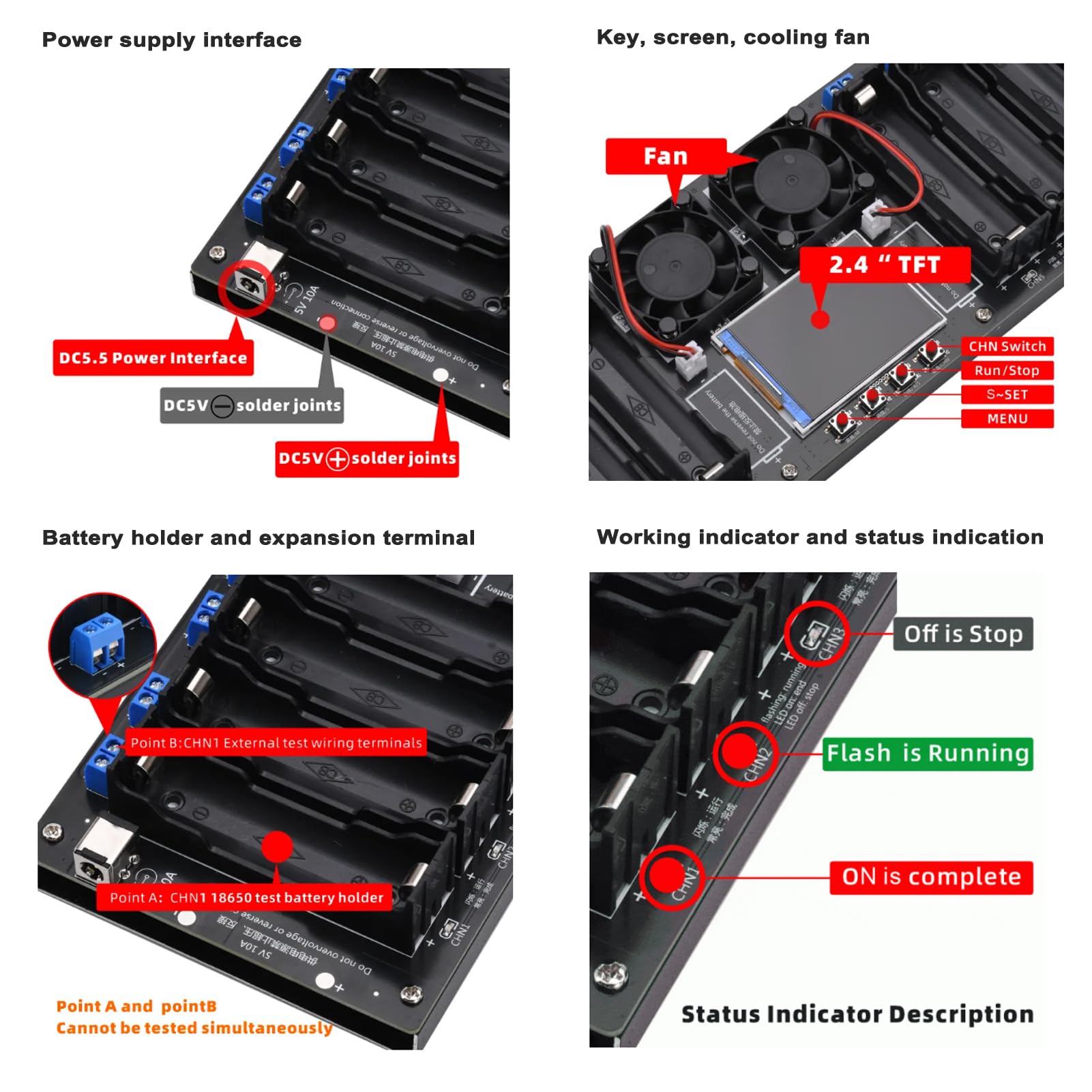

【Safety & Multiple Protections】 The tester incorporates a reverse connection protective function for both the powersupply and batteries, safeguarding the device from damage due to incorrect connections. Overheat protecting function and active heat dissipation mechanisms further ensure operational safety and avert overheating during extended testing sessions.

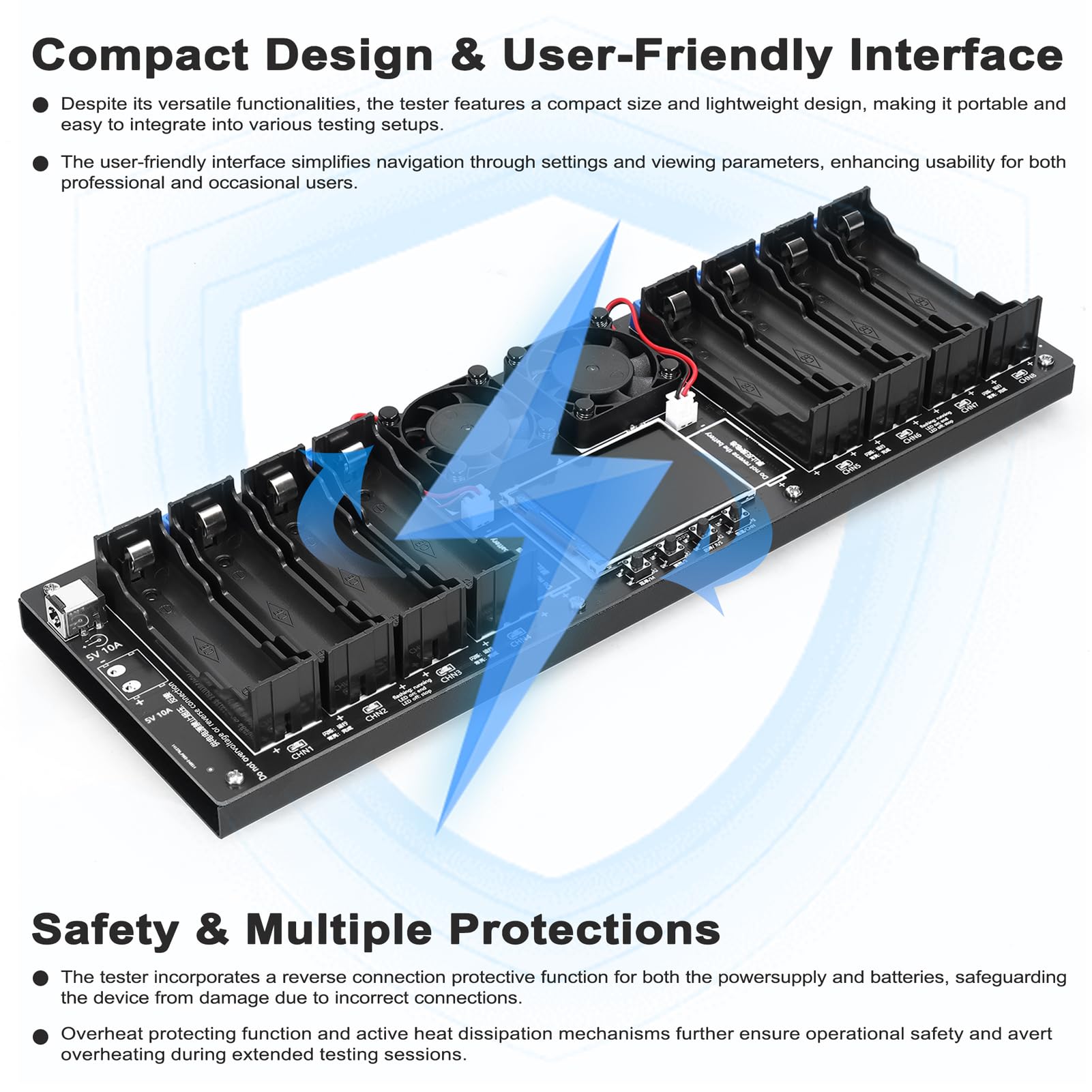

【Compact Design & User-Friendly Interface】 Despite its versatile functionalities, the tester features a compact size and lightweight design, making it portable and easy to integrate into various testing setups. The user-friendly interface simplifies navigation through settings and viewing parameters, enhancing usability for both professional and occasional users.
