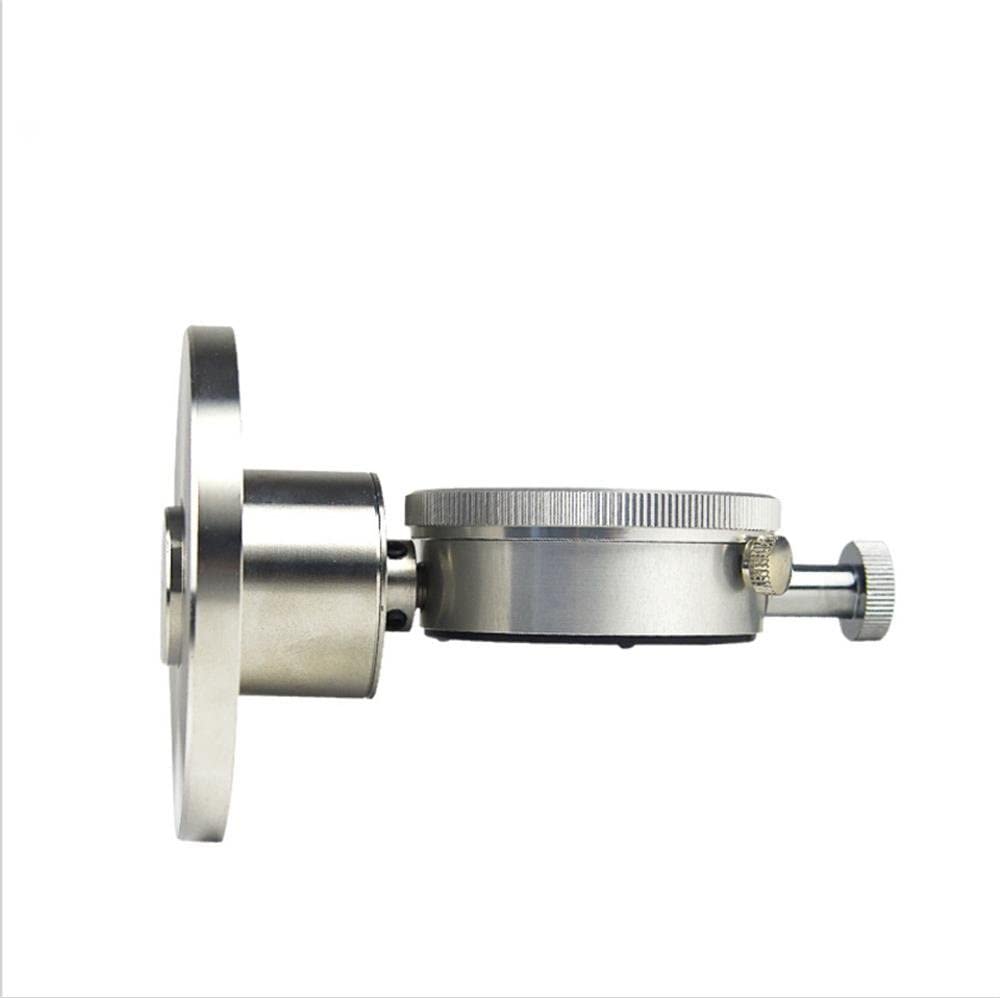

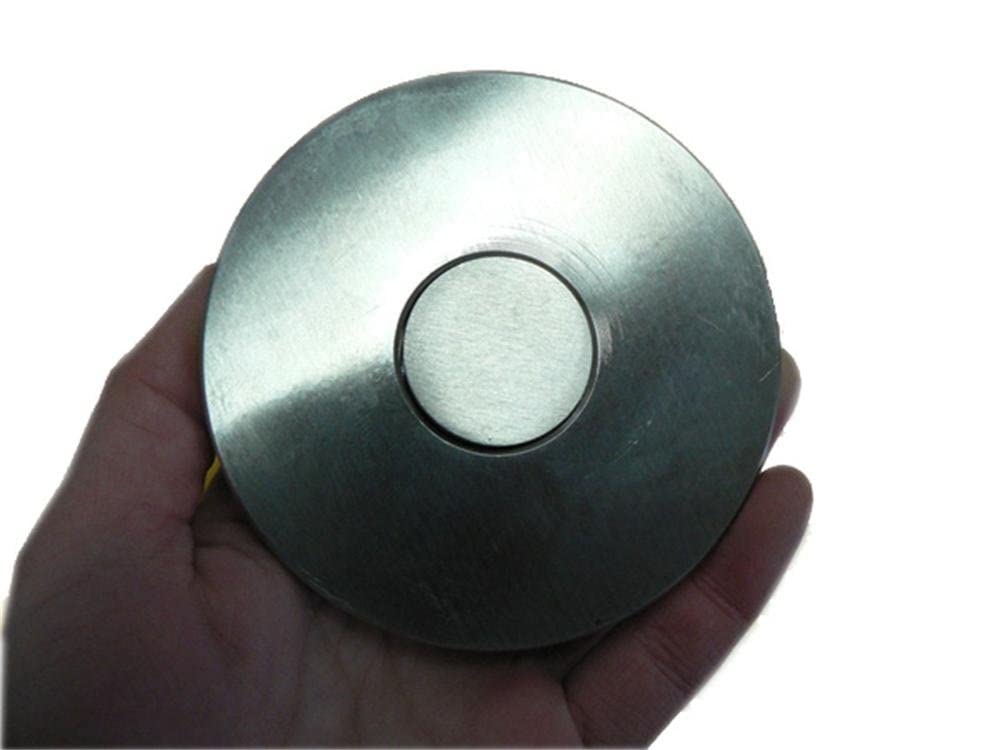

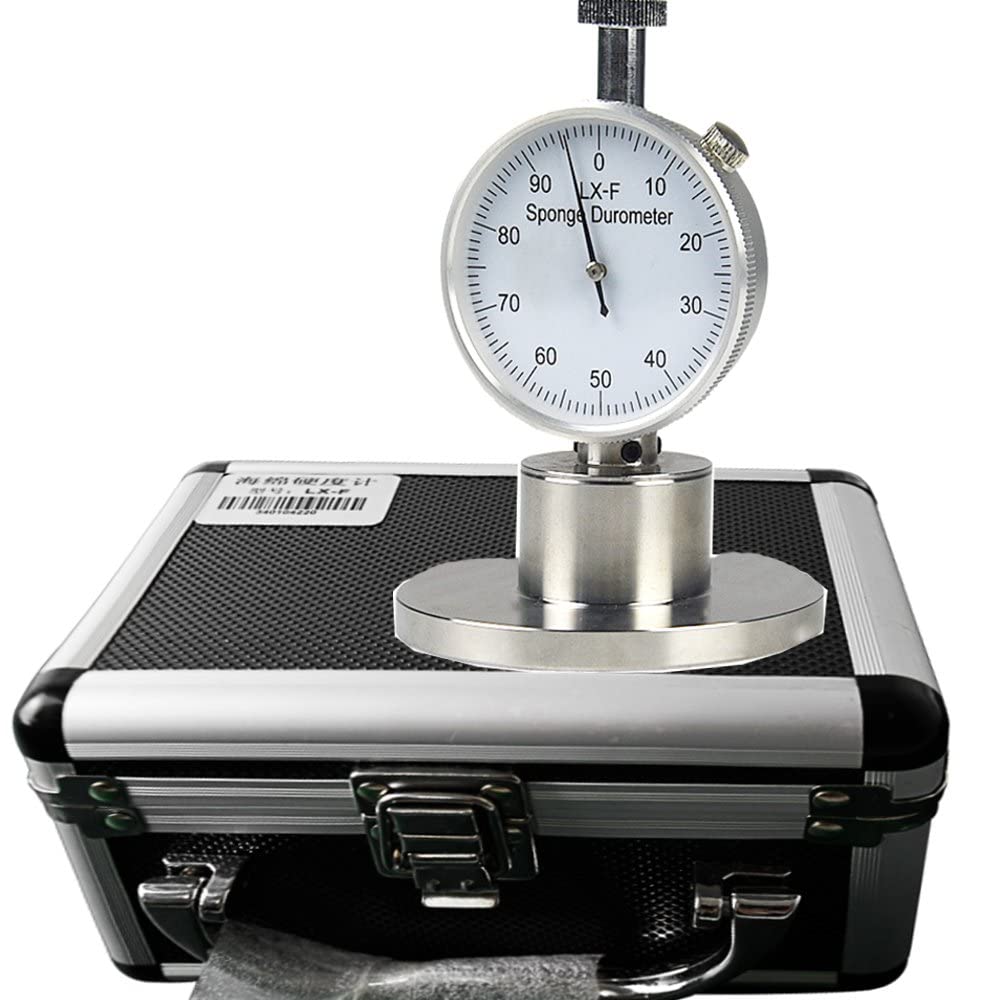

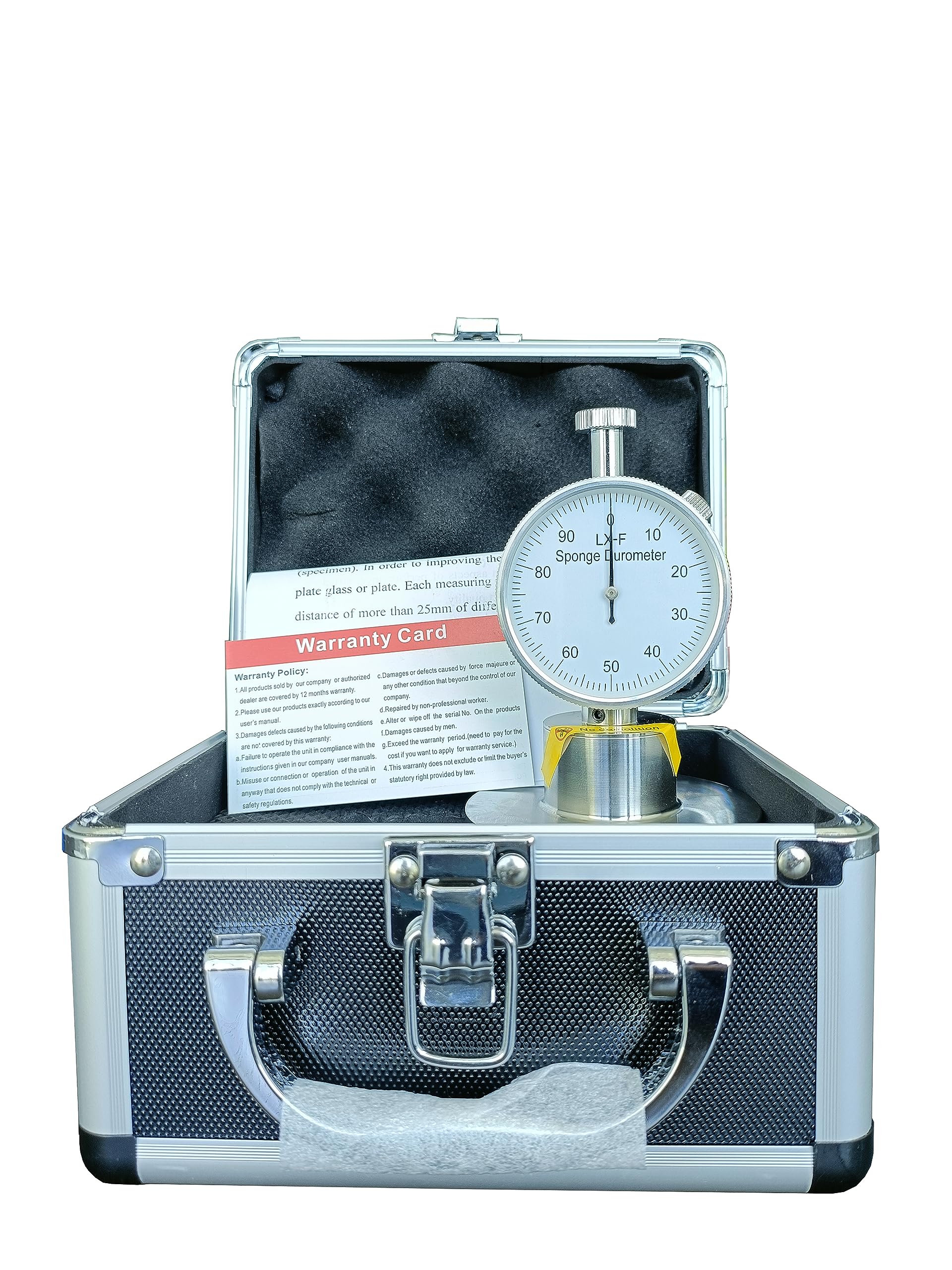

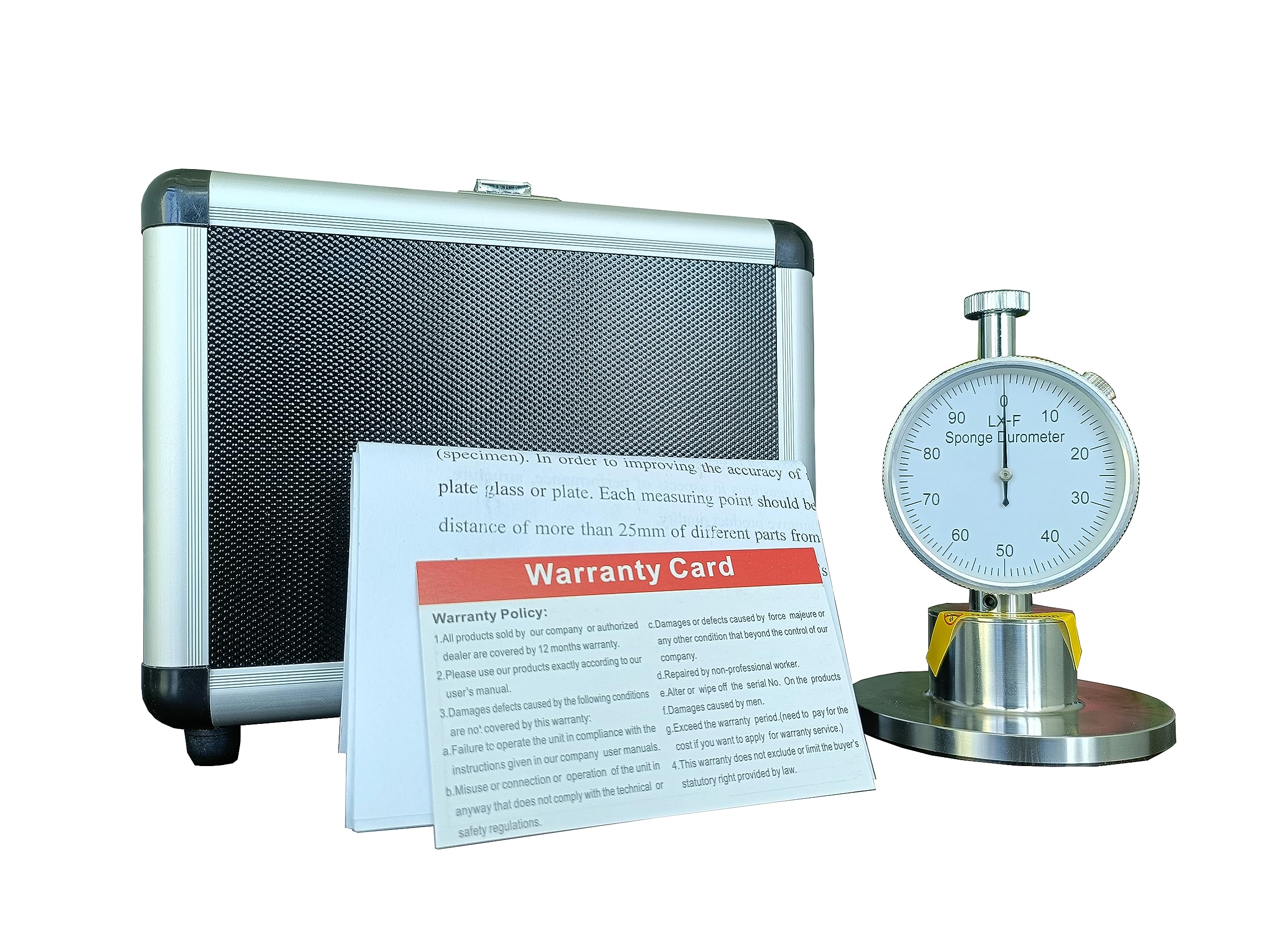

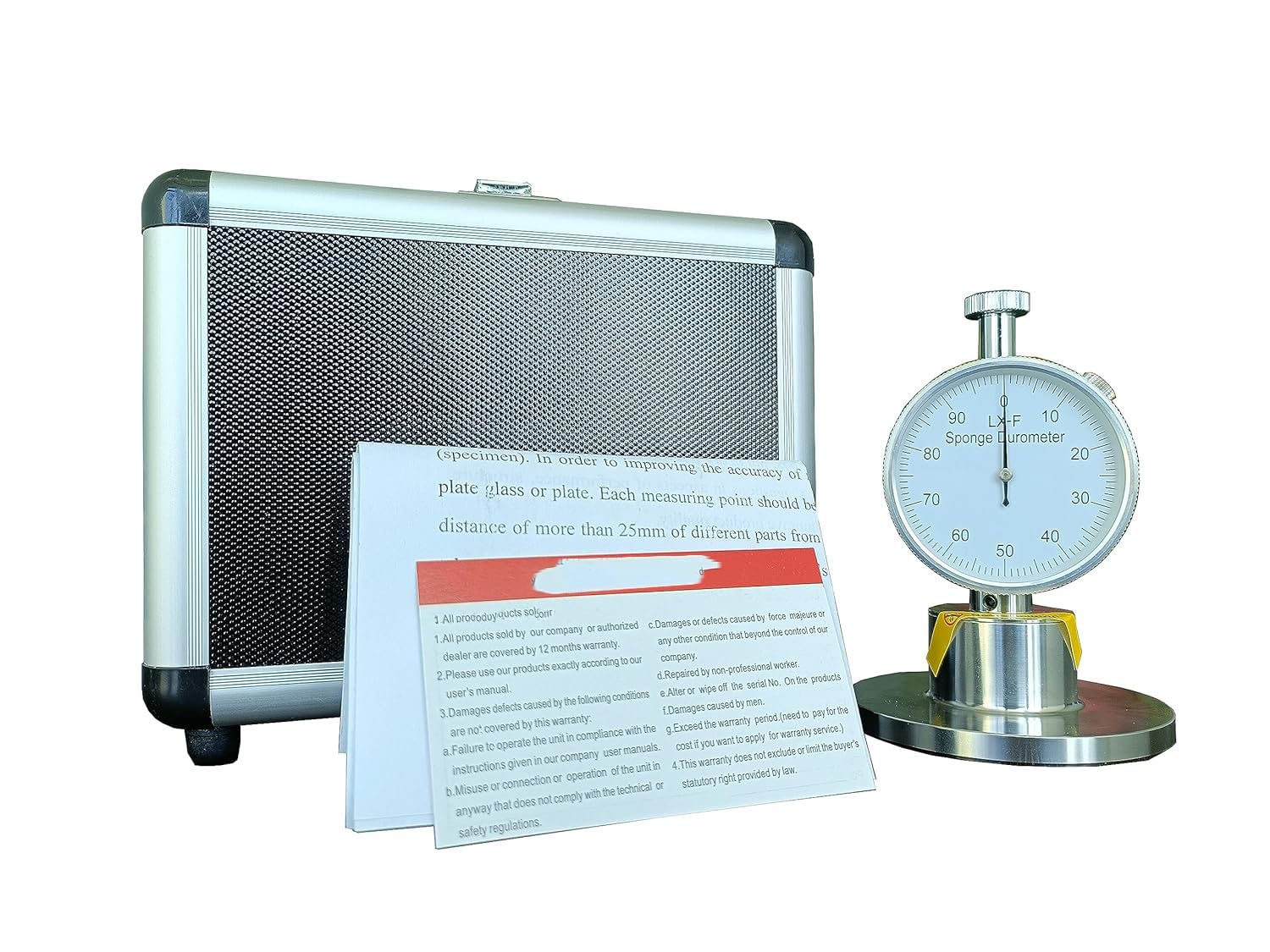

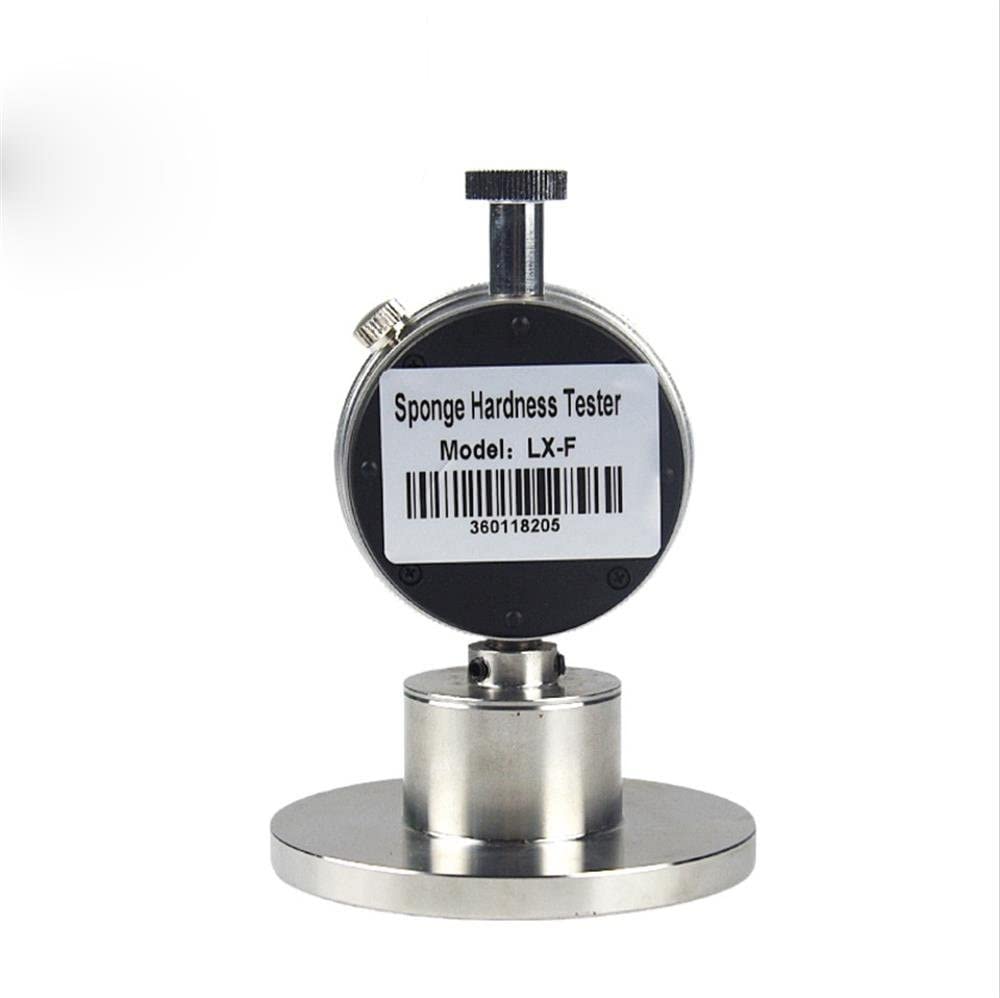

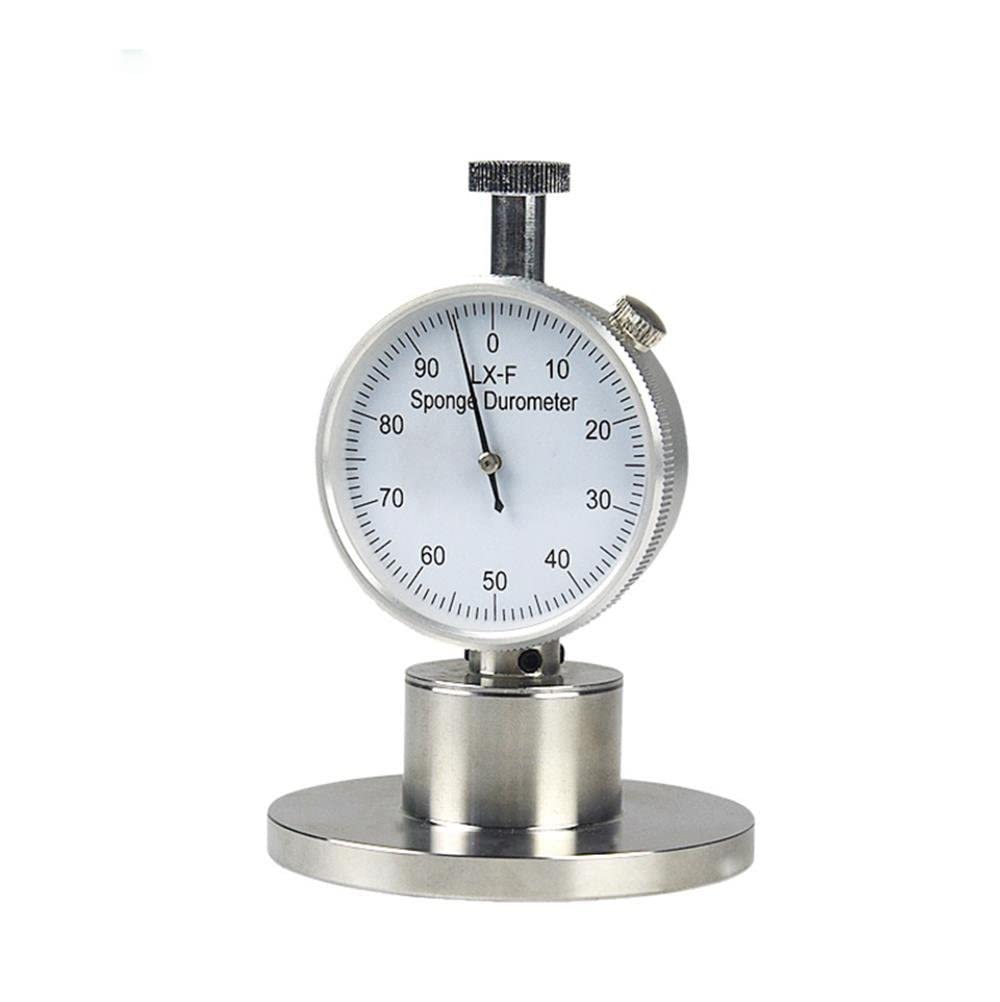

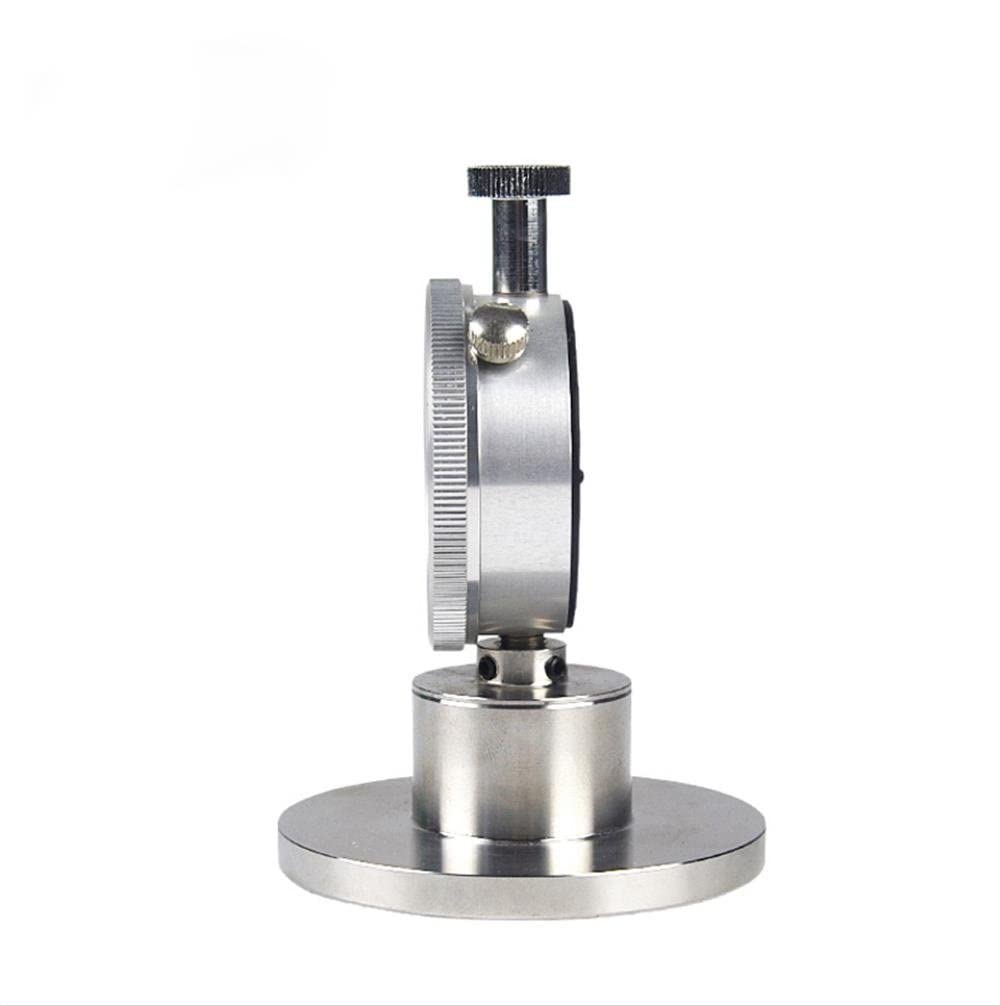

Sponge Hardness Tester Sclerometer Measuring Gauge Tools For Soft Foam Function This type sponge durometer is suitable forthe determination of soft foam, polyurethane foam rubber products’ hardness. And it will be different with the otherhardness tester In the aspects of using. When using, the presser foot directly contact to the sample, and see its ownweight as force measurement load. Character 1:Scope of pressure needle route: 0 ~ 2.5millimeters. 2:The scale value: 0-100 degrees. 3:The force of pressure needle end: 550mN~4300mN（56~438.5g). Method of using Handheld the middle of the instrument, located the hardness tester gently on the plane specimens which is bigger than presser foot (or specimen). Reading out the value in1 seconds when durometers’ presser foot contact with the sample smoothly. And the tick of pointers is the hardness value of sample (specimen). In order to improving the accuracy of measurement, you should put the sample on a flat plate glass or plate. Each measuring point should be measured only one time, the measuring point at a distance of more than 25mm of different parts from the same sample should be more than 5 points. To take the average of measurement results, namely it’s the hardness value of the materials Sponge Foam Hardness Tester Shore E Durometer Shore OO Durometer Shore F Durometer Memory Foam Durometer Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 3.0 out of 5 stars 1 — 5.0 out of 5 stars 2 — — Price $179.00$179.00 $266.00$266.00 $258.00$258.00 $330.00$330.00 $330.00$330.00 Description Main parameters: Scope of pressure needle route: 0 ~ 2.5 millimeters. The scale value: 0-100 degrees. The force of pressure needle end: 550mN~4300mN（56~438.5g). Parameters: Tested Result/Mean Value/Max.Value Unit :HE Range :10~90HE Accuracy: <1%H Resolution: 0.1H Battery Indicator: Low Battery Indicator Auto Switch Off :√ Parameters: Tested Result/Mean Value/Max.Value Unit: HOO Range :10-90HOO Accuracy: <1%H Resolution: 0.1H Battery Indicator: Low Battery Indicator Auto Switch Off :√ Operating :Temperature:0~50ºC Humidity:<80%RH SPECIFICATIONS Display:4 digits, 10 mm LCD Range:0~100 Resolution: 0.1 Presser foot: 80mm diameter Indenter: Extension 2.54mm 25.2mm Cylinder Spring force: 455gf Measurement deviation: ? ±1 Specification: Parameters: Tested Result/Mean Value/Max.Value Range :0~100HMF Resolution: 0.1HMF Accuracy :<1HMF Spring Force: 455gf Sensor Head Diameter: 25mm Sensor Foot Diamter: 80mm Battery Indicator: Low Battery Indicator Indenter no data R 2.5 Spherical Radius R 1.2 Spherical Radius no data no data Tested Materials no data Hard Sponge, EVA Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials no data no data Hardness Value no data Above 90 DO, Below 20 D Below 20 O no data no data
