M-4070 Digital Auto Ranging LCR Meter - Capacitance, Inductance & Resistance Tester for In-Circuit Testing | Perfect for Electronics Repair, PCB Diagnostics and Component Analysis

$58.73

$106.79

Safe 45%

M-4070 Digital Auto Ranging LCR Meter - Capacitance, Inductance & Resistance Tester for In-Circuit Testing | Perfect for Electronics Repair, PCB Diagnostics and Component Analysis

M-4070 Digital Auto Ranging LCR Meter - Capacitance, Inductance & Resistance Tester for In-Circuit Testing | Perfect for Electronics Repair, PCB Diagnostics and Component Analysis

$58.73

$106.79

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

19 people viewing this product right now!

SKU: 54883154

Guranteed safe checkout

Description

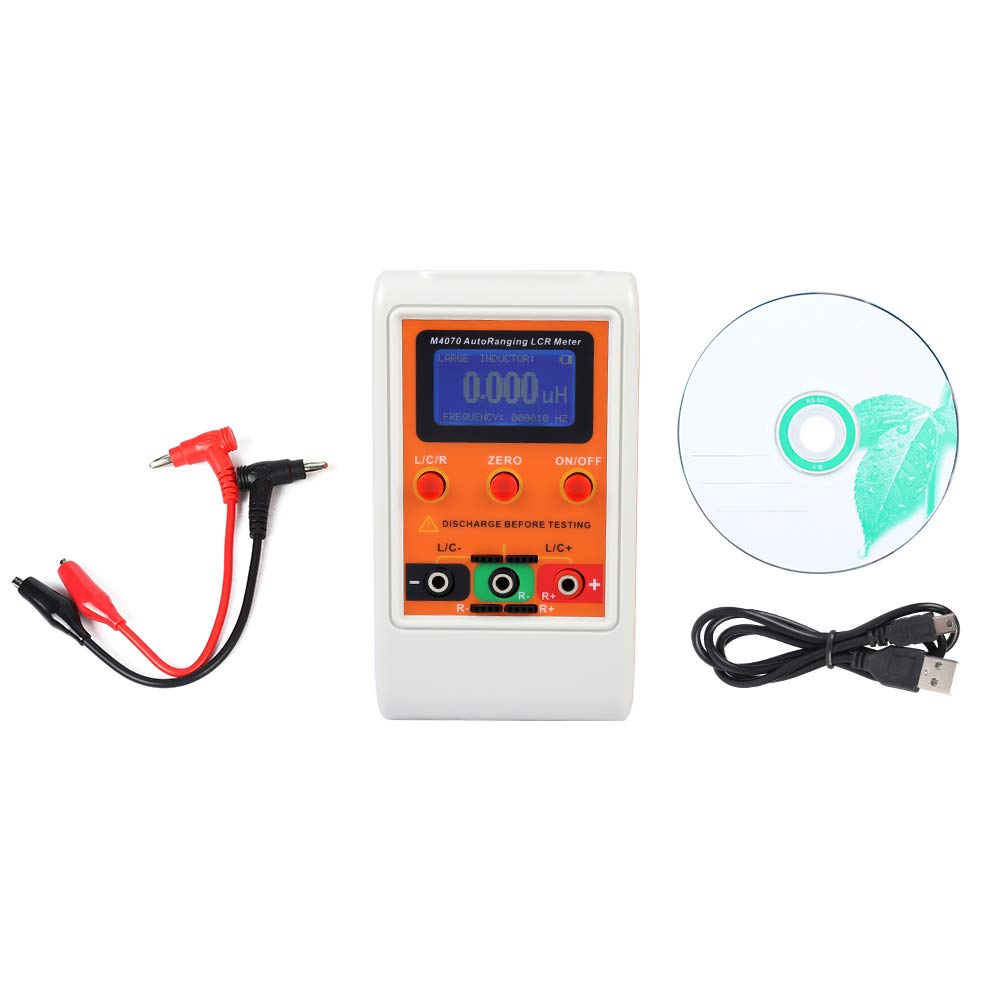

Specification: Model：M4070 Main Parameter: L / C / R Testing frequency C: 10 to 500Khz L: 10 to 360Khz Testing Method: Auto select LC and RC Oscillation Calibration:Power on auto calibrate with internal reference capacitor Best Tolerance: L: 1% +1 Digit C: 1% +1 Digi R: 0.5% +1 Digit Terminal: Mini-USB(Virtual Com Port) Display Range C 0.00pF ~100.000mF (pF/nF/uF/mF) L 0.000uH ~100.000H(uH/mH/H) Hz (LC Oscillation Frequency) 0 to 900000Hz (RC Constant Time) 0.000 to 99.999 R 0.00 Ω~ 20.000 MΩ Display: 128X64 Dot Matrix, with backlight Fuse Protection: 200mA Charging terminal: Mini-USB (500mA) Battery: internal 3.7V Li-polymer Number of Testing Terminal Main 3, Secondary 4 Reading Display：Max. 99999 Size:17*10*3cm/6.7*3.9*1.2in Weight: Approx.391g/13.8oz Package list: 1 x M-4070 Meter 2 x crocodile clip cable 1 x USB cable 1 x manual 1 x CD

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Fully auto-ranging designed

High resolution, up to 5 digit display, most finest resolution 0.01pF, 0.001uH, 0.01R

High stability and measurement range for L/ C/ R

USB charging with rechargeable battery inside

Large LCD display with backlight
