Digital Vibration Tester Meter - Portable Vibrometer with Piezoelectric Accelerometer for Mechanical Vibration Measurement | On-Site Industrial Equipment Monitoring & Machine Maintenance Tool

$206.82

$376.05

Safe 45%

Digital Vibration Tester Meter - Portable Vibrometer with Piezoelectric Accelerometer for Mechanical Vibration Measurement | On-Site Industrial Equipment Monitoring & Machine Maintenance Tool

Digital Vibration Tester Meter - Portable Vibrometer with Piezoelectric Accelerometer for Mechanical Vibration Measurement | On-Site Industrial Equipment Monitoring & Machine Maintenance Tool

$206.82

$376.05

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

9 people viewing this product right now!

SKU: 57018670

Guranteed safe checkout

Description

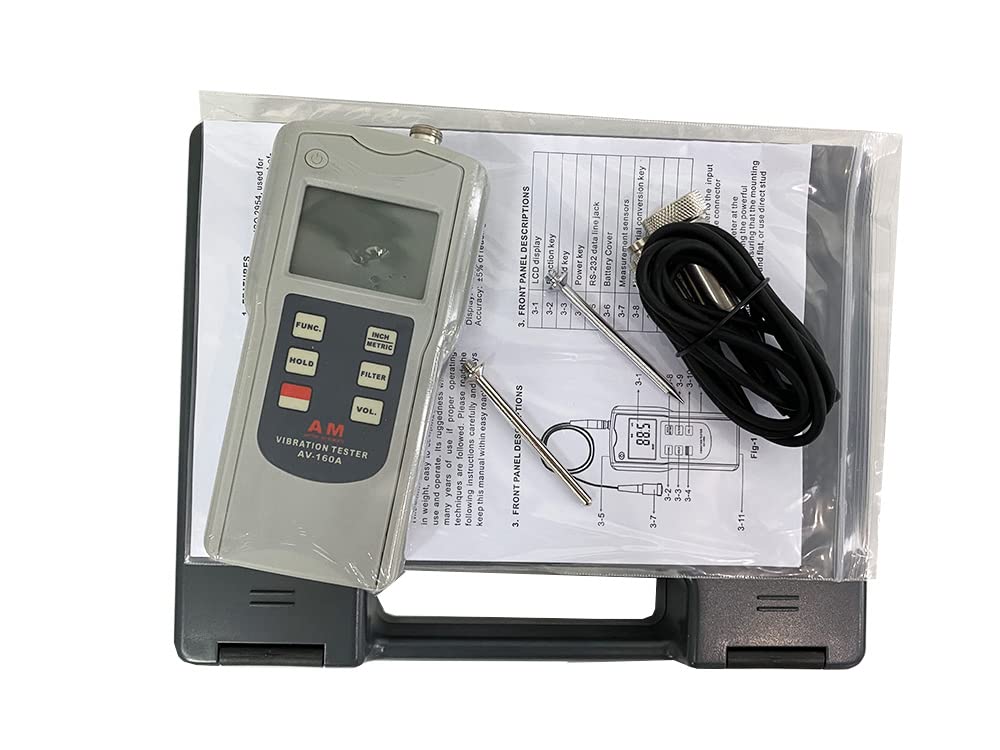

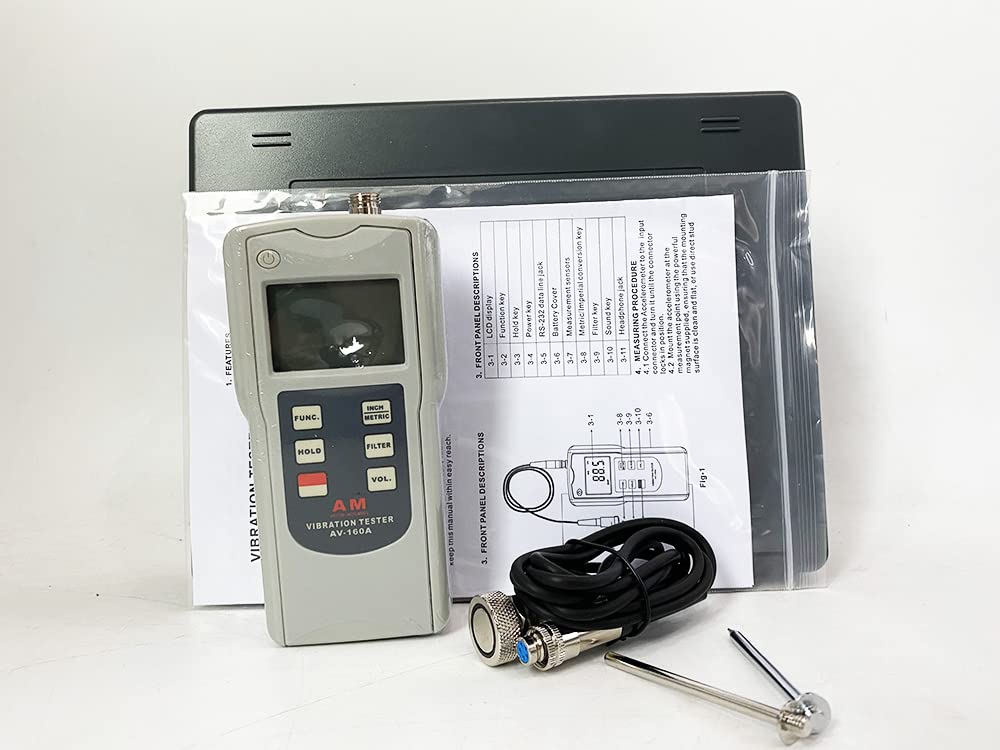

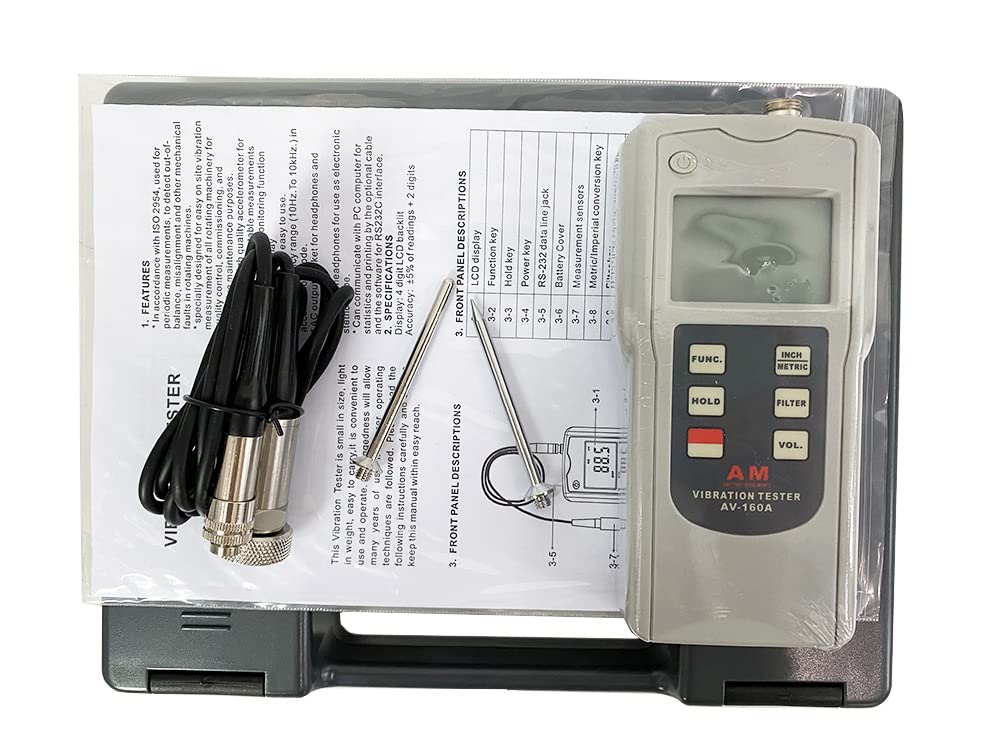

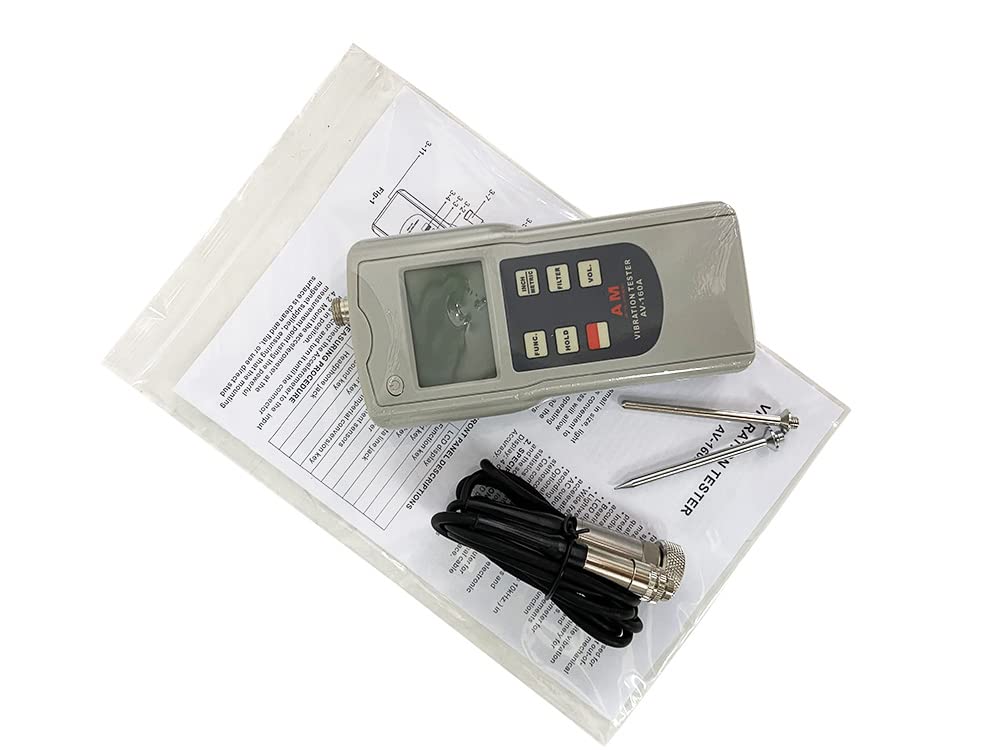

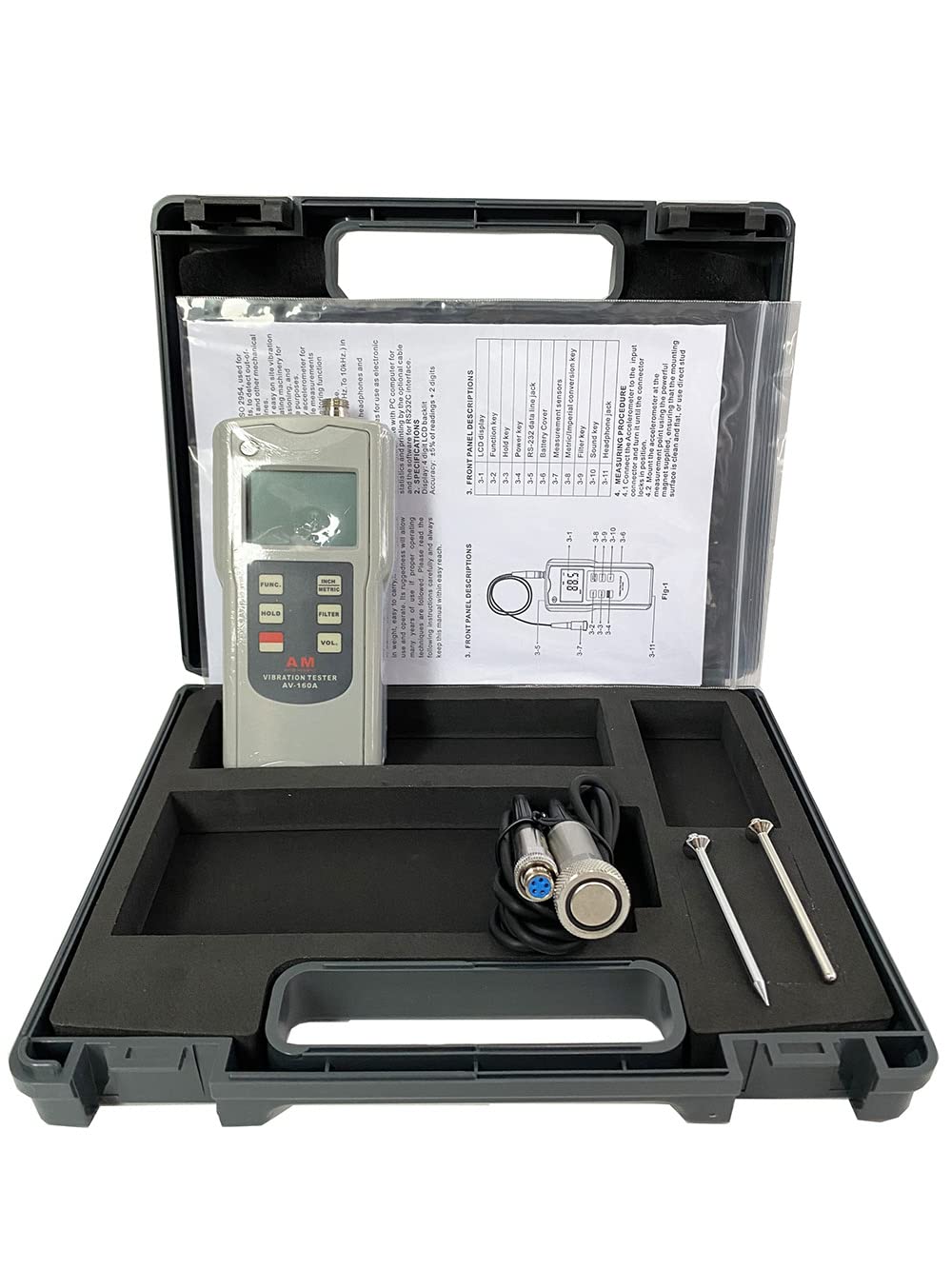

Product Description: ☀The Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned.☀ Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data.☀ Selection of high-performance accelerometers to achieve accurate, replicable measurement ☀It has a bearing condition measurement function. Specification: ☀Specification: ☀Transducer: Piezoelectric accelerometer ☀Accuracy: ±5%+2 digits ☀Measurement Range: *Displacement: 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil *Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s *Acceleration: 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g ☀Frequency Range: *Displacement : 10Hz. ~ 1kHz. *Velocity :10Hz. ~1kHz. *Acceleration: 10Hz. ~ 10kHz. ☀Operating Conditions: Temperature : 0-50 ℃, Humidity : below 95% RH ☀Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k) ☀Power Supply: 4x1.5vAAA (UM-4) Battery（Battery not included in the package) ☀Size: 140x70x30mm ☀Weight: 130g (Not including Batteries) ☀Standard Accessories: Main Unit, Magnetic suction seat, Probe (cone) / Probe (spherical) ☀Portable box ,Brochures, Piezoelectric sensor, Carrying Case, Operation Manual ☀Optional Accessories: Headset, USB data output, Bluetooth data output

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

1. Accuracy ±5%+2 digits

2. In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

3. Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

4. Individual high quality accelerometer for accurate and repeatable measurements.

5. Wide frequency range (10Hz~10kHz) in acceleration mode.
