GM63B Digital Vibration Meter - Portable Handheld Vibration Tester with LCD Display & S/L Probes - for Mechanical Watches, Motors, Fans, Bearings - Workshop, Industrial Maintenance, Equipment Diagnosis Tool

$95.62

$173.87

Safe 45%

GM63B Digital Vibration Meter - Portable Handheld Vibration Tester with LCD Display & S/L Probes - for Mechanical Watches, Motors, Fans, Bearings - Workshop, Industrial Maintenance, Equipment Diagnosis Tool

$95.62

$173.87

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

26 people viewing this product right now!

SKU: 57987147

Guranteed safe checkout

Description

Vibration Meter,GM63B Digital Vibration Meter,Portable Handheld Mini Vibration Tester,LCD Display Vibration Analyzer Gauge Tester,With S And L Probes,for Mechanical Watches/Motors/Fans/BearingsSpecification:Condition: Brand NewModel: GM63BTechnical parameterTechnical specificationVibration pickupPiezoelectric ceramic accelerometer (shear-type)Measurement range of acceleration: 0.1-199.9m/sMeasurement range of velocity: 0.1-199.9mm/s rmsMeasurement range of displacement: 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/Measurement accuracy: ±5%±2digitsMeasurement frequency range of acceleration: 10Hz-1KHz (LO) 1KHz-15KHz (HI)Measurement frequency range of velocity: 10Hz-1KHz (LO)Measurement frequency range of displacement: 10Hz-1KHz (LO)Displays update cycle: 1 secondsLCD display: 3 1/2 digits displaySingle output: AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connectedPower supply: 9V battery(not included)Stand-by current: ≤15uAOperating current: ≤25mABattery life: 20 H continuous useAuto power-off function: Turns off automatically after 60 secondsLCD backlight function: 7 secondsOperating temperature range: 0-40℃Operating humidity range: 30-90%RHLow battery indication: 6.4V±0.2VTemperature range: -10℃-80℃Temperature accuracy: ±2℃Weight: Approx. 1104g / 38.9ozSize: Approx. 72 * 35 * 145mm / 2.8 * 1.4 * 5.7inPackage List:1 Set of Vibration Meter1 * Box

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

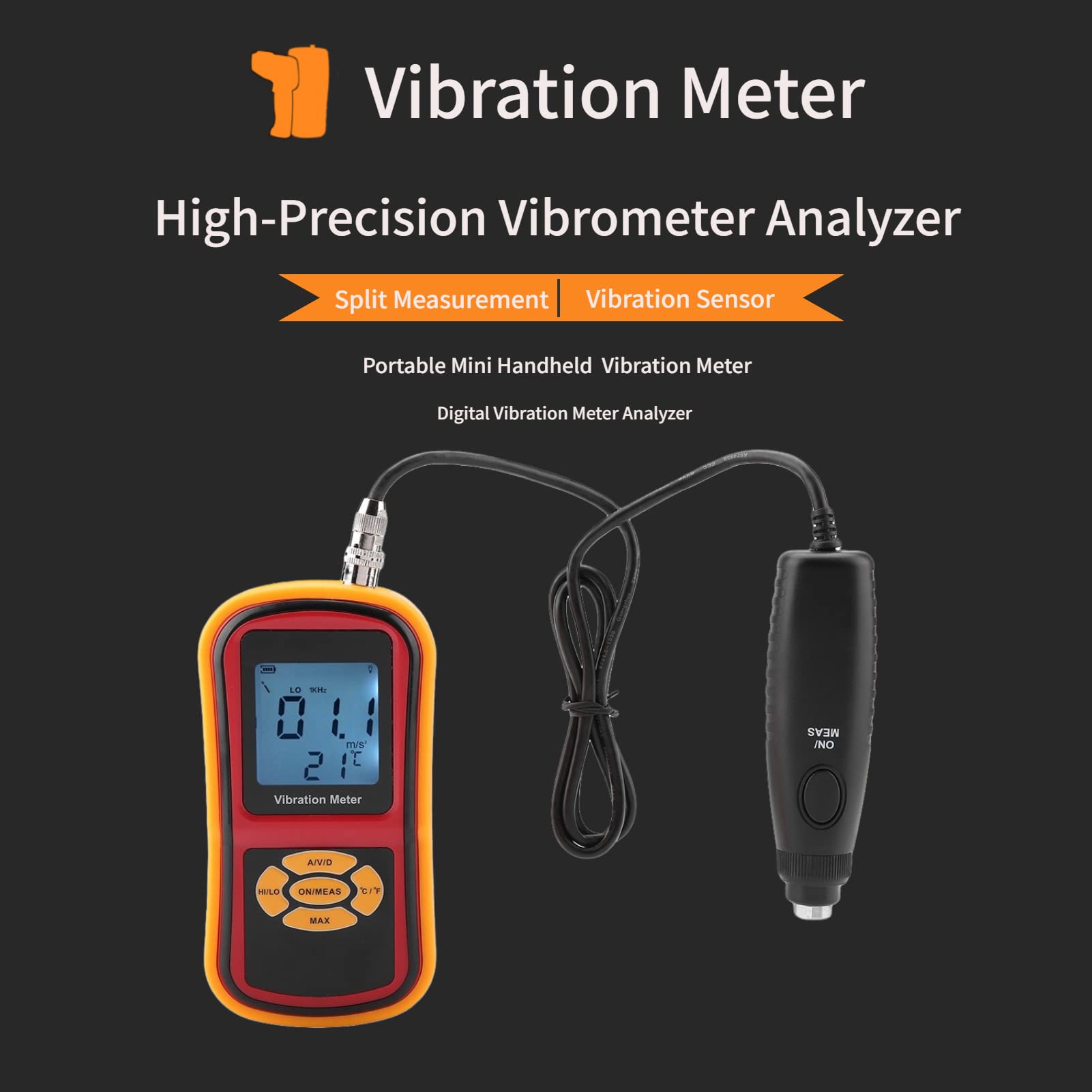

SPLIT MEASUREMENT -- The high-precision vibrometer adopts split measurement, and the design of the probe and the body is separated. The display data is more comprehensive, which facilitates the timely recording of the data during the measurement and makes the measurement more focused.

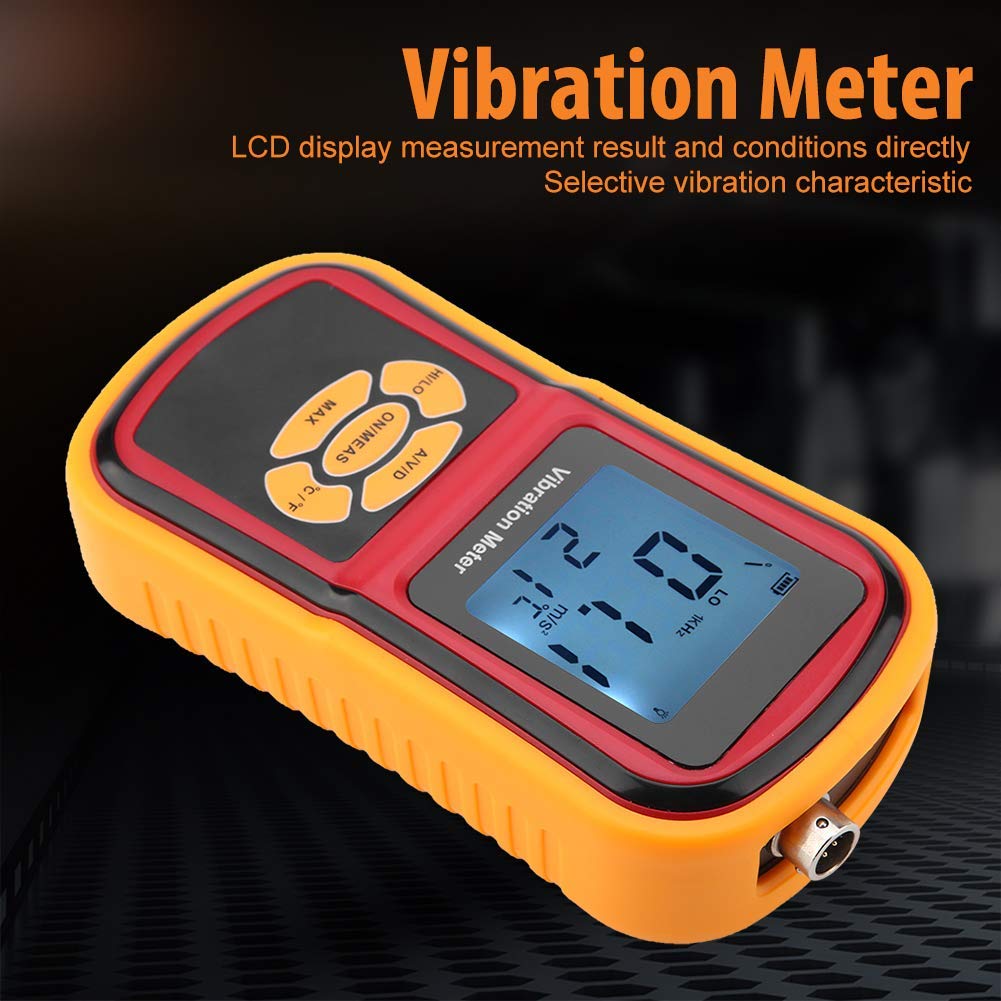

VIBRATION SENSOR -- The vibration meter Using vibration sensor, has selective vibration characteristic,Different vibration frequency characteristics can be selected.

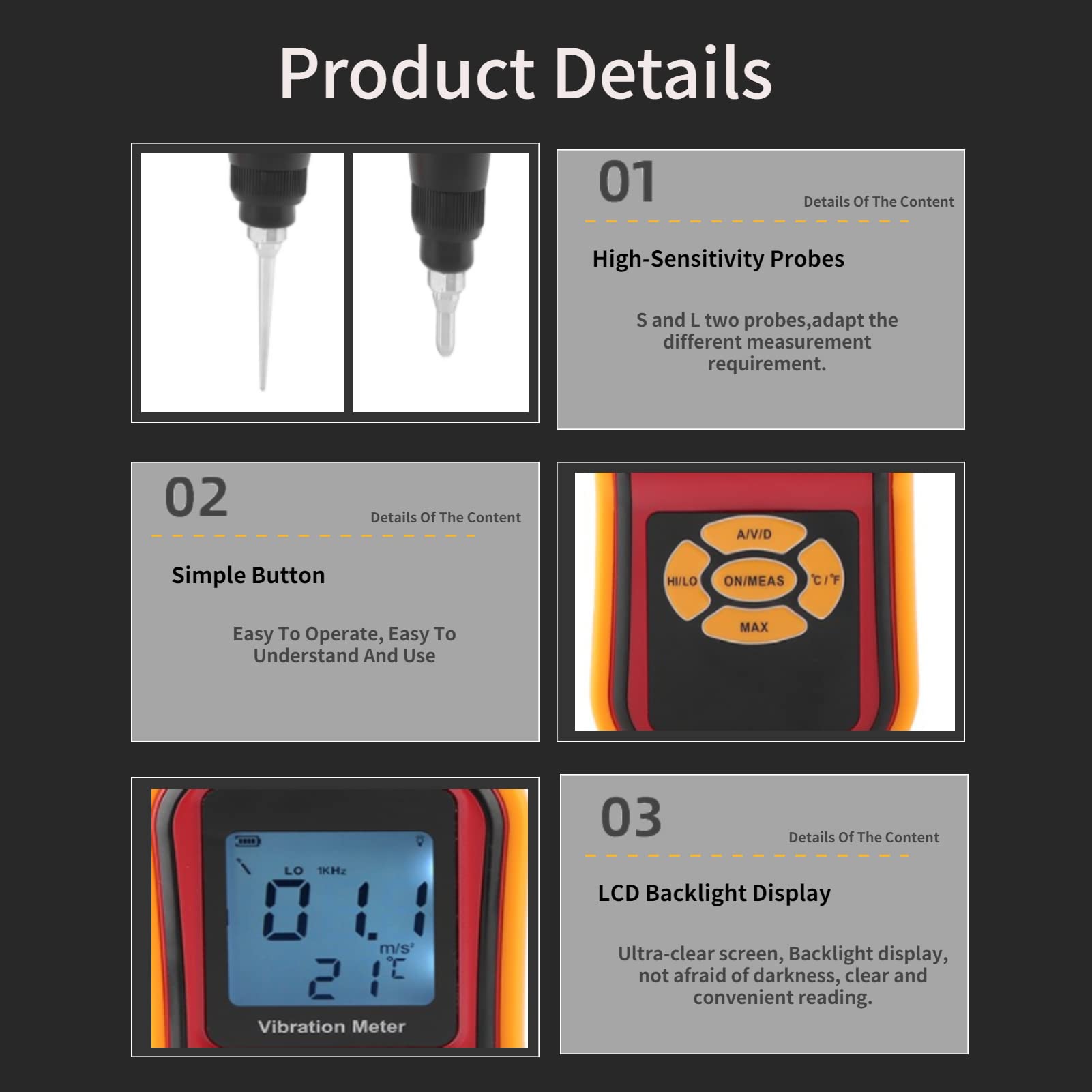

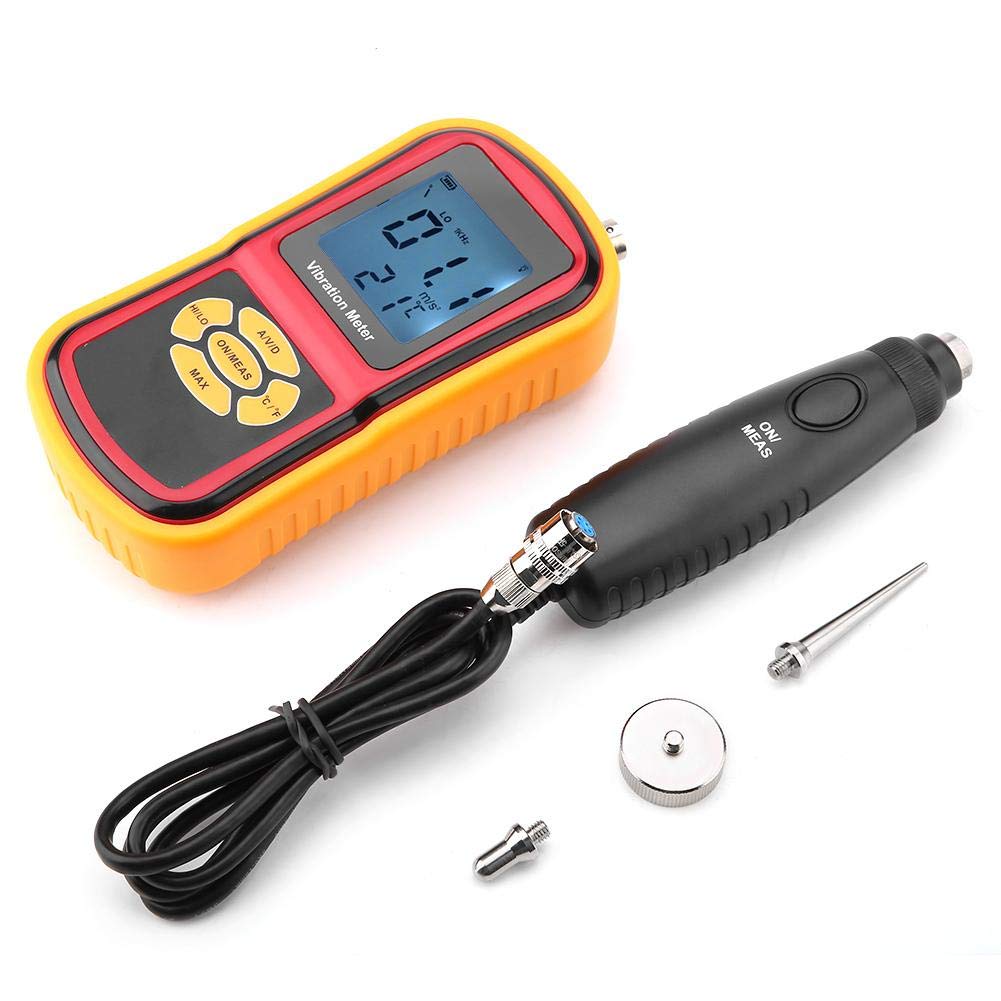

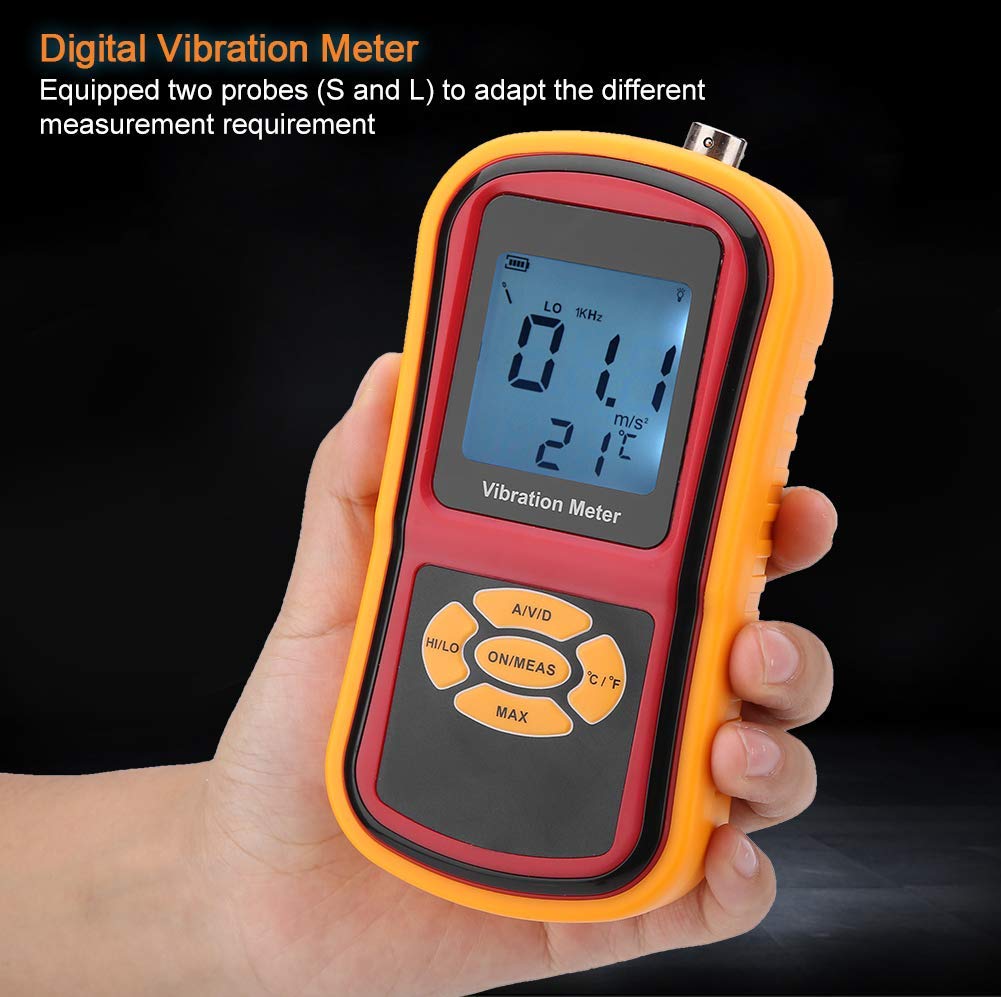

PRODUCT PERFORMANCE -- Digital Vibration Meter Analyzer high-sensitivity two probes (S and L) are used, adapt the different measurement requirement.Equipped with a magnetic suction cup, which is convenient for measuring when it is inconvenient to hold.

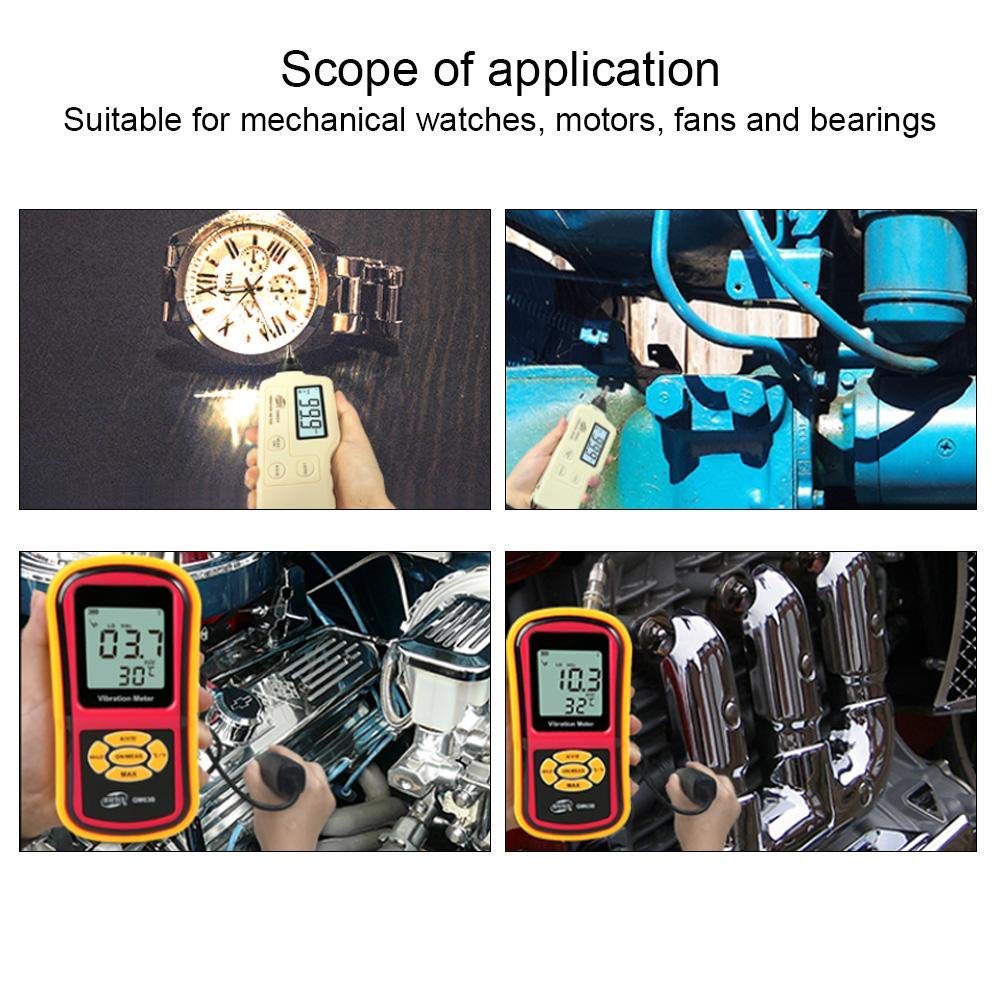

WIDE APPLICATION -- Handheld Mini Vibration Tester can measure acceleration, speed and displacement.Suitable for mechanical watches, motors, fans and bearings.
