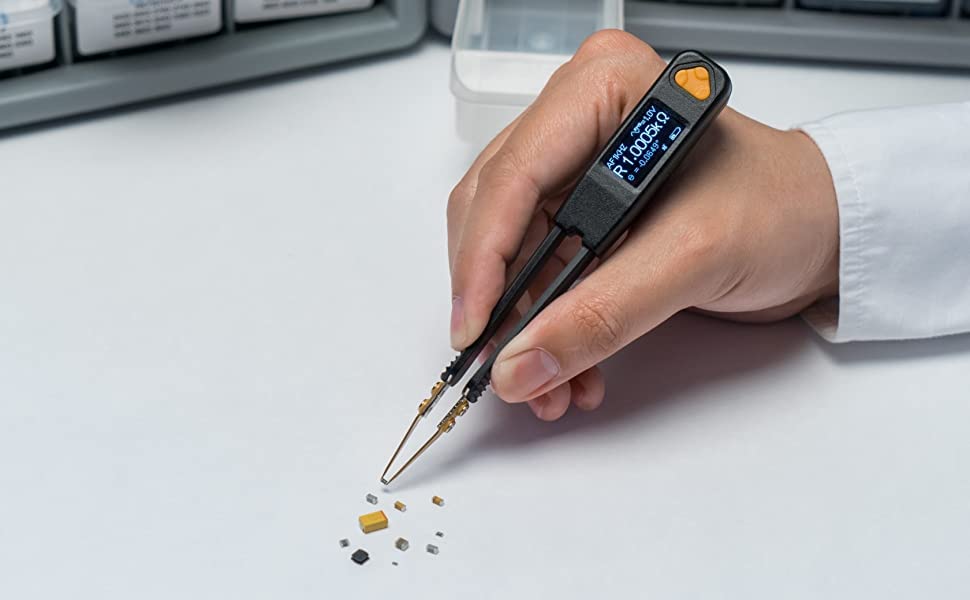

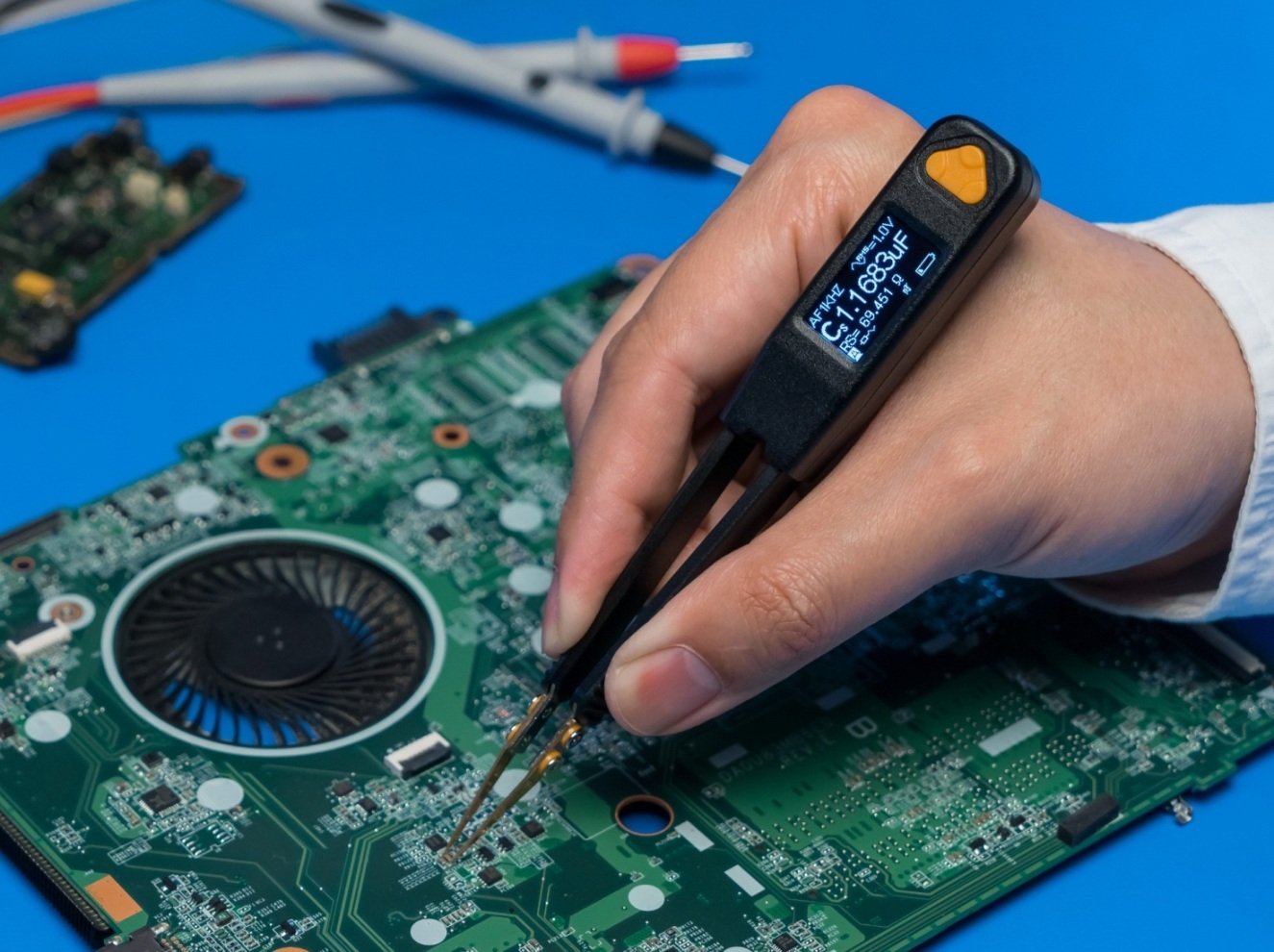

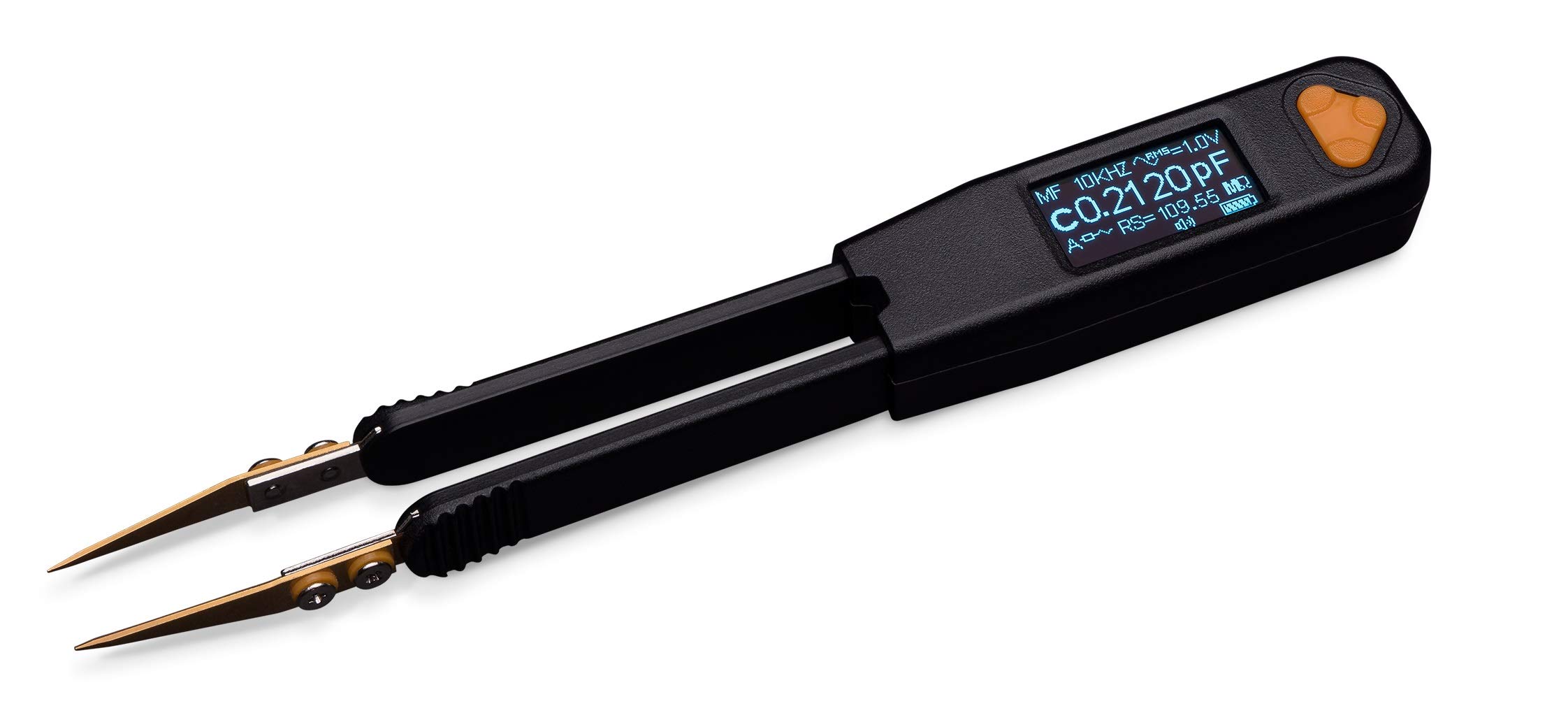

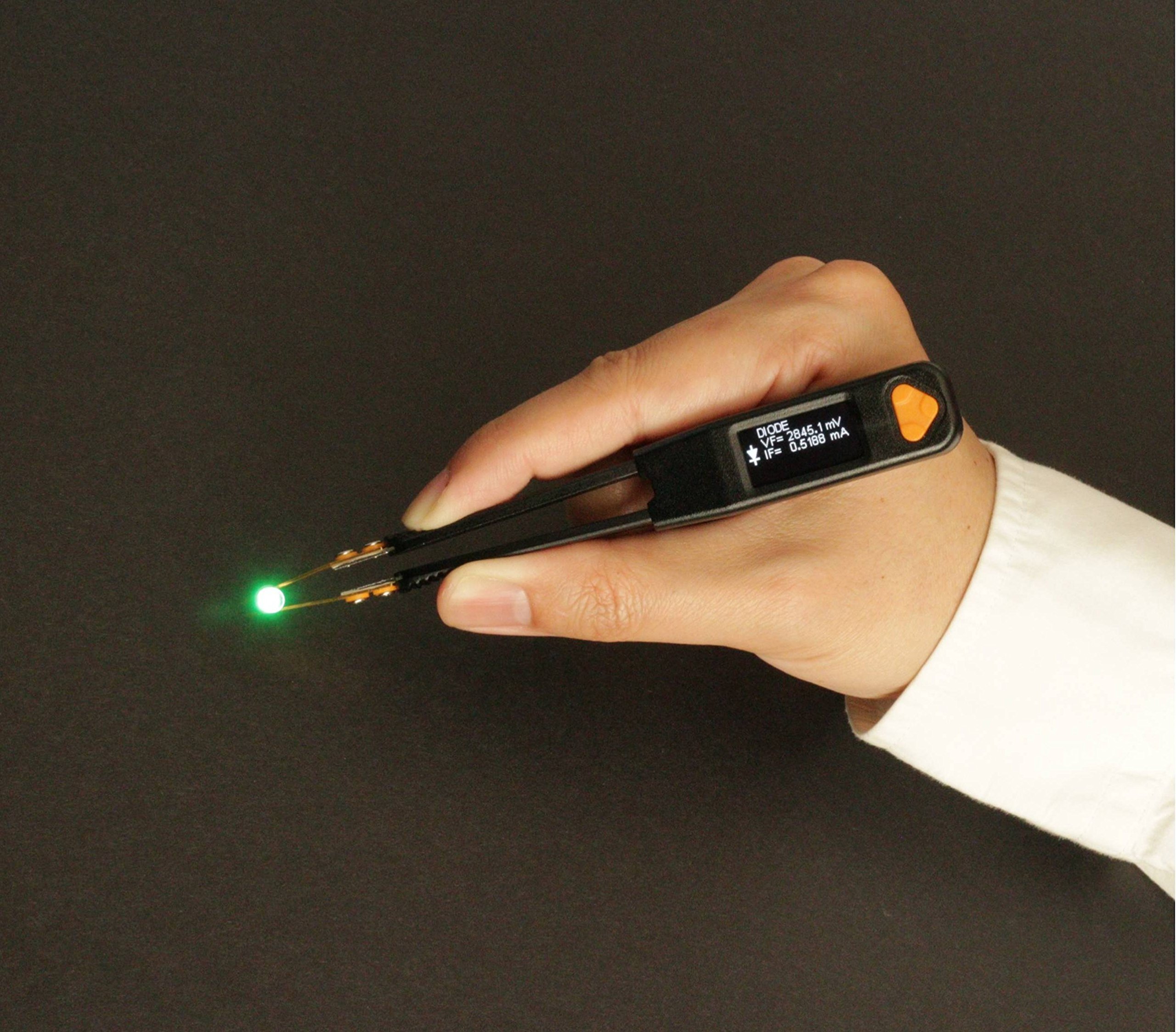

LCR Research Ltd is a high tech company founded by seasoned visionaries with real-world experience in hardware, software and business leadership. At LCR Research, Deliver Excellence is our mission. We devote ourselves to the research and development of novel test instruments through our skills, innovation and creative thinking. LCR Pro1 - Trust the Pro for Your LCR Measurements LCR Pro1 integrates a pair of tweezers like probes and a LCR meter into a single compact, lightweight, battery powered device. It is an all-in-one portable device that provides a simple and efficient solution for not only measuring SMD components, but also making in-circuit debugging. LCR Pro1 is an ideal device for many applications including components verification and sorting, production lines, laboratory and service center, in-field repair and more. Key Features Easy operation – one hand use, full set of shortcutsFully auto/manual selectionHigh accuracy – R: 0.1%, L: 0.2%, C: 0.2%5 test frequencies – 100Hz, 120Hz, 1kHz, 10kHz, 100kHz3 test voltages – 0.2Vrms, 0.5Vrms, 1.0VrmsMultiple functions – R, L, C, Z, ESR, DCR, D, Q, θ, sorting, recording, diode and continuityAutomatic LED testing – display polarity, voltage and current (for Pro1 Plus only, single LED up to 2.95V)Wide measurement range – R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 10nH to 1HSmall size – 151 x 19 x 15mmLarge OLED display – 0.96″, 128 x 64 resolutionUltra precise gold plated tipsRechargeable LiPO battery with USB chargingPC remote control for data logging and programming (with LCR Link1) Product Details A Breakthrough in Accuracy LCR Pro1 delivers high accuracy once found only in high-end desktop LCR meters. It provides basic accuracy 0.1% for R and 0.2% for C and L with 5-digit resolution. The test frequencies can be selected from 100Hz to 100kHz. 100kHz is ideal for measuring small inductance under 1uH. The test voltage can be selected from 0.2Vrms to 1.0Vrms. 0.2Vrms is specially designed for in-circuit debugging because it is low enough to prevent the silicon chips from being active during measurement. Ultra-Precise Tips A pair of ultra precise gold-plated tips are mounted on the device with no additional cost. You can use them to pick up and measure SMD components quickly and reliably, even for parts down to sizes of 01005 (0.4 x 0.2mm). Thanks to the ultra precise tips, you can easily reach the component under test without touching the adjacent components during in-circuit troubleshooting even in a very crowded area. PC Connectivity LCR Pro1 can make measurements and charge its battery simultaneously when it connects to a PC via LCR Link1, a USB dongle style data isolator. Using our free LCR Data Logger software, you can remote control the device from a PC for parameter setup, programming and data logging. Visual measurement is also available for you to see directly where the component under testing is located on the board you are testing. Note: PC communication requires LCR Link1 (purchase separately). Additional Features for LCR Pro1 Plus LCR Pro1 Plus has all the great features that come with the LCR Pro1, plus an additional LED testing function and excellent sensitivity to measure very small inductance down to just a couple of nHs thanks to the ultra low noise design and 100kHz testing frequency. In LED testing, LCR Pro1 Plus lights up the LED and displays its electrical parameters, such as polarity, forward voltage and forward current. When testing bi-directional LEDs, the electrical parameters will be displayed in each direction. Note: LCR Pro1 Plus can test both diode and single LED with test voltage up to 2.95V. LCR Pro1 can test diode only. LCR Elite2 LCR Pro1 Plus LCR Pro1 LCR Elite1 Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 3.5 out of 5 stars 15 4.4 out of 5 stars 74 4.4 out of 5 stars 74 3.5 out of 5 stars 15 Price $229.00$229.00 $339.00$339.00 $299.00$299.00 — no data Basic Accuracy (please refer to product user manual for detailed accuracy spec) R: 0.2%, L: 0.4%, C: 0.2% R: 0.1%, L: 0.2%, C: 0.2% R: 0.1%, L: 0.2%, C: 0.2% R: 0.5%, L: 1.0%, C: 1.0% Measurement Range R: 20mΩ to 10MΩ, C: 0.1pF to 5mF, L: 0.3uH to 1H R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 10nH to 1H R: 20mΩ to 10MΩ, C: 0.1pF to 10mF, L: 10nH to 1H R: 25mΩ to 10MΩ, C: 0.3pF to 500uF, L: 1uH to 1H Test Frequency 100Hz, 120Hz, 1KHz, 10kHz 100Hz, 120Hz, 1KHz, 10kHz, 100KHz 100Hz, 120Hz, 1KHz, 10kHz, 100KHz 100Hz, 1KHz, 10kHz Test Voltage 0.5Vrms 0.2Vrms, 0.5Vrms, 1.0Vrms 0.2Vrms, 0.5Vrms, 1.0Vrms 0.45Vrms Over Voltage Protection (between test tips) Yes No No No Additional Functions Rs/Rp, D/Q Rs/Rp, D/Q, Z, Ө, ESR, DCR, diode, LED, Sorting, Continuity, Recording Rs/Rp, D/Q, Z, Ө, ESR, DCR, diode, Sorting, Continuity, Recording Rs/Rp Self Calibration Yes Yes Yes No PC Connectivity No Yes (requires LCR Link1, purchase separately) Yes (requires LCR Link1, purchase separately) No Display OLED 0.91″, 128 x 32 Resolution OLED 0.96″, 128 x 64 Resolution OLED 0.96″, 128 x 64 Resolution OLED 0.91″, 128 x 32 Resolution SMD Test Probe Precise Gold Plated Ultra-Precise Gold Plated Ultra-Precise Gold Plated Precise Gold Plated
