Digital Vibration Meter Analyzer - Professional Vibrometer with Split Probe for Measuring Acceleration, Velocity & Displacement | Mechanical Vibration Tester Sensor | Perfect for Industrial Equipment Maintenance, HVAC Systems & Machine Diagnostics

$171.86

$312.49

Safe 45%

Digital Vibration Meter Analyzer - Professional Vibrometer with Split Probe for Measuring Acceleration, Velocity & Displacement | Mechanical Vibration Tester Sensor | Perfect for Industrial Equipment Maintenance, HVAC Systems & Machine Diagnostics

$171.86

$312.49

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

25 people viewing this product right now!

SKU: 60432811

Guranteed safe checkout

Description

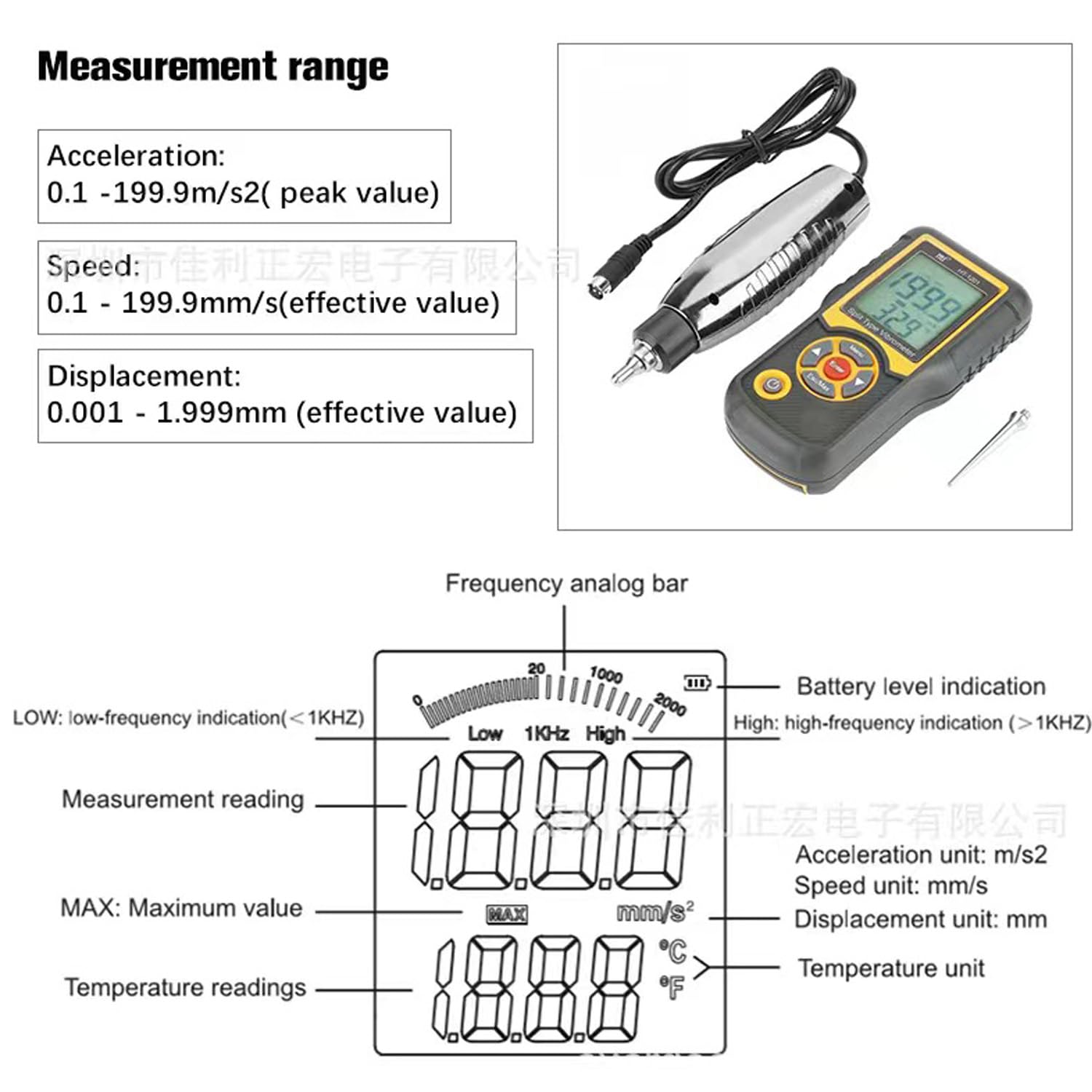

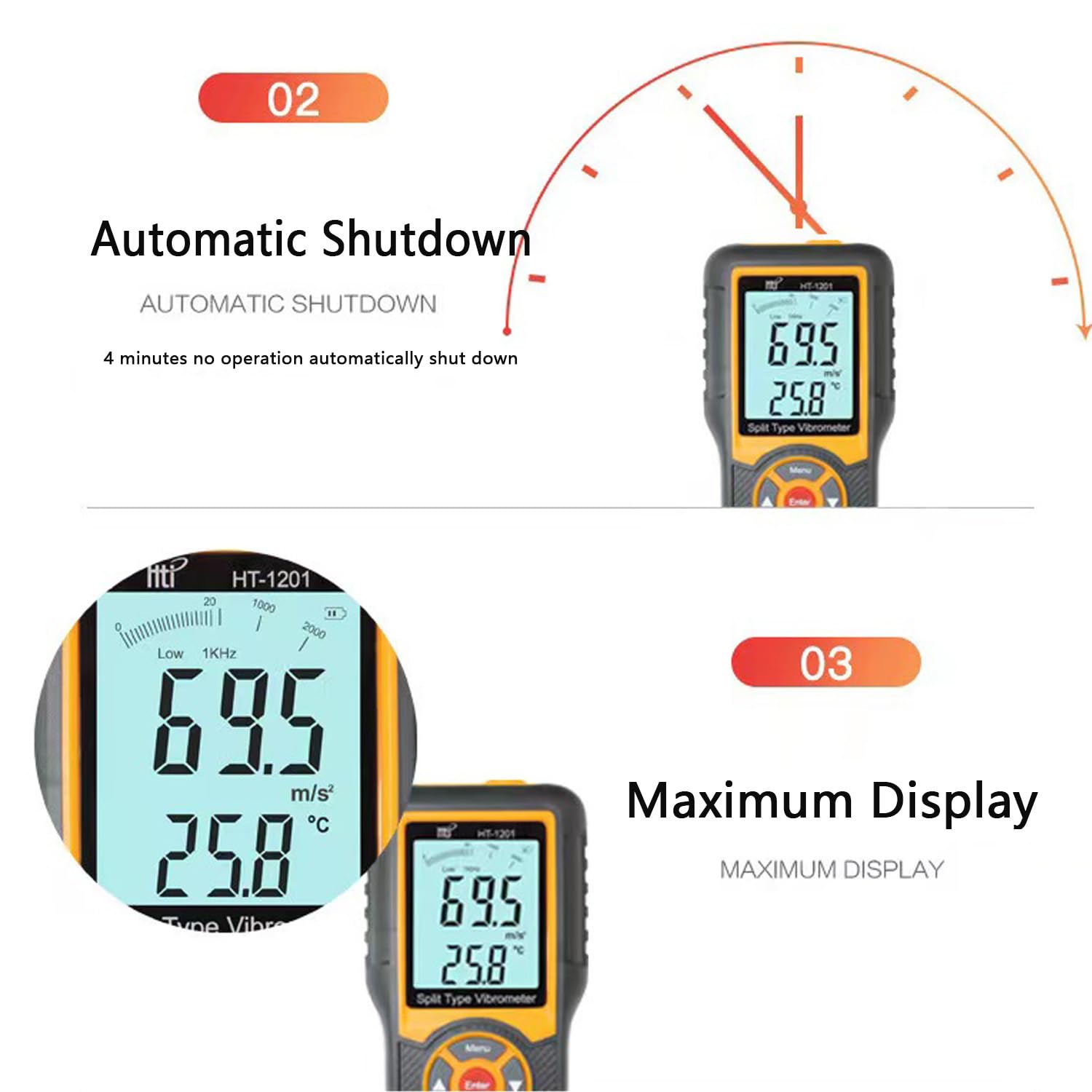

Portable Vibration Tester Specification Model HT1201 Vibration acquisition piezoceramic accelerometer (shearing type) LCD display Three and a half digit display Acceleration 0.1-199.9m/s2( peak value) Speed 0.1-199.9mm/s(effective value) Displacement 0.001-1.999mm (effective value) Measurement accuracy +(5%+2digits) Acceleration 15Hz-1KHz (LO), 1KHz-10KHz (HI) Speed 15Hz-1KHz (LO) Displacement 15Hz-1KHz (LO) Temperature measurement 0℃-60℃ Automatic power-off time 4 minutes Operation temperature 0℃-45℃ Storage temperature -20℃-60℃ Weight of the host 140g Dimension of the host 152mmx75mmx32mm Vibration Meter Vibration Meter Vibration Meter Vibration Meter Vibration Meter Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Price $364.10$364.10 $312.49$312.49 $383.97$383.97 $655.99$655.99 $286.35$286.35 Model AR63C HT1201 GM63B UT315A GM63A Acceleration measurement 0.1~199.9m/s2 peak 0.1-199.9m/s2( peak value) 0.1~199.9m/s² (Peak) 0.1~199 9m/s2 (peak value) 0.1~199.9m/s² (Peak) Velocity 0.1~199.9mm/s rms 0.1-199.9mm/s(effective value) 0.1~199.9mm/s (RMS) 0.01~19.99cm/s (true RMS) 0.1~199.9mm/s (RMS) Displacement 0.001~1.999mm 0.001-1.999mm (effective value) 0.001~1.999 mm (Peak-Peak) 0.00-1.99mm (peak-to-peak value) 0.001~1.999 mm (Peak-Peak) Accuracy ±5%+2digits +(5%+2digits) ±5% ±2 digits +5%+2dgts ±5% ±2 digits Operation temperature 0~40℃ 0℃-45℃ 0~40℃ 0~50°C 0~40℃ Weight of the host 76g 140g 229g 395g 182g Dimension of the host 150x35x25mm 152x75x32mm 72x35x145mm 166x80x30mm 67x30x183mm

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Portable vibration tester is a digital vibrometer meter with an electrical acceleration sensor for measuring the routine vibration of mechanical equipment.

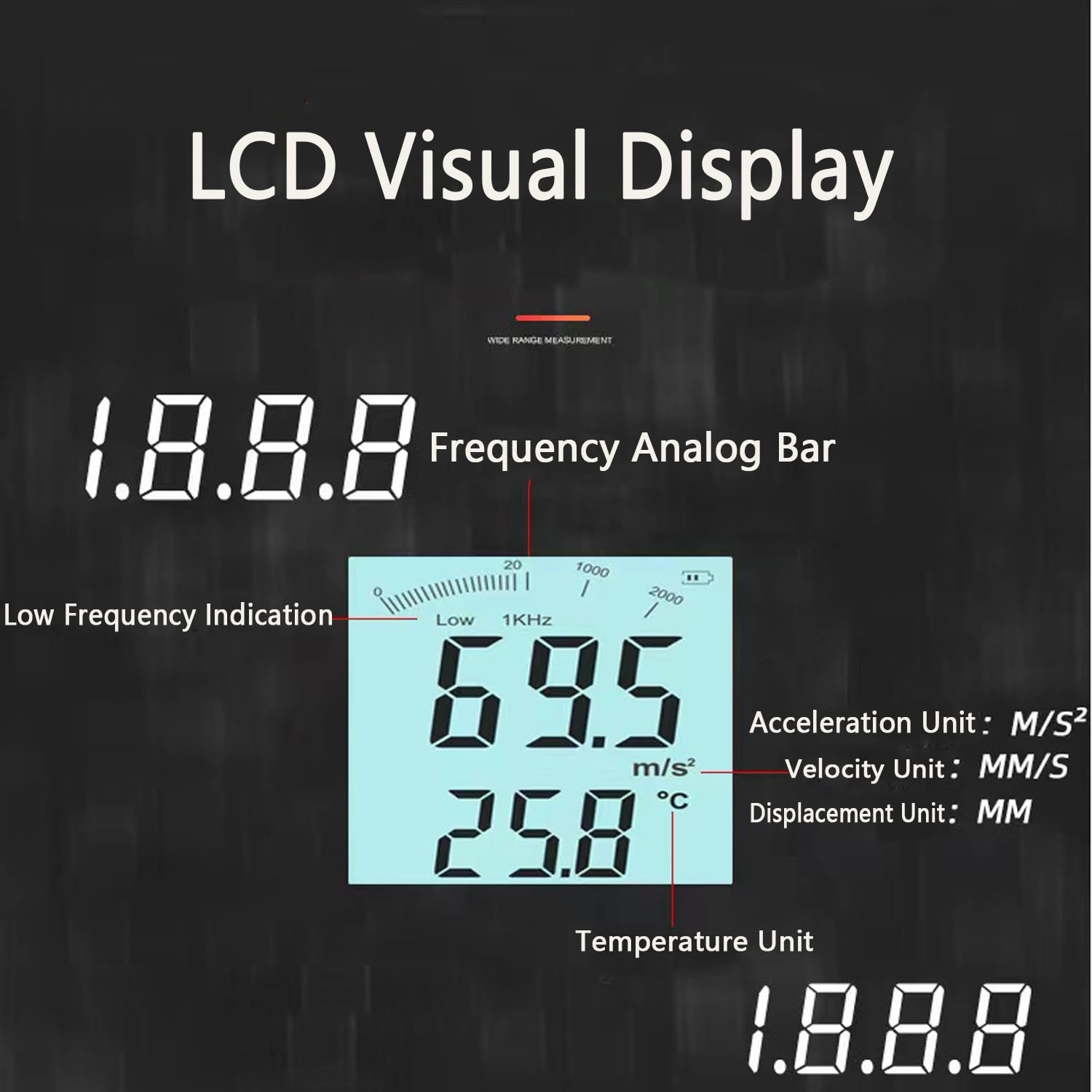

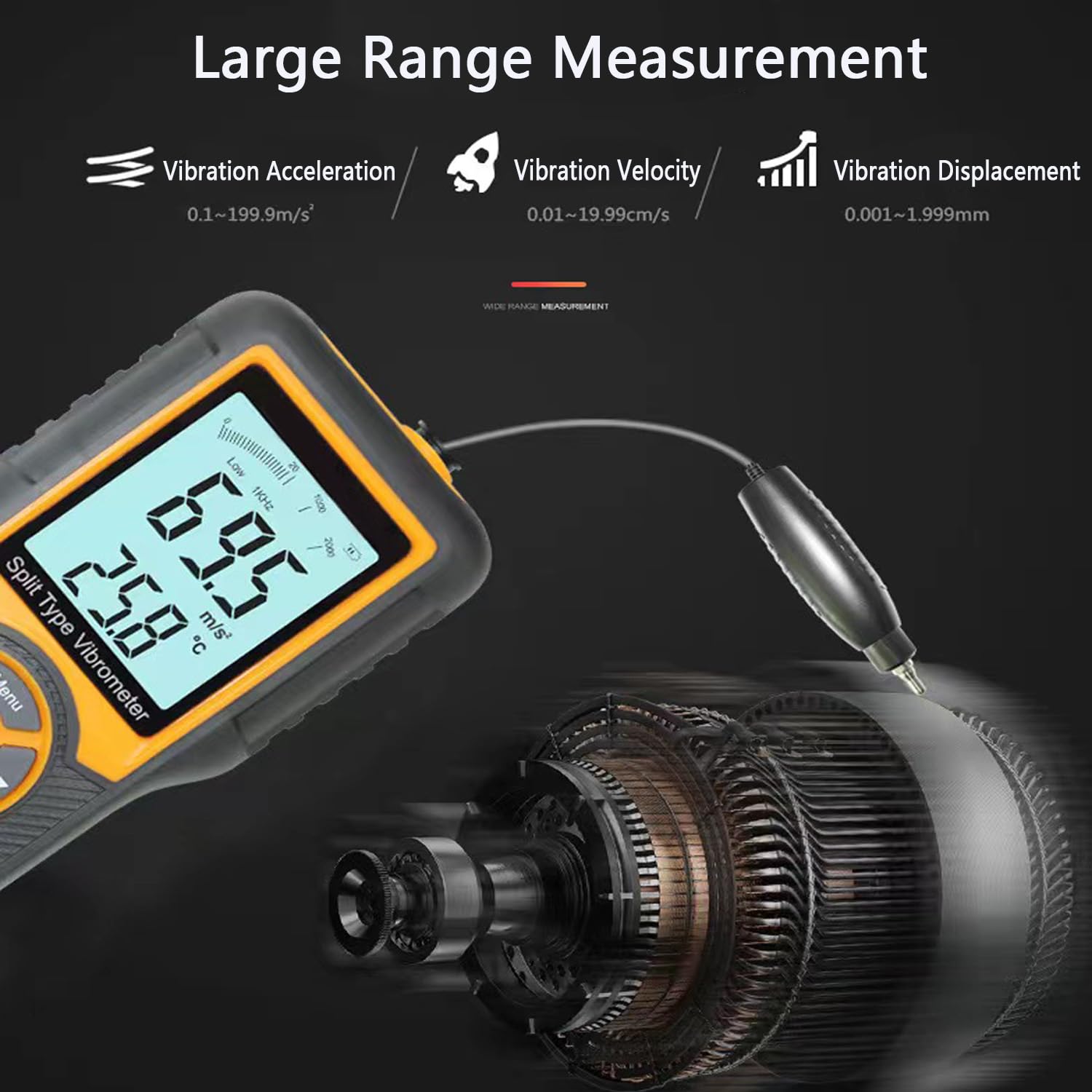

Wide acceleration measurement range 0.1~199.9m/s2 peak, LCD directly displays the measurement results and measurement status. The handheld vibration check meter can measure vibration speed, acceleration and displacement.

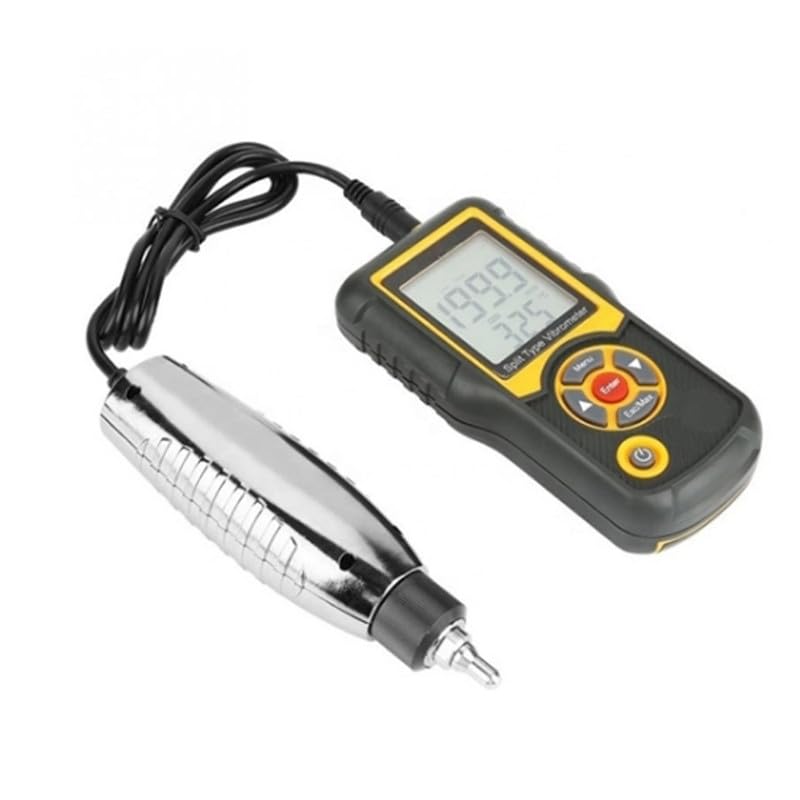

Optional vibration frequency. Two probes (short and long) offered, to meet different requirement of measurement.Use high sensitivity probe for precise measurement.

Vibration sensor's compact size and lightweight design make it easy to carry. This is ideal for people who need to check vibrations in different locations and on different machines.

Handheld digital vibration meter can measure acceleration, velocity and displacement, which is widely used in mechanical manufacturing, electric metallurgy, general aviation etc.
