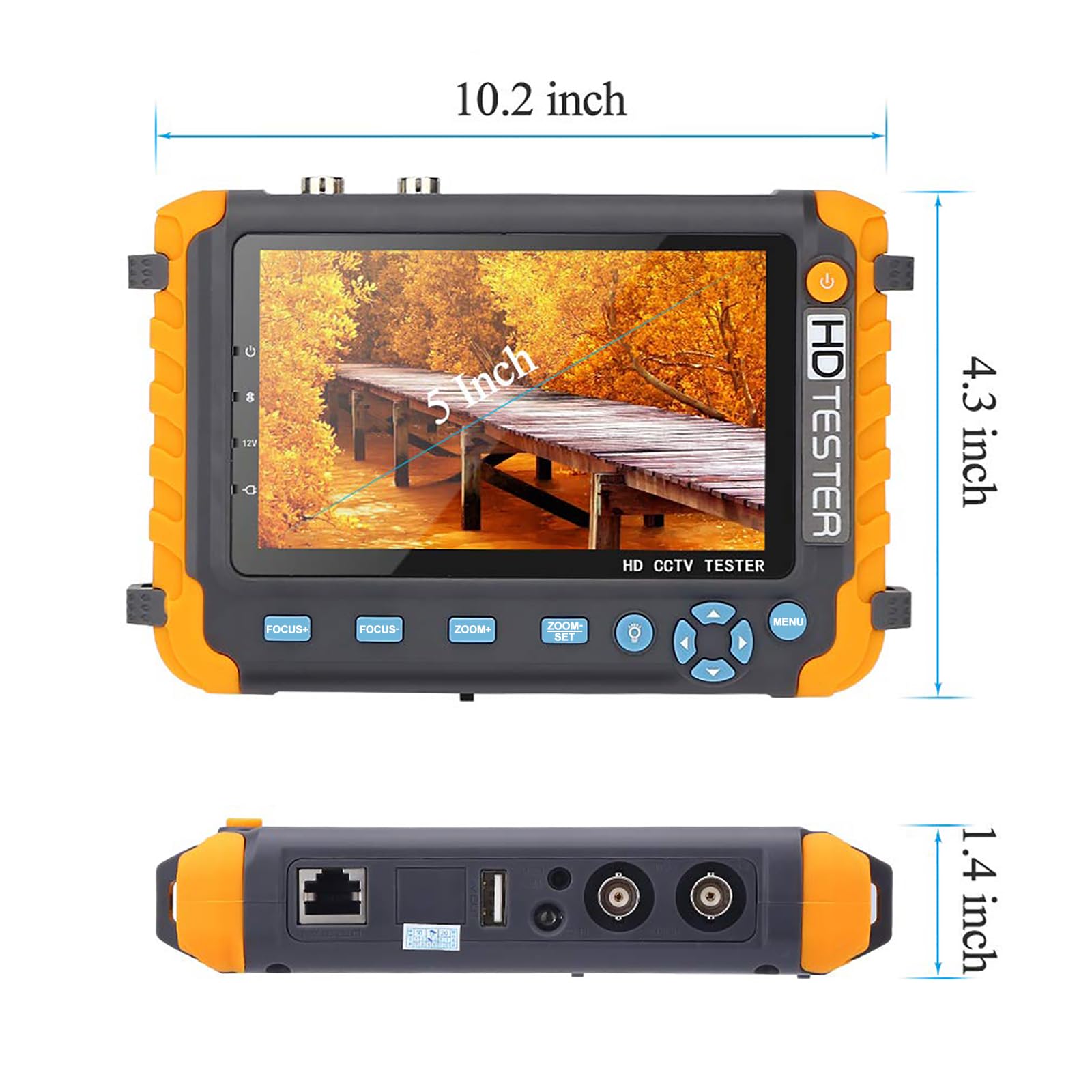

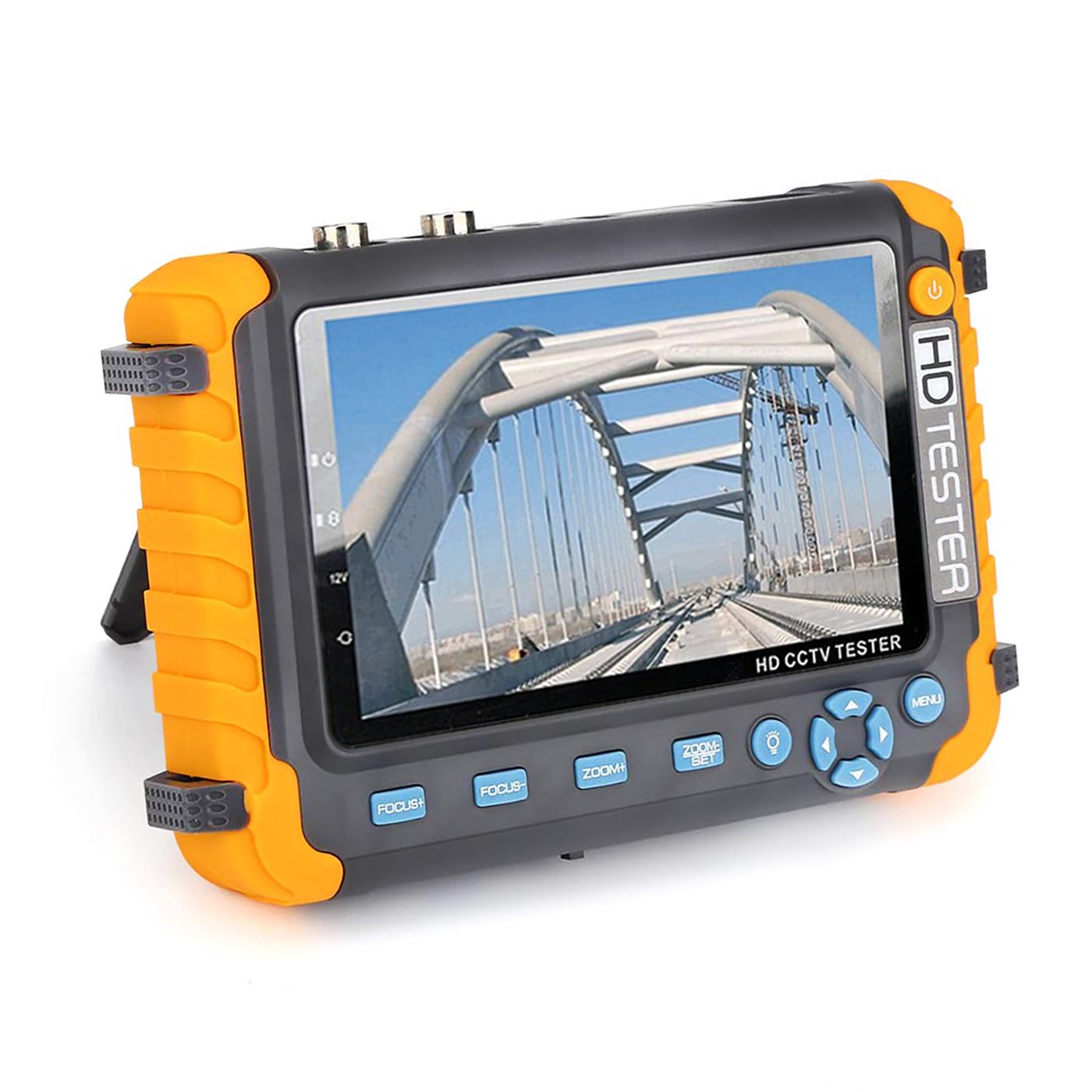

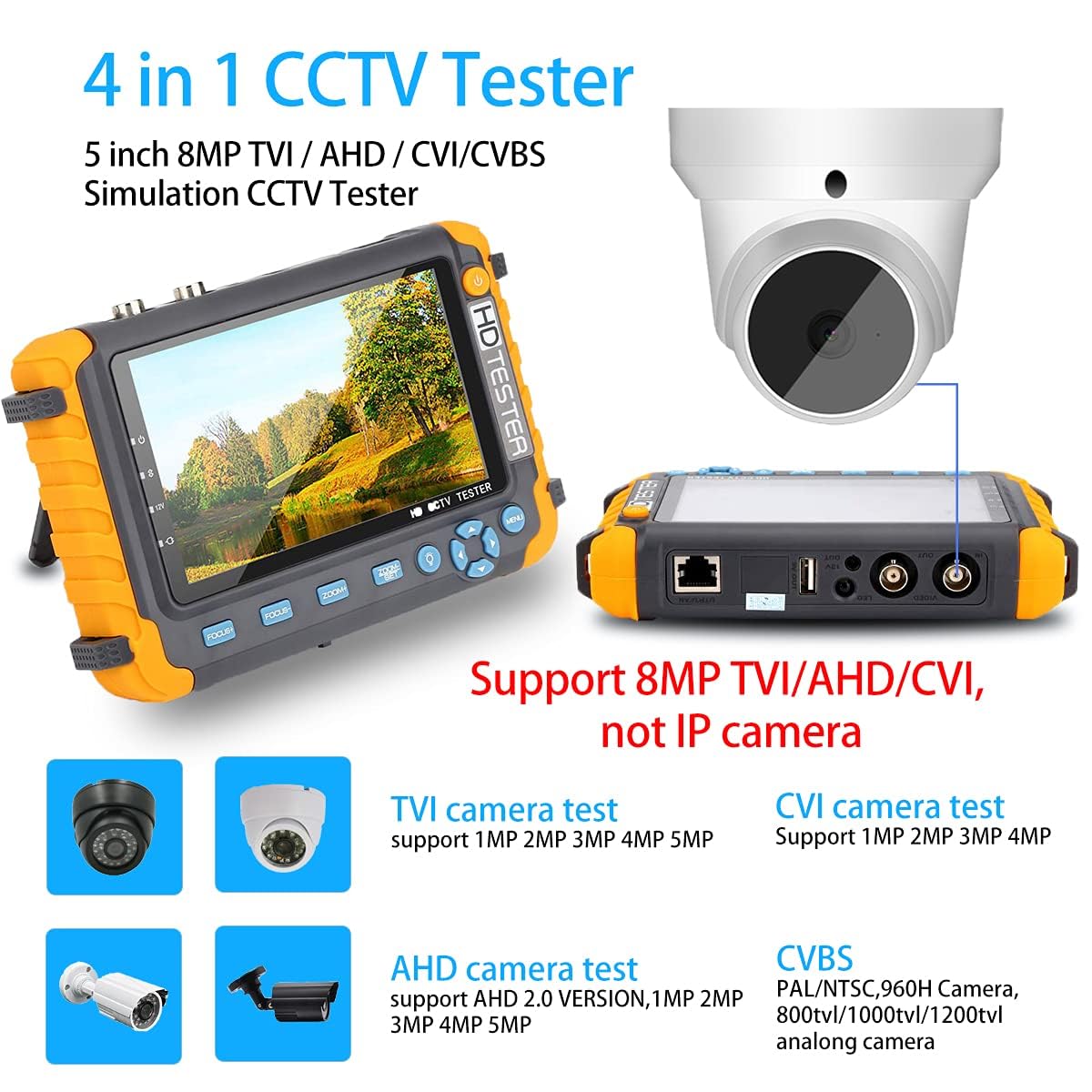

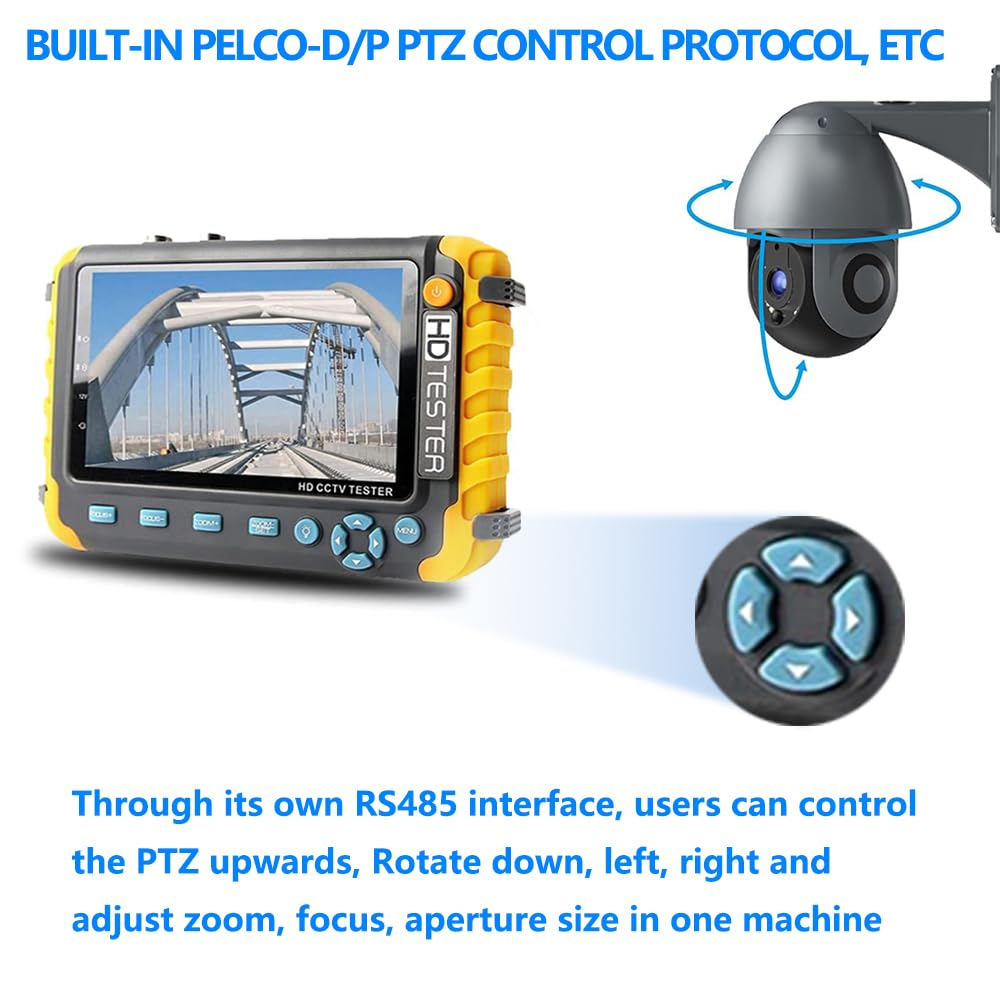

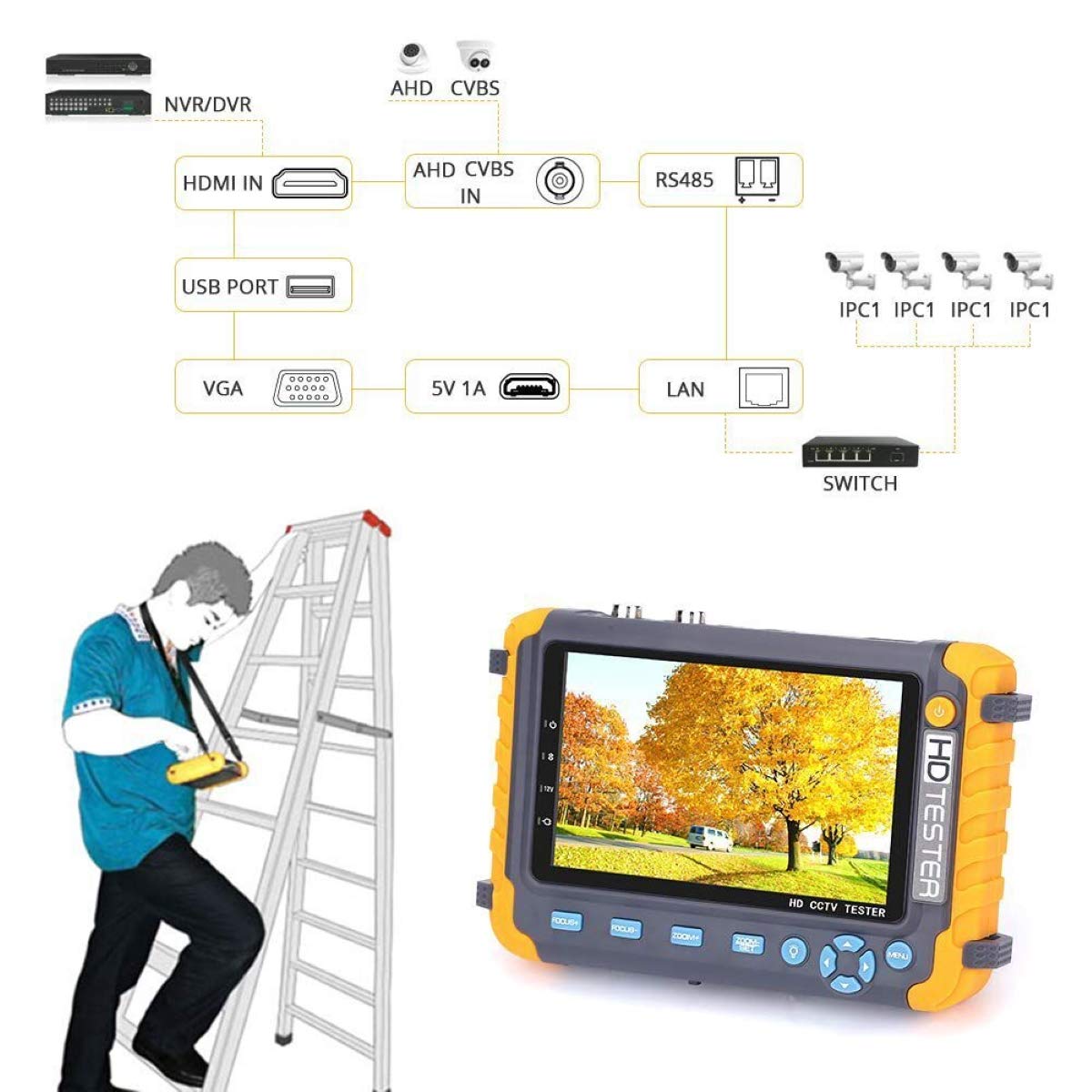

VGA/TVI/AHD/CVI/HDMI Input Coaxial Analog Video Monitor Tester 8MP/5MP/4MP/3MP/1080P/UTP/PTZ Cable Test/DC12V Output CCTV Monitor Tester The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. portable and easy to carry, it can perfectly test AHD camera ,TVI camera and CVI camera, It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc. NOTE:The camera tester cannot be used at low voltage. When the analog test monitor prompts low voltage or low battery, you need to stop using it and charge it Q&A Q: IP camera can not be tested. A:This tester not supports any IP cameras testing, it can only be used to test analog cameras. Q: The tester can not produce pictures. A:When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected camera can produce pictures but not flicker. Q:Must this be plugged in, in order to turn on or does the batteries need to be charged? A:This tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use. Q:HDMI isn’t recognized. A:If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV. HD CCTV Tester Rechargeable Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Built-in 2* 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours. Video Signal Testing Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal. Portable CCTV Tester You can carry this analog camera tester with you at any time via a lanyard, giving you as much convenience as possible while you work. Auto power off: 1-30 (mins) Working temperature: 14℉ ~ 122℉ (-10℃ ~ +50℃ ) Humidity: 30%-90% Rh Color bar generator(TV OUT) Analog Camera CCTV Tester 4 in 1 CCTV Tester(Not Support IP Cameras) Tips This cctv tester monitor NOT supports IP Camera TVI camera test: HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP，8MP. When TVI signal input, the tester will display HD TVI camera image. AHD camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP,8MP. When AHD signal input, the tester will display the AHD camera image. CVI camera test: HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP,8MP. When CVI signal input, the tester will display the CVI camera image. CVBS: PAL/NTSC, 800tvl/1000tvl/1 200tvl analog camera. 5 Inch 4 in 1 CCTV Monitor Tester VGA/HDMI input：Max support 1920X1080 video input UTP Cable Tester UTP cable test：Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box. DC12V 1A Power Output：Output DC12V1A power for camera Audio Input Test：1 channel audio signal input Power Adapter：DC 5V（1.5A） Battery：Built-in 18650 2600mA battery X 2 Rechargeable：After charging 3-4 hour, working time lasts 11 hours Low Consumption：Energy saving , battery capacity indicator. PTZ Controller PTZ Controller Video monitor tester built-in Pelco-D / P PTZ control protocol etc , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size. Signal mode NTSC/PAL (Auto adapt) Display 5.0 inch VGATFT-LCD,800 (RGB) X 480 resolution LCD adjustment Brightness, Contrast, Saturation adjustable Video IN/OUT 1 channel BNC Input & 1 channel BNC Output PTZ Controller Support RS485 PTZ Protocol Compatible with protocols PELCO-D/P Baud Rate 600,1200,2400,4800,9600,14400bps Video Signal Generation Support both PAL/NTSC format’sstandard color bar output (Red, GreenBlue, White, Black, Grey) and testing imageoutout UTP cable test Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box. DC12V power output Output DC12V1A power for camera Audio input test 1 channel audio signal input TVI video signal test 1 channel TVI input(ENC interface), support 720P 25/30.50601080P 3MP/4MPand 5MP 25/30 AHD video signal test 1 channel AHD input (BNC interface ) ,support 720P 25/30/50,60 1080P 3MP/4MPand 5MP 25.30 CWl video signal test 1 channel CVI input(BNC interface), support 720P 25/30150.601080P25/30 3MP and 4MP12.5/20 AC/DC current 660.0uA,6.600mA,66.00mA,660.0mA10.00A Battery Built-in 18650 2600mA battery X 2 [CCTV Camera Tester] 5 inches Ultra HD resolution viewing angle display, clear picture quality, support PAL/NTSC standard video signal. Support CVBS/AHD/TVI/CVI camera test. (Does not support IP cameras) Language：English and Chinese optionalt Dimension/ Weight：194mm x 112mm x 48mm / 540g [Product List] Adapter DC5V 1.5A (with USB cable) *1 Power output conversion cable *1 BNC cable *1 RS485 connector *1 International Standard 18650 2600ma battery *2 Lanyard *1 Tool bag *1 Audio cable *1 HD coaxial tester *1 Instruction Manual *1
