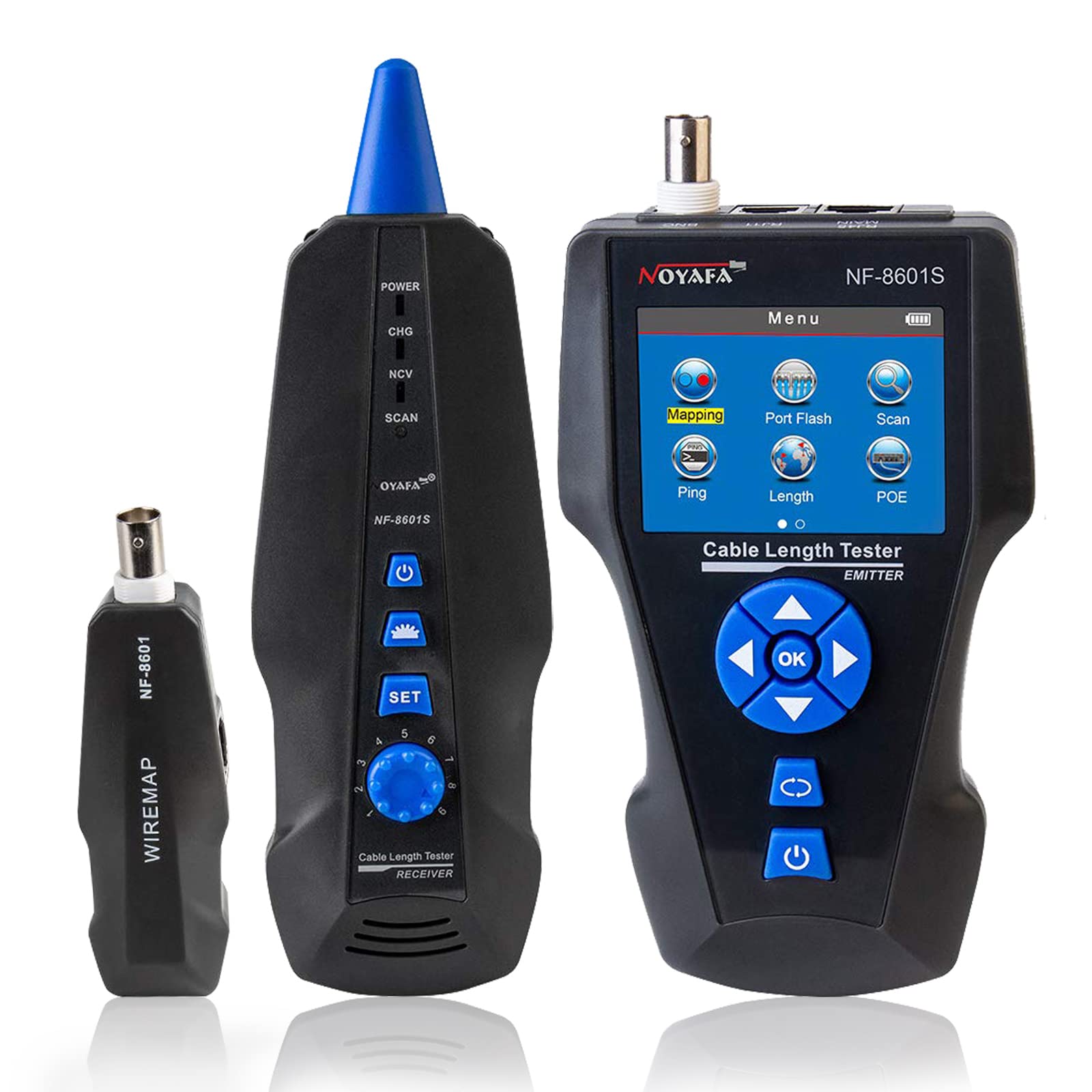

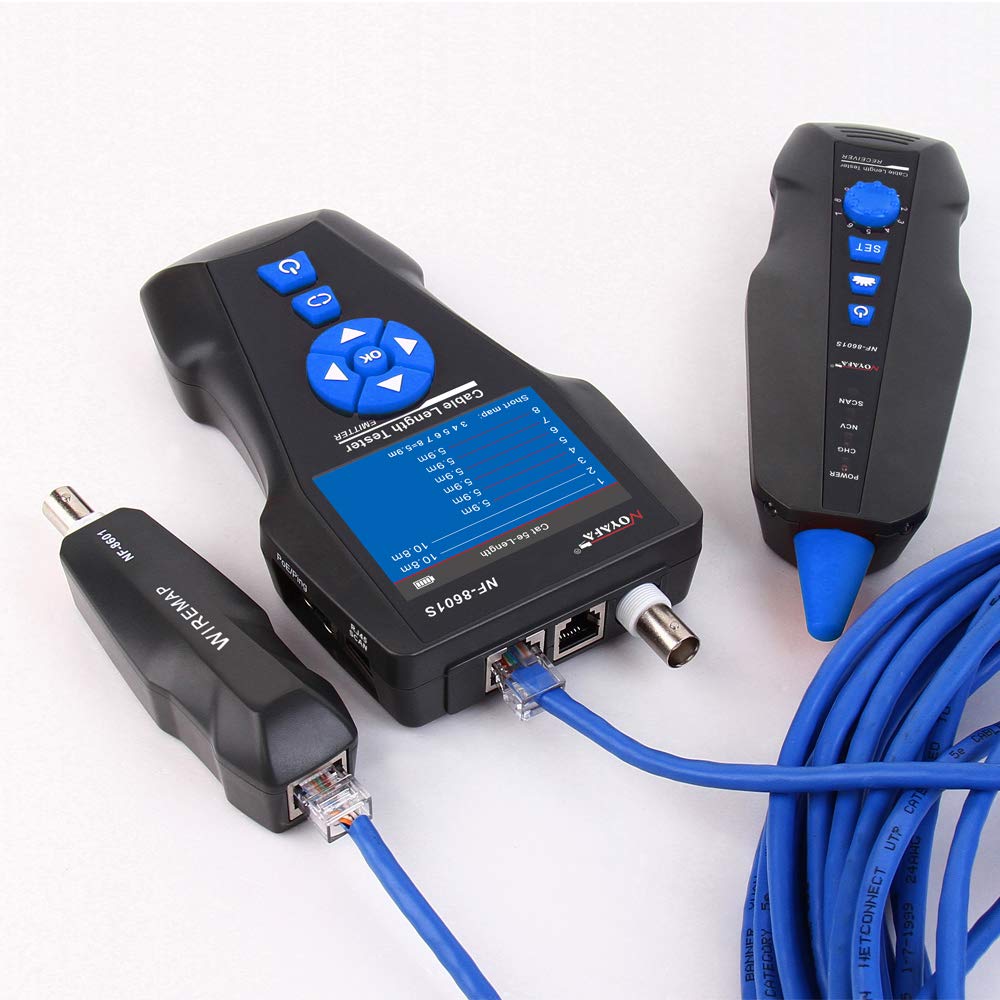

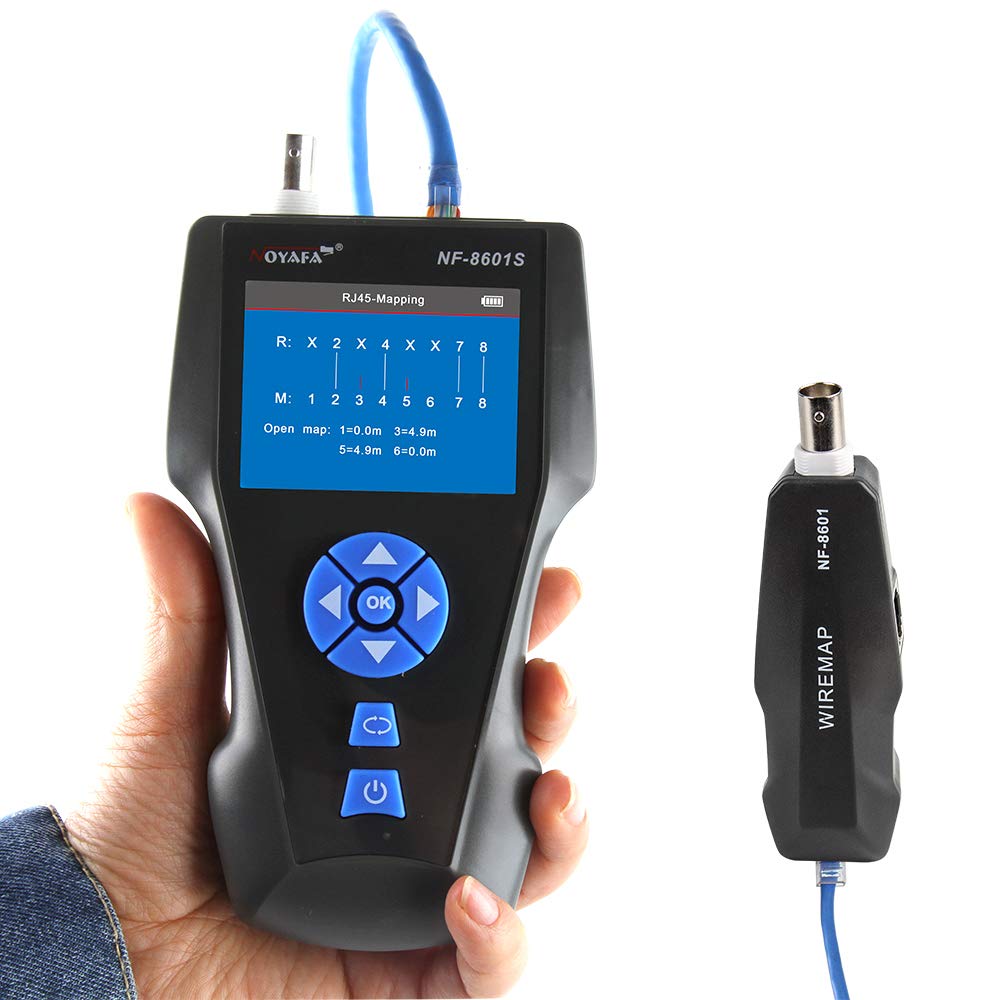

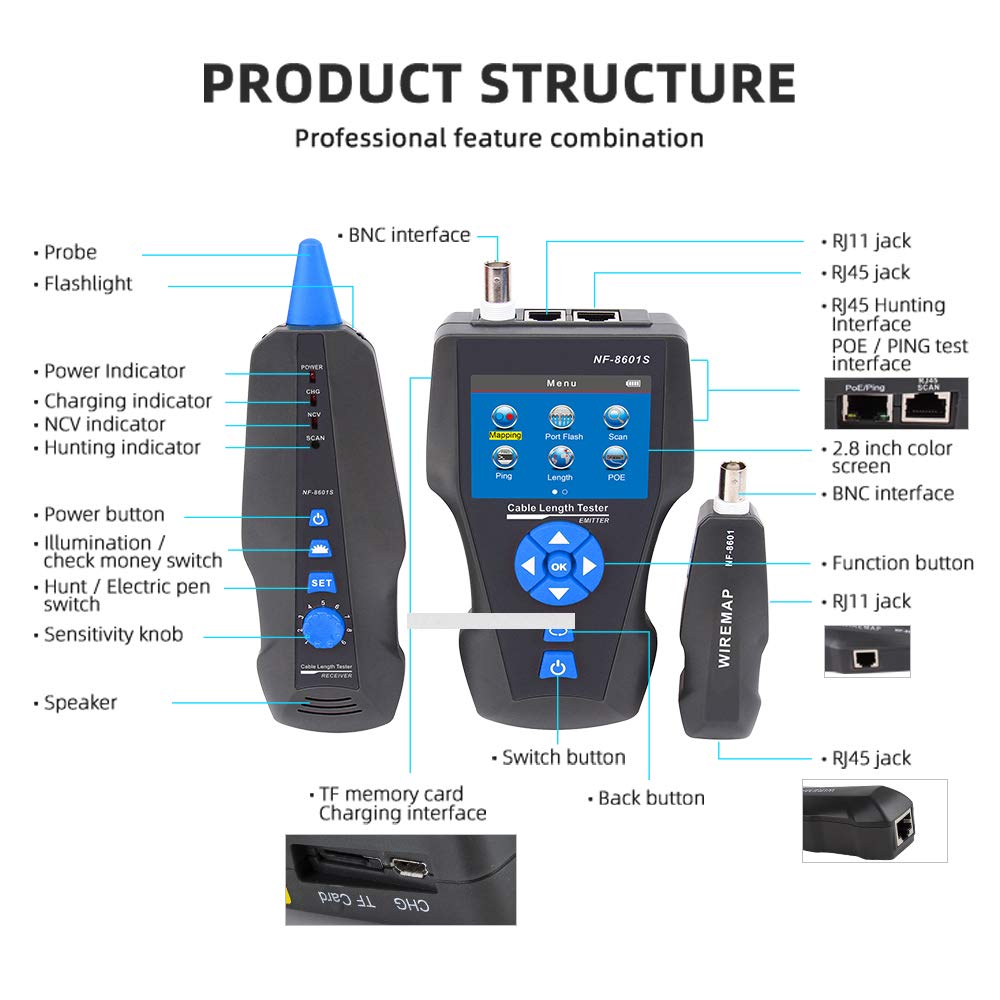

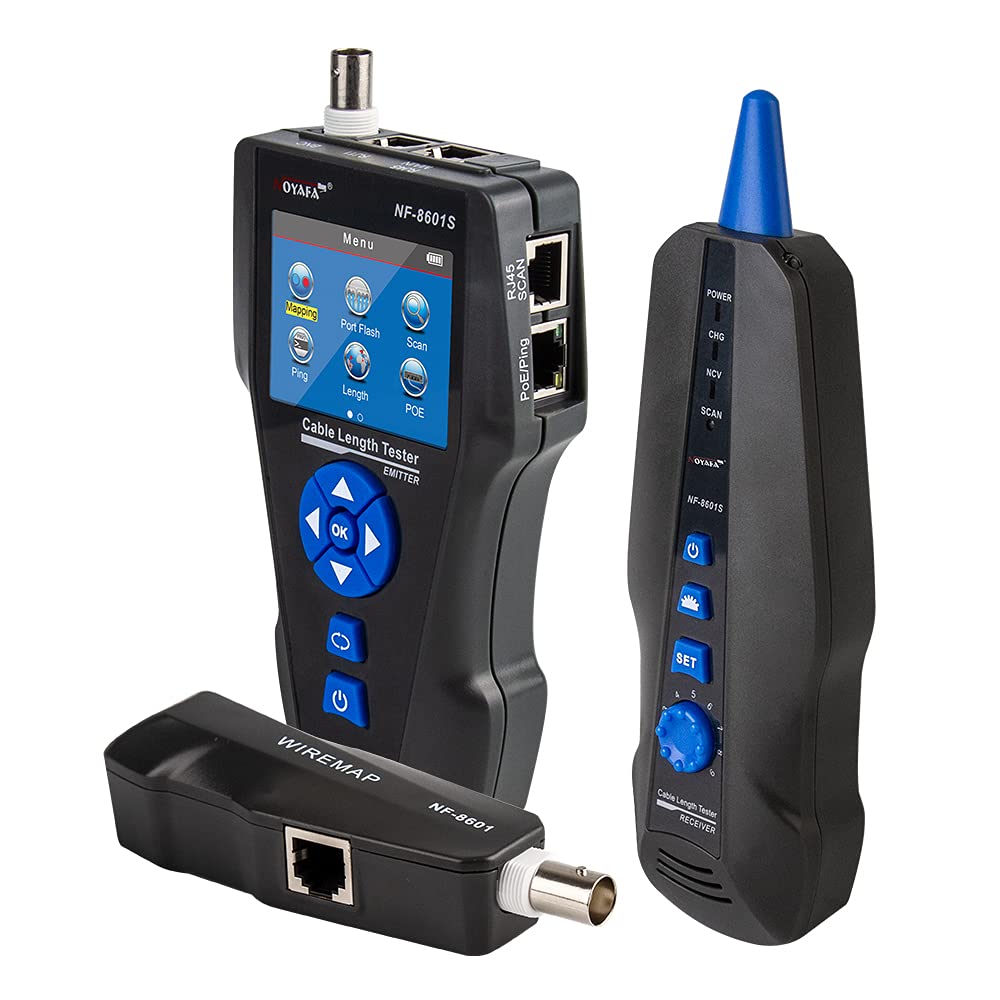

NF-8601S, upgrated based on NF-8601, provides full cable testing on different category network, coax, or telephone cable. The intelligent wiremap' feature tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located.(usingTDR techonology:Time Domain Reflectometry). Besides, finding cables easier and tracing with AC fliter, or locating network port using hub blink feature. It can also test the presence of PoE and PING functions. all these make it a must tool for each network technician. NF-8601S Remote unit specifications Compatible connectors: RJ11，RJ45, BNC Dimension(LxWxD): 106x32x30mm NF-8601S Transmitter specifications Indictor：LCD 320x240 mm, with backlightCable test types： 1000 m Max. distance of cable length ： 1000 m Min. distance of calibration：50 m Accuracy ： up to 98% ( after calibration ) Compatible connectors： RJ11, RJ45, PING/POE, BNC Cable map indication： LCD (#1-#8) Battery Type： 3.7V lithium battery 1800mAh Work temperature / humidity： 10℃ ~ -60℃ / 0℃~70℃ Dimension(LxWxD)： 173x92x34mm NF-8601S Receiver specifications Cable hunting： RJ11，RJ45, BNC Types of cable： ≥ 2 cores Battery Type: 3.7V lithium battery 1800mAh Dimension(LxWxD): 183x58x35 mm Compatiable with different cables 8+2 lan cable testing Hub Blinks to locate cable PoE information testing PING testing 3 different scan modes Data export via memory card Rechargeable Lithium battary NF-8601S Network Cable Tester working theory TDR cable types Cat5e,cat6,cat7,telephone cable, coax cable, power cable fault distance 1. measure cable breakage & short distance. 2. Breaks or shorts in multi-pins can also be measured accurately testing modes 1. measure with main unit locally 2. measure with main & remote unit Calibration Use/unuse button to open or close the calibration data, no need to load the data again. 1. use: based on new calibrated data 2.unuse: based on factory clibration data. testing modes 1.measure with main & remote unit Protocol Compatiblity More compatible with different brands of routers Data save & export 1. Data can be saved into TF card and export to PC. 2. Data can be deleted by function types Remote 1 set
