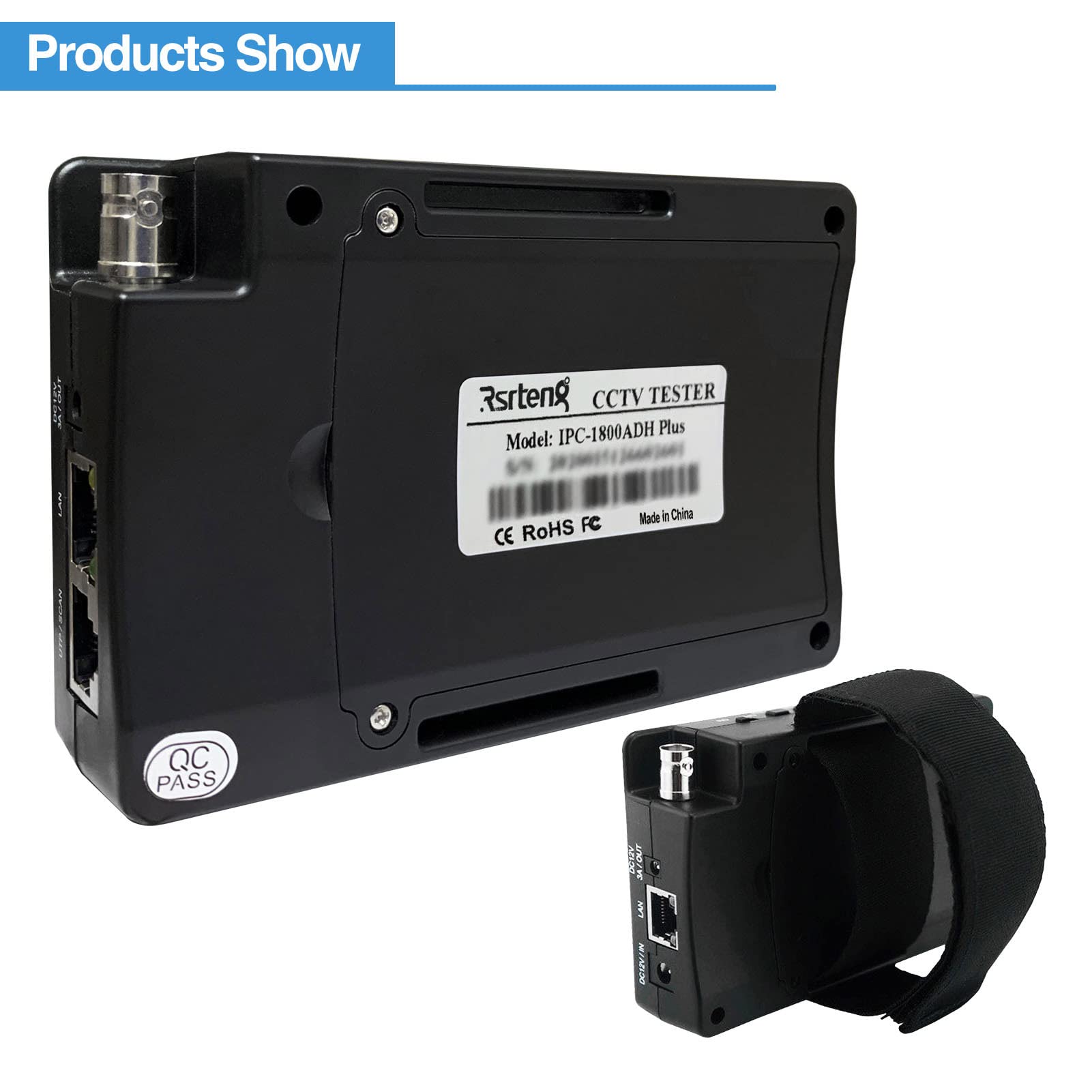

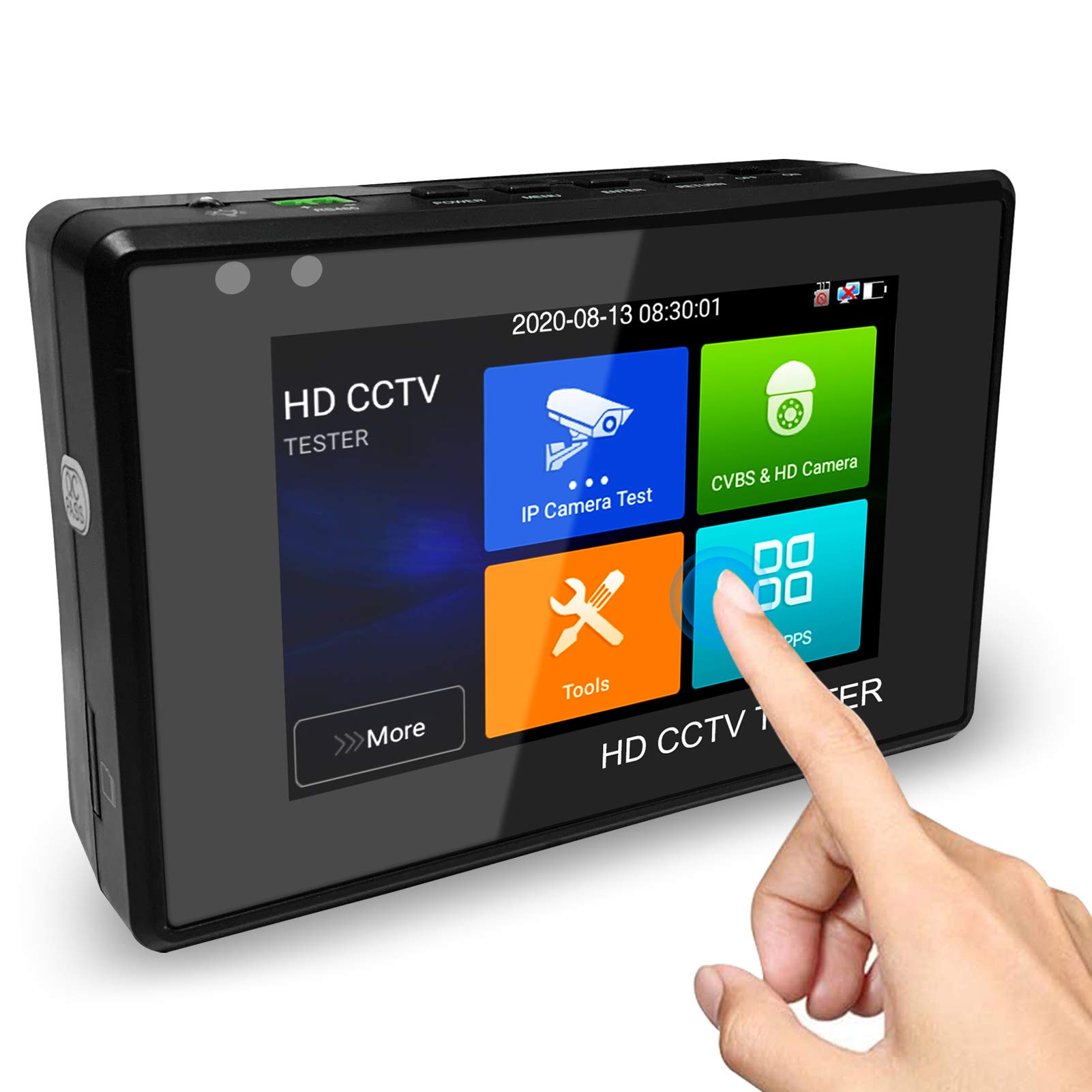

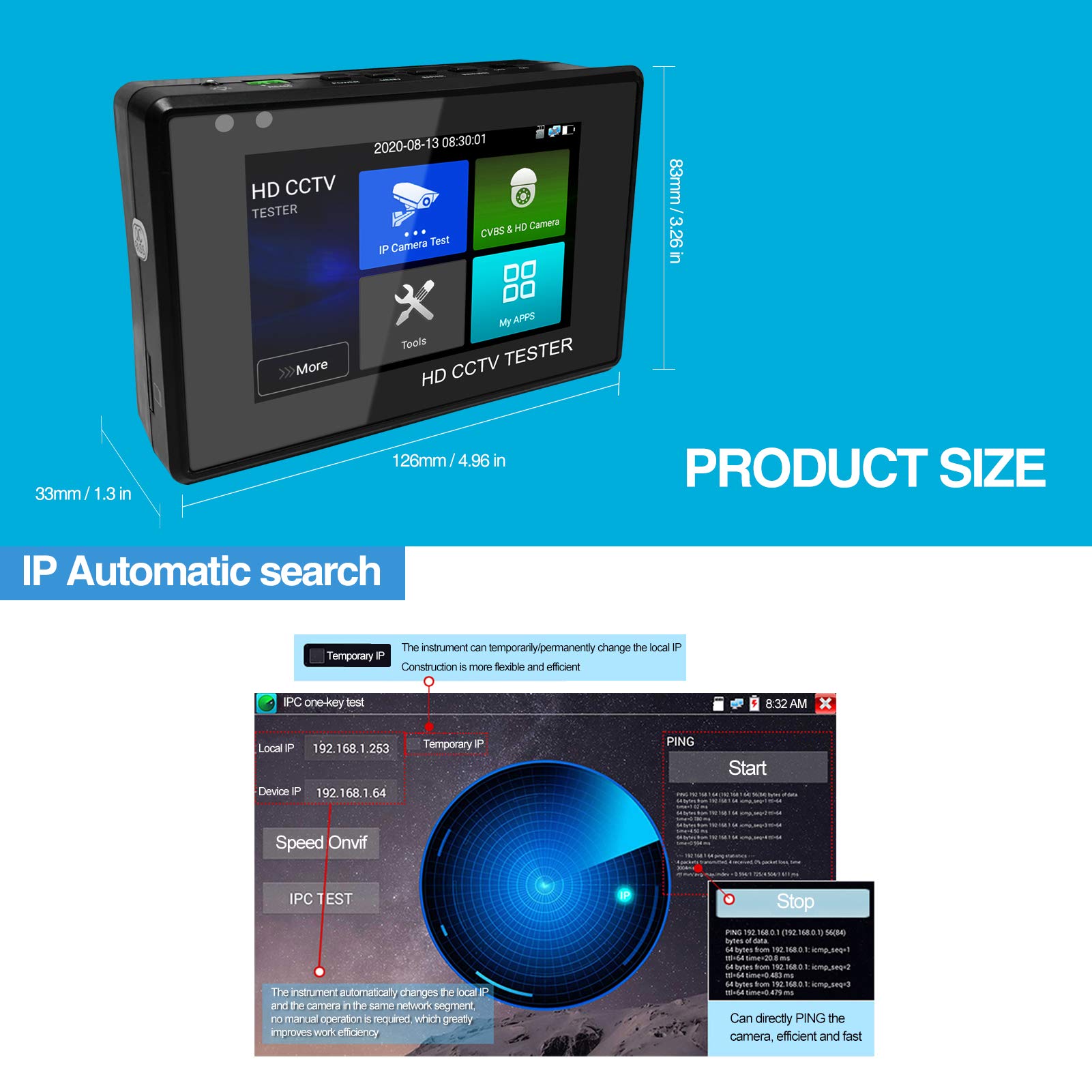

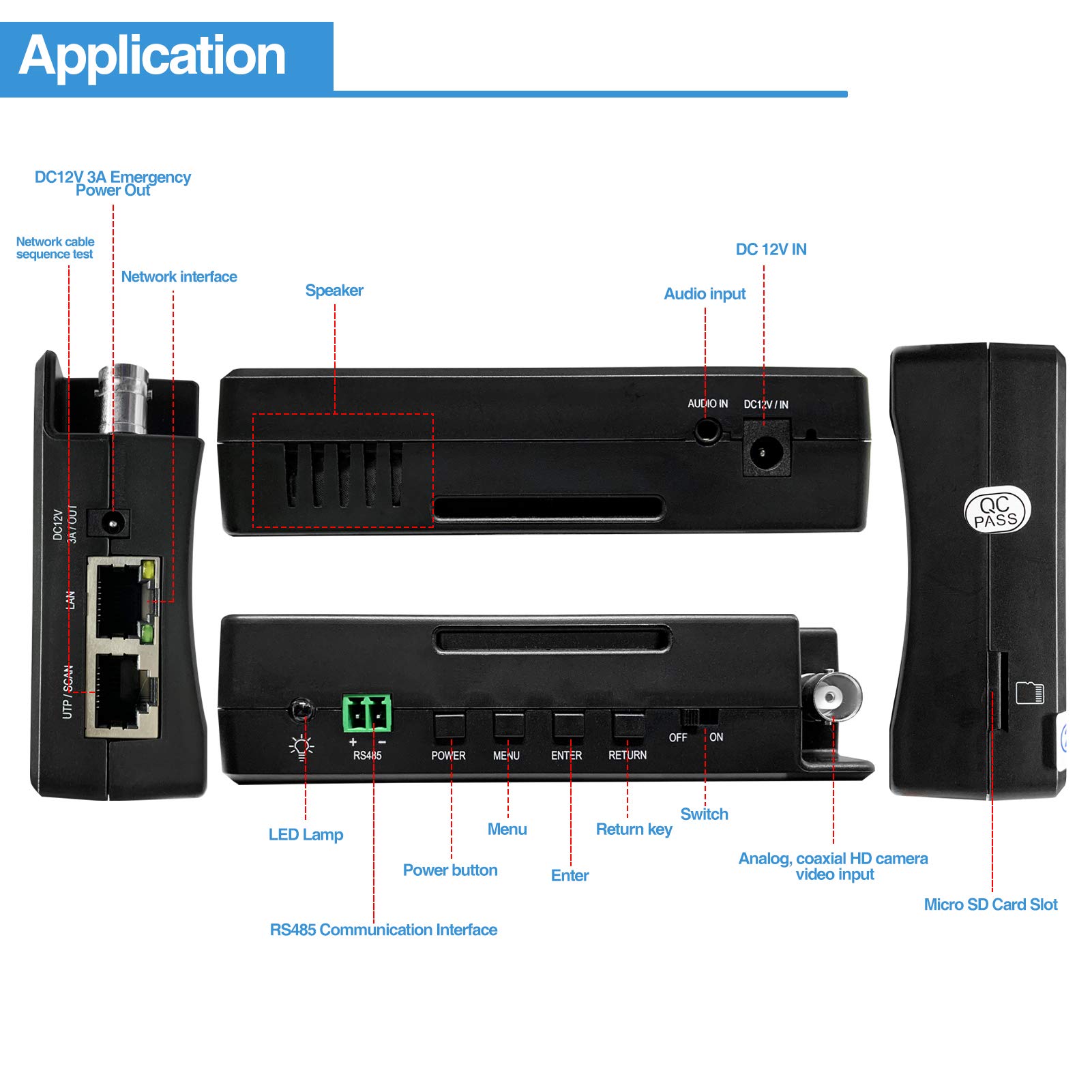

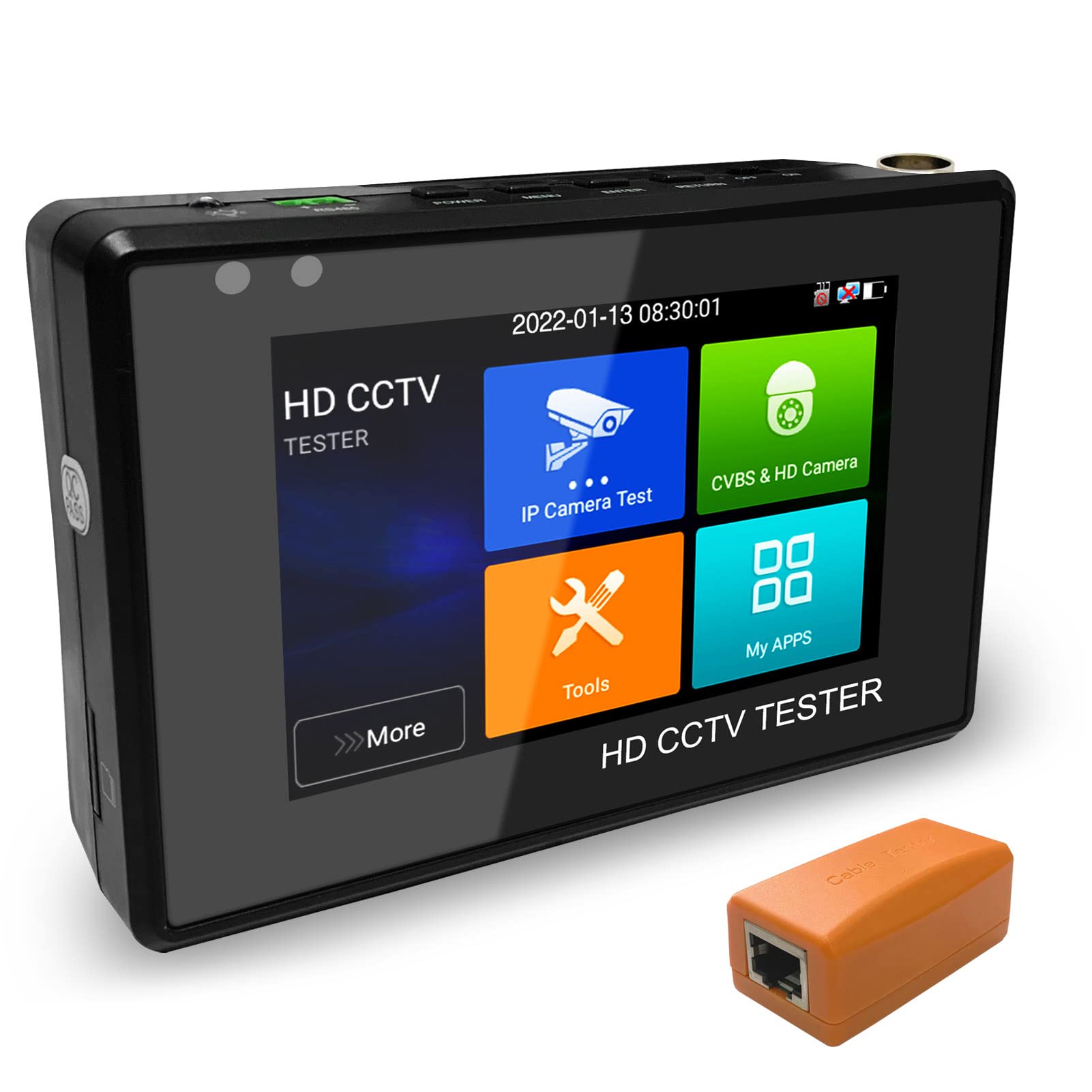

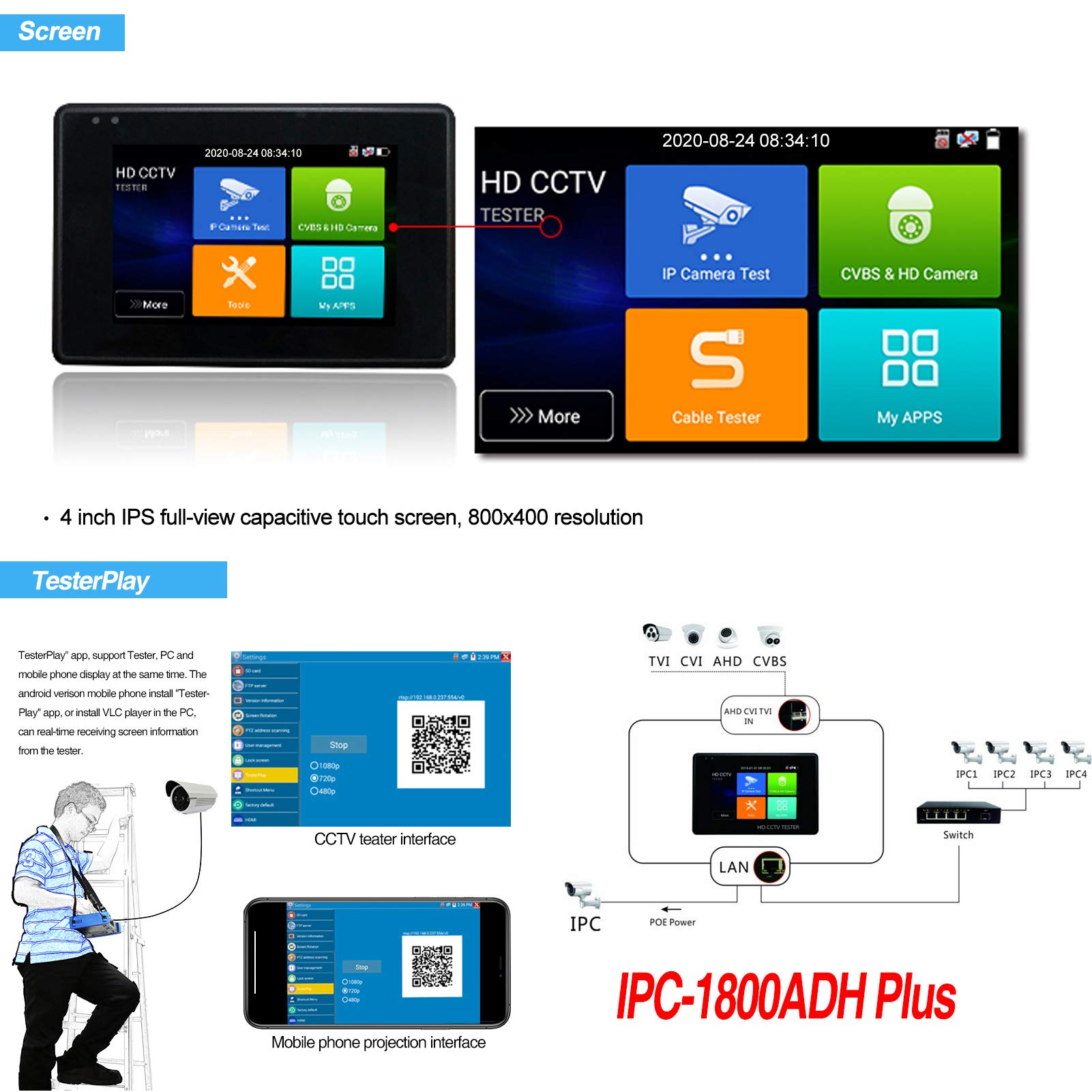

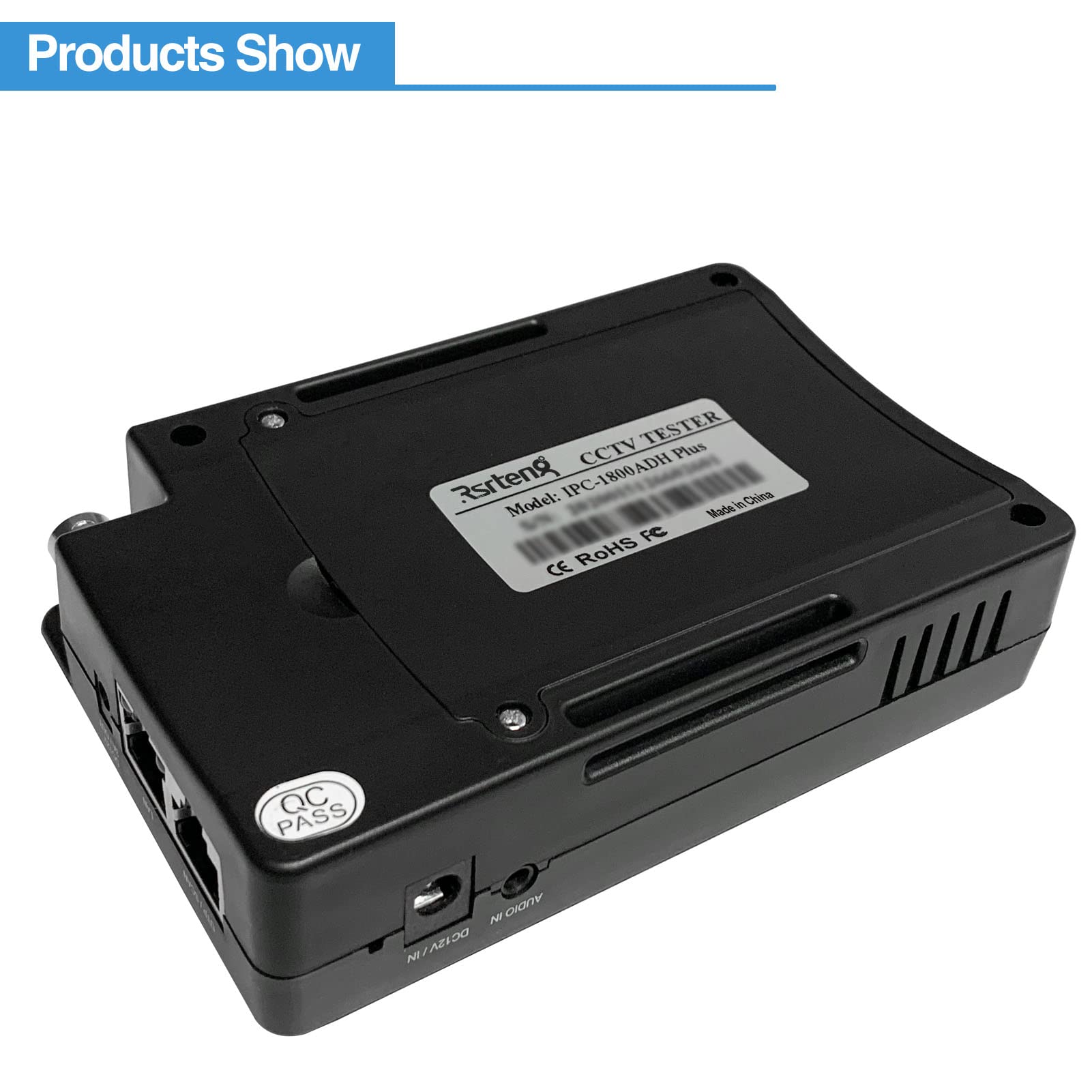

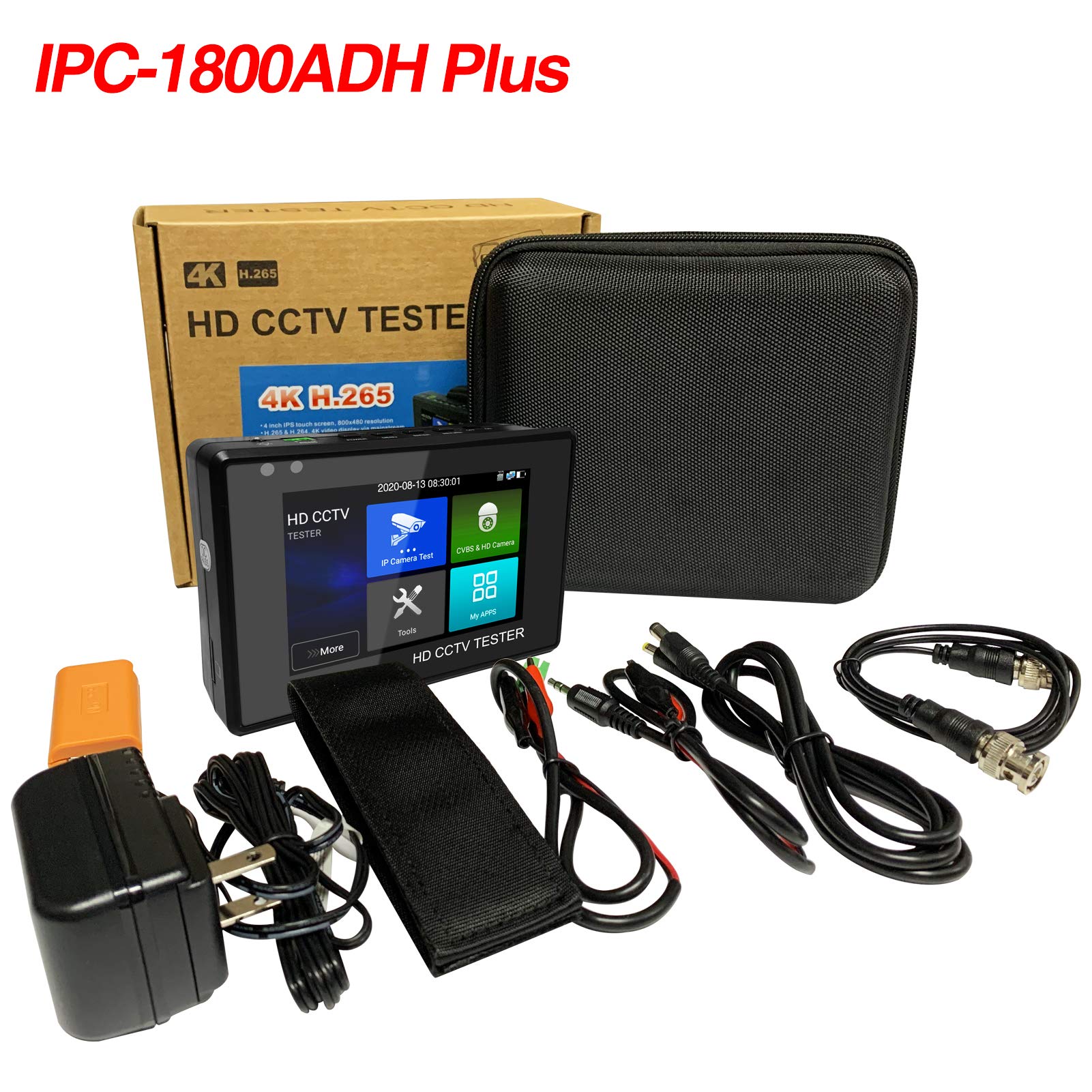

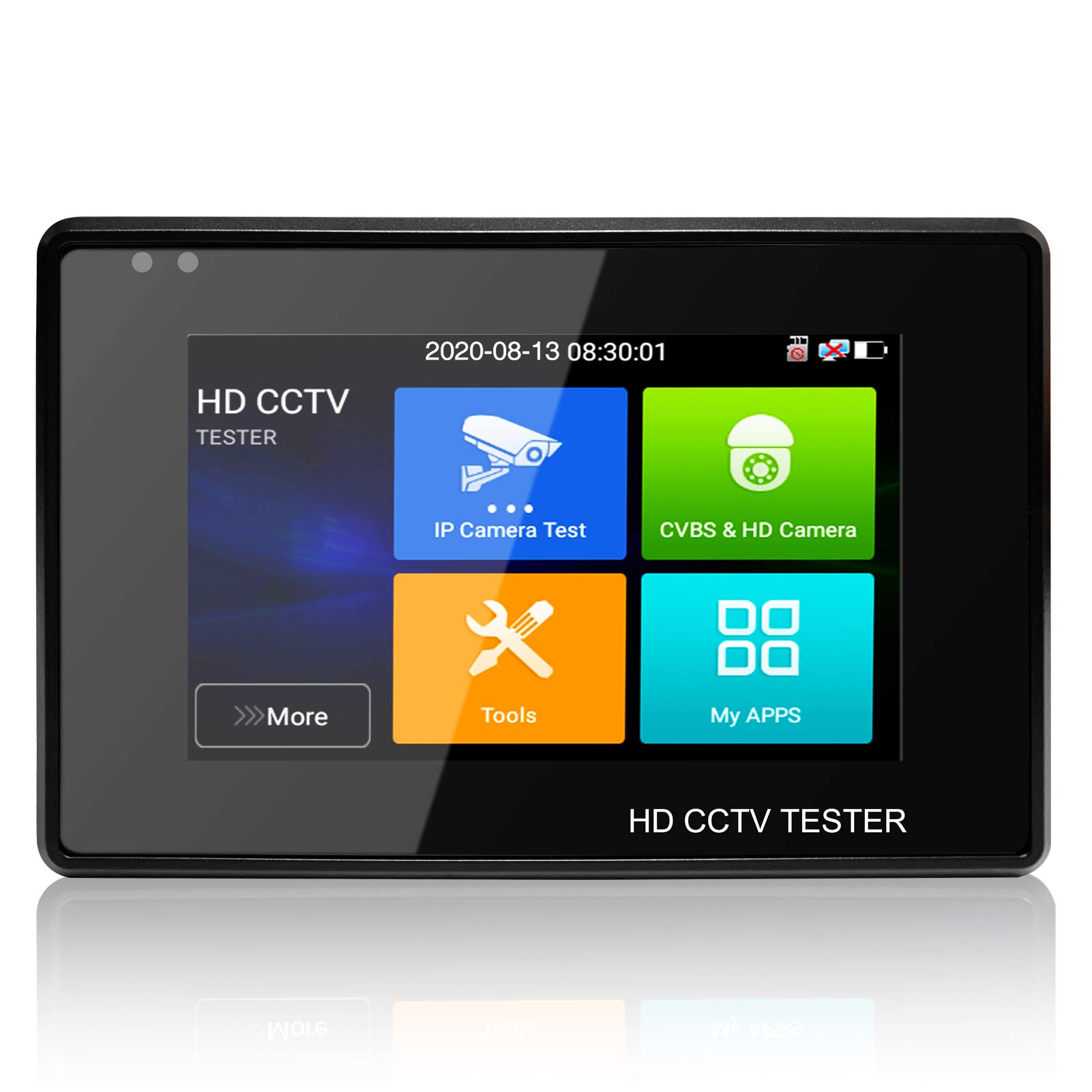

Rsrteng 1800 ADH+ IP Camera Tester 4 inch IPS Touch Screen Monitor CCTV Tester Support AHD/CVI/TVI/CVBS/IP Camera Test The Rsrteng 1800 AHD+ 4K camera tester is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and other security equipment. The tester uses a 4-inch 800*480P high-definition touch screen, so the operation becomes simple and fast; Support max 12MP IP camera and max 4K 8MP coaxial HD camera test; multiple professional tests are built-in APP, compatible with more than 90% of existing brand cameras. Suppot POE, W-I-F-I, RJ45TDR, DC 12V/3A power output etc. Use it to make your installation process simple and efficient. SUPPORT CAMERA TYPE IP camera test: Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc. Coaxial HD camera test: Max 4K 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support coaxial PTZ control & call OSD menu. CVBS camera test: 1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. Such as PELCO-D/P etc. Test tool for Hik & DH& others brand camera Support batch activate Hik & DH cameras and modify IP address, modify password etc & self-defined modify channel name；For Hik Test tool can quickly change video, open wide dynamic mode. Factory restore, etc. Support snapshot, video record & playback, coaxial PTZ & call OSD menu; Rapid OVIF, Auto log in and display image, create testing report. Compatible with more than 90% of existing brand cameras. Built-in W-I-F-I Built-in wireless network W-I-F-I function, 2.4GHz, speeds 150Mbps Support connect and test w-i-f-i camera and display wireless camera image, support creation of W-I-F-I hotspot. The screen of the tester can be projected onto the Android cell phone in the same hotspot. RJ45 TDR(software support) Quickly measure the length of the RJ45 network cable, the longest test distance is 180 meters. With the attached cable tester tool, you can test the arrangement type of the network cable and whether it is unblocked. *Note: RJ45 TDR is a software function and only supports test the length of the network cable and whether it is unblocked. If you need to test the location of the network cable or other cable failure points, please purchase a model with TDR breakpoint test (TDR hardware support) 12V/3A power supply & Flashlights & RS485 Flashlight & 12V/3A power supply The flashlight function of the tester can provide lighting for you in a dark working environment.DC12V/3A power output, provide power supply for the camera, so that the camera test more convenient, you can test the camera anywhere, anytime. Universal RS485 interface You can easily use it to control cameras and other devices with RS485 interface. What's in the Package 1* CCTV Camera Tester; 1* Cable Tester; 1* Adaptor DC12V/1A; 1*Power output cable; 1*BNC video cable; 1*RS485 control cable; 1* Audio Cable; 1* Tool Bag; 1* Wrist Wra; IPC-1800ADH+ IPC-7600CADHS Plus IPC-5100 Plus IPC-5200 Plus IPC-9800ADHS Plus+ IPC-7600COVTADHS Plus Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews 3.9 out of 5 stars 11 4.5 out of 5 stars 14 4.0 out of 5 stars 62 — 4.3 out of 5 stars 55 4.5 out of 5 stars 14 Price $199.99$199.99 $405.99$405.99 $275.99$275.99 — no data $399.99$399.99 $550.99$550.99 Screen size and resolution 4 inch touch screen (800*480P ) 7 inch touch screen (1280*800P) 5 inch touch screen (1920*1080P) 5 inch touch screen (1920*1080P) 7 inch touch screen (1280*800P) 7 inch touch screen (1280*800P) 12MP IP Camera Test and CVBS Camera Test ✓ Also support 8K 32MP IP Camera Test ✓ ✓ ✓ Also support 8K 32MP IP Camera Test 4K 8MP TVI Camera Test ✓ ✓ ✓ ✓ ✓ ✓ 4K 8MP CVI Camera Test ✓ ✓ ✓ ✓ ✓ ✓ 4K 8MP AHD Camera Test ✓ ✓ ✓ ✓ ✓ ✓ 4K 8MP SDI Camera Test N/A ✓ N/A ✓ ✓ ✓ HDMI Input N/A ✓ ✓ ✓ ✓ ✓ HDMI Output N/A ✓ N/A N/A ✓ ✓ VGA Input N/A ✓ ✓ ✓ N/A ✓ Battery capacity 7.4V DC/2400mAh 7.4V DC/7800mAh 7.4V DC/3350mAh 7.4V DC/3350mAh 7.6V DC/7800mAh 7.4V DC/7800mAh
