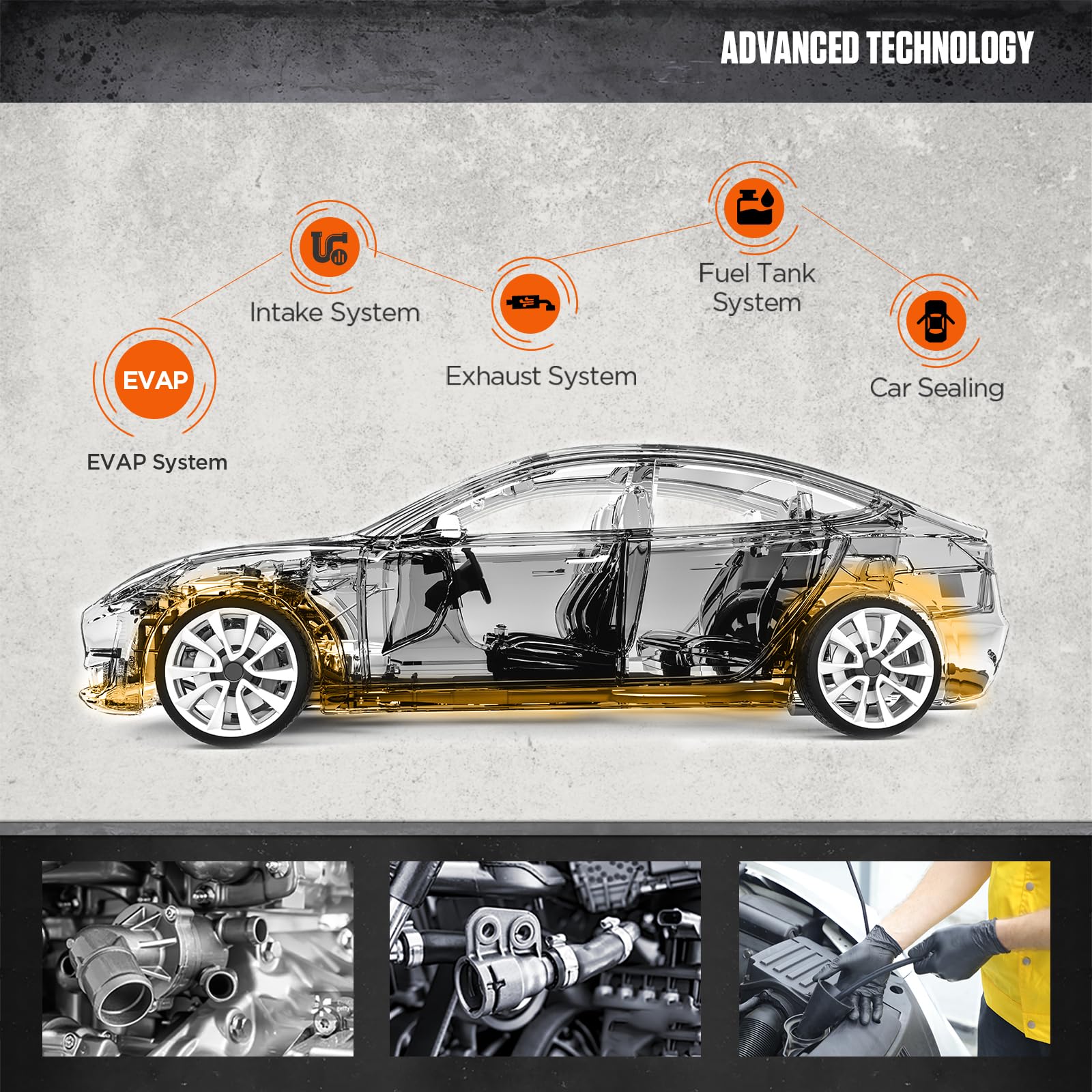

SDT206 EVAP Smoke Machine can change the baby oil/mineral oil into smoke quickly and blow the smoke into sealed pipe system. If leakage exists, the smoke will come out through the small cracks. It can do smoke leak test of various systems, such as EVAP Systems, Intake Systems, Cooling / Exhaust / EGR Systems, Crankshaft Systems, Fuel Tank Systems, Engine Air-tightness, Vacuum Leaks, Low Pressure Turbo Leaks. Where to Use? Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses,power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust. List of Accessories Smoke Leak Detector Locator Standard Cone Adapter: φ30-85mm, used to seal the airintake ports & introduce smokeinto the exhaust system.Power Cord Clamp: The cable length is 1.5m with 10A rated current. used to connectthe device to the battery powersupply.Valve Core Wrench: The double heads measure φ4mm/6mm with an overall length of 122mm & used as a tool to removeand install the EVAP service portvalve core.Hook: Used for hanging products.EVAP Special Connector: φ12.7mm, connects to the car's EVAP access port. which then introduces smoke.Test Oil Refill Bottle: The capacity is 100ml & usedfor adding smoke test oil.Rubber Connector Parts: The bigger side is φ16/10mmand smaller one is φ4/3mm.used to conetct the hose mouth to a smaller interface.Universal Airbag Adapter: Its minimum is φ25mm & maximum expansion is φ110-mm,used to seal the air inlet.Smoke Hose: Length is 1.5m, oil-resistanthose with φ6x9mm taperedcouplings, for conducting air & smoke.Hard Rubber Hose Plug: Used for sealing the hose. (φ5/10mm, φ9/15mm, φ25/35mm, φ32/45mm, φ45/60mm, φ60/75mm.)Soft Rubber Hose Plug: Used for sealing the hose. (φ9mm/φ12mm/φ16mm/φ17mm/φ20mm/φ25mm/φ31.5mm/φ50mm.) Wide Range of Applications Smoke Leak Detector Locator is a professional auto pipe leak detect tool and without air pump.It will help us position cars motorcycles leakage on pipe system quickly and exactly,is used to detect leaks in piping systems in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks and speed boats, suitable for all models(only for 12v DC). For non-professionals, many users may worry about its utility value because they do not use it very often and maybe only once for a long time, so is it worth spending so much money? Yes, you can also use it for your friends or neighbors, or even rent it out to earn extra income. Specifications Main unit dimensions:275*150*150MMPackage weight:5.0KGPackage dimensions:300*235*320MMOutput pressure:12-18psiOutput flow:6L/minAir pressure output:Built-in air pumpPower supply:DC12V Battery Overheat & Anti-frost protection Overheat Protection: When the temperature of the device exceeds 75°C,power protection will be intelligently activated to turn it off.Anti-frost Protection: The device can also worknormally at -20°C. Advanced technology Fuel Leak Detector works on the EVAP system (we also have another version that specially designed for EVAP system). Independent Switch Control Design Smoke Mode button is to control the smoke generator independently, generate smoke faster than last generation, reducing diagnostic time.Air Mode button is to control the air pump independently, adapt smoke grade to locate the small and hard to find leaks. Packing List 1pcs * Car Smoke Leak Detector Main Unit1pcs * Hook (with hand-tighten nuts)1sets * Rubber hose plug (with serial specification)1pcs * Standard cone adapter1pcs * power cord clamp1pcs * Oil bottle(oil not included)1pcs * EVAP special connector1pcs * Smoke hose1pcs * Universal Airbag Adapter1pcs * User manual How to do leakage test? Step 1 : Fill 20ml baby oil to the detector for the first time.Step 2 : Open the engine cover, and hang the detector in the cover.Step 3 : Disconnect the pipe that needs to be connected with detector.Step 4 : Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.Step 5 : In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary. Caution：When you use this Car Smoke Leak Detector for the first time, fill with 10ml oil . Please be careful NOT to beyond this range.The testing liquid : both liquid paraffin and baby oil are OK.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.During the process of leak detection, please keep away from smoke-sensitive parts.Do NOT run the detector over 8 minutes continuously. It needs interval rest.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.The round part of this detector has temperature, please be careful to avoid burns. SDT50 Smoke Leak Detector SDT60 Smoke Leak Detector SDT101 Smoke Leak Detector SDT103 Smoke Leak Detector SDT106 Smoke Leak Detector SDT206 Smoke Leak Detector Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 2.0 out of 5 stars 1 2.0 out of 5 stars 1 4.2 out of 5 stars 21 4.5 out of 5 stars 60 4.2 out of 5 stars 13 4.8 out of 5 stars 18 Price $79.99$79.99 $89.99$89.99 $75.00$75.00 $87.00$87.00 $109.00$109.00 $269.00$269.00 Output Pressure ≤10Psi ≤10Psi ≤11Psi ≤11Psi ≤12Psi ≤18Psi Output Flow 1~5(L/min) 1~5(L/min) 1~6(L/min) 1~6(L/min) 1~6(L/min) 1~6(L/min) Test Oil Capacity 10-20ML 10-20ML 10-20ML 10-20ML 10-20ML 10-20ML Built-in Air Pump ✓ ✓ no data no data ✓ ✓ Pressure Gauge no data ✓ no data no data no data ✓ Adjustable Smoke FlowMeter no data no data no data ✓ no data ✓ Dual Mode no data no data no data no data no data Smoke Mode and Air Mode
