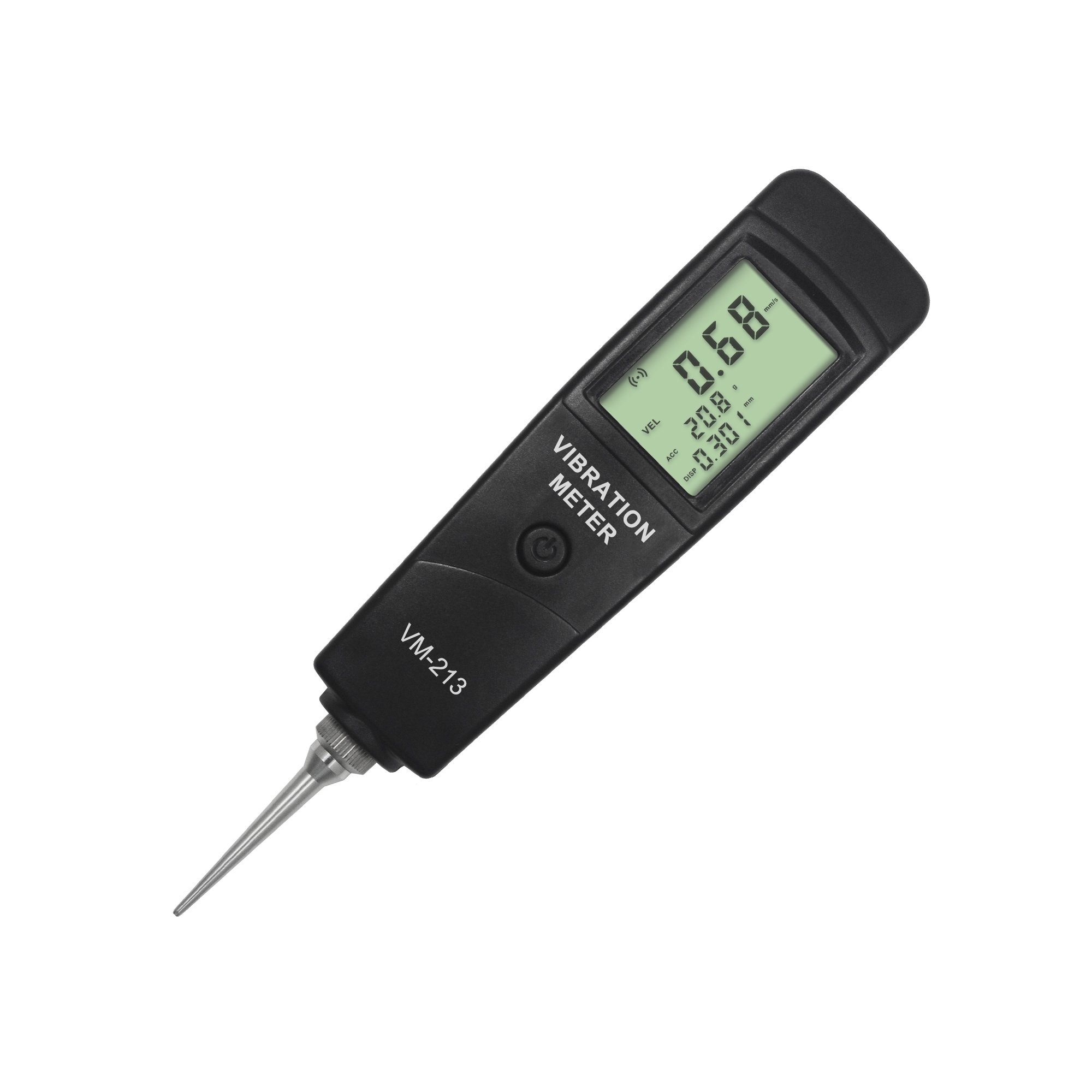

VM-213 Piezoelectric Transducer - High Precision Vibration Meter & Displacement Gauge Pen Tester | Industrial Equipment Monitoring, Mechanical Vibration Analysis, Quality Control Testing

$171.15

$311.19

Safe 45%

VM-213 Piezoelectric Transducer - High Precision Vibration Meter & Displacement Gauge Pen Tester | Industrial Equipment Monitoring, Mechanical Vibration Analysis, Quality Control Testing

VM-213 Piezoelectric Transducer - High Precision Vibration Meter & Displacement Gauge Pen Tester | Industrial Equipment Monitoring, Mechanical Vibration Analysis, Quality Control Testing

$171.15

$311.19

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

6 people viewing this product right now!

SKU: 73262869

Guranteed safe checkout

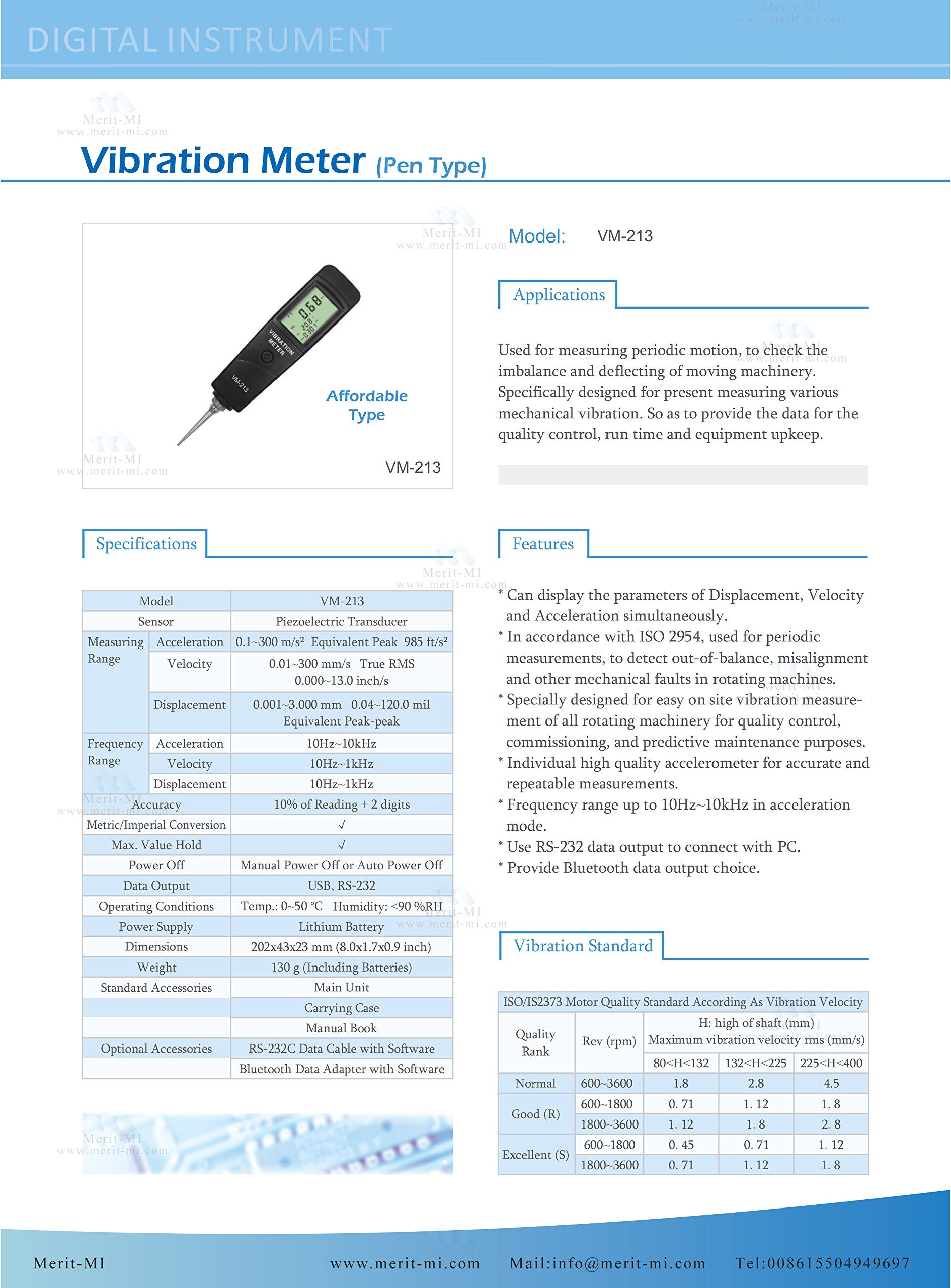

Description

Applications: Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. Features: With Max Hold function. Individual high quality accelerometer for accurate and repeatable measurements. Specifications: Sensor: Piezoelectric Transducer Measuring Range: Acceleration: 0.1-300.0m/s²; equivalent peak 985ft/s² Velocity: 0.01-300.00mm/s; true RMS; 0.000~13.00inch/s Displacement: 0.001-3.000mm; 0.04~120.0mil; equivalent pk-pk Frequency Range: Acceleration: 10 Hz ~ 10k Hz Velocity: 10 Hz ~ 1k Hz Displacement: 10 Hz ~ 1k Hz Accuracy: 10% of Reading + 2 digits Metric / Imperial Conversion Max. Value Hold Power Off: Manual Power Off or Auto Power Off Data Output: USB, RS-232 Operating Conditions: Temperature: 0~50 degree; Humidity: less than 90%RH Power Supply: Lithium battery Dimensions: 202x43x23 mm ( 8.0x1.7x0.9 inch ) Weight: 130g (Including Batteries) Package includes: Main Unit Carrying Case Manual Book Your requirements could be customized. Please contact us if you need further assistance.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Can display the parameters of Displacement, Velocity and Acceleration simultaneously.

In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.

Wide frequency range (10Hz~10kHz) in acceleration mode; Bearing condition monitoring function.

Use USB/RS-232 data output to connect with PC;
