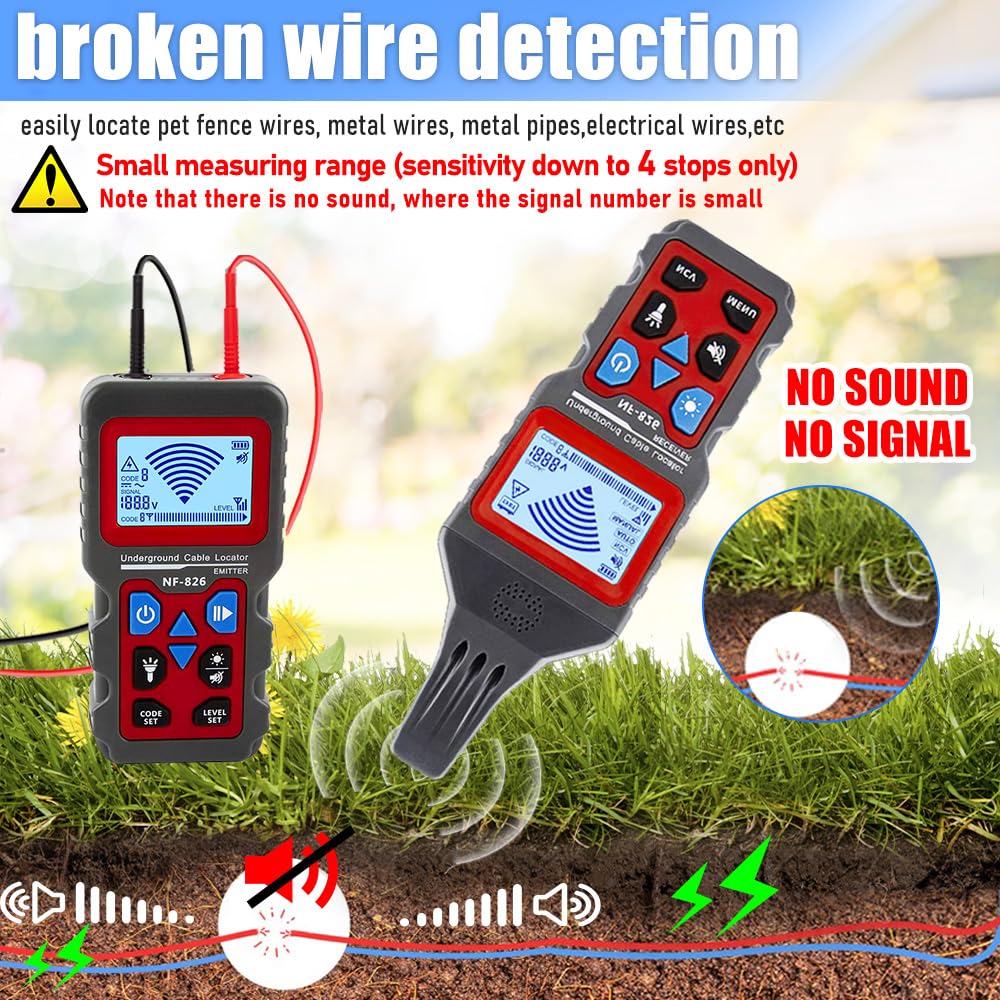

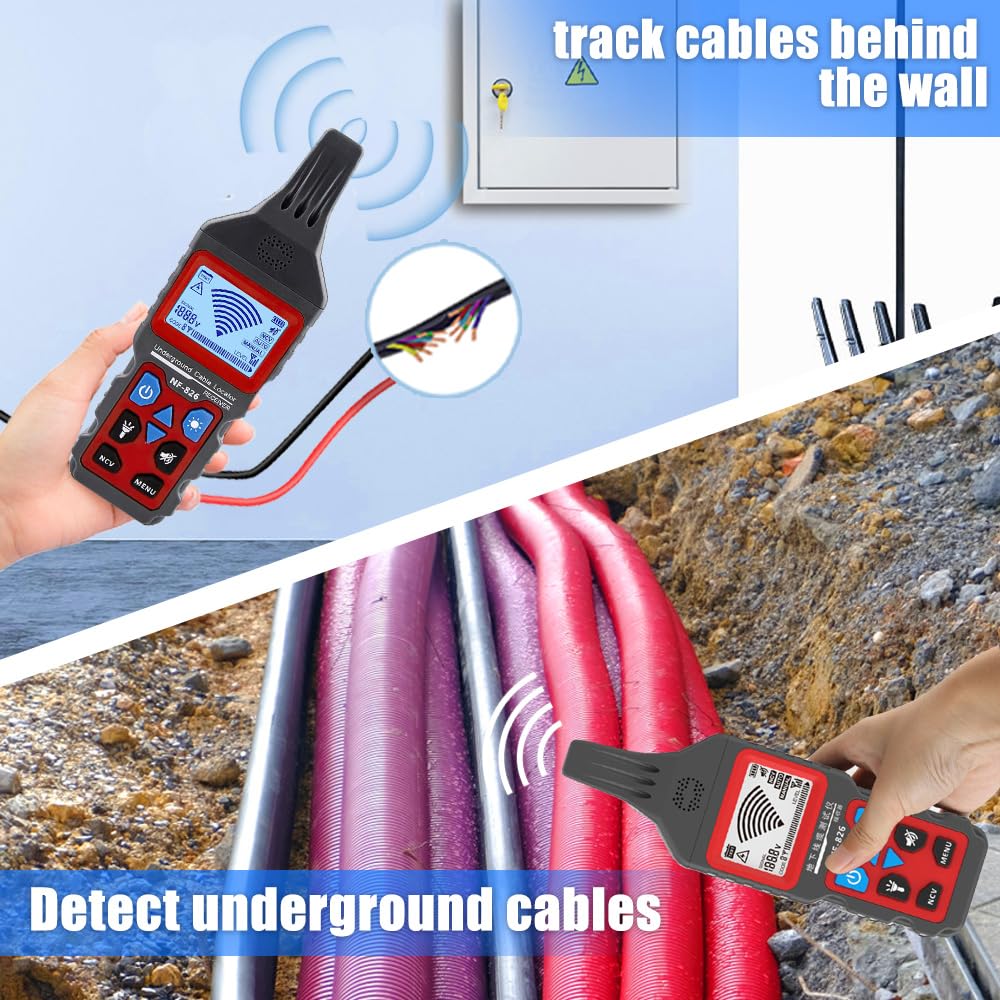

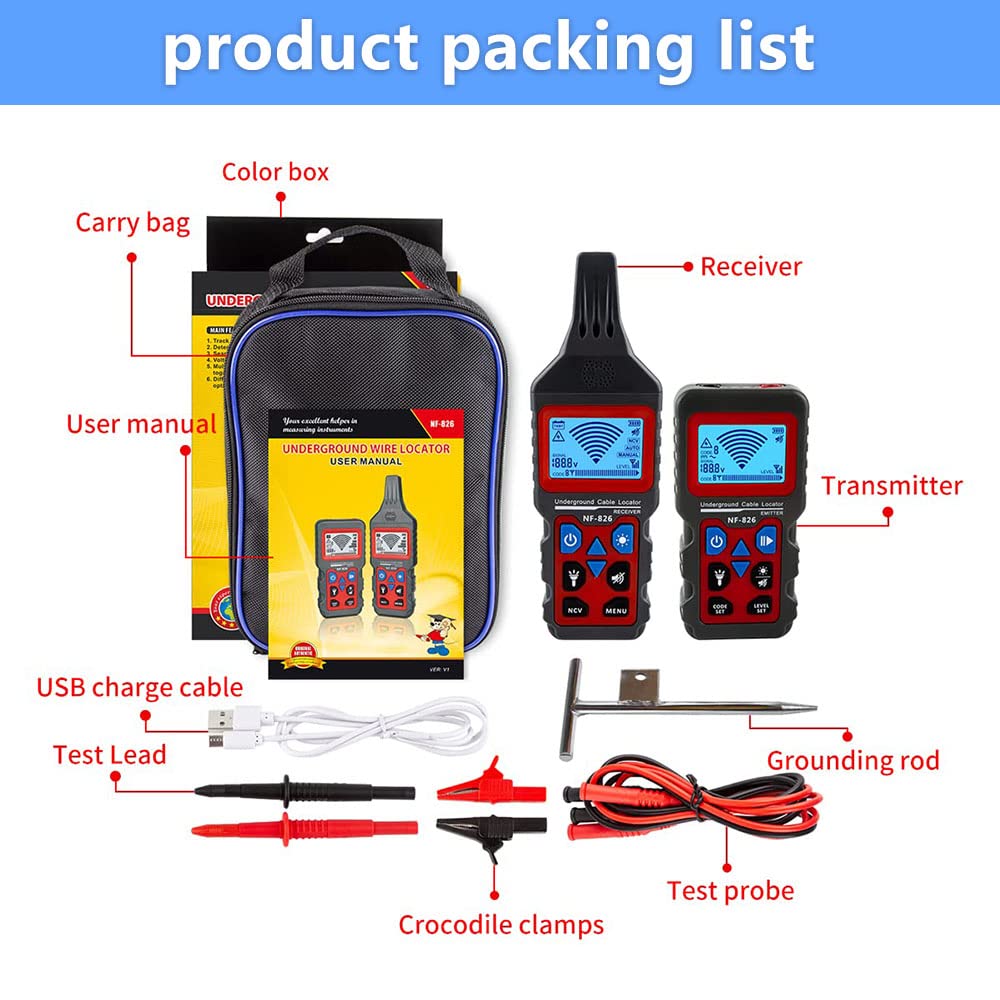

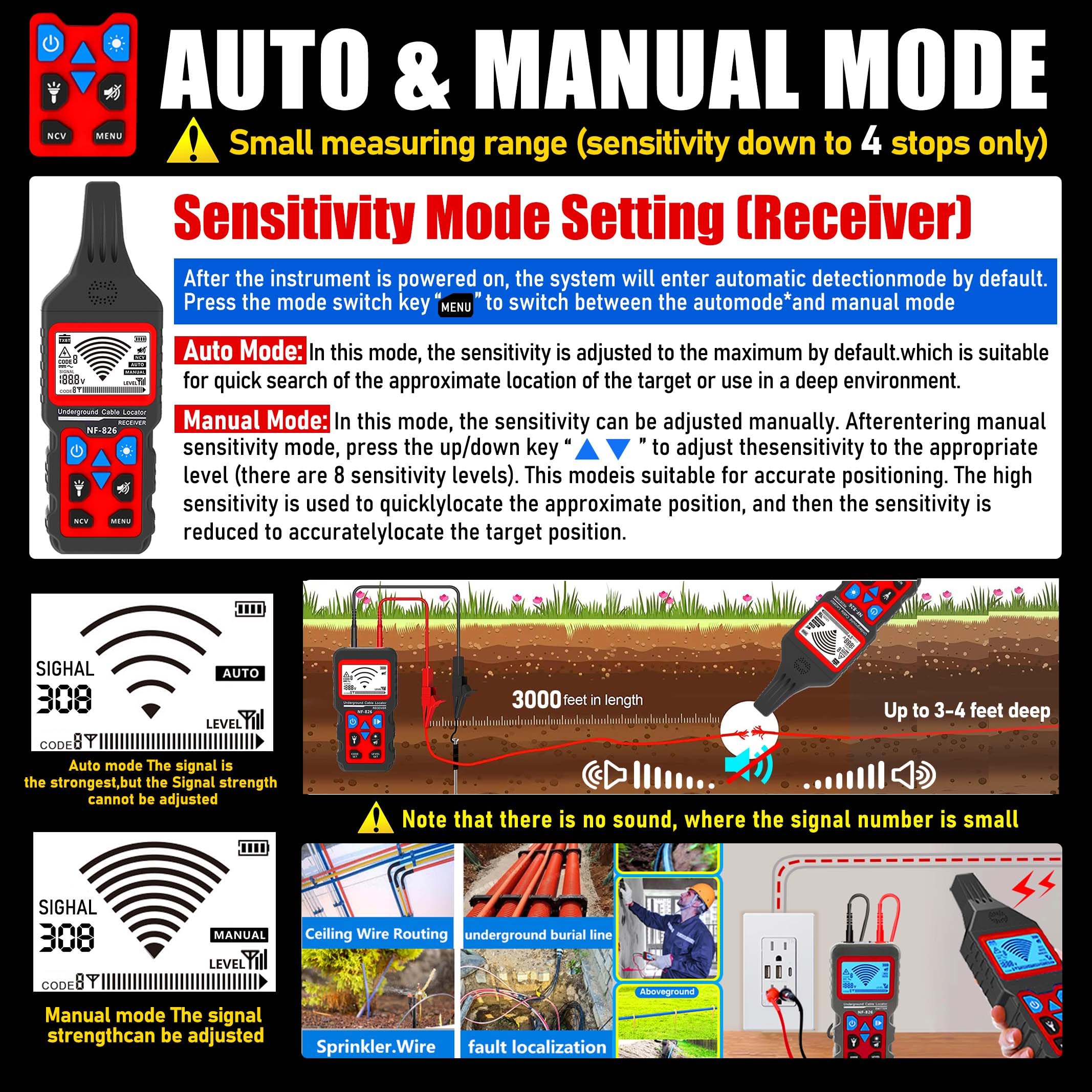

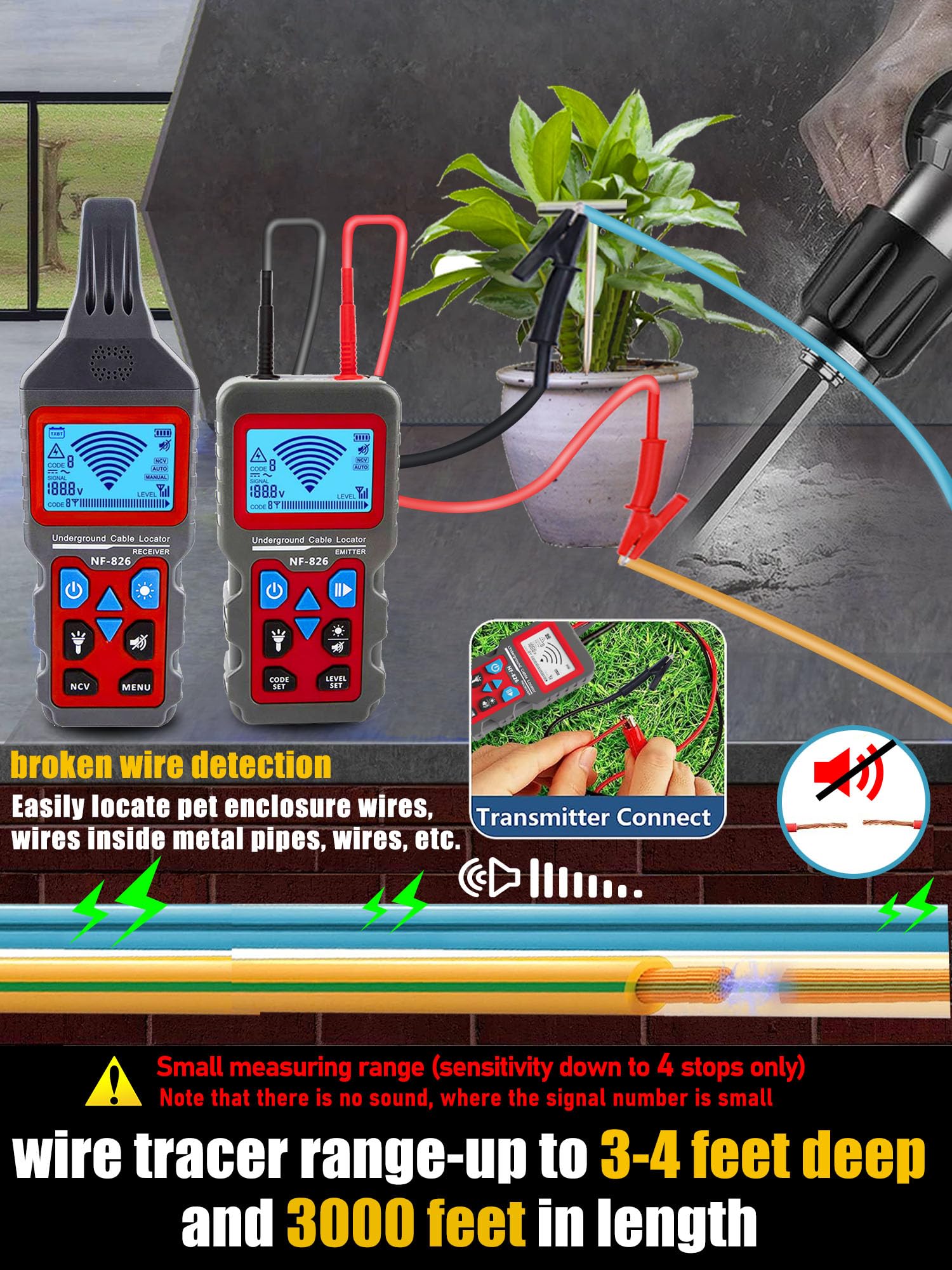

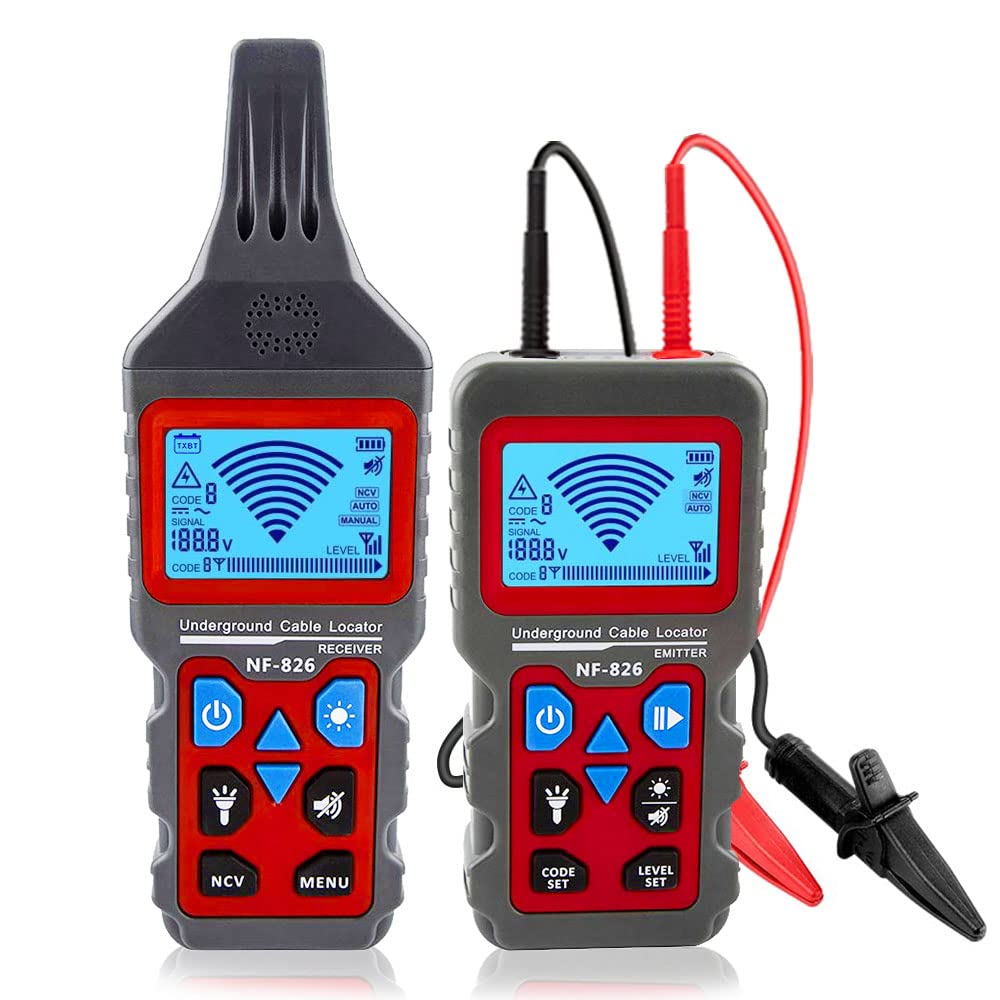

Underground Cable Tester Applications: NF-826 Cable Locator is a portable instrument consisting of transmitter, receiver and some accessories. Using advanced integrated devices and digital circuit technology, it has highly stable and reliable electrical performance. With this cable locator, it can effectively help users locate and detect cables, and you no longer need to risk constructionInstallation and maintenance of weak current system, communication linecomprehensive wiring circuit, telephone system, computer network, other metal wire circuit etc underground wire locator underground wire locator Features:1. The transmitter has a self-checking function to detect its own working status and display it on the LCD screen for user reference.2. The sensitivity of the receiver can be adjusted manually or automatically.3. The receiver can scan the frequency automatically.4. Both transmitter and receiver can work in silent mode.5. Additional transmitters can be used to expand or differentiate multiple signals.6. Compactness - Durability and portability.7. Automatic shutdown within 10 minutes.8. Flashlight function.9. Backlight function.10. Mute function. Underground Cable Locator 1.Finds for open or shorts cable in the wall or earth2.Tracks for cable in the wall or earth.3.Finds for fuse and safeguard.4.Finds for socket or junction box is envelop5.Finds for open or shorts conduit under the floor. Multifunctional detail performance Specification: General 1.Key: silicon keys * 82.Accpetable transmitter signal codes : 6types3.Acceptable transmitter signal amplitude: 3 degrees4.Buzzer: ok5.Mute: ok6.Lamp: ok7.LCD backlight : on/off8.Power supply: 3.7V 1400mAh Lithium battary9.Charging voltage : DC5V10.Charging current: <600mA 6 transmission codes Specification:Transmitter: 1.LCD Screen:52*35mmTN screen with backlight2.transmitter signal frequency:125KHz3.Signal Vp-p:transmitter self-inspection:Yes4.Circuit voltage testing: AC:12~400V(50~60Hz)+/-2.5%5.DC:12~400V +/-2.5%6.Interface type: multimeter jack7.Max working current: Demension: 158*80*33mm Specification:Receiver: underground wire locator 1.LCD Screen: 52*35mmTN screen with backlight2.Received signal strength display : ok3.recognize low battary warning of transmitter: ok4.Received signal frequency: 125KHz5.Max reception range: Short circuit detection: ok6.open circuit detection: ok7.Automatic frequency sweep: ok8.Reception mode: Manual / Auto9.NCV function: AC:50~400V(50~60Hz)+/-2.5%10.Max working current: Demension: 228*74*28mm Please note before you buy Please checkwhat kind of wire you want to locate. Only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!Range of Parameters: Wire tracer range-Up to 3-4 feet deep and 2000 feet in length.Upgrade & Tips: Use a Rechargeable 1100mAh Battery for Locate Wires. Tips: Do not use on live circuits to avoid damaging the Tester!This device is mainly to locate non-energized Cable, or low-voltage situation less than 24V NOYAFA NF-826 More Features WIRE TRACKER, UNDERGROUND WIRE LOCATOR Detect pipes inside the wall and underground.Detection of interruptions and short circuits in underfloor heating; detection of accidentally covered sockets and distribution sockets. Locate and track buried and hidden lines and other hidden lines Family, work a good helper Detect cable inside the wall and undergroundEasily locate pet fence wires, metal wires, metal pipes, wires, and moreCable Tester for Dog Fence Cables Irrigation Control Wires WIDE APPLICATIONS NCV Non-contact test electric penHigh voltage power measurement with zero contactNOYAFA NF-826 is widely used in communication cable construction, power cable construction, building pipeline construction, telecommunication cable, power supply circuit, power line maintenance and other fields. It is an indispensable tool for maintenance personnel MULTI-FUNCTION TESTER Measur AC/DC voltagecan measure 12-400v AC/DC voltageLED lights: repair in the dark too circuit tracer wire tracer electrical Line tracer transmitter has AC and DC voltmeter function, pipeline locator receiver can choose automatic and manual mode, supports Uac mode, with automatic frequency sweep, screen backlight, mute mode, automatic shutdown and other functionsUse the thenf-826 Cable Detector When there is a problem with the cable, it will diagnose the fault location for you, no need to dig the entire cable path to find the fault location, no damage to walls or ground
