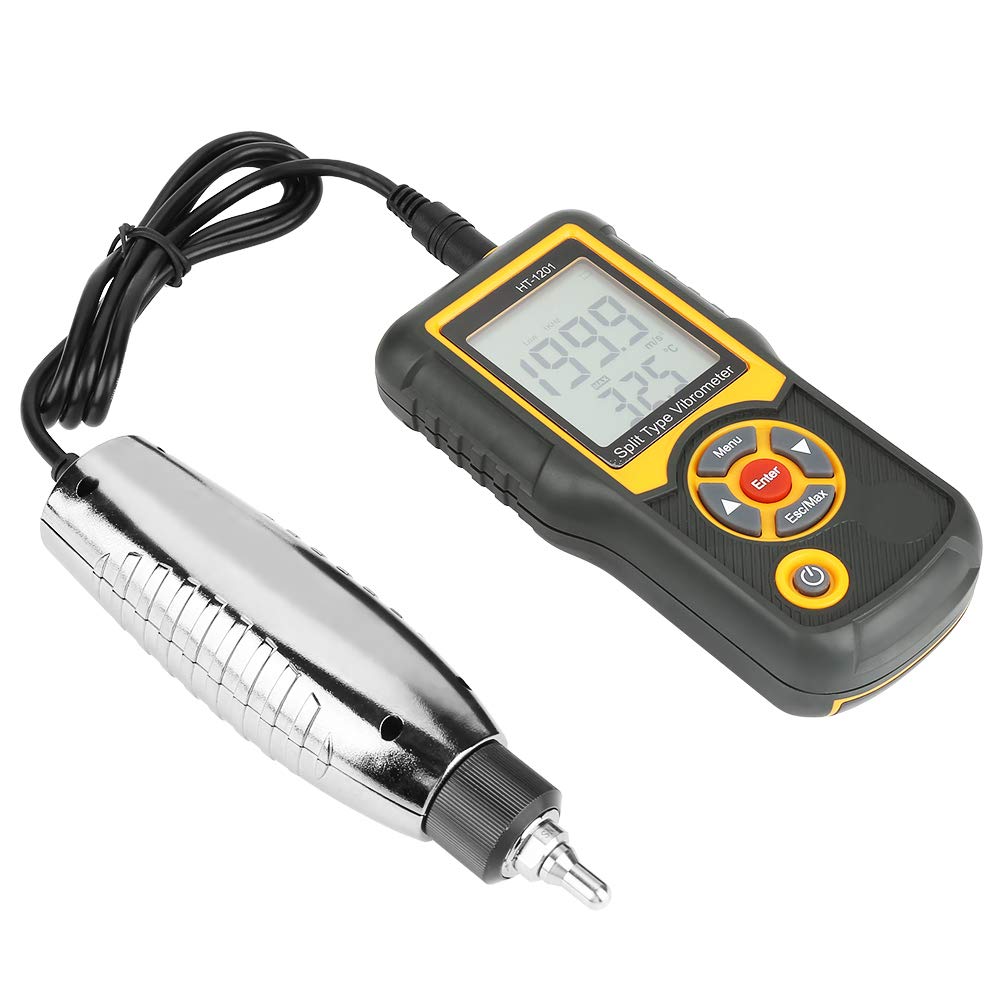

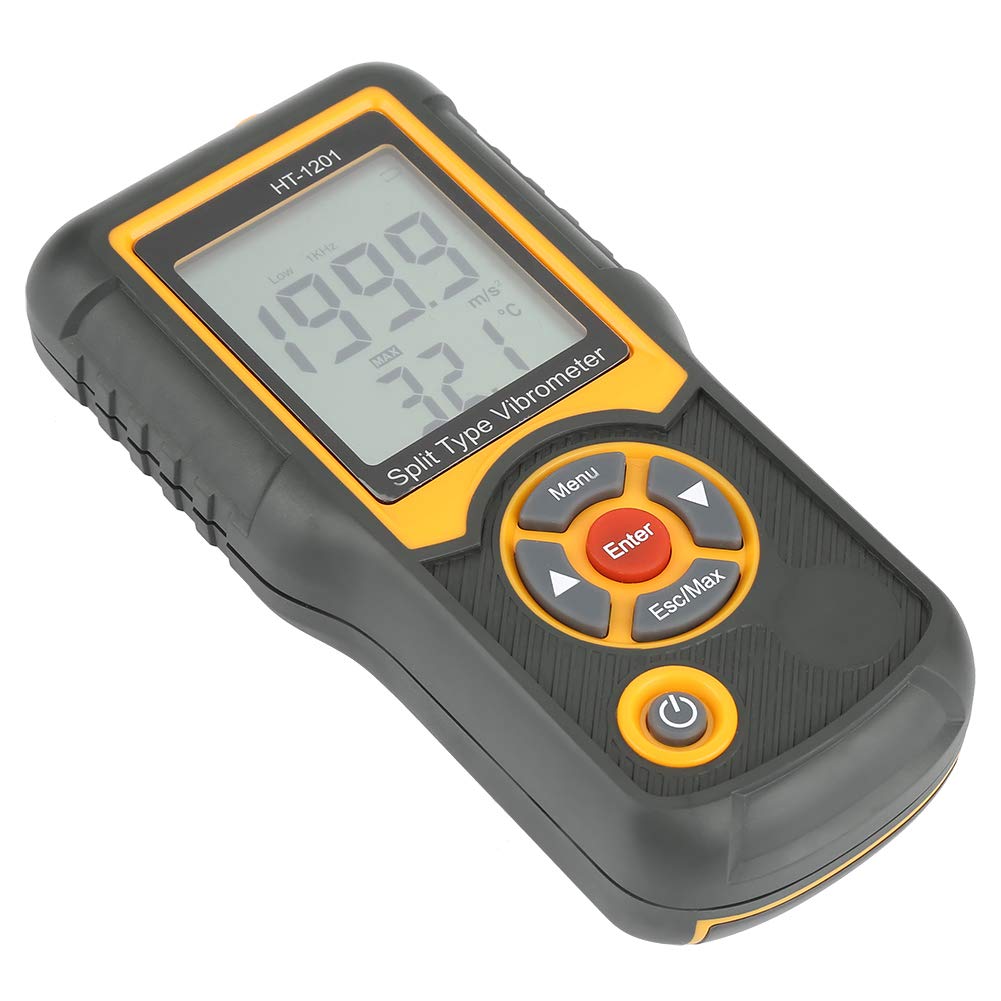

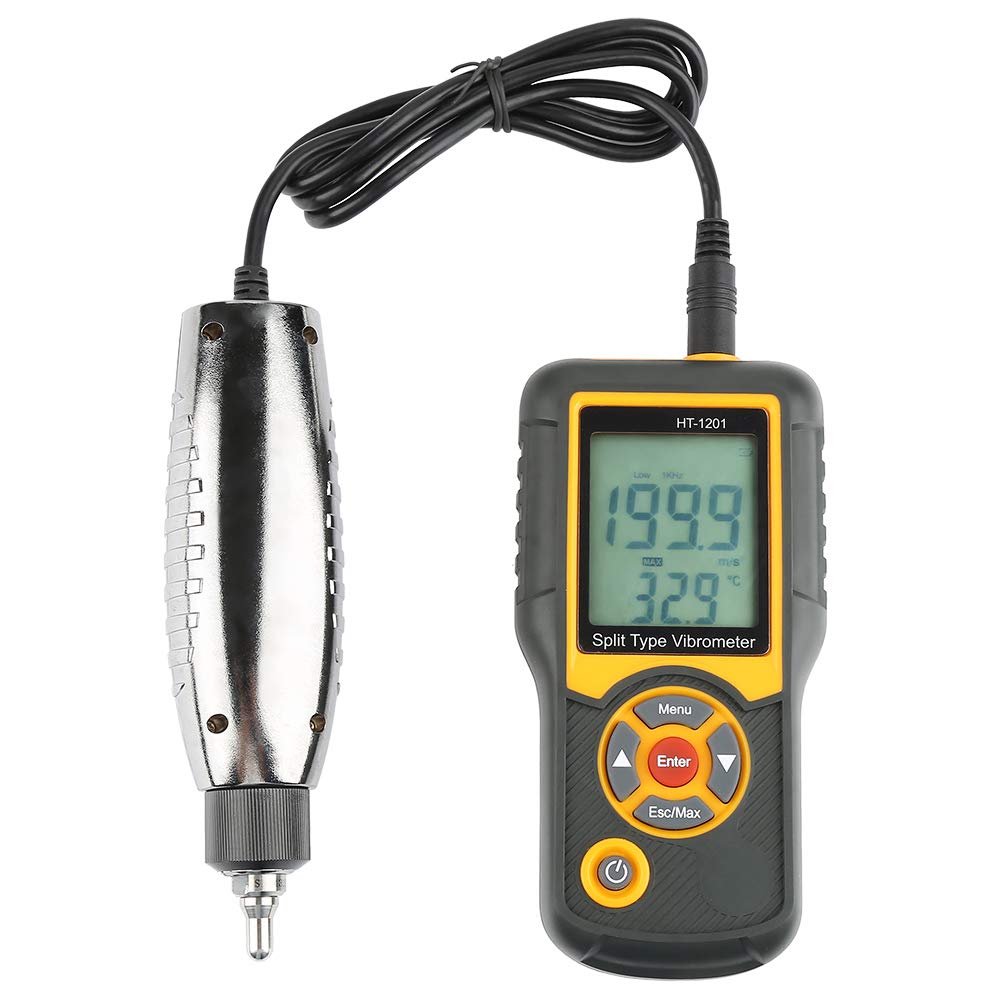

Vibrometer, HT-1201 Split Type Digital Display Vibrometer High Vibrometer Backlight Vibration Analyzer Tester, Vibration Meters WIDE APPLICATION: Widely used in mechanical manufacturing, electric power, chemical engineering, space and aviation and other fields MULTI-FUNCTION: It can measure the vibration speed, acceleration, displacement and is widely used in mechanical manufacturing, electric power, chemical engineering, space and aviation and other fields. DUAL UNITS DESIGN: It can measure the environment temperature with 2 temperature units ( and ), you can choose a suitable one for your need, convenient and easy to operate. Specification: Model: HT-1201 Color: Grey Vibration acquisition: piezoceramic accelerometer (shearing type ) LCD display: three and a half digit display Measurement range: Acceleration: 0.1-199.9m/ ( value) Speed: 0.1-199.9mm/s (effective value) Displacement: 0.001-1.999mm (effective value) Measurement accuracy: ±(5%+2digits) Frequency range: Acceleration: 15Hz - 1KHz (LO), 1KHz - 10KHz (HI) Speed: 15Hz - 1KHz (LO) Displacement: 15Hz - 1KHz (LO) Temperature measurement 0℃ - 60℃ Temperature accuracy: ±2℃ Automatic power-off time: 4 minutes Power supply: 3 x AA battery (NOT included) Operation temperature: 0℃ - 45℃ Operation humidity: 20% - 90%(No condensation) Storage temperature: -20℃ - 60℃ Size: Approx. 150*70*32mm/5.9*2.8*1.3inch Weight: Approx. 737g / 26oz Package List: 1 x Vibration Meter 1 x Probe 1 x Handle 1 x Plastic Box 1 x User Manual Note: Don't dismantle the casing of the instrument. Don't use the device in the environment with explosive gas, steam and damp environment. When measurement is carried out near rotating part of the machine, operate carefully to avoid being pulled into the machine. Please use dry cloth to wipe the instrument case at the time of cleaning. Don't use corrosive detergents. Please take out the battery if the instrument is not in use for a long time or the storage temperature is higher than 50℃ to avoid to the instrument due to battery leakage. Please allow small size error due to manual measurement. Thanks for your understanding.
