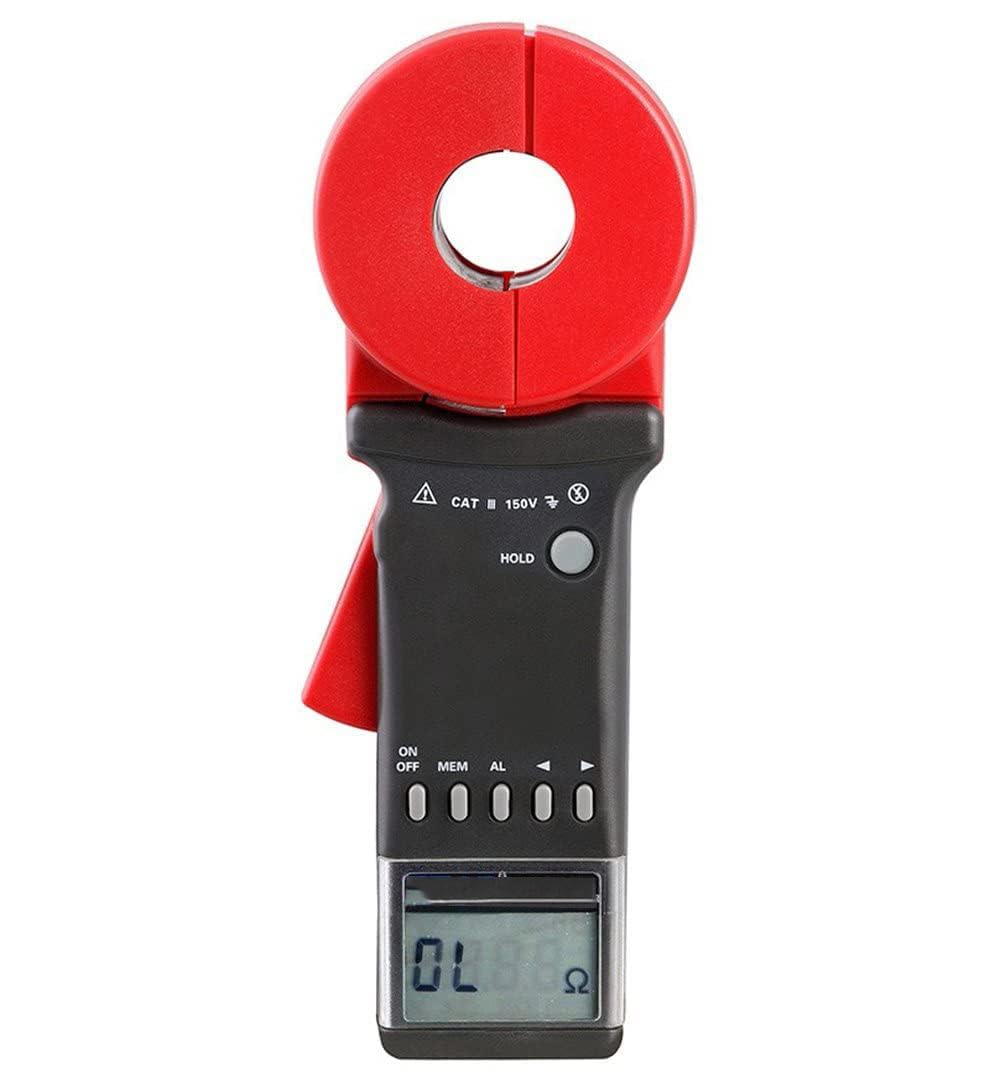

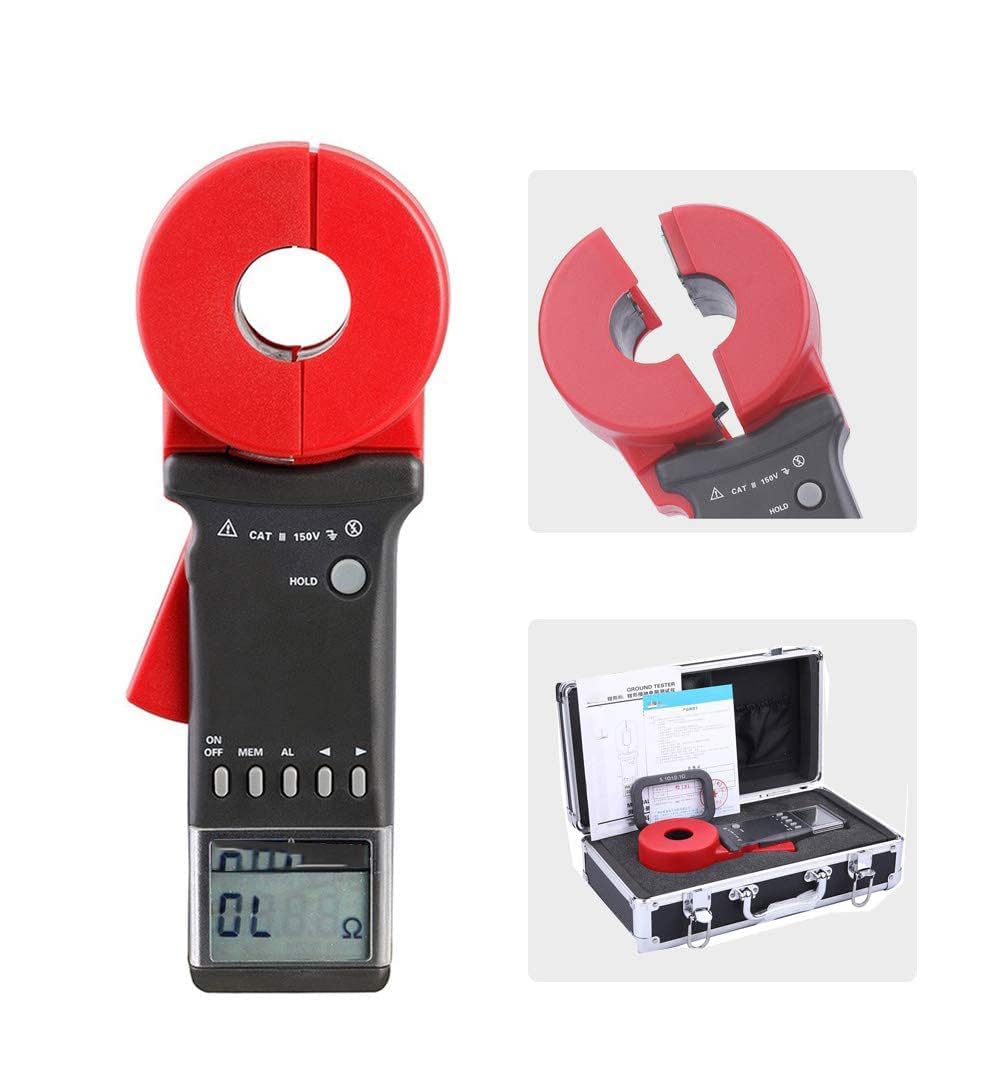

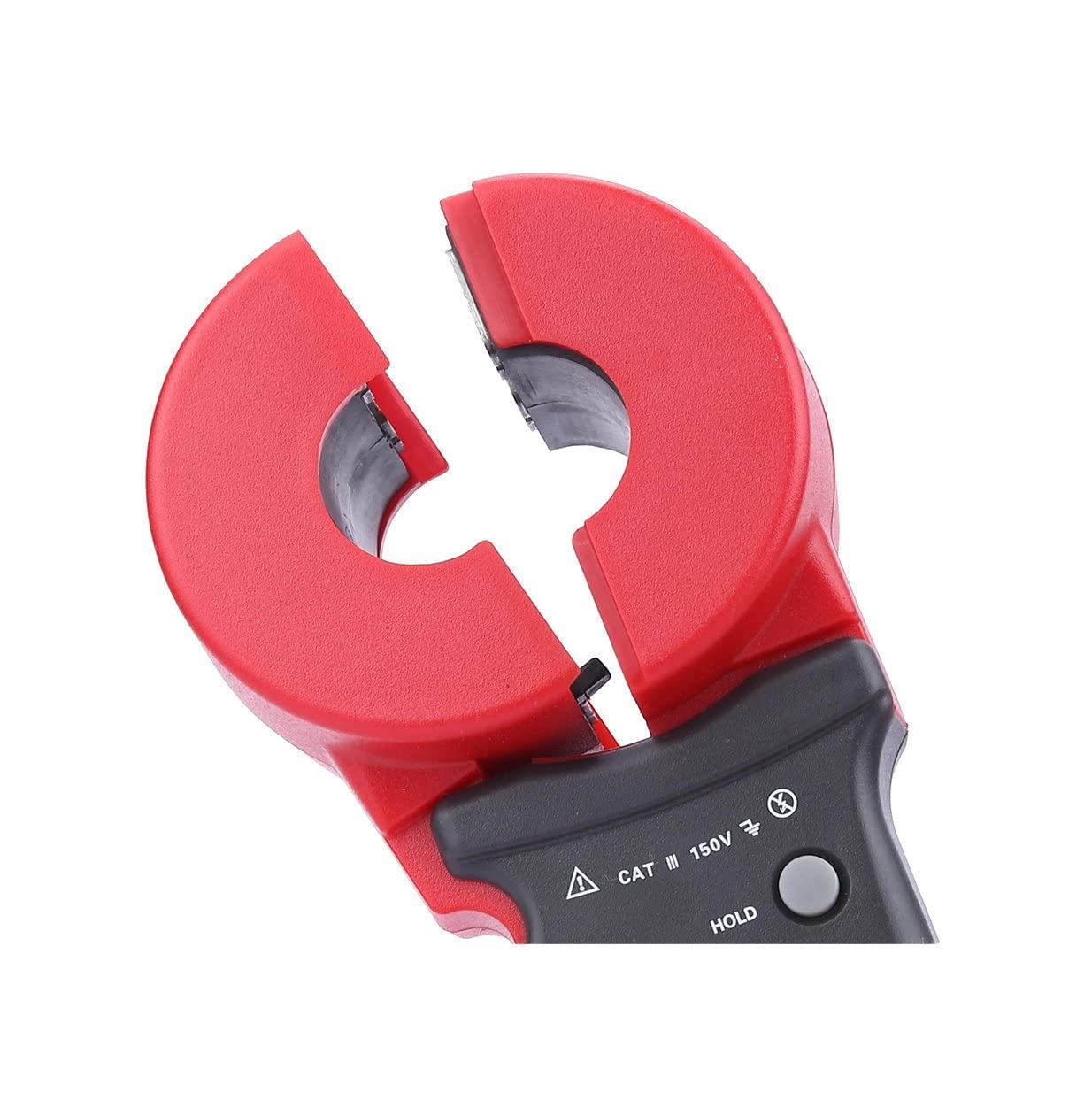

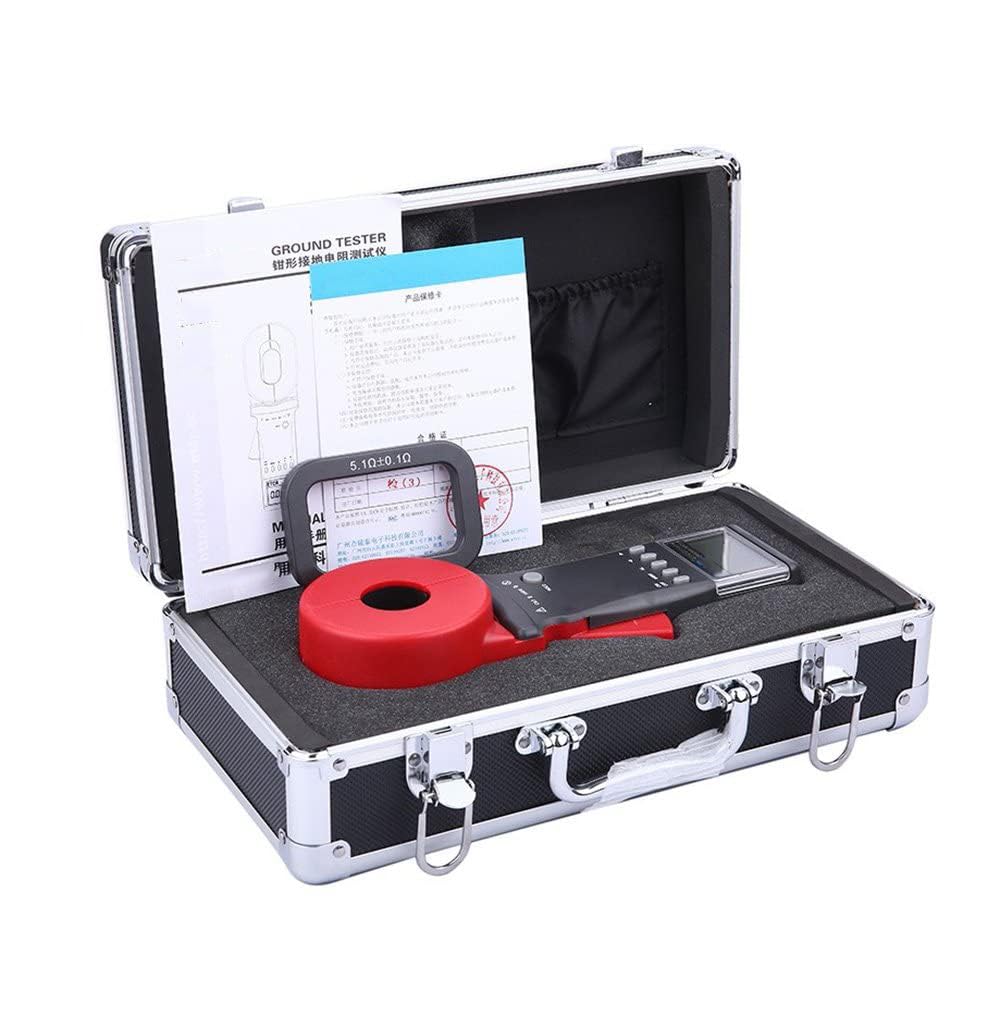

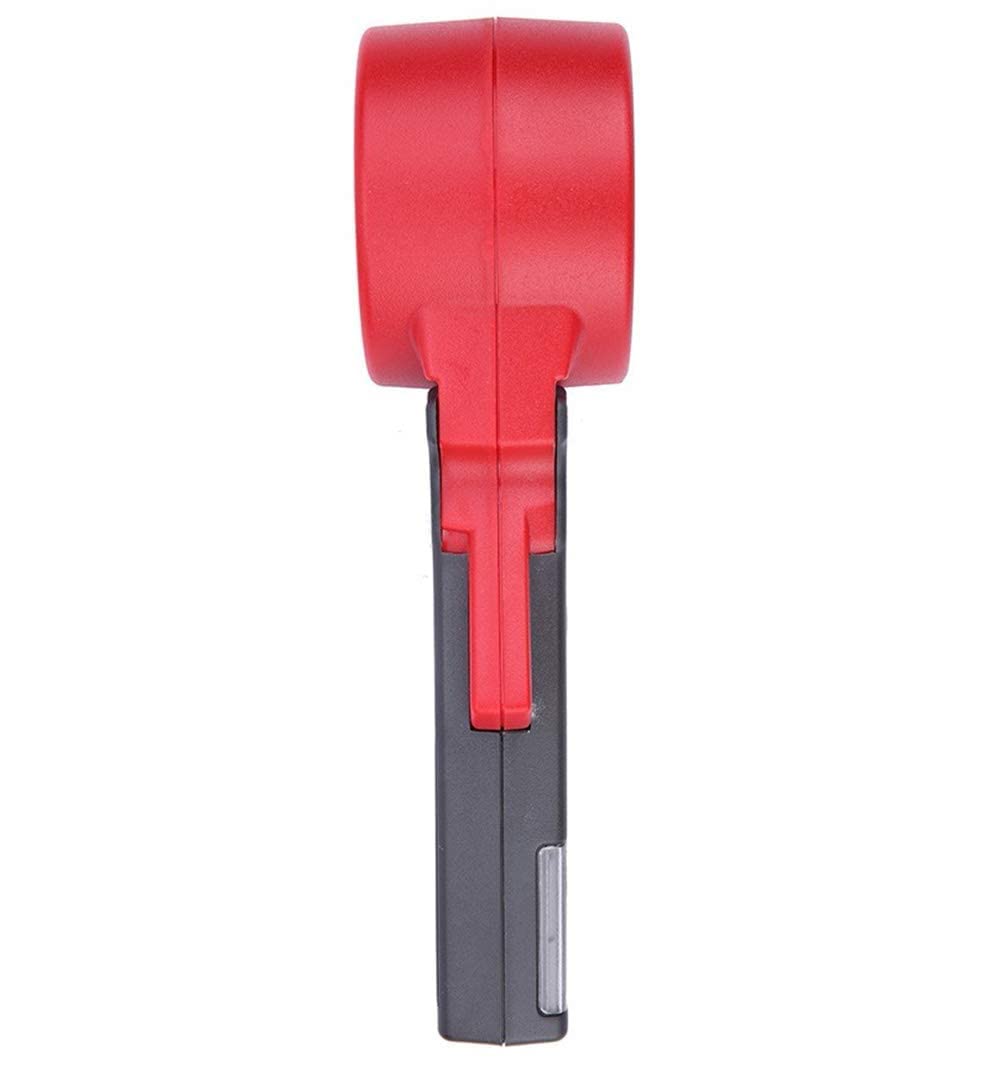

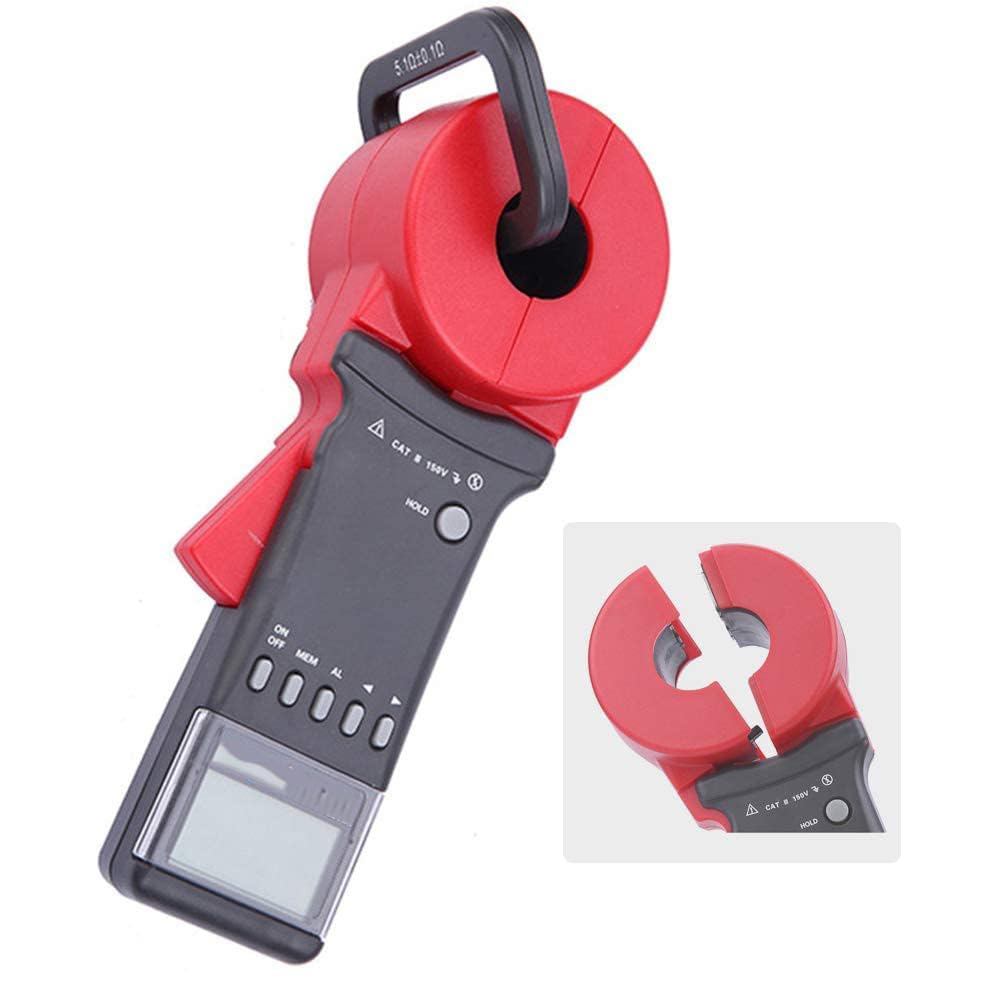

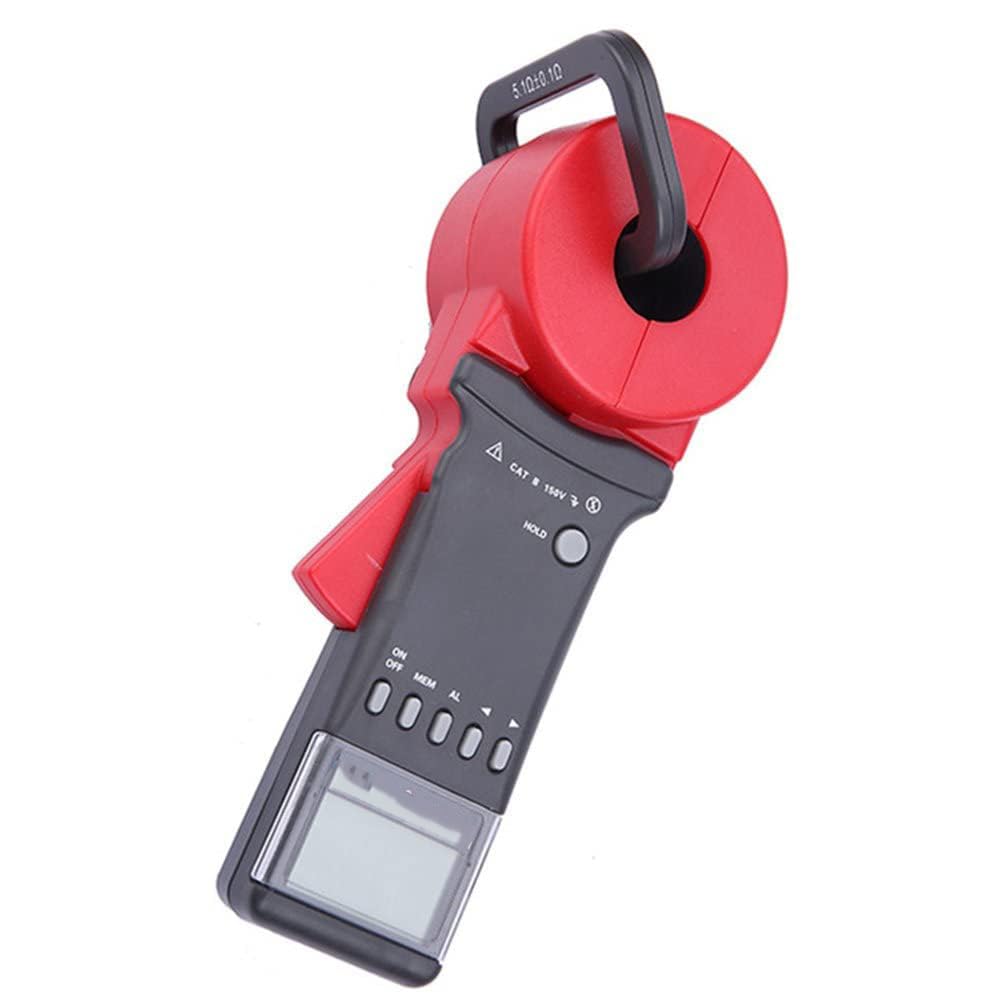

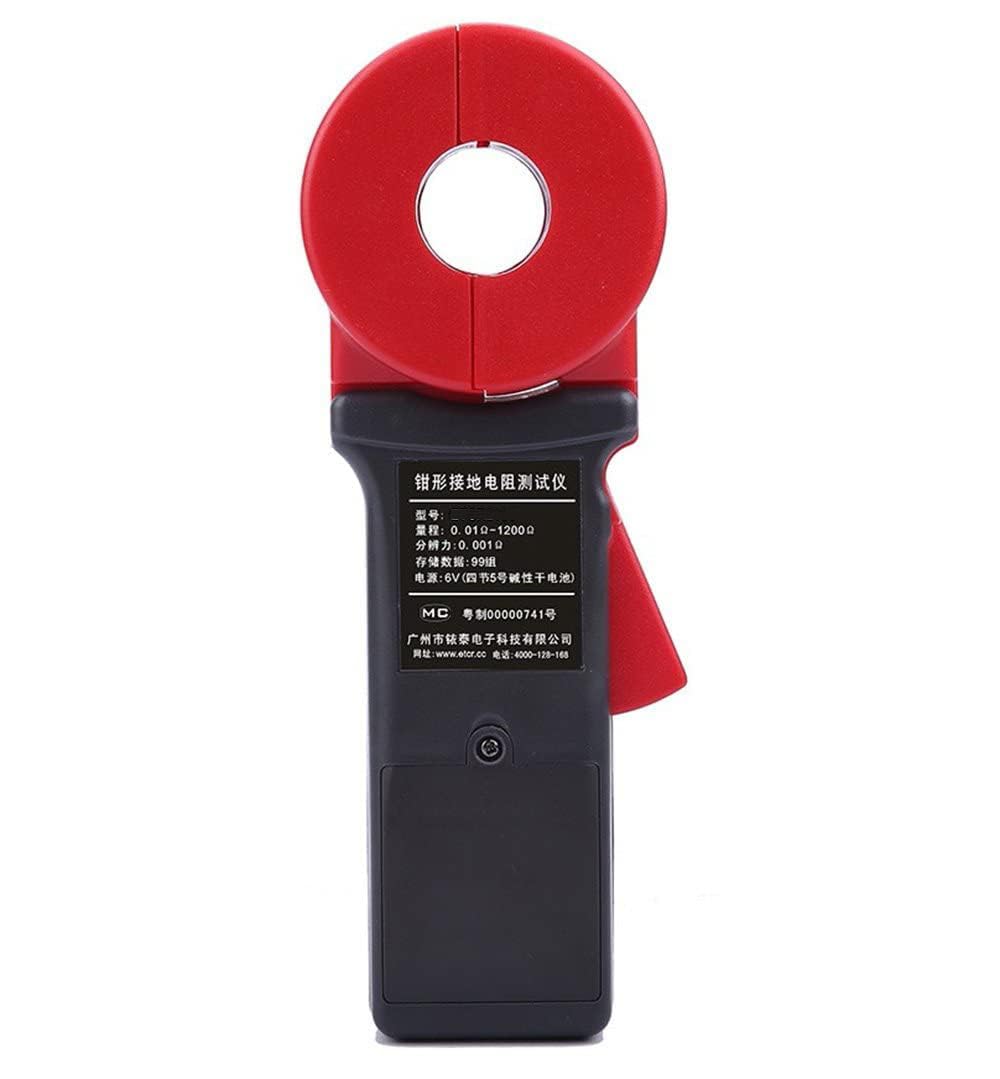

ETCR2100 Earth Resistance Tester Meter - 32mm Clamp Size, LCD Display, 0.01 to 1200 Ohm Range - Perfect for Electrical Grounding Testing in Industrial and Home Applications

$159.5

$290

Safe 45%

ETCR2100 Earth Resistance Tester Meter - 32mm Clamp Size, LCD Display, 0.01 to 1200 Ohm Range - Perfect for Electrical Grounding Testing in Industrial and Home Applications

ETCR2100 Earth Resistance Tester Meter - 32mm Clamp Size, LCD Display, 0.01 to 1200 Ohm Range - Perfect for Electrical Grounding Testing in Industrial and Home Applications

$159.5

$290

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

24 people viewing this product right now!

SKU: 82470038

Guranteed safe checkout

Description

Shipping Policy : Battery Not Included During the Shipping Technical Specifications * Function: Ground resistance test, Loop resistance test * Clamp Size: Φ32mm * LCD Screen: 4 Digits LCD display, Screen L×W: 47mm×28.5mm * Resistance Range:0.01-1200Ω * Resistance Resolution:0.001Ω * Highest Resistance Accuracy:±1%±0.01Ω * Data memory:99 Sets * Auto Power-off: 5 minutes after Boot up * Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours * Working Temperature and Humidity: -20℃-55℃;20%RH-80%RH * Storage Temperature and Humidity: -20℃~60℃;90%RH * Alarm Threshold Setting Range:Resistance: 1-199Ω * Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. * Interference Signal Recognition:”Beep-beep-beep” tone, NOISE symbol blinking * Protection Level: Dual Insulation * Structural Feature: Clamp CT * Shifting: Automatic shifting * External magnetic field: 1KHz * Measured current frequency: 50/60Hz Automatic measurement * Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V * Memory Full Indication: MEM symbol blinks when all 99 sets memory is full * Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A” * Weight: 1120g * Clamp Dimension: L×W×T: 260mm×90mm×66mm * Power Supply: 4 PCS of AA alkaline batteries（Battery not included in the package） * Standard Accessories: Meter: 1; test loop: 1; meter box: 1

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

◆ Clamp ground resistance tester, ground resistance and loop resistance measurement (range 0.010Ω ~ 1200Ω).

◆ Clamp Size Φ32mm; Resistance Resolution0.001Ω; LCD Screen 4 Digits LCD display; Highest Resistance Accuracy±1%±0.01Ω

◆ Alarm Threshold Setting RangeResistance 1-199Ω; Alarm Sound and Light "Beep-beep-beep" alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.

◆ The ETCR Clamp Ground Resistance Meter measures ground faults that cannot be measured with conventional methods, can be used in applications where traditional methods cannot be measured, and is widely used for measuring ground resistance of various devices.
