DTI-4109 Intelligent Equipotential Tester - Digital Equal Resistance Potential Meter for Electrical Safety Testing | Use in Laboratories, Power Plants & Industrial Maintenance

$172.7

$314.01

Safe 45%

DTI-4109 Intelligent Equipotential Tester - Digital Equal Resistance Potential Meter for Electrical Safety Testing | Use in Laboratories, Power Plants & Industrial Maintenance

DTI-4109 Intelligent Equipotential Tester - Digital Equal Resistance Potential Meter for Electrical Safety Testing | Use in Laboratories, Power Plants & Industrial Maintenance

$172.7

$314.01

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

22 people viewing this product right now!

SKU: 83259382

Guranteed safe checkout

Description

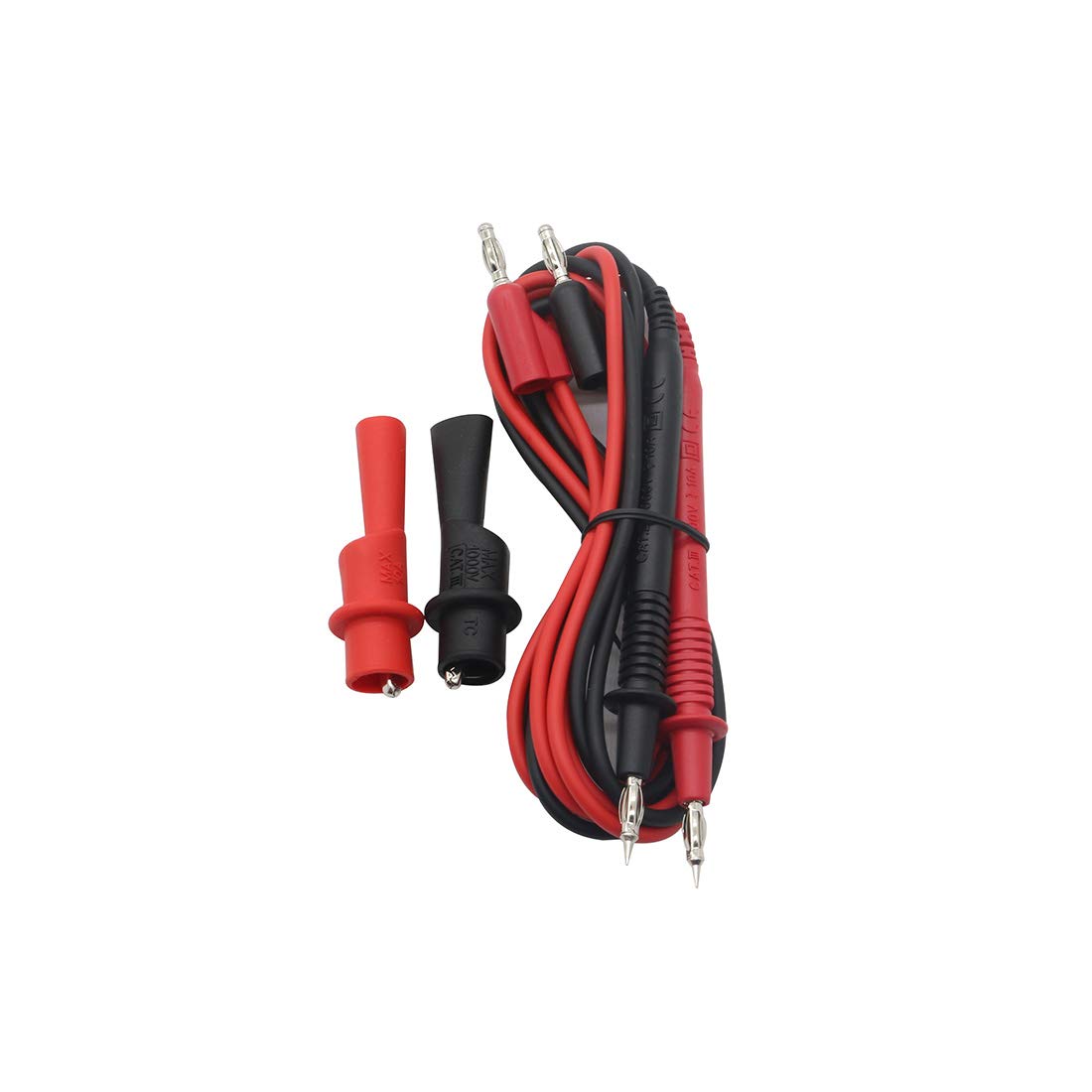

General: The instrument uses digital signal processing technology to extract signals directly, and has the characteristics of high resolution, high accuracy and good anti-interference ability. It is suitable for measurement and construction. The resistance of the equipotential connecting resistance between the metal components in the building, the electrical resistance of various electrical equipment and the connecting conductor between the ground grid and the ground pole. It is also possible to measure the contact resistance of the switch and socket contacts, as well as the other low value resistors and the AC voltage below 50V. Parameters: Display: White backlight Accuracy to ensure the range of temperature and humidity: Relative humidity below 75% (no condensation) Storage temperature and humidity range: -20 ºC～60 ºC、Relative humidity of less than 90% (no condensation） Working temperature and humidity range: 0~40 degrees C, relative humidity is less than or equal to 85% the following (without dew) Store data: 100 group Super range indication: OL Size: 175（L）×110（W）×70（D）mm Weight: About 500 g Package includes: 1.Main Unit 2.1 meter Test Line 3. 40 Meter Lines * 2 Volumes 4. Use Instructions 5. Soft bag

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

1.So electric potential connection resistance measurement range 0.020 Omega to 1999 Omega, minimum resolution 0.001 Omega, basic accuracy 2%
2.The maximum open circuit voltage of 20V, short circuit < 250mA.

3.DC (DC) voltage excitation and automatic polarity reversal are used to measure.
4.Automatic range of resistance detection

5.Remove the set function of the residual resistance RK of the test line
6. Input super - range display OL

7. High indicator function of interference voltage
8. Battery detection function

9.Operating convenient data recording functions and querying record data, internal memory can store 100 (groups) measured data independently.
10. The instrument adopts panel calibration technology, the instrument is connected with the standard instrument, the instrument panel is calibrated according to the rules, and the corresponding calibration data are stored, so as to complete the periodic calibration work of the instrument, and ensure that it reaches the desired accuracy and performanc.
