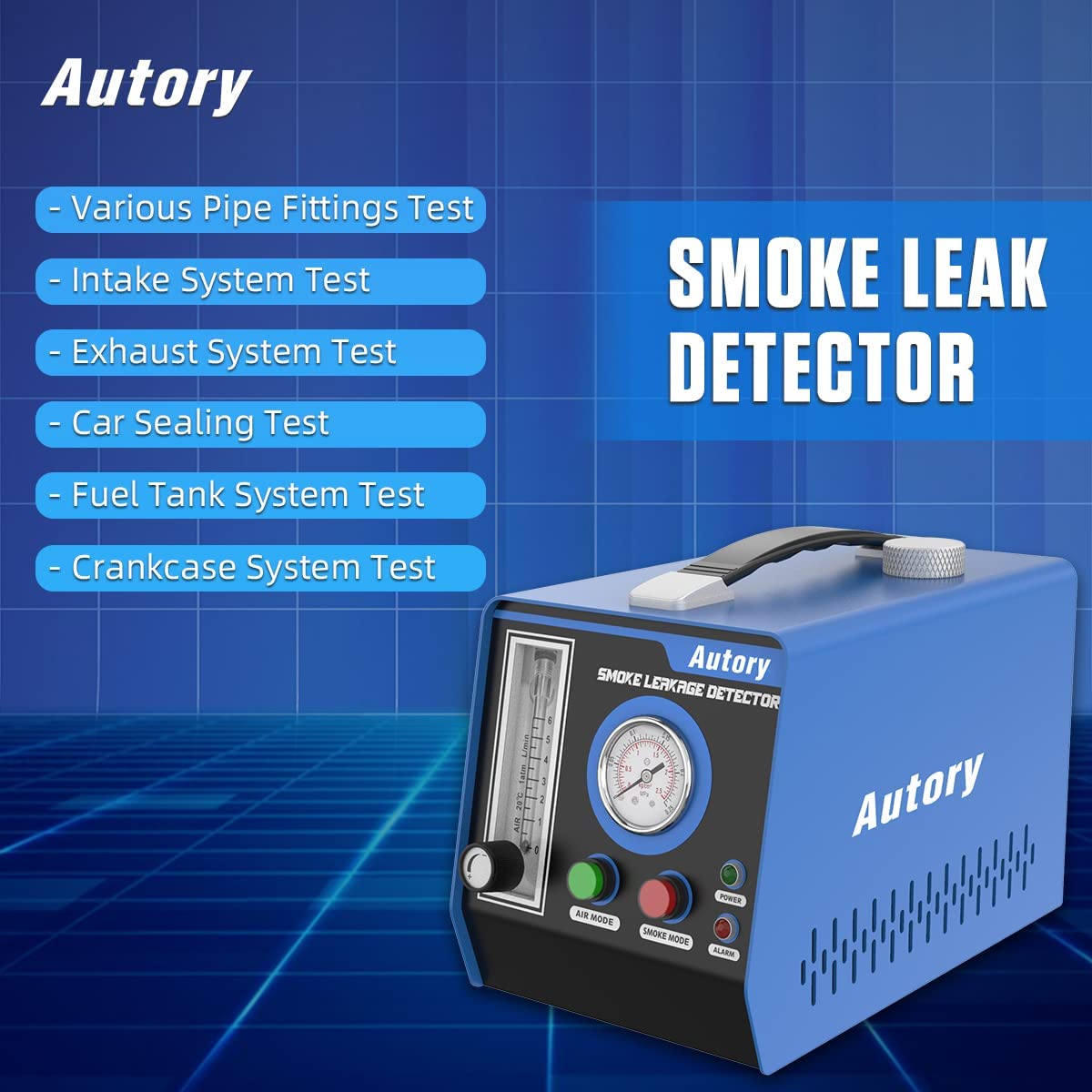

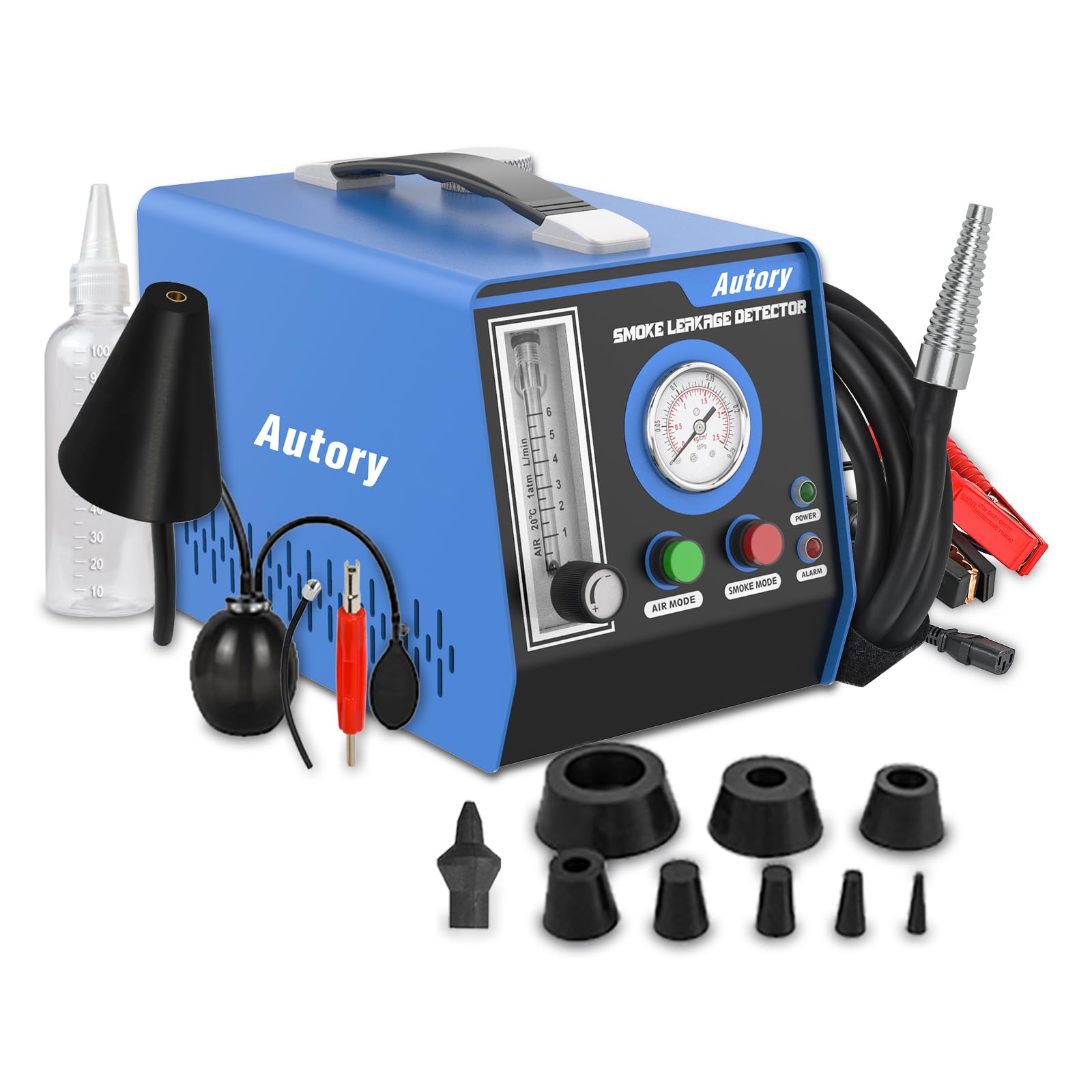

Autory A205S Car Smoke Leak Detector is a professional auto pipe leak detect tool. Features It will help us find cars, motorcycles leakage on the pipe systems quickly and exactly, such as: EVAP system, Intake System Test, Exhaust Systems Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test and Various Pipe Fittings Test.Quick leak diagnosis by pressure gauge display: NO Leak: When the value of the pressure gauge remains unchanged, it means that there is no leakage in the system. Small Leak: When the value of the pressure gauge drops, it indicates a small leak in the system. Massive Leak: When the value of the pressure gauge reaches zero, it indicates a large leak in the system.Smoke Mode: it can generate smoke in about 30 seconds, quickly help you detect if leak exist and how big the leakage is by the changes of the powerful pressure gauge. Air Mode: There is flow-meter from 1 to 6 to adjust the smoke concentration grade, which precisely locates these small (Even 0.25 mm small leakage can be tested ) and hard to find leaks to avoid unforeseen accidents.It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode. There is no need to worry about damaging the EVAP system.Air Pressure Output: Built-In Air PumpTest Oil: Mineral Oil or Baby OilMulti Protections: Oil Outlet, Over-Heat and Over-Load Protection FAST AND LARGE SMOKE With built-in air pump means you don't need to buy additional air supply machine, just connect the detector with DC12V battery, it can generate smoke in about 30 seconds, quickly help you detect leak location and the degree of the leakage is by the changes of the powerful pressure gauge. OVERHEAT & ANTI-FROST PROTECTION This smoke detector has an intelligent protector that automatically shuts off the power if the working limit is exceeded, for example over 75℃, to ensure the safety of the operator and the equipment. WIDE RANGE OF APPLICATIONS Suitable for detecting leaks in piping systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats. Suitable for all models. AIR MODE--Adjustable Air Flow from 1 to 6: Air Flow meter with adjustable button, easy to observe and operateSMOKE MODE--it can generate smoke in about 30 seconds, quickly help you detect if leak exist and how big the leakage is by the changes of the powerful pressure gauge.OIL LEVEL METER: Oil level meter allow you to accurately control the test oil volume SPECIFICATION Input Voltage: DC12VOutput Pressure: ≤18PSIOutput Smoke Flow: 6L/minTest Oil Capacity: 20MLPackage Size: 300 * 235 * 320mm (11.8 * 9.25 * 12.6 inches)Weight: 5 kg(11pound) PACKAGE INCLUDED 1pc* Smoke Detector Main Unit1pc* Power Cord Clamp1pc* Smoke Hose1pc* Standard Cone Adapter1set* Hard Rubber Kits1pc* Test Oil Bottle(oil not included)1pc* Valve Cord Wrench1pc* Universal Airbag Adapter1pc* EVAP Special Connector1pc* English User Manual HOW TO USE? 1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover. 2. Disconnect the pipe that needs to be connected with detector. 3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work. 4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary. CAUTION： 1. When you use this Autory A205S Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range. 2. The testing liquid : both liquid paraffin and baby oil are OK. 3. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time. 4. Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly. 5. During the process of leak detection, please keep away from smoke-sensitive parts. 6. Do NOT run the detector over 8 minutes continuously. It needs interval rest. 7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later. 8. The round part of this detector has temperature, please be careful to avoid burns. 9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple. A205 A205S Buying Options Add to Cart Customer Reviews 4.1 out of 5 stars 15 3.8 out of 5 stars 17 Price — no data $222.99$222.99 Pressure Gauge ✓ ✓ Flow Meter ✓ no data Air & Smoke Mode ✓ ✓ Flow Control Valve no data ✓ Output Pressure ≤15 psi (≈1kg) ≤18Psi Output Flow 1~6 L/Min 1~6 L/Min Test Oil Capacity 20ML 20ML EVAP System Test ✓ ✓ Over-heat Protector ✓ ✓ Power Supply 12V Vehicle battery, < 8 Amp 12V Vehicle battery, < 8 Amp
