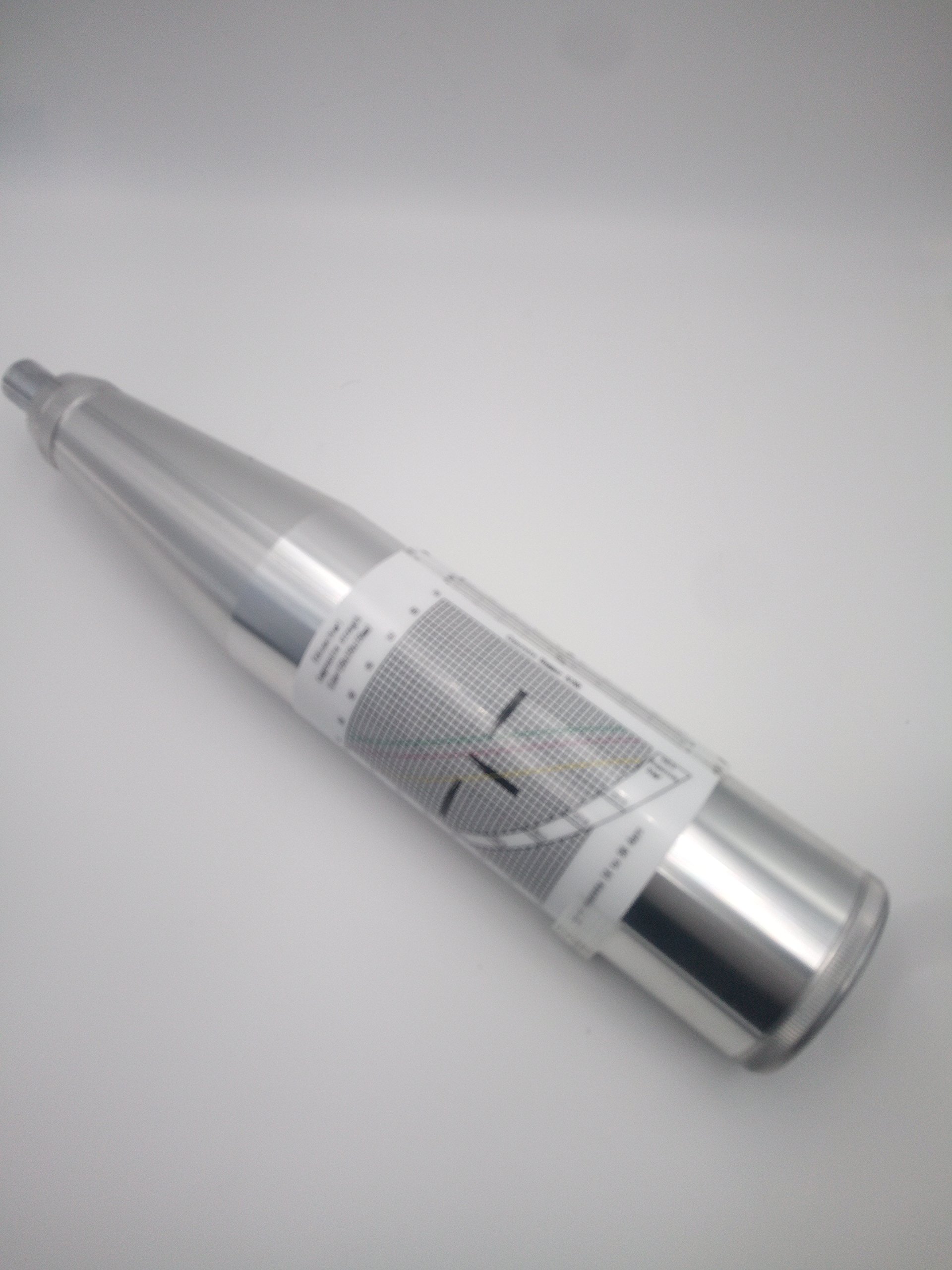

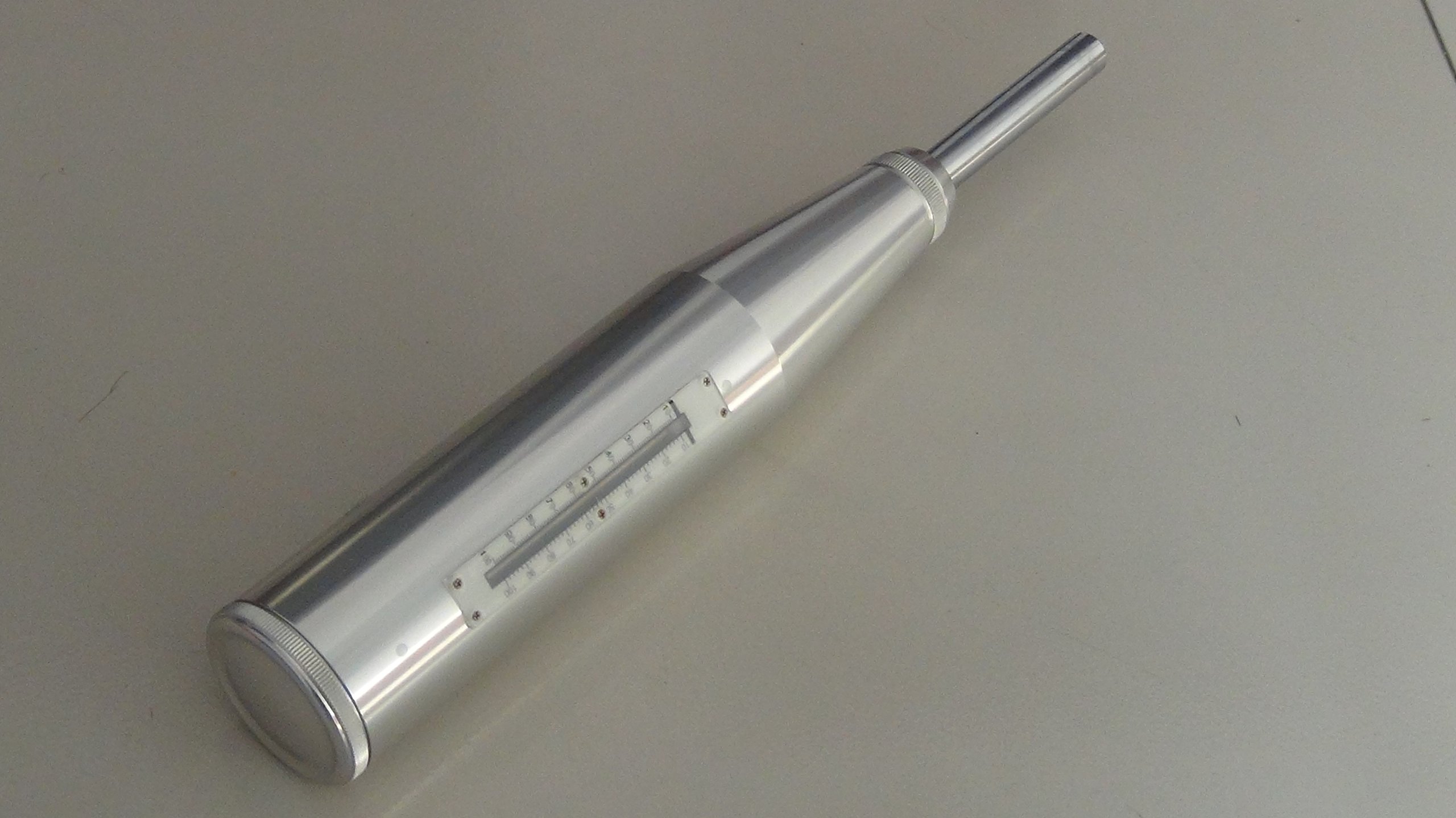

Instructions:ZC3-A resiliometer, in accordance with JGJ/T23-2001 technical regulations, is used for detecting the concrete compressive strength within the range of 10-60Mpa and has the system standard energy of 2.207J. The medium-sized resiliometer with pointer direct-reading type indication system is manufactured under the supervision of Shaanxi Architectural Research Design Institute, the chief formulation unit of National Regulations on Measurement and Verification of Concrete Resiliometers (JJG817-93) and the Technical Regulations on Rebound-method Detection of Concrete Compressive Strength, the industry standard.Characteristics:Light (save 2/3 of labor compared with similar products), flexible, cheap, without power supply, easy to master, buttons difficult to fall off due to pulling process, pointer convenient for adjusting friction force, the first choice of instrument suitable for on-site nondestructive testing.Main Technical Parameters:Length of pointer: 20.0±0.2(mm)Friction force of pointer: 0.65±0.15(N)Spherical radius of bounce rod end: 25±1.0(mm)Stiffness of bounce tension spring: 785.0±40.0(N/m)Decoupling position of bounce hammer: “100” on scale lineWorking length of bounce tension spring: 61.5.0±0.3(mm)Impact length of bounce hammer: 75±0.3Takeoff position of bounce hammer: “0” on graduated scaleFixed value of steel anvil: 80±2 (80-81 for our delivery products)
