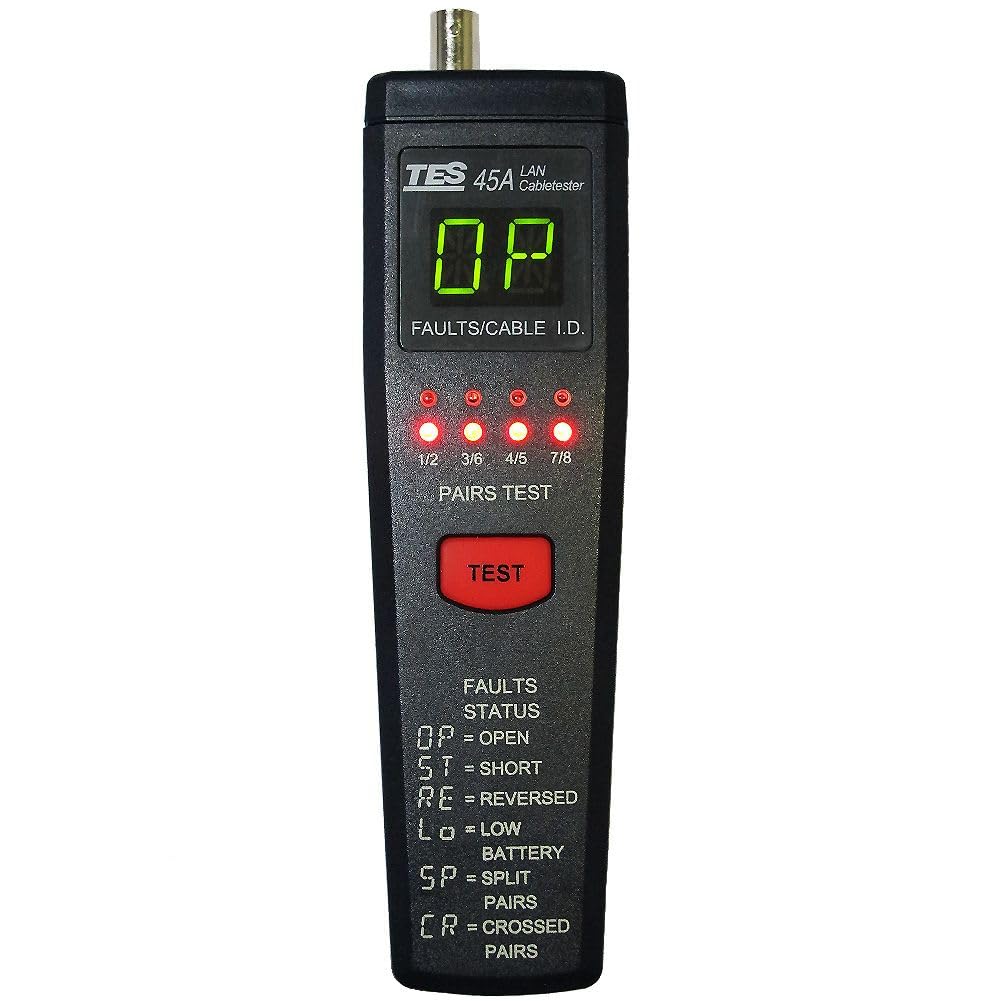

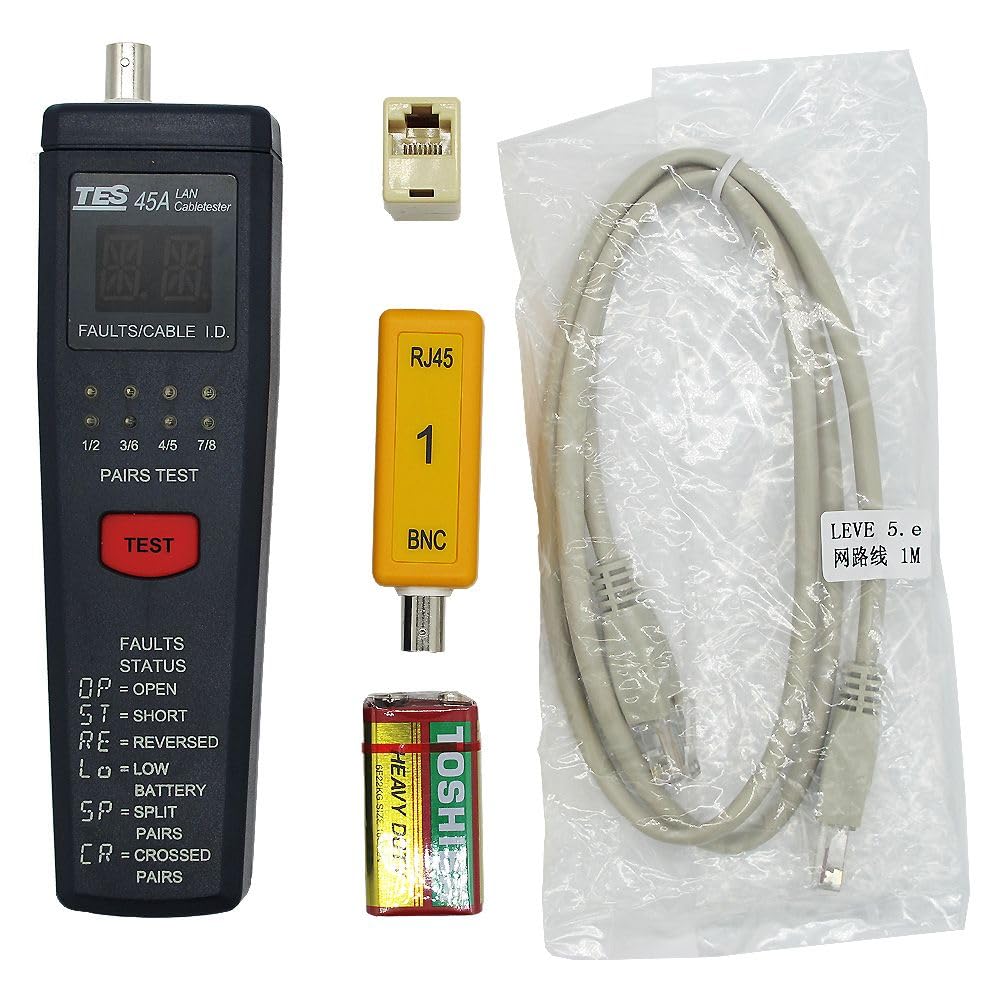

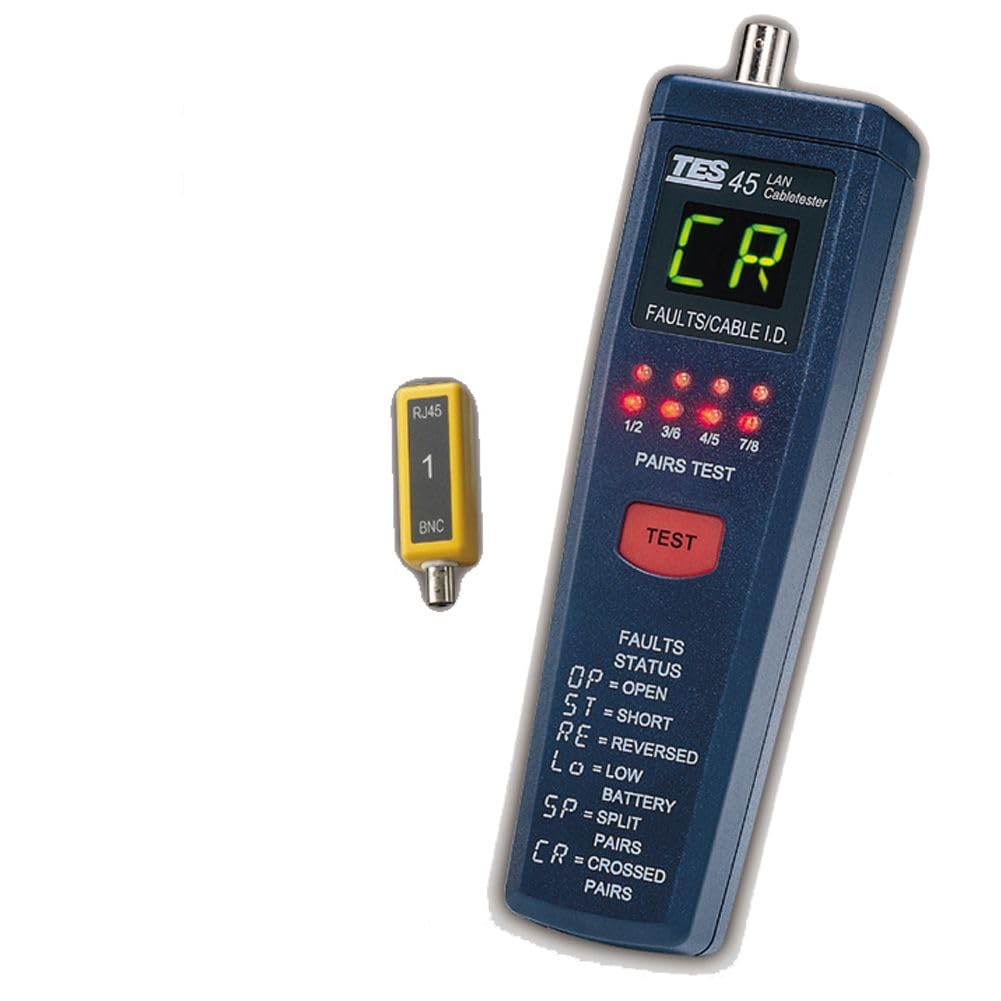

The LAN Cable Tester is an easy and effective cable tester with the ability to test all wiring faults of 10Base2 (Coax), 10BaseT, 100BaseTx,356A, TIA-568A TIA-568B cables, etc. It not only identifies wiring faults, such as open pairs, shorted pairs, reversed pairs, crossed pairs and split pairs, but also tests up to 8 different cables at one end. Two large alphanumeric LED displays the fault status while 8 smaller analogue LED indicate which pair is being tested. The provided remote identifiers mark remote testing of up to 8 stations very convenient. Simply push the “TEST” button and the LAN Cable Tester will automatically run all tests within a few seconds and display any existing faults. It is simple to use and it provides practical results. U.S. Pat. No. Des. 446,736 TES-45A CAT-5 Lan Cable Tester Specifications Tests a wide range of FTP & UTP cables such as 10BaseT, 100BaseTx, 10Base2 (Coax), 356A, TIA-568A, TIA-568B, Token Ring, etc. Tests for wiring faults such as open, shorted, reversed, crossed and split wires.Identifies up to 8 different cables at one end with remote identifiers. Two large alphanumeric LED and 8 analogue pair LED clearly display fault status. Simple and practical to use. Over voltage (max.56V) is provided to prevent damage from miss connecting to live circuit of networking. Description of LED display Two large alphanumeric 16 segment LED displays the fault status while 8 smaller analogue LED indicate which pair is being tested. Description of Parts & Control keys 1) LED display : Four FAIL (red) LED. Four PASS (green) LED. Tested pairs : 1/2, 3/6, 4/5 and 7/8. 2) Press TEST key to test the attached cable and indicate a pass or failure information base on the specified parameters for the selected cable. Faults status : Open, Shorted, Reversed, Crossed, Split and Low battery. Remote Identifier #1 (Optional 1 for #2, #3 & #4 , optional 2 for #5, #6, #7 & #8). Description of Parts & Control keys 3) Input socket : BNC connect for connecting coaxial cables. 4) RJ45 jack : Standard 8-pin modular jack for connecting UTP and FTP cable.
