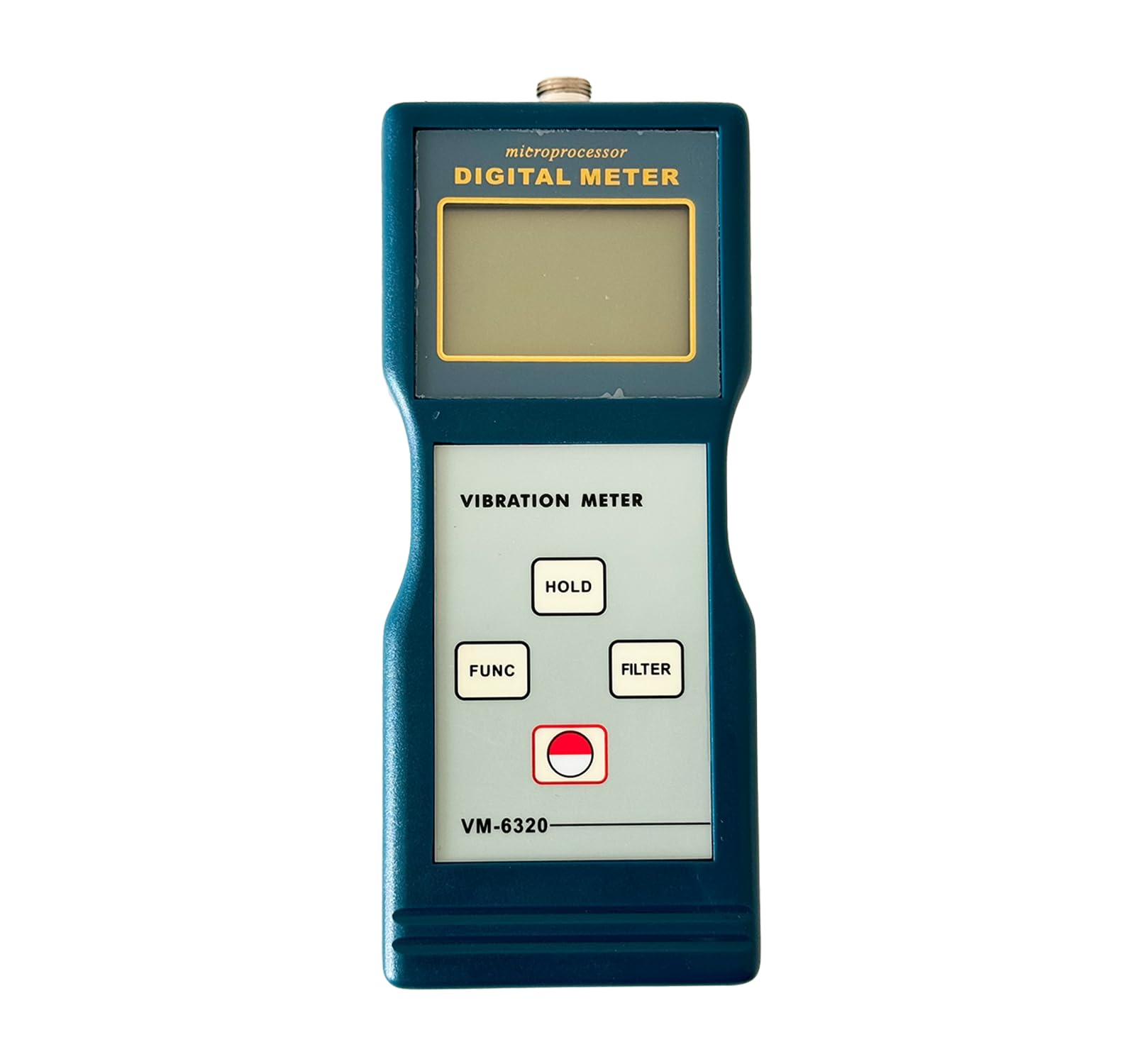

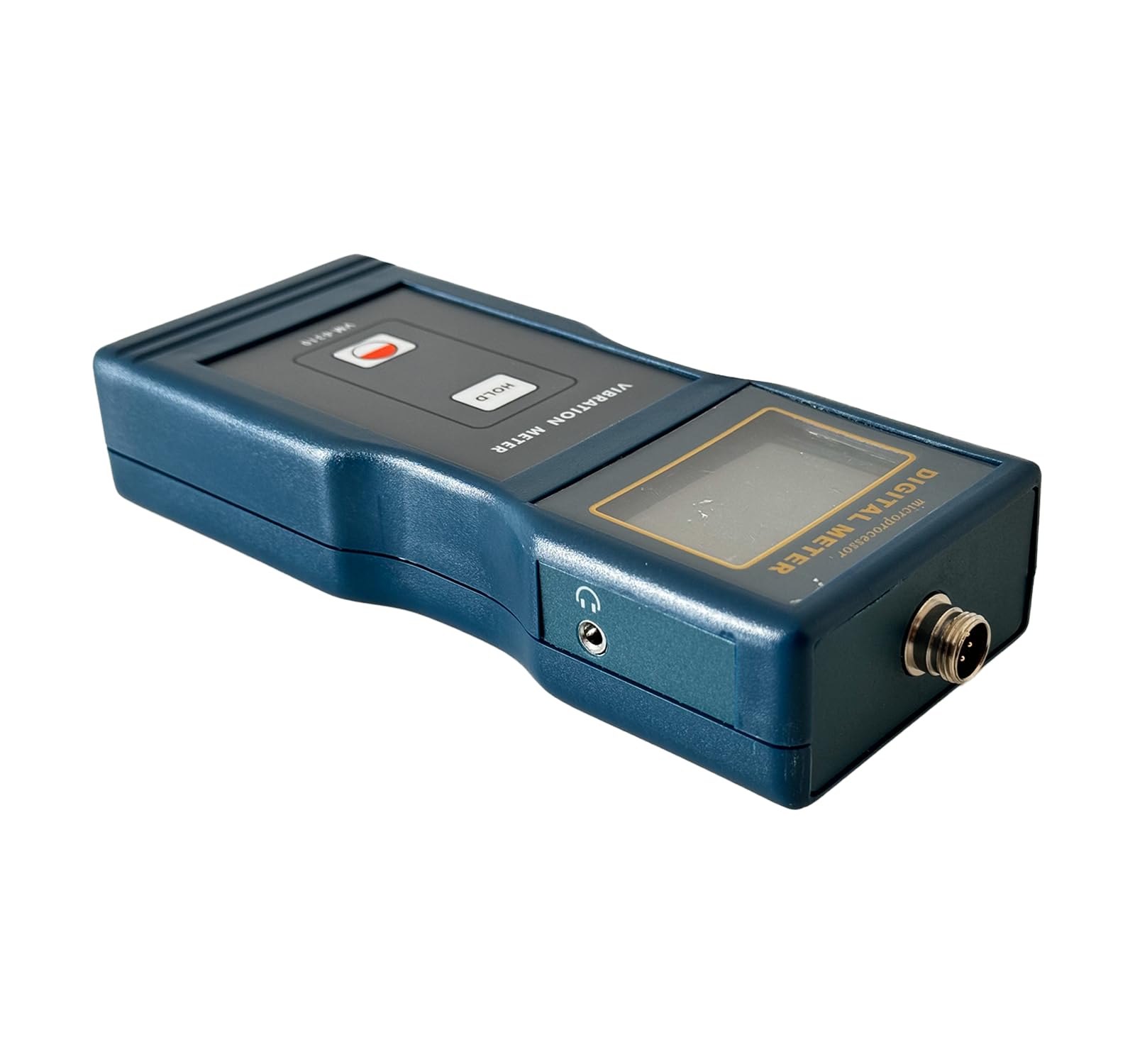

VM6320 Digital Vibration Meter Tester - Portable Handheld Vibrometer Gauge for Industrial Machinery, HVAC Systems & Equipment Maintenance (Model VM-6320) | Vibration Analysis & Predictive Maintenance Tool

$150.4

$273.46

Safe 45%

VM6320 Digital Vibration Meter Tester - Portable Handheld Vibrometer Gauge for Industrial Machinery, HVAC Systems & Equipment Maintenance (Model VM-6320) | Vibration Analysis & Predictive Maintenance Tool

$150.4

$273.46

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

18 people viewing this product right now!

SKU: 92890979

Guranteed safe checkout

Description

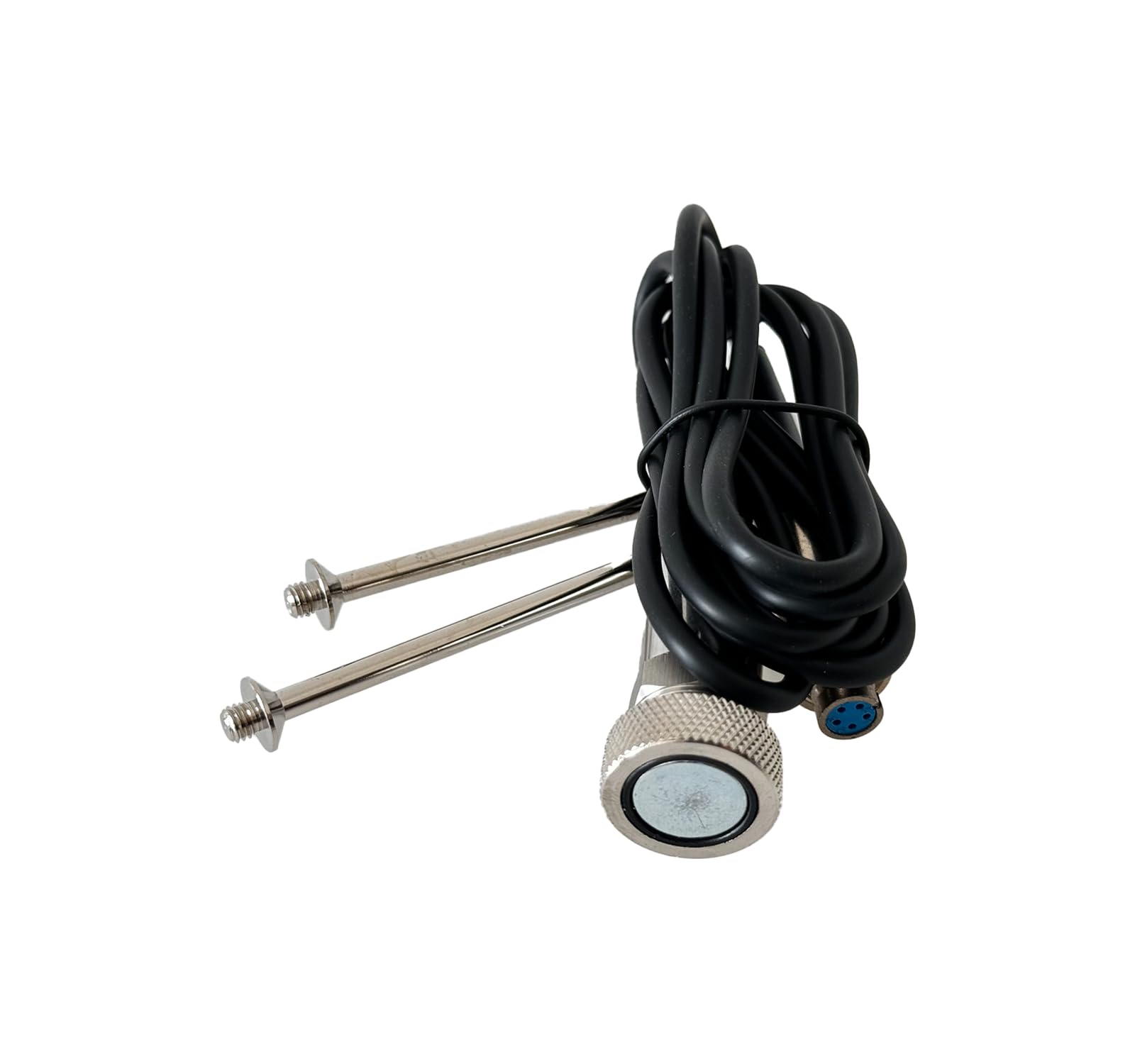

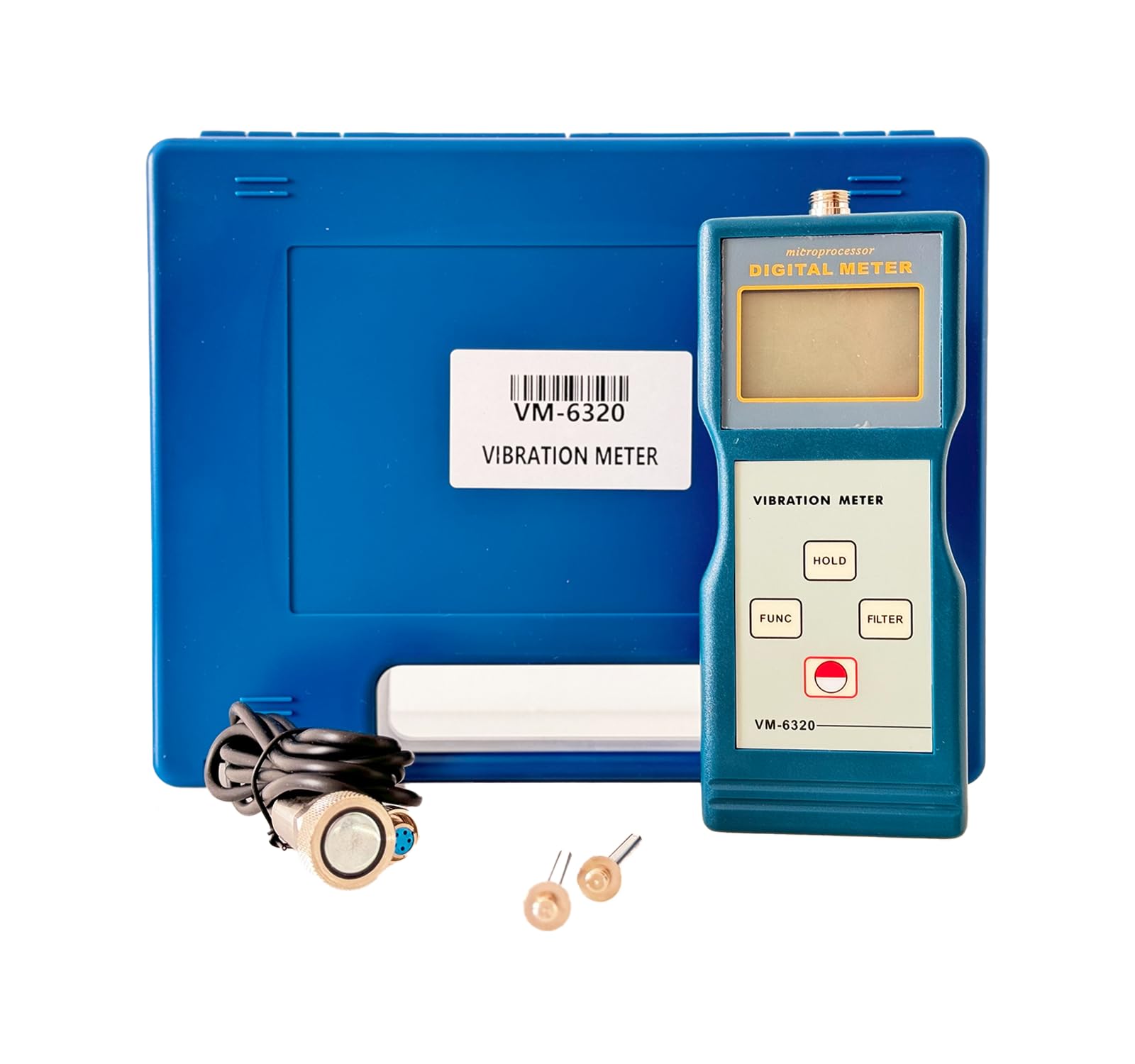

Application: Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep Specification: Sensor:Piezoelectric Accelerometer Measuring Range: 1. Acceleration: 0.1~200 mm/s² Equivalent Peak 2. Velocity: 0.01~200 mm/s True RMS 3. Displacement: 0.001~2.0 mm Equivalent Peak-peak Frequency Range: 1. Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz 2. Velocity: 10 Hz ~ 1k Hz 3. Displacement: 10 Hz ~ 1k Hz Accuracy:<5 % Analogue Output:AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) Max. Value Hold Power Off:Manual Power Off or Auto Power Off Battery Indicator:Low Battery Indicator Data Output:USB, RS-232, Bluetooth Operating Conditions:Temperature: 0~50 °C Humidity: <90 %RH Power Supply: 4 x 1.5V AA size (UM-3) Battery Dimensions:160 x 68 x 32 mm Weight: 181 g (Not Including Batteries) Standard Accessories: Main Unit Magnetic Suction Seat Piezoelectric Transducer Probe (Cone) Probe (Spherical) Carrying Case Manual Book Optional Accessories: Headset USB, RS-232 data cable with software Bluetooth data out put with software

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

VM-6320 vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

VM6320 vibration meterIn is in accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

VM6320 vibration meter is specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

Individual high quality ccelerometer for accurate and repeatable measurements.

Bearing condition monitoring function.

Use USB/RS-232 data output to connect with PC. (optional accessory)
