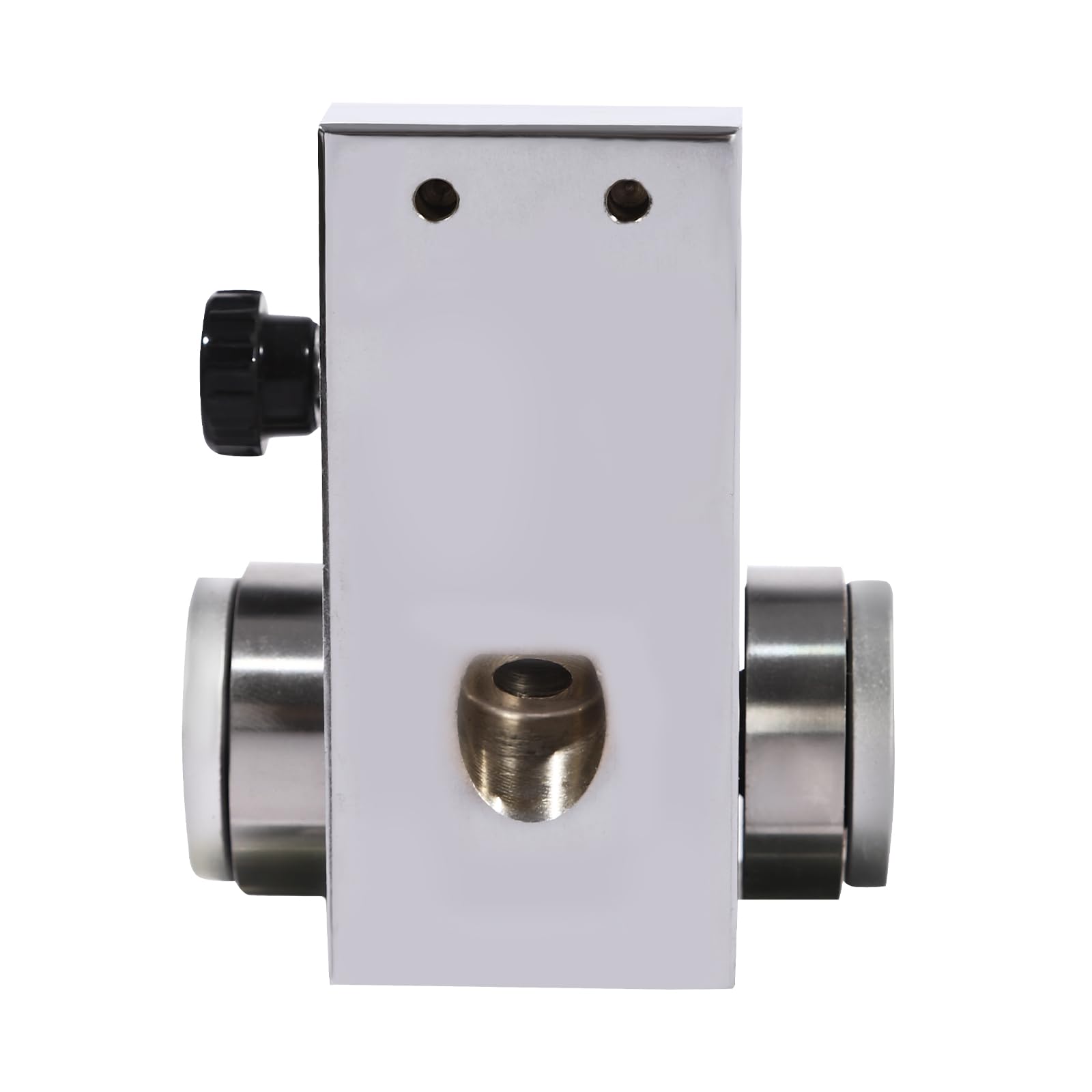

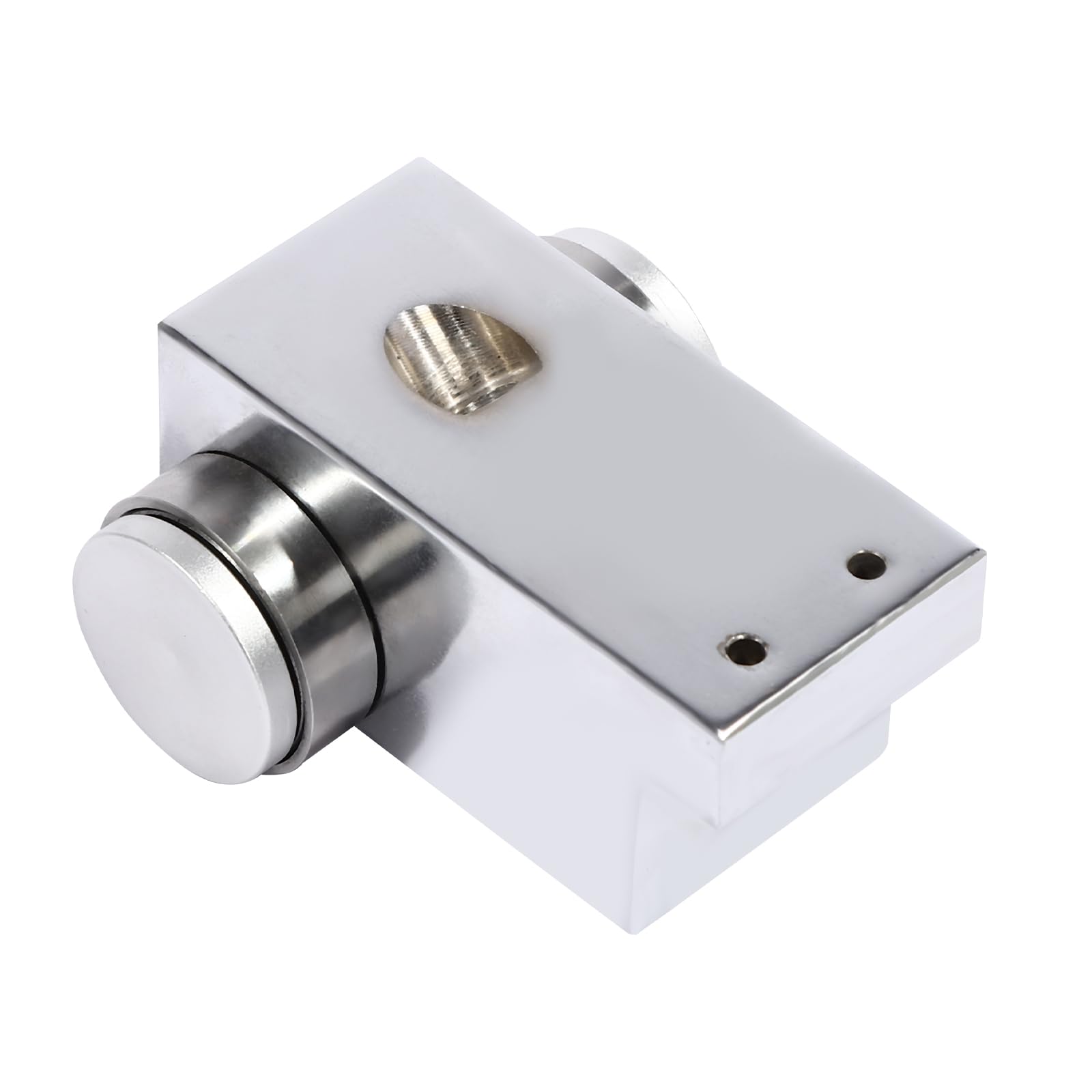

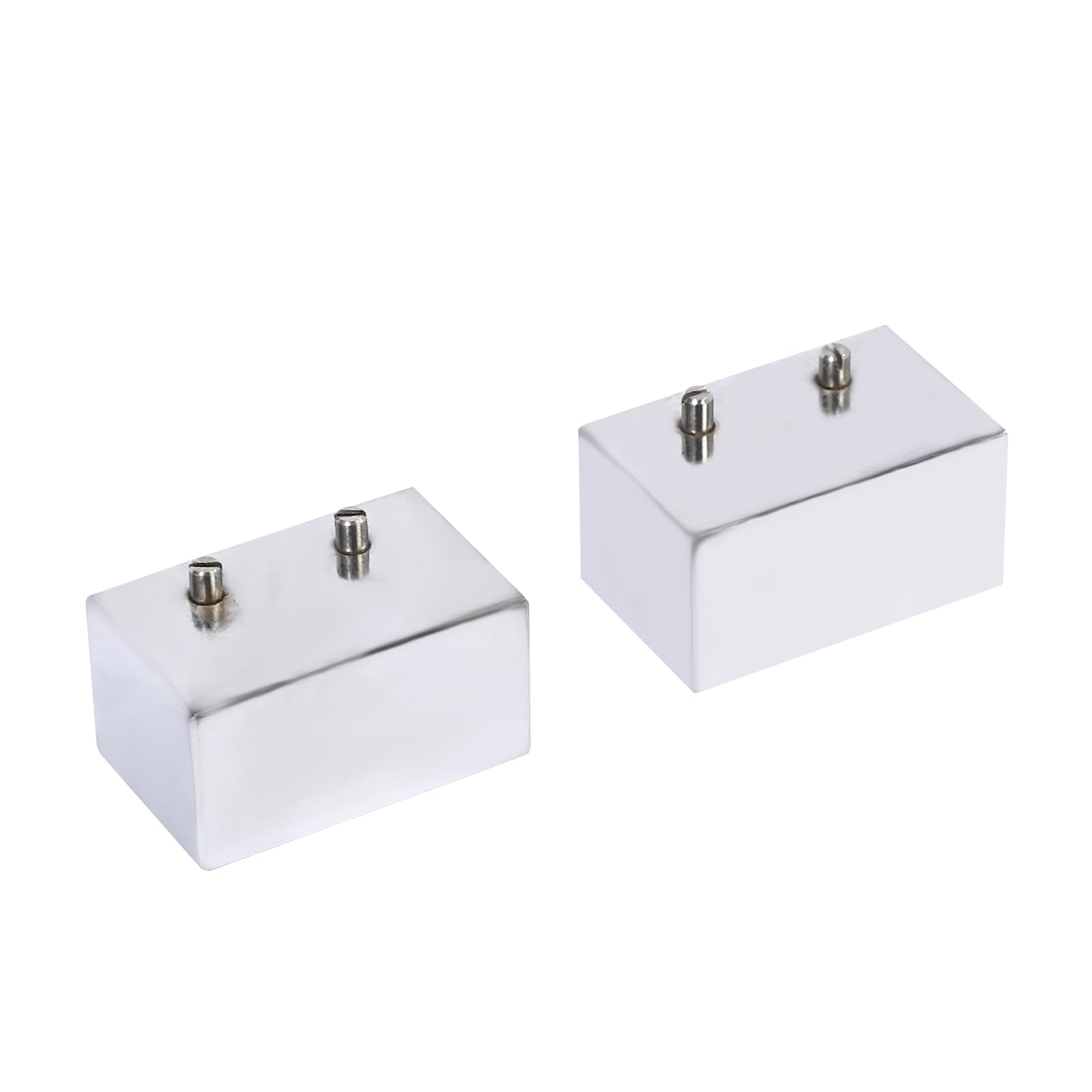

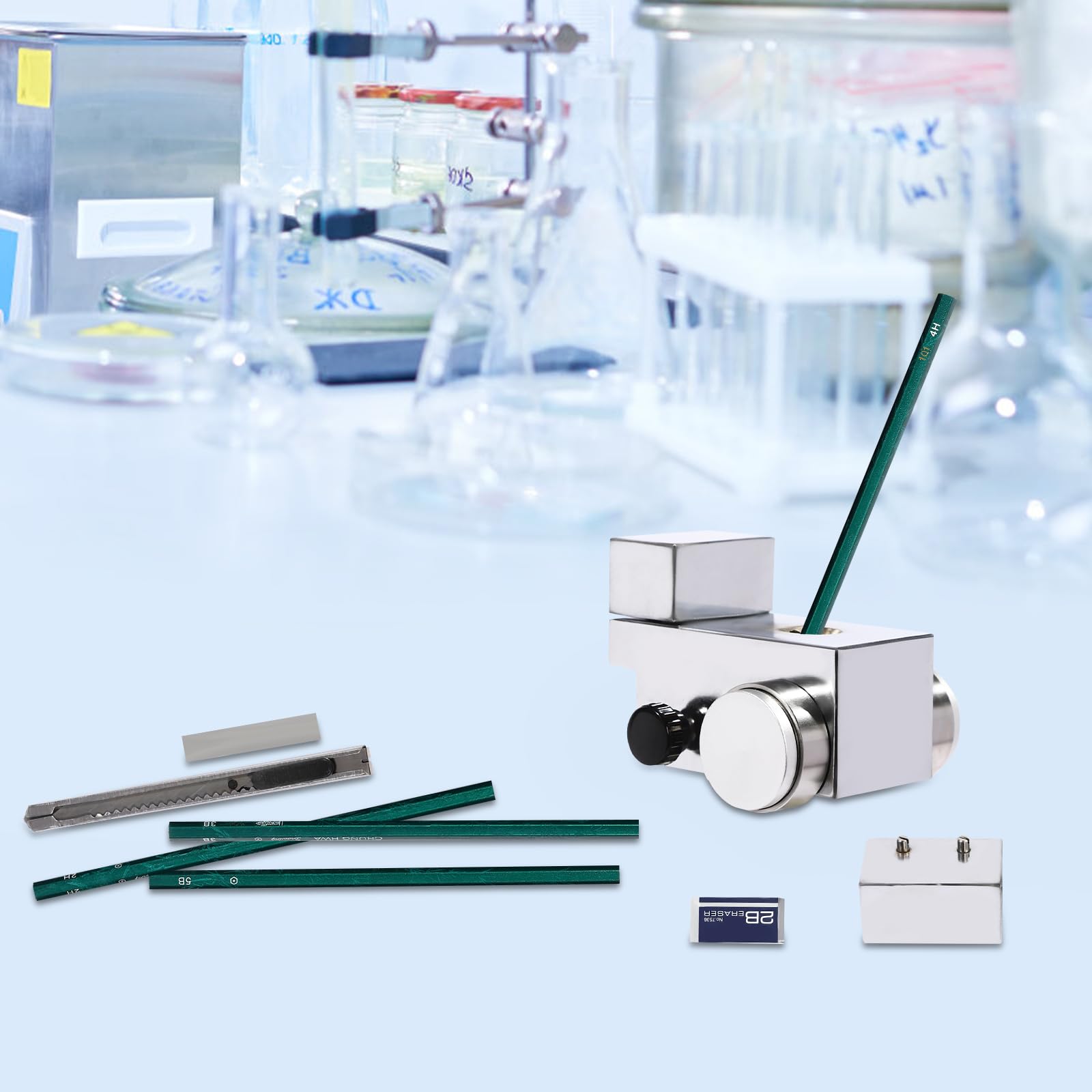

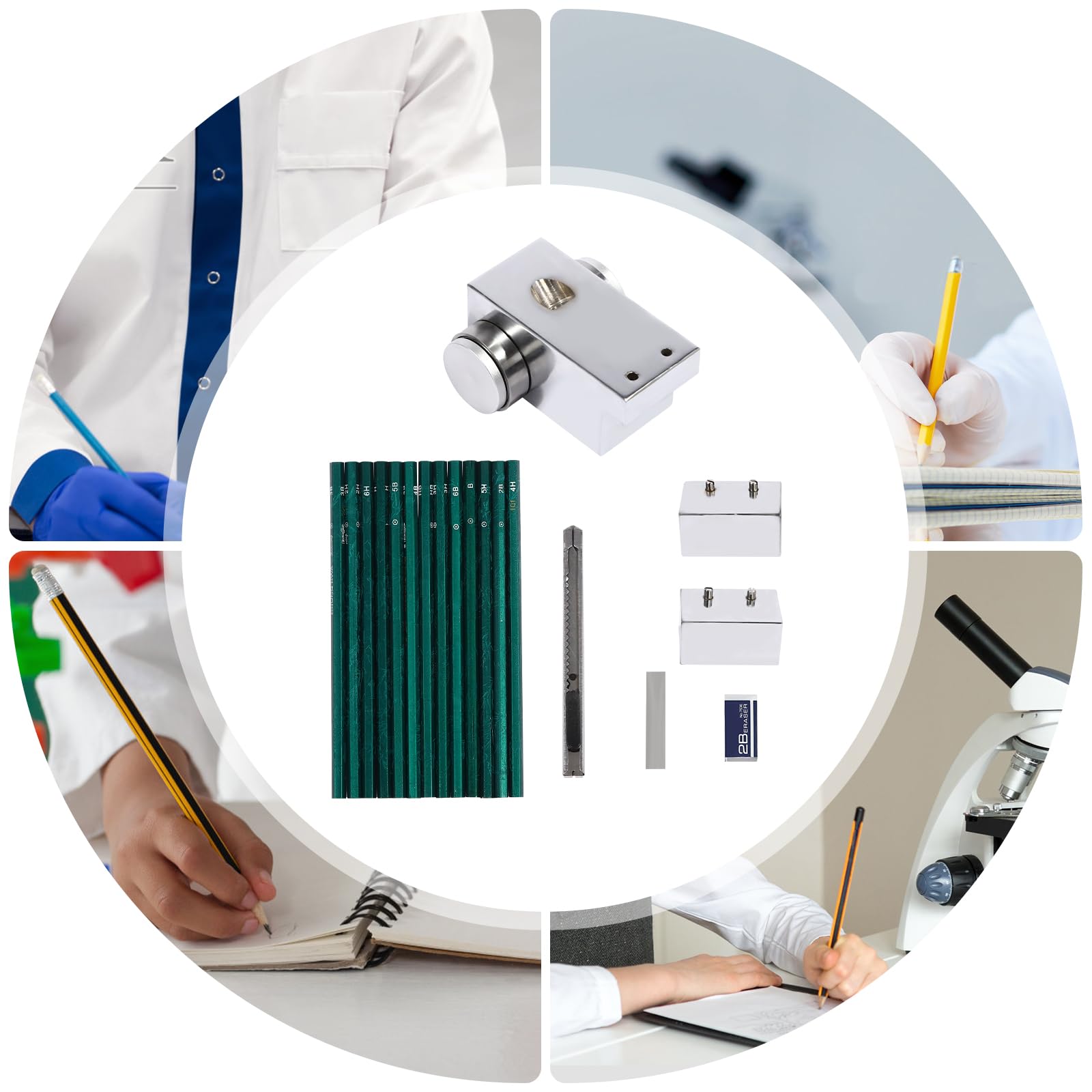

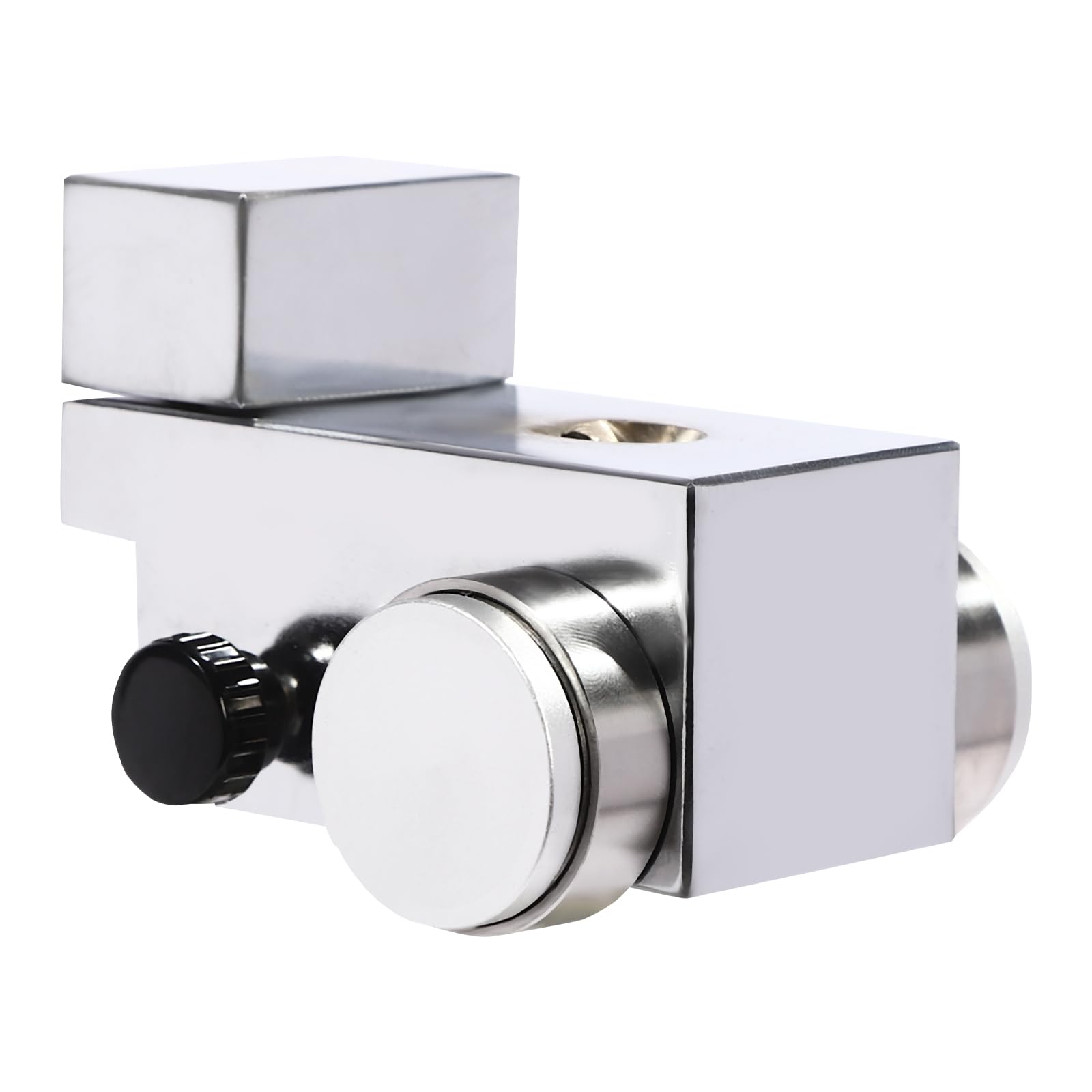

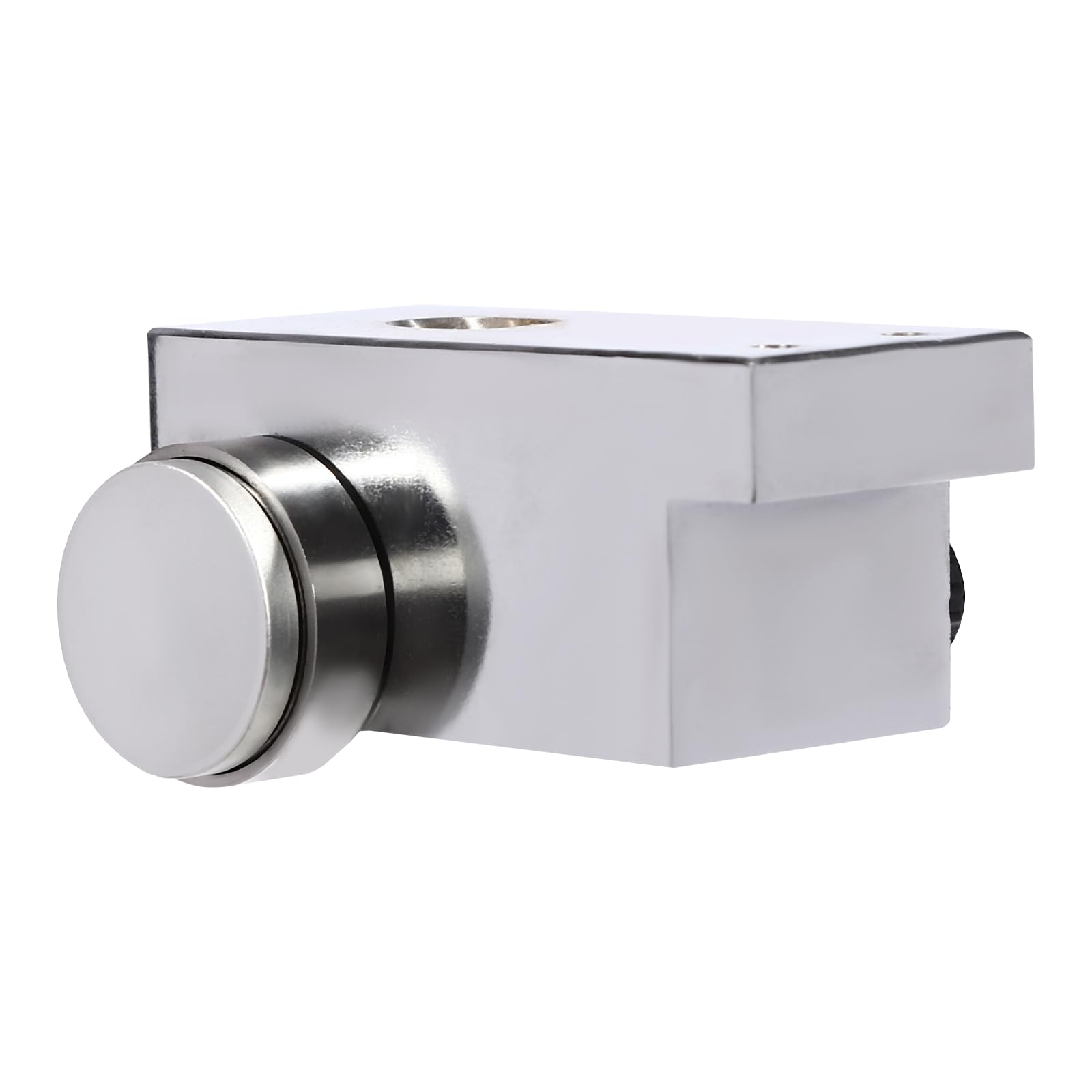

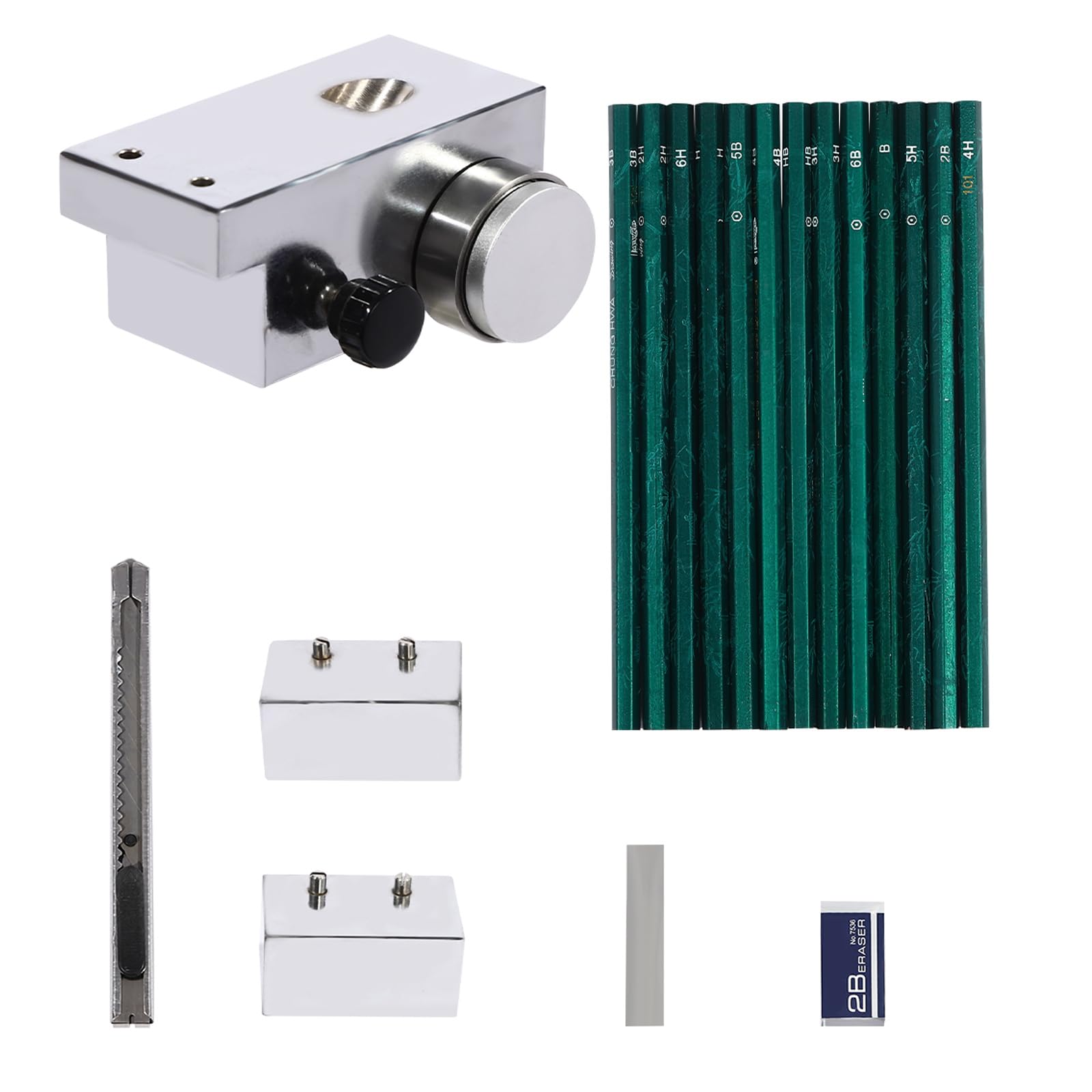

DescriptionThe pencil hardness testing method is a simple and fast coating hardness testing method. Our set includes a complete set of tools required for testing, 13 pencils with varying hardness levels, and three weights that allow you to accurately test the hardness of the coating, helping you obtain the desired result.DetailsAnti-slip Knob: It helps secure or remove the pencil while providing you with an anti-slip grip during the process. Smooth Wheels: It can roll without lagging, making your measurement smoother and quicker.How to Use1.Sharpen the pencil to expose a smooth cylindrical lead of 5-6mm, be careful not to sharpen or draw the lead.2.Hold the pencil vertically at a 90 ° angle to the sandpaper (not included), move the pencil back and forth, and grind the tip flat.3.Insert the pencil into the instrument placed on a horizontal fixed surface, secure it by the knob to keep the instrument level, and place the tip of the pencil on the surface of the film.4.As soon as the tip of the pencil comes into contact with the coating, immediately push the test plate at a speed of 0.5-1mm/s for a distance of at least 7mm.5.After 30 seconds, wipe with an eraser and observe the results. If scratches do not appear, repeat the test in the untested area and replace the pencil with a higher hardness until a scratch of 3mm or more appears. If the results are opposite, reduce the hardness of the pencil and repeat the test until scratches exceeding 3mm do not appear anymore.6.The pencil hardness of the coating is represented by the hardness of the hardest pencil that does not cause scratches of 3mm or more on the coating.Specification Color: SilverMaterial: SteelProcess: ElectroplatingNumber of Pencils: 13Pencil Specification: 6B-HB-6HWeight Specification: 1*500g/1.1lbs(Tool-integrated), 2*250g/0.55lbs Pencil Tip Load: 1000g/2.2lbs, 750g/1.65lbs, 500g/1.1lbsWorking Temperature: 23±2°C/73.4±35.6℉Relative Humidity: 50±5%RHAngle between Pencil and Tested Surface: 45 ° Tool Box Size: 22*18*6cm/8.66*7.09*2.36inPackage Size: 24*20*6.5cm/9.45*7.87*2.56inGross Weight: 2.45kg/5.4lbsPackage Included1 * Pencil Hardness Tester2 * 250g Weights13 * Pencils1 * Eraser1 * Utility Knife1 * Pad Block1 * English Instruction1 * Tool BoxNotes1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included. 2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
