5" Portable CCTV Test Monitor IV5 - 8MP HD AHD/TVI/CVI/CVBS Tester with LCD Screen, UTP & PTZ Support, Audio Testing Tool | Ideal for Security Camera Installation & Maintenance
$46.75
$85
Safe 45%
5 5 5 5 5 5 5
5
5
5
5
5
5
5
5" Portable CCTV Test Monitor IV5 - 8MP HD AHD/TVI/CVI/CVBS Tester with LCD Screen, UTP & PTZ Support, Audio Testing Tool | Ideal for Security Camera Installation & Maintenance
$46.75
$85
45% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
28 people viewing this product right now!
SKU: 16330566
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description

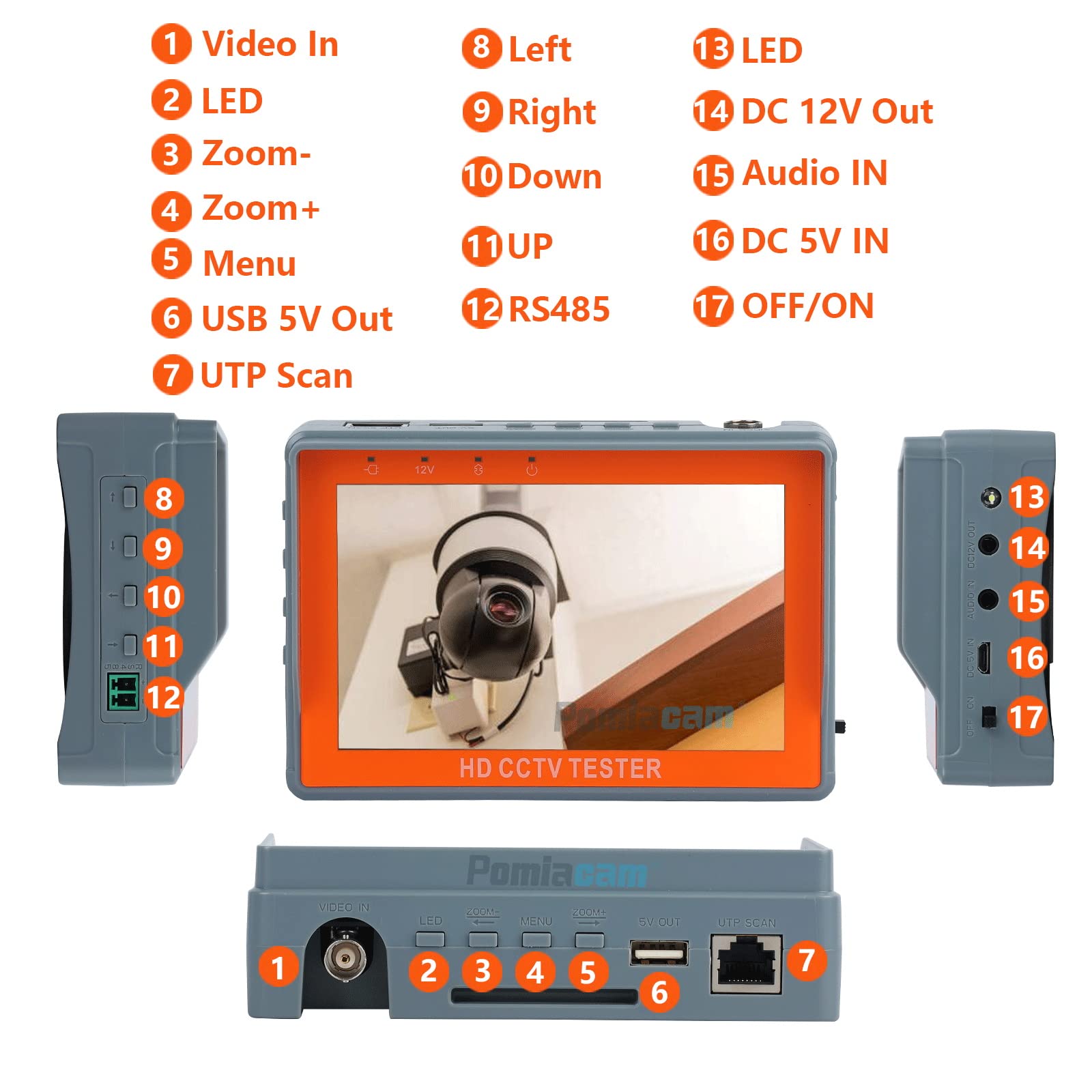

IV5 CCTV tester IV5 CCTV tester IV5 CCTV tester :5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA) HD AHD TVI CVI Analog CVBS Camera Tester The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, cable testing, LED lamp etc. ● LED lamp It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. coaxial CCTV tester CCTV Tester Monitor ● PTZ controller Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size. CCTV Tester Monitor ● 5-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color ● Support PAL/NTSC standard video signal. CVBS testing. CCTV Tester Monitor 5 inch 800*480 HD screen Support up to 8MP AHD 8MP TVI 8MP CVI camera test; Support multi-language; Support coaxial video control (control PTZ camera through UTC, but cannot call camera menu information) Portable CCTV Tester Monitor Portable CCTV Tester Monitor ● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. ● UTP Network cable testing Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box. ● TVI camera test HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image. ● CVI camera test HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image. ● AHD camera test HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image. CCTV tester montior Descriptions : I5V CCTV tester 8MP TVI camera test+ 8MP CVI camera test + CVBS Video camera test , UTC (HD coaxial control, BNC coaxial control PTZ, But can't call the camera menu information) and RS485 and UTP . HD CCTV tester Video IN/OUT:1 channel BNC Input PTZ Controller:Support RS485 PTZ Protocol:Compatible with protocols PELCO-D/P DC12V power output:Output DC12V1A power for camera HD CCTV tester Packing list: Packing list: 1* HD 8MP Coaxial CameraTester 1* Adapter DC5V 1.5A(with USB cable) 1* BNC cable 1* RS485 connector 1* Power output conversion cable 1* Audio cable 1* Lanyard 1* Tool bag 1* Instruction Manual
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

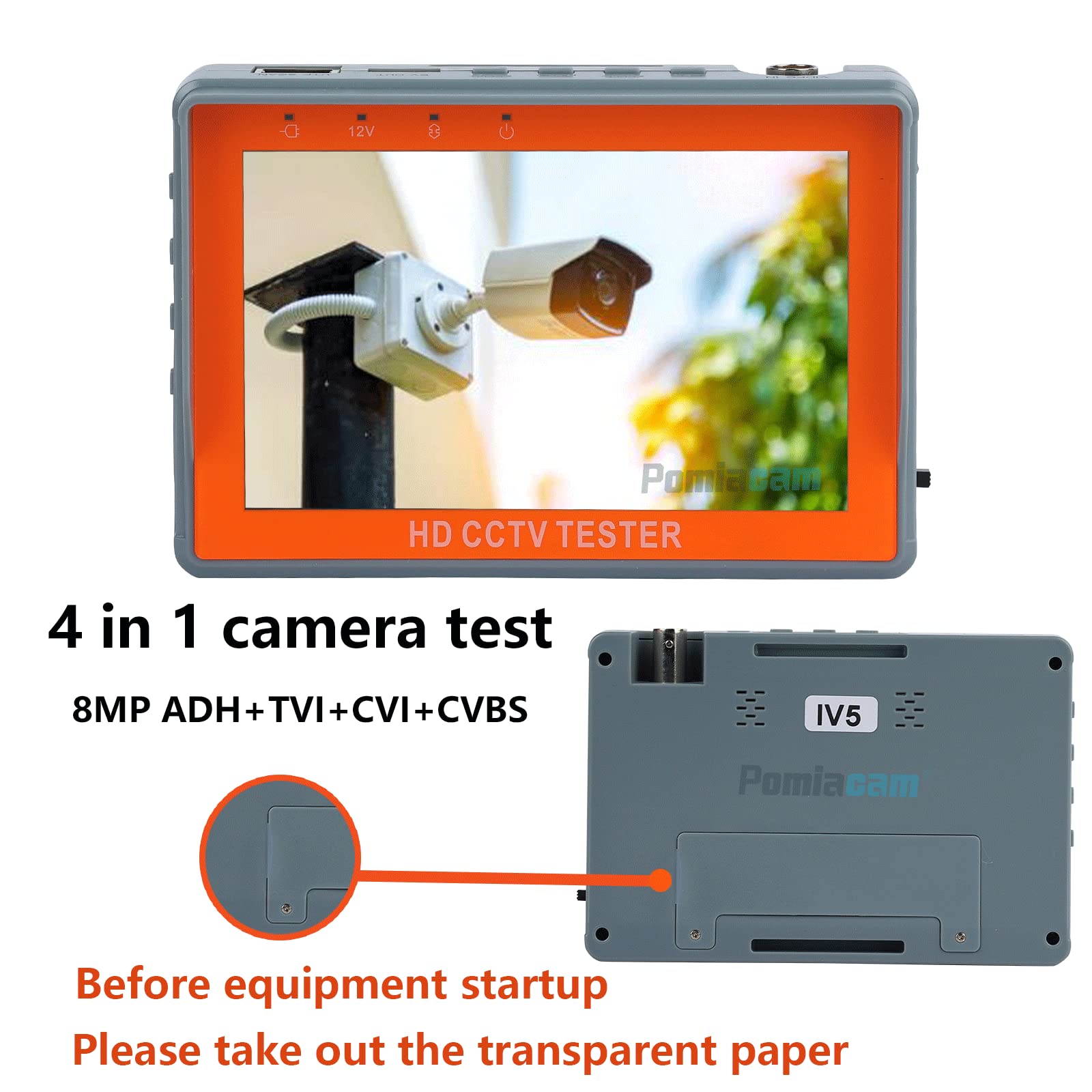

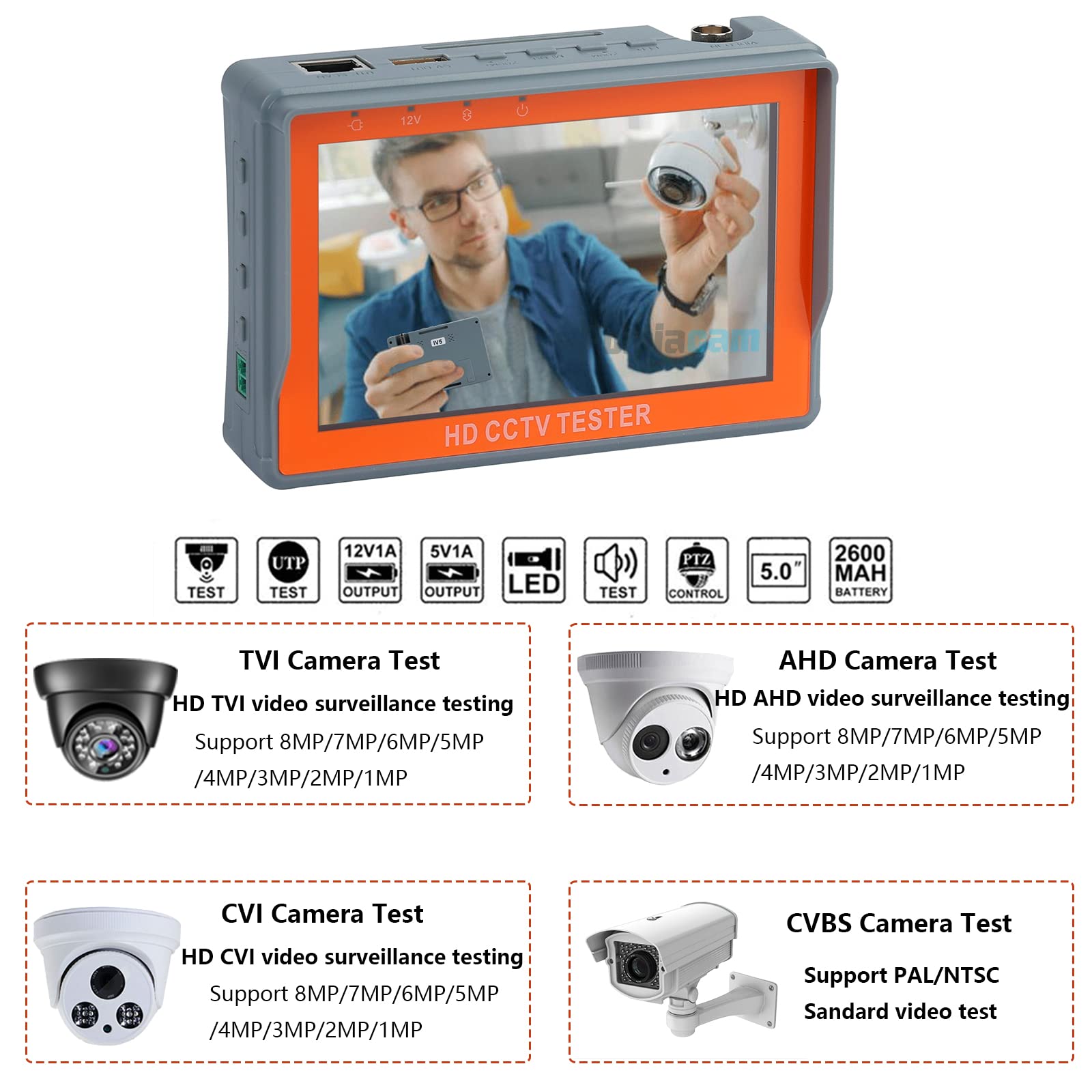

【 4 In 1 Camera Tester】8MP HD AHD TVI CVI Analog CVBS Camera Tester The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera,5-inch LCD 480 * 800 resolution,Support PAL/NTSC standard video signal. CVBS testing.

【Multi-function Tester】video display, PTZ control, DC12V output power, audio test, cable testing, LED lamp etc.his camera testing monitor support External power supply DC 5V(2A) , Temporary power output 12V 1A

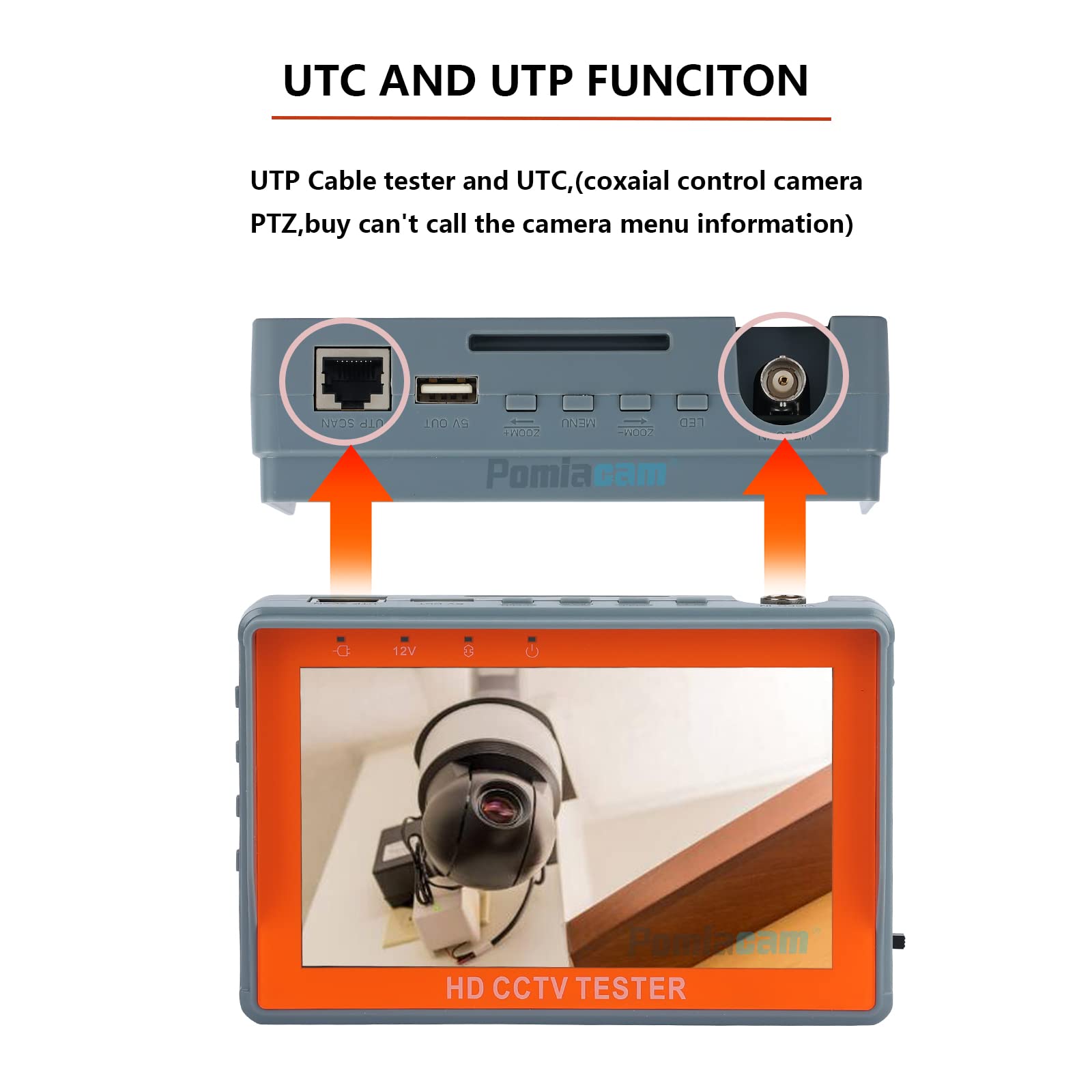

【PTZ controller 】Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.UTC (HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information )

【Portable tester】LED lamp It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

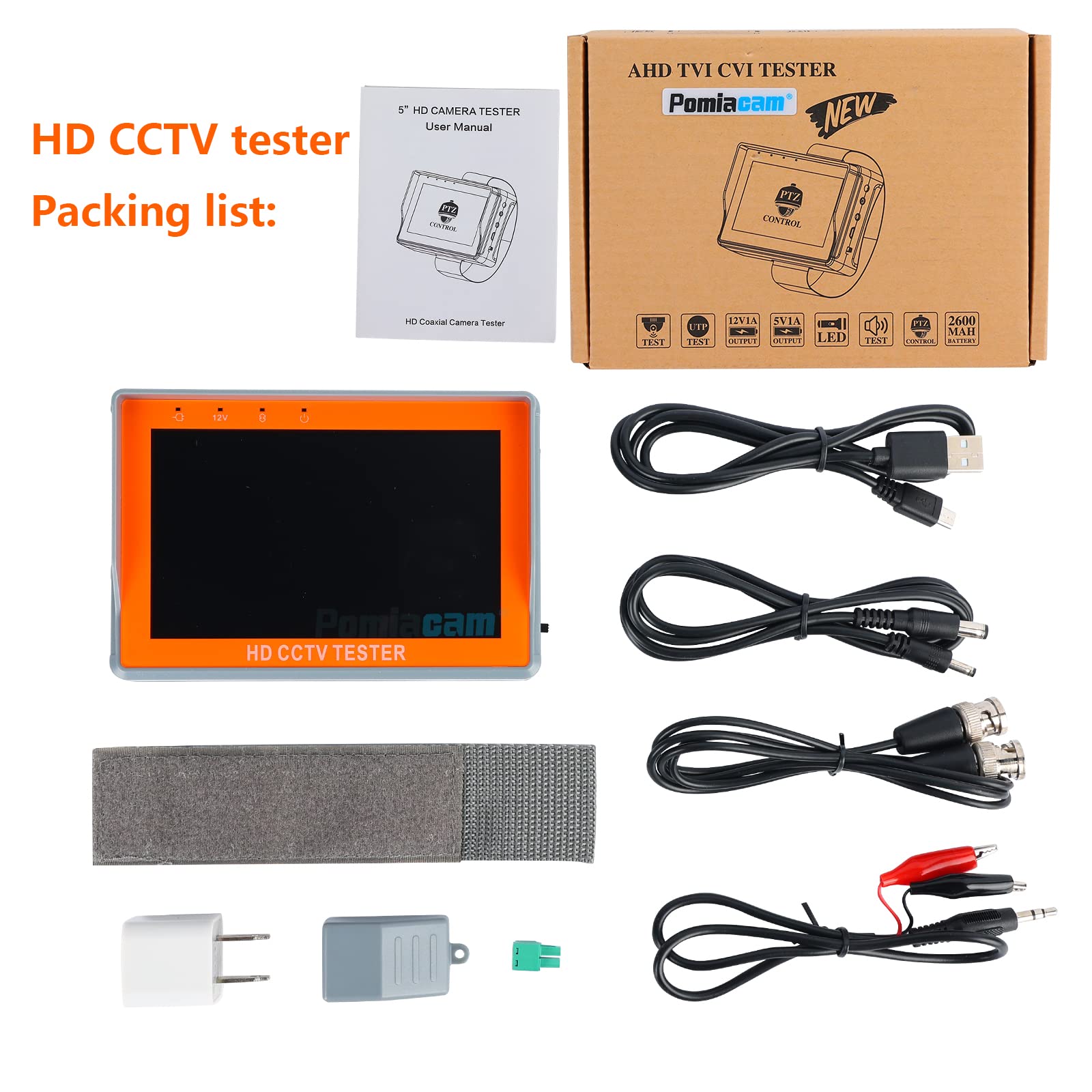

【Packing list and after sales】1* HD 8MP Coaxial CameraTester ,1* Adapter DC5V 1.5A(with USB cable),1* BNC cable,1* RS485 connector,1* Power output conversion cable,1* Audio cable,1* Lanyard,1* Tool bag,1* Instruction Manual.Our products are sent after several rigorous tests to ensure that the products work 100%. If you have any questions feel free to contact us
