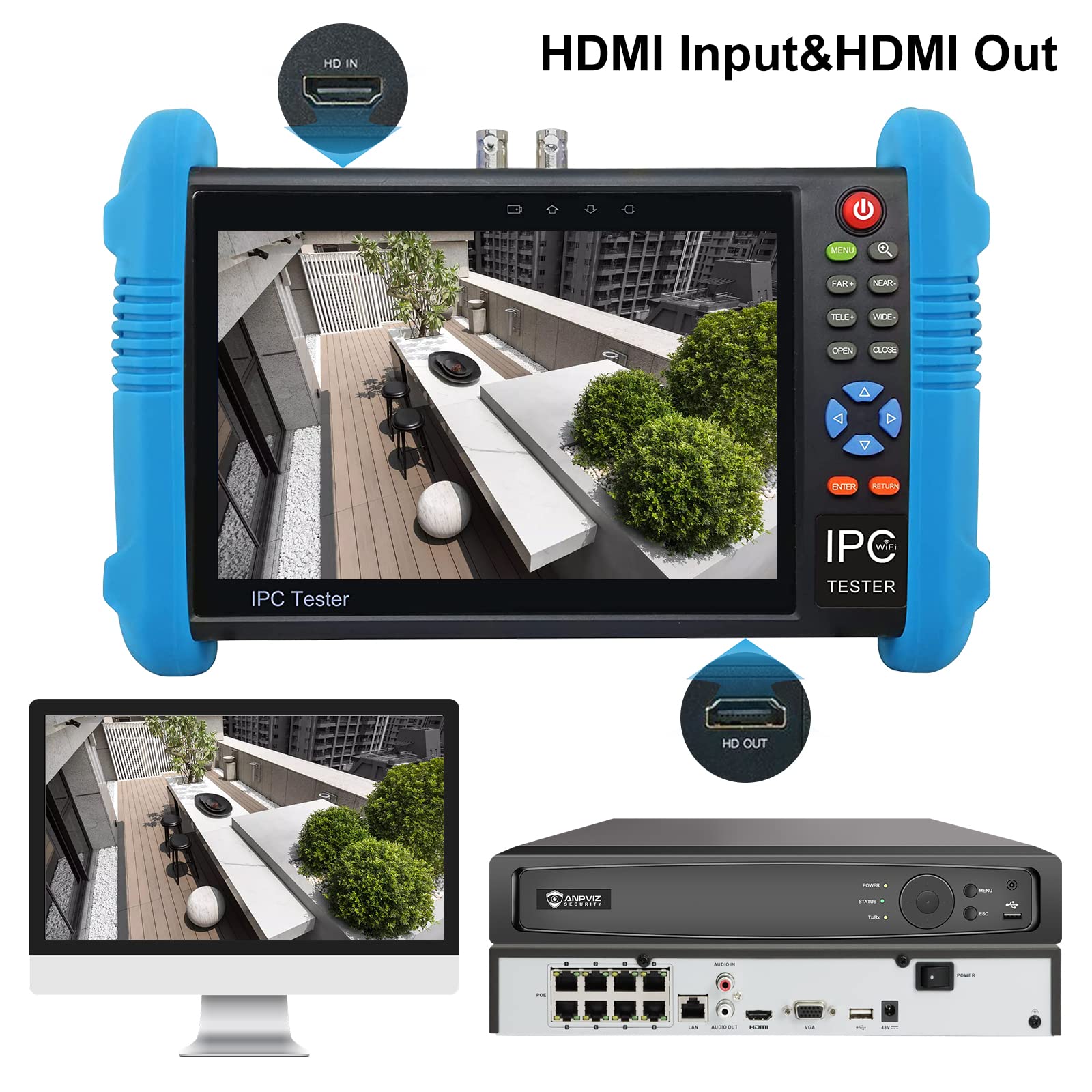

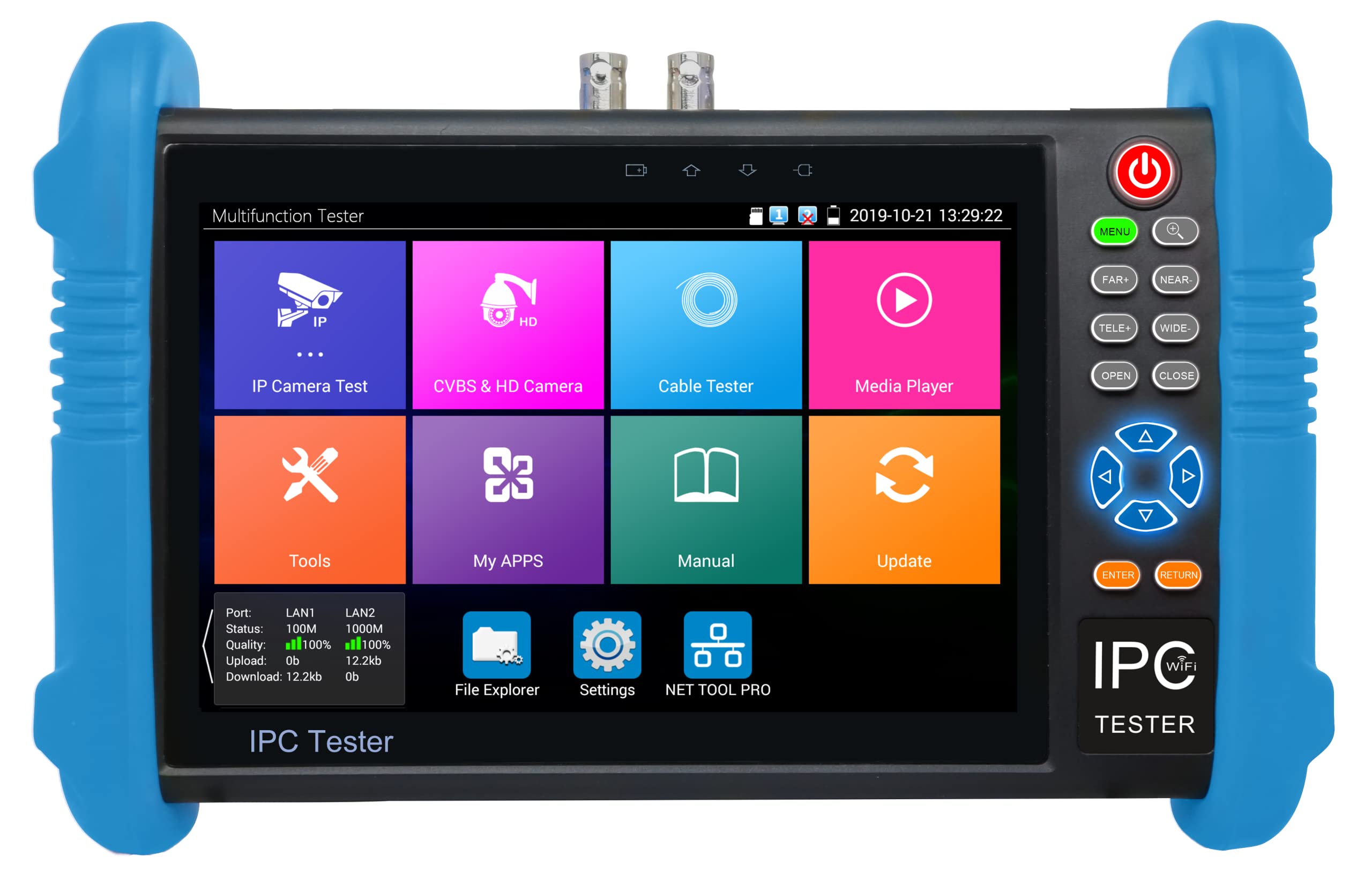

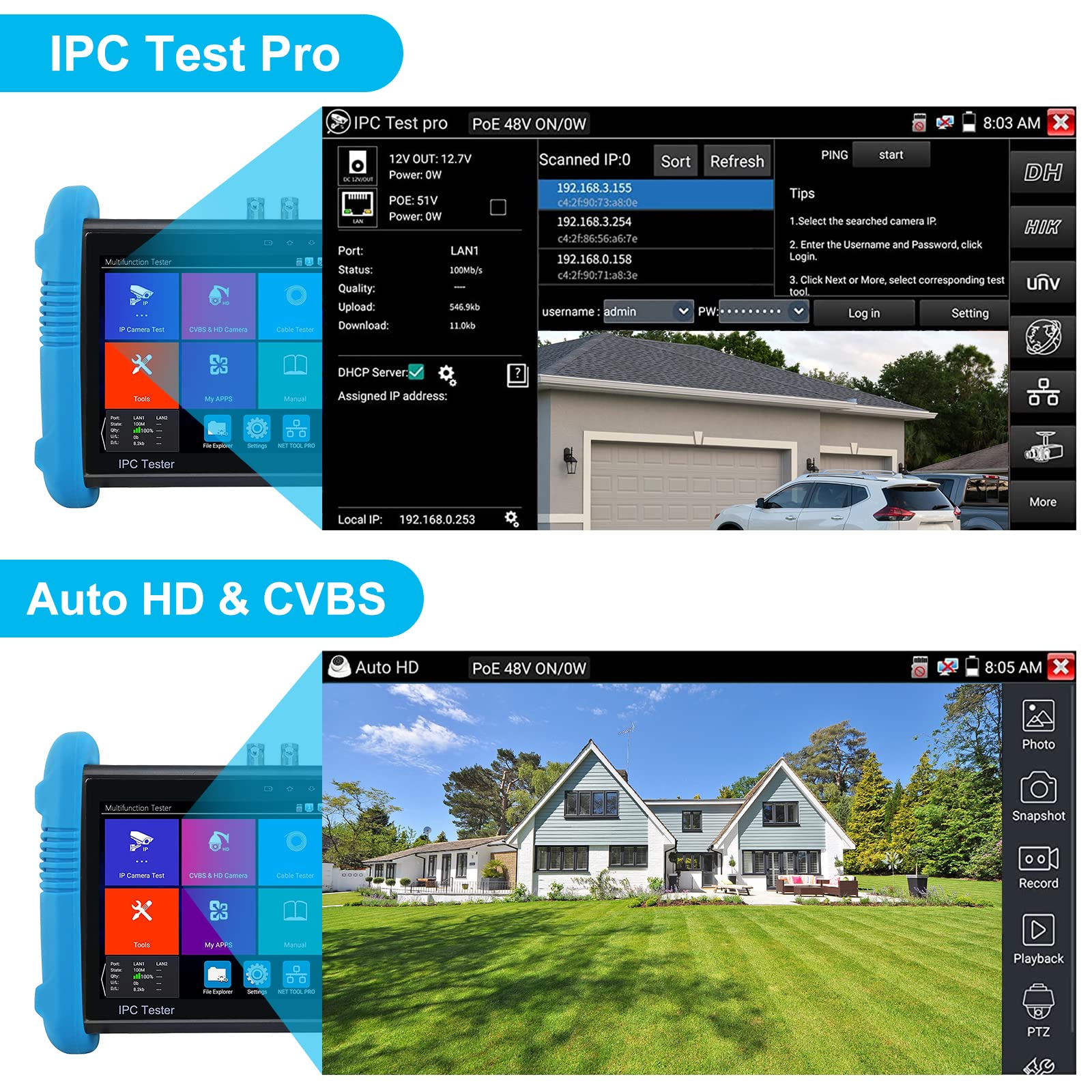

IPC-9800ADH Plus Anpviz 7-inch Touch Screen CCTV camera tester 9800-Plus is a professional video surveillance camera testing device, mainly used in the process of monitoring camera maintenance, installation, and debugging. The tester has high resolution and color reproduction, which can help users view the monitoring image more clearly. It also provides various test functions, such as brightness, contrast, vertical bar noise, field frequency, etc., to help users comprehensively evaluate the performance of the monitoring system. SUPPORT CAMERA TYPE IP camera test: Max 12MP 4K H.265/H.264 IP Camera test. IP Discovery/Quick OVIF/HDMI IN/Out/BNC interface/Cable Teacer/RS485 interface. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, on*vif test tool etc. Coaxial HD camera test: Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu. CVBS camera test: 1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc. Network tool & Cable Tracer: With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables IP Discovery IP discovery is the automatic identification and determination of the IP addresses of devices and hosts connected to a network. This technology is useful for network administrators and security experts to identify all active devices on their network and accurately log the IP address of each device, thereby better ensuring network stability and security. Built-IN WiFi 2.4GHz WiFi (Not 5G) devices can easily connect to wireless networks without requiring cables or additional hardware. This allows for greater flexibility, convenience, and mobility, as well as the ability to access internet-based services, transfer data, and share content from anywhere with a WiFi signal. RJ45 Cable TDR Test A technique for testing network cables to detect faults or losses in the cable route by measuring the reflections of signals as they are transmitted through the cable. It can help IT professionals to quickly diagnose network connectivity problems and improve the reliability and stability of the network. PTZ Control Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. you can control the ratation of PTZ, up or down, left or right, and you also can adjust zoom, focus, aperture size. LED Lamp It is useful for the engineer to install and maintain security system at night; LED On/Off pressing button, easy to operate. What's in the package 1*7inch IPS Touch Screen CCTV Tetser 1*Tool Bag 1*Shoulder strap 1*RJ45 Tool 1*Tool box 1.Cable bag 1. Power output cable Model IPC-9800ADH Plus Supported Camera Types 12MP IP Camera/8MP TVI/CVI/AHD/CVBS Camera Test Screen size and resolution 7 inch touch screen (1920*1200P) External power supply DC 12V 2A/DC 24V 2A Battery 7.6V DC/7800mAh 59.28Wh HDMI HDMI Input/Output WIFI Built in WiFi Network port Auto adjust, RJ45 RJ485 PTZ control Dimension/Weight 8 x 1.8 x 5.5 inches/2.4 Pounds Rechargeable Charging 3-4 hours, normal working time about 10 hours CCTV Camera Tester CCTV Camera Tester CCTV Camera Tester security Dome Camera security Dome Camera Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 6 4.2 out of 5 stars 11 4.2 out of 5 stars 205 4.3 out of 5 stars 534 4.3 out of 5 stars 534 Price $370.99$370.99 $275.99$275.99 $125.99$125.99 $38.99$38.99 $38.99$38.99 Size 7 inch touch screen 5 inch touch screen 5 inch touch screen ✓ ✓ IP Camera Yes Yes No No No Analog Camera Yes Yes Yes Yes Yes Power Output DC12V 3A 、 DC24V 2A、 DC48V PoE DC12V 3A、48V POE DC12V 1A DC12V 1A DC12V 1A Video Resolution 1280*800 1920*1080 800*480 1080P 1080P
