HD Coaxial CCTV Camera Tester - 5inch Screen Monitor for 8MP CVBS/AHD/TVI/CVI 4-in-1 Video Testing with PTZ Controller | Security System Installation & Maintenance Tool

$54.45

$99

Safe 45%

HD Coaxial CCTV Camera Tester - 5inch Screen Monitor for 8MP CVBS/AHD/TVI/CVI 4-in-1 Video Testing with PTZ Controller | Security System Installation & Maintenance Tool

HD Coaxial CCTV Camera Tester - 5inch Screen Monitor for 8MP CVBS/AHD/TVI/CVI 4-in-1 Video Testing with PTZ Controller | Security System Installation & Maintenance Tool

$54.45

$99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

25 people viewing this product right now!

SKU: 88237458

Guranteed safe checkout

Description

HD Coaxial Camera Tester CCTV Tester Monitor HD Coaxial Camera Tester CCTV Tester Monitor Please note: IV8C plus not support VGA/HDMI input IV8C plus support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest: (1) AHD Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P; (2) TVI Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P; (3) CVI Signal test: 8MP 7MP 6MP 4MP 3MP 1080P 720P; CCTV camera test HD Coaxial tester * DC12V 1A output power Power the camera with DC12V (1A) power from the tester. * Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. * Improvement cable test UTP cable, telephone cable etc order and connectivity test, can save testing report camera test Support Pelco-D/P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size. * Image generator Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section Rechargeable CCTV Tester * Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display * Support PAL/NTSC standard video signal. CVBS testing. * PTZ controller CCTV camera test CCTV camera test IV8C plus support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest: Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable. Improvement cable test: UTP cable, telephone cable etc order and connectivity test, can save testing report TVI camera test:HD TVI video surveillance testing, support max 8MP. When TVI signal input, the tester will display HD TVI camera image. CVI camera test:HD CVI video surveillance testing, support max 8MP. When CVI signal input, the tester will display HD CVI camera image. AHD camera test: HD video surveillance testing, support max 8MP. When AHD signal input, the tester will display the AHD camera image. LED lamp:It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. Multifunction tester Video display, PTZ control, DC12V output power, RS485 adata searching, acable testing, LED lamp CCTV tester monitor The HD coaxial CCTV tester is designed for field installation and maintenance of HD coaxial cameras. (cannot support HDMI) CCTV tester monitor CCTV tester monitor Professional CCTV testing tool IV8C 5 Inch TFT LCD 8MP AHD 8MP TVI 8MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc. HD coaxial tester HD coaxial tester Packing list: HD coaxial tester Adapter DC5V 1A(with USB cable) BNC cable RS485 connector Power output conversion cable Audio cable Lanyard Tool bag Instruction Manual cctv tester,camera tester,cctv monitor,cctv test monitor,tester cctv,5 inch monitor,camera display monitor,security monitors & displays,bnc cable tester,monitor for security cameras,cctv test monitor

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

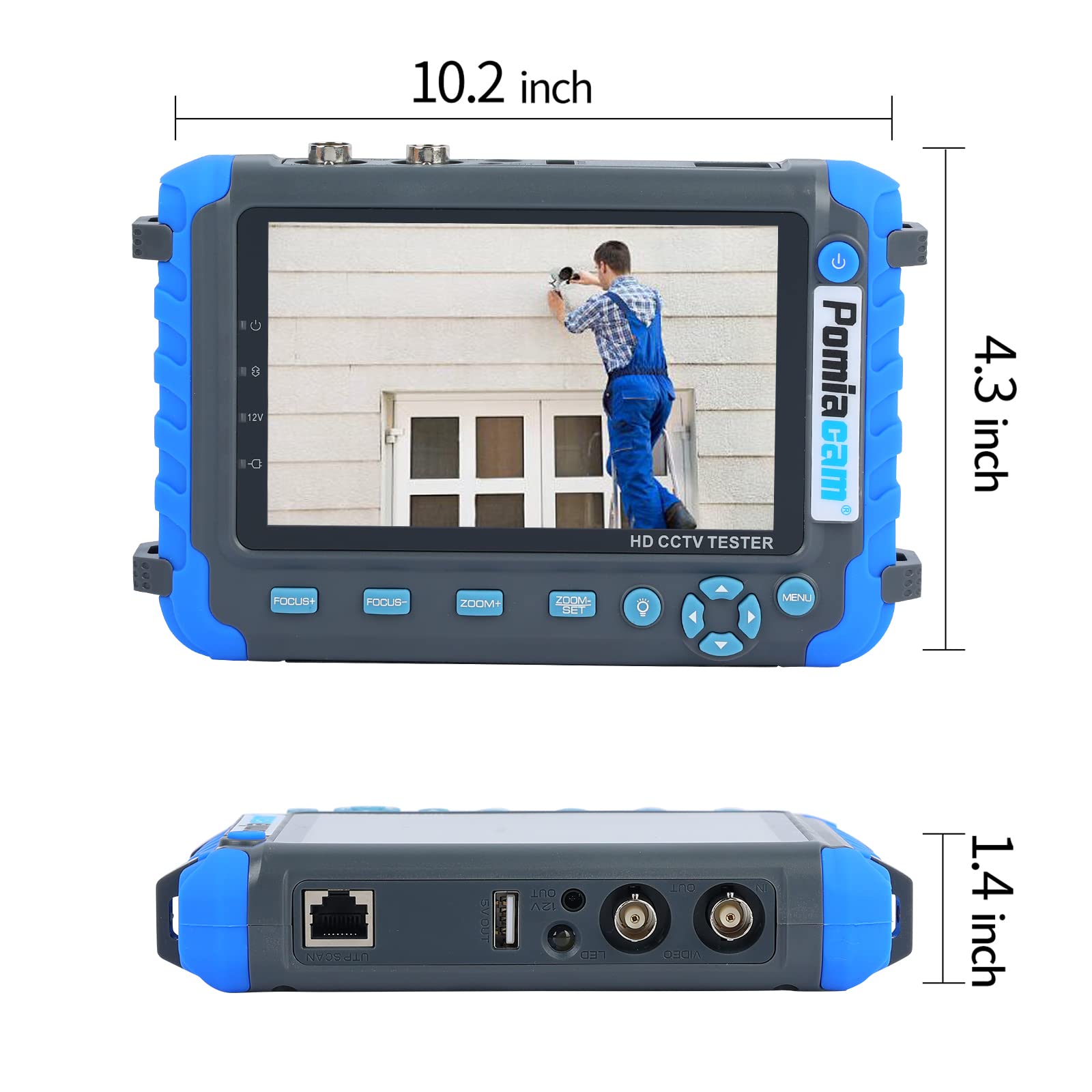

【CCTV tester multifunction】CCTV Tester Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Test, 4-In-1 CCTV Tester Monitor.5.0 inches 800(RGB)x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal.IV8C not support VGA/HDMI input

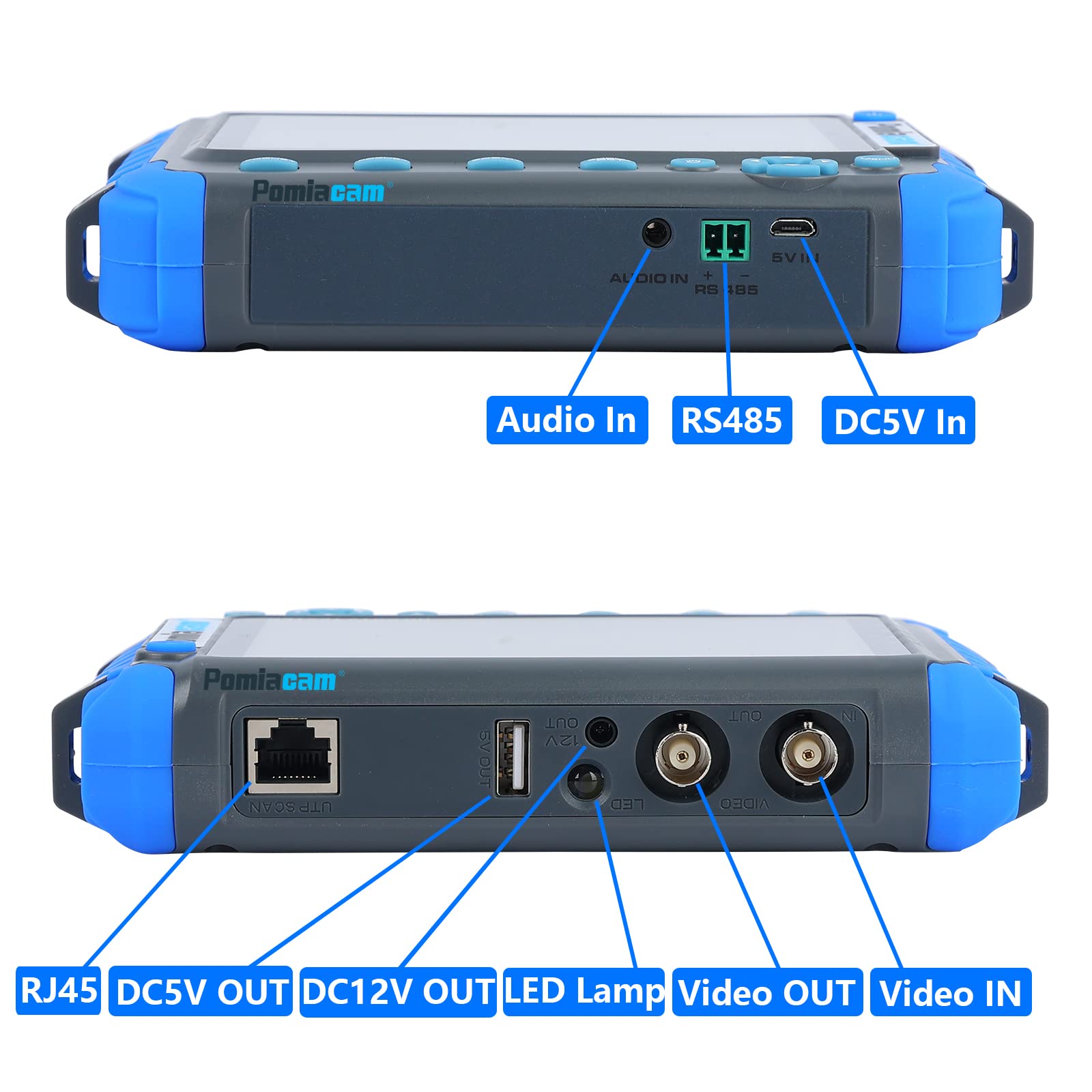

【CCTV tester is suitable for various cameras】The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). HD Coaxial Camera Tester also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.

【Support PTZ control】Video monitor tester built-in Pelco-D / P PTZ control protocol,etc.HD Coaxial Camera Tester through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

【Rechargeable CCTV Tester】 Power the camera with DC 12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. after charging 3-4 hour, working time lasts 11 hours.The tester has advanced power control and protection circuits, saving energy and electricity.

【HD Coaxial Camera Tester】Network cable test function, through the UTP CABLE TEST test port on the instrument.Professional CCTV testing tool is useful for engineers to install and maintain security systems at night. LED on/off button for easy operation. 100% brand new and high quality.
