Description

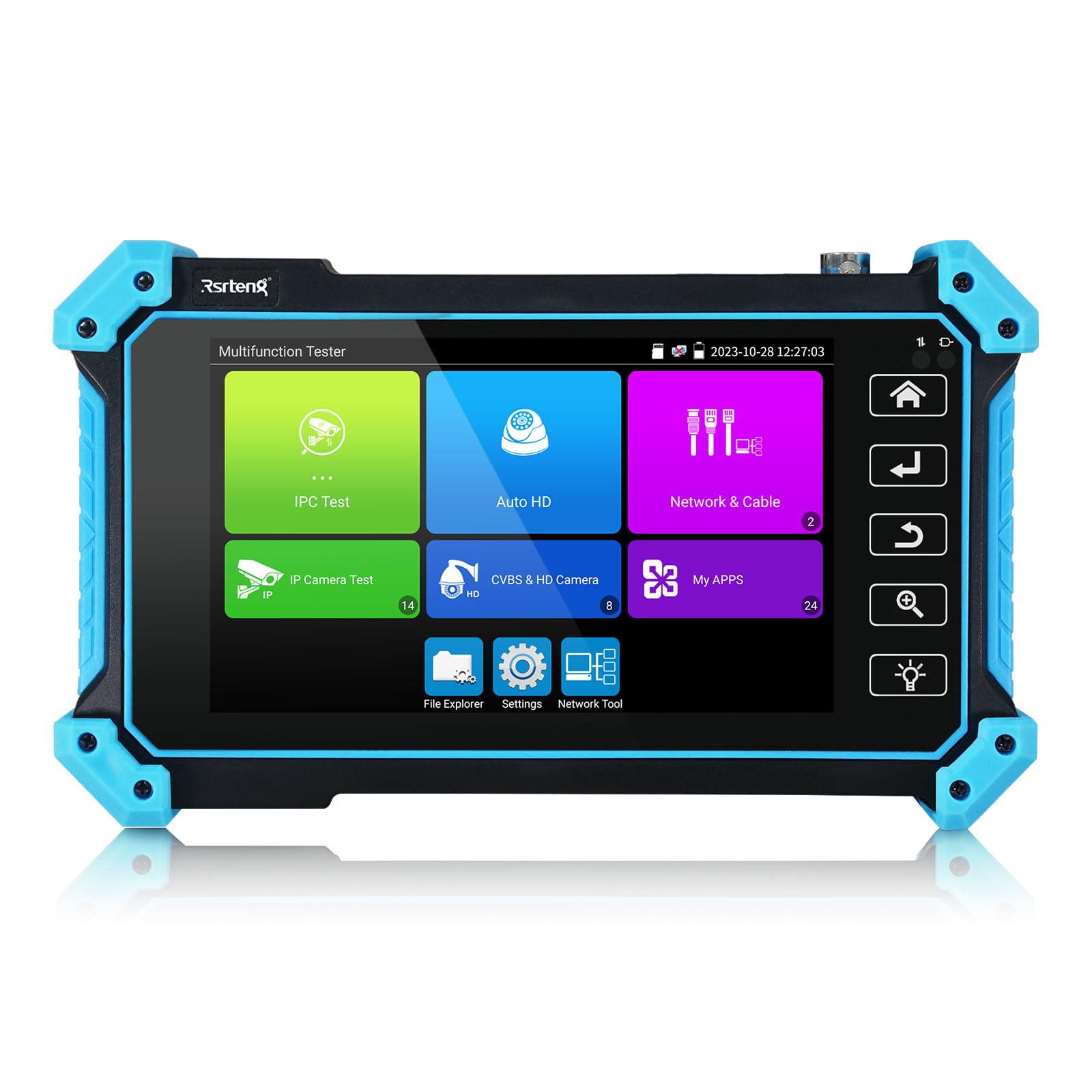

Rsrteng IPC-5100 Plus IP Camera Tester 5.4 inch IPS Touch Screen Monitor CCTV Tester Support AHD/CVI/TVI/CVBS/IP Camera Test The 4K camera tester is used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and other security equipment. The tester uses a 5.4 inch 1920x1080P high-definition touch screen, so the operation becomes simple and fast; Support max 12MP IP camera and max 4K 8MP coaxial HD camera test; multiple professional tests are built-in APP, compatible with more than 90% of existing brand cameras. Suppot POE, WIFI, RJ45TDR, DC12V power output etc. Use it to make your installation process simple and efficient. SUPPORT CAMERA TYPE IP camera test: Max 12MP 4K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc. Coaxial HD camera test: Max 8MP TVI/AHD/CVI camera test, 3840 x 2160P, support UTC control and call OSD menu. CVBS camera test: 1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc. IPC-7600CADHS Plus IPC-5100 Plus IPC-5200 Plus IPC-5100C Plus IPC-5200C Plus IPC-9800ADHS plus+ Add to Cart Buying Options Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 14 4.0 out of 5 stars 62 4.4 out of 5 stars 84 4.0 out of 5 stars 62 4.4 out of 5 stars 84 4.3 out of 5 stars 55 Price $405.99$405.99 — no data $305.99$305.99 — no data $329.99$329.99 $399.99$399.99 Screen size and resolution 7 inch touch screen (1280*800P) 5.4 inch touch screen (1920*1080P) 5.4 inch touch screen (1920*1080P) 5.4 inch touch screen (1920*1080P) 5.4 inch touch screen (1920*1080P) 7 inch touch screen (1280*800P) 12MP IP Camera Test and CVBS Camera Test Also support 8K 32MP IP Camera Test ✓ ✓ ✓ ✓ ✓ 4K 8MP TVI CVI AHD Camera Test ✓ ✓ ✓ ✓ ✓ ✓ 4K 8MP SDI Camera Test ✓ N/A ✓ N/A ✓ ✓ HDMI Input ✓ ✓ ✓ ✓ ✓ ✓ HDMI Output ✓ N/A N/A N/A N/A ✓ VGA Input ✓ ✓ ✓ ✓ ✓ N/A Upgrade UTP cable test,check fault of RJ45 cable plug ✓ ✓ ✓ ✓ ✓ ✓ Digital cable tracer ✓ N/A N/A ✓ ✓ N/A Battery capacity 7.4V DC/7800mAh 7.4V DC/3350mAh 7.4V DC/3350mAh 7.4V DC/3350mAh 7.4V DC/3350mAh 7.6V DC/7800mAh Test tool for Hik & DH Support batch activate Hik & DH cameras and modify IP address, modify password etc & self-defined modify channel name; For Hik Test tool can quickly change video, open wide dynamic mode. Factory restore, etc. Support snapshot, video record & playback, coaxial PTZ & call OSD menu; Rapid OVIF, Auto log in and display image,create testing report. Compatible with more than 90% of existing brand cameras. Built-in WIFI Built-in wireless network WIFI function, 2.4GHz, speeds 150Mbps Support connect and test wifi camera and display wireless camera image, support creation of WIFI hotspot. The screen of the tester can be projected onto the Android cell phone in the same hotspot. RJ45 TDR Quickly measure the length of the RJ45 network cable, the longest test distance is 180 meters. With the attached cable tester tool, you can test the arrangement type of the network cable and whether it is unblocked. *Note: RJ45 TDR is a software function and only supports test the length of the network cable and whether it is unblocked. If you need to test the location of the network cable or other cable failure points, please purchase a model with TDR breakpoint test (TDR hardware support) HDMI , VGA , Audio Input HDMI high-definition signal input, resolution support up to 4K/30fps. HDMI & VGA Input can be used to call DVR/NVR video recorder,set-top box equipment, directly as a display screen, easy to operate, improve efficiency. Audio Input, which allows you to input audio signals, test if the sound is normal,and record and save audio. 12V/3A power supply & Flashlights & RS485 Built-in 7.4V 3350mAh Rechargeable Lithium-Ion Battery, DC12V/3A power output, provide power supply for the camera, so that the camera test more convenient, you can test the camera anywhere, anytime. The flashlight function of the tester can provide lighting for you in a dark working environment. Universal RS485 interface, you can easily use it to control cameras and other devices with RS485 interface. IPC-5100 plus IPC-7600CADHS Plus IPC-7600COVTADHS Plus IPC-9800MOVTADHS plus+ X7-MOVTADHS X9-MOVTADHS Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.0 out of 5 stars 62 4.5 out of 5 stars 14 4.5 out of 5 stars 14 4.4 out of 5 stars 57 4.1 out of 5 stars 7 3.9 out of 5 stars 23 Price — no data $405.99$405.99 $550.99$550.99 $649.99$649.99 $635.99$635.99 $735.99$735.99 Screen size and resolution 5.4 inch touch screen (1920*1080P) 7 inch touch screen (1280*800P) 7 inch touch screen (1280*800P) 7 inch touch screen (1280*800P) 7 inch touch screen (1920*1200P) 8 inch touch screen (2048*1536P) 12MP IP Camer a Test and CVBS Camera Test ✓ Also support 8K 32MP IP Camera Test Also support 8K 32MP IP Camera Test ✓ ✓ ✓ 4K 8MP TVI/CVI/AHD/SDI Camera Test only 4K 8MP TVI/CVI/AHD Camera Test ✓ ✓ ✓ ✓ ✓ HDMI In/Out HDMI input & VGA input ✓ ✓ ✓ ✓ ✓ Digital Multi-meter N/A N/A N/A ✓ ✓ ✓ Optical power meter N/A N/A ✓ ✓ ✓ ✓ TDR breakpoint test (hardware support) only RJ45 TDR(software support) only RJ45 TDR(software support) ✓ ✓ ✓ ✓ Visual failt locator N/A N/A ✓ ✓ ✓ ✓ Power Output:5V/12V/24V --/12V.3A/12V.1A 5V.2A/12V.3A/24V.2A 5V.2A/12V.3A/24V.2A 5V.2A/12V.3A/24V.2A 5V.2A/12V.3A/24V.2A 5V.2A/12V.3A/24V.2A Dual Gigabit Ethernet Ports Single Gigabit Ethernet port ✓ ✓ ✓ ✓ ✓

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

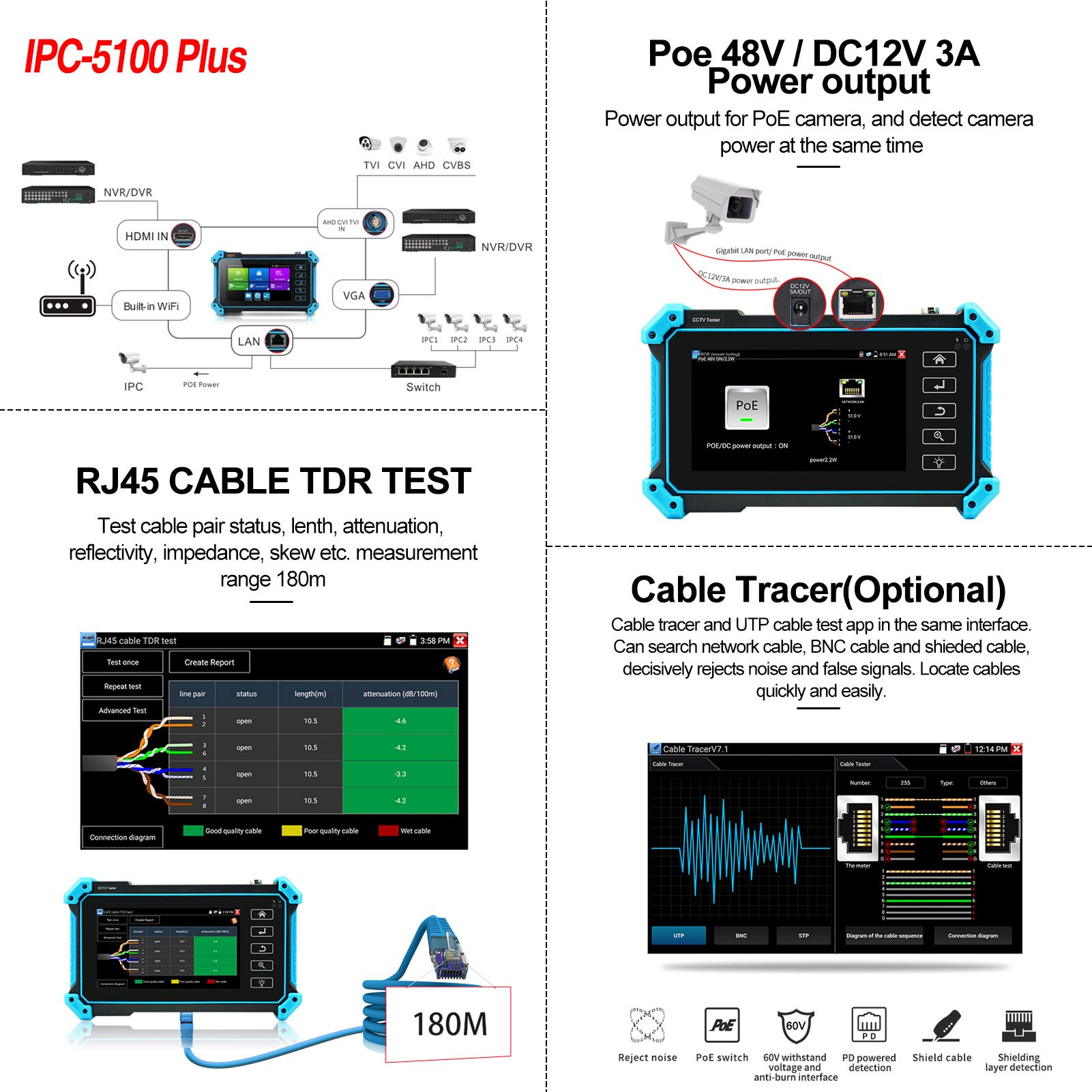

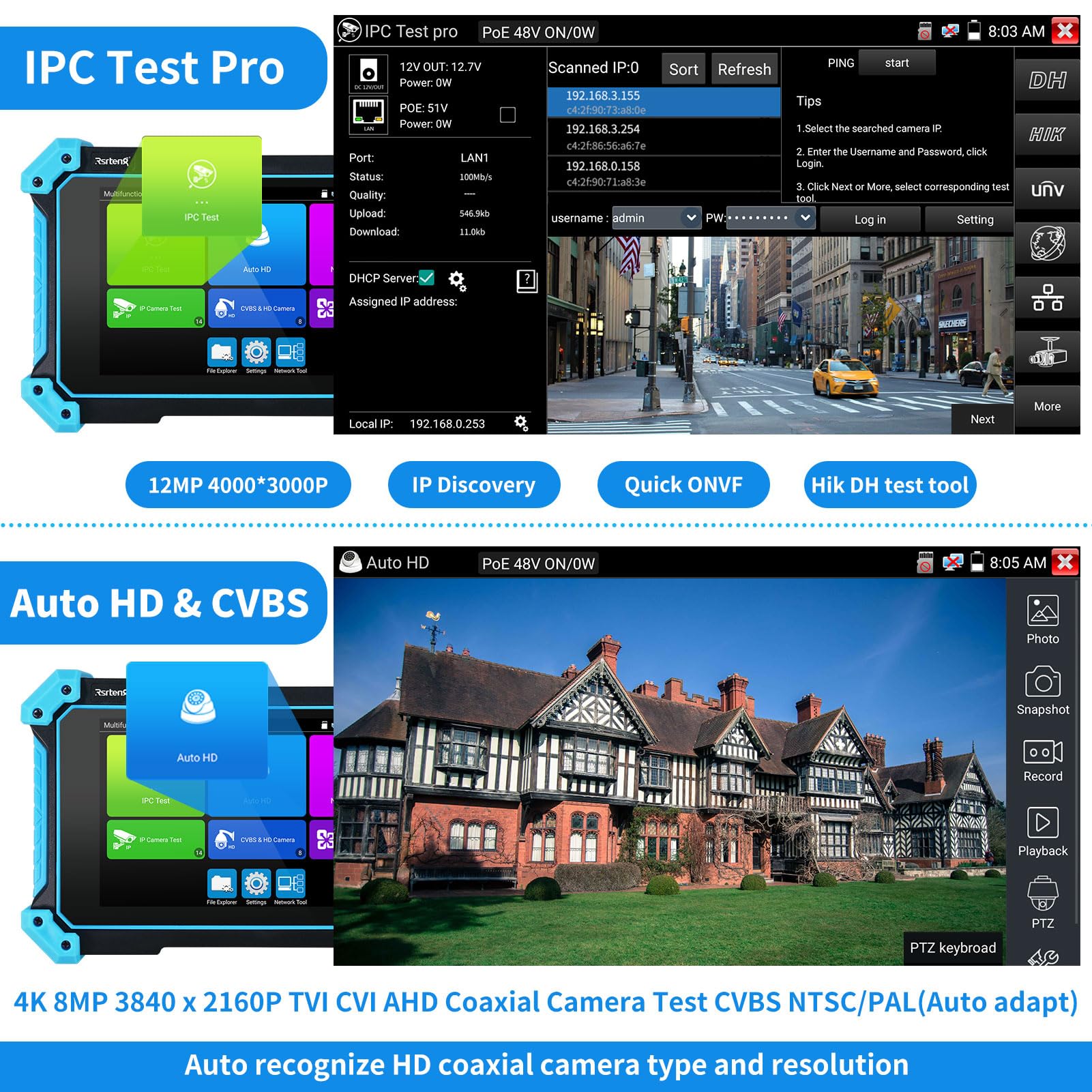

【IP Camera Tester】Network camera tester support max 12MP 4K H.265/H.264 IP Camera test. Powerful network tools to help you detect and set various network parameters. Support PoE IEEE802.3af/at 48V, maximum power 25.5W, UTP cable test, POE power output RJ45 TDR cable test.

【4-in-1 Coaxial CCTV camera test】Support max 8MP(3840x2160P) TVI / AHD / CVI camera test, support UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD / TVI / CVI cameras. And CCTV tester also support CVBS analog camera test.

[Professional testing tools] Built-in special tools for Hik and DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in dedicated testing tools for OVIF and other brands of cameras, which can be compatible with most existing cameras. Use it to make your installation simple and efficient.

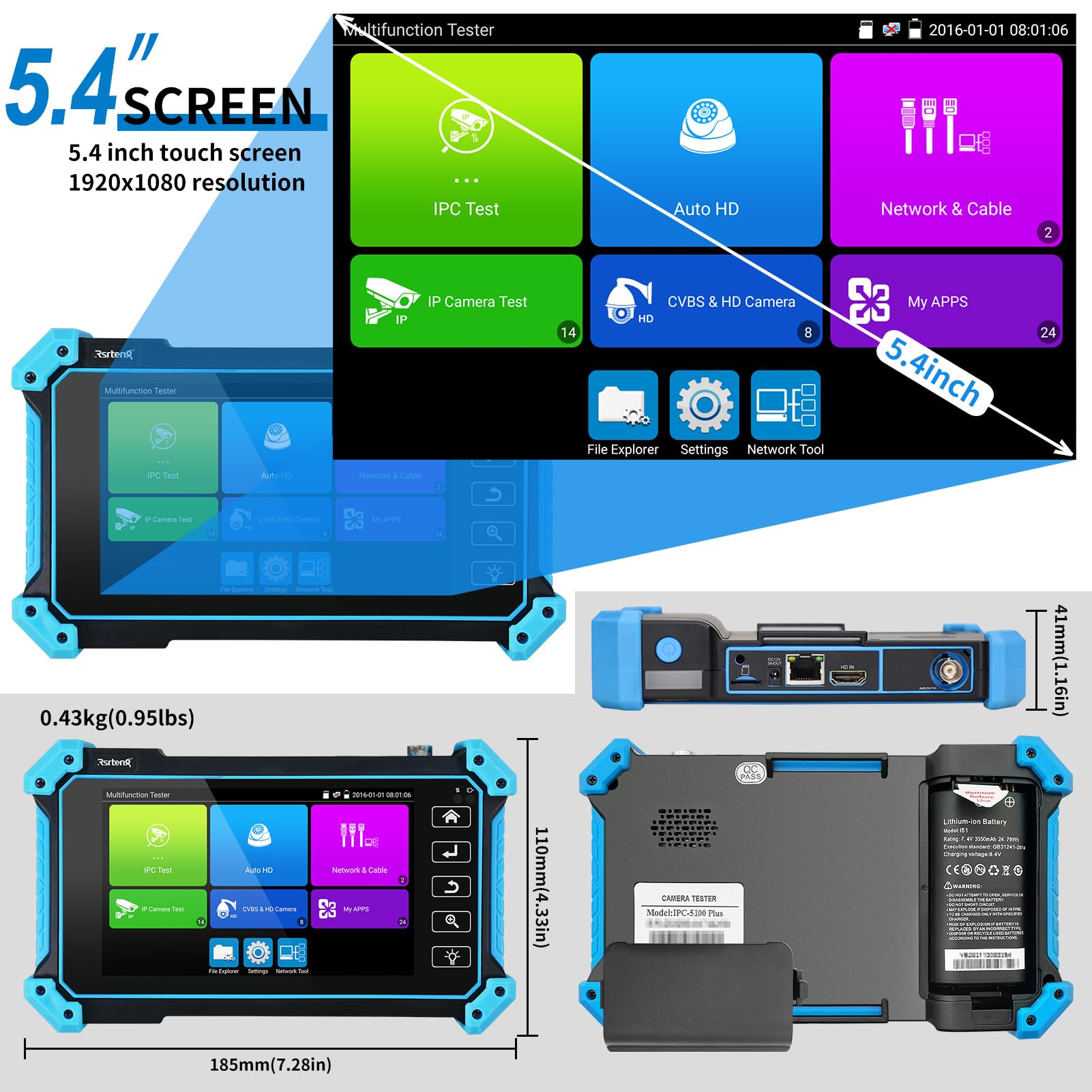

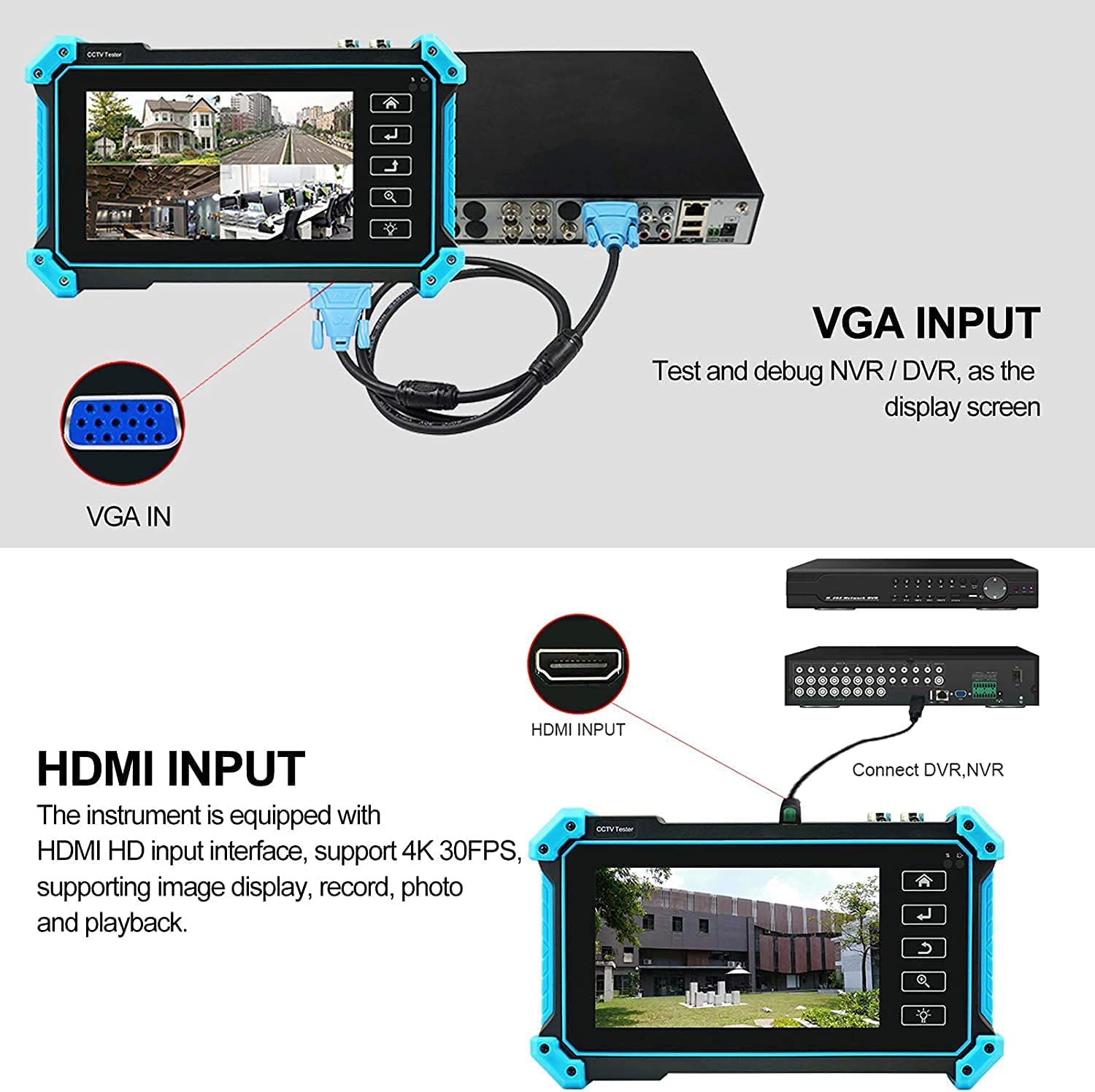

【Multi-function tester】 CCTV tester has a 5 inch 1920x1080P touch screen that can display its genuine resolution of the IP camera images. Built-in media player. Built in W-i-F-i, create W-I-F-I hotspot. VGA & HDMI Input, LED lamp, calculators, support snapshot, video record & playback; The camera tester uses Android system, so you can also install the APP you need.

【100% Satisfaction Guarantee】：We tested every cctv camera tester before we sent it to the Amazon warehouse, to ensure that you will not receive defective products. We offer 24h technical support and 1 year warranty. The security camera tester is powered by a 7.4V/3350mAh rechargeable battery and can operate for up to 6 hours after 3-4 hours of charging.
