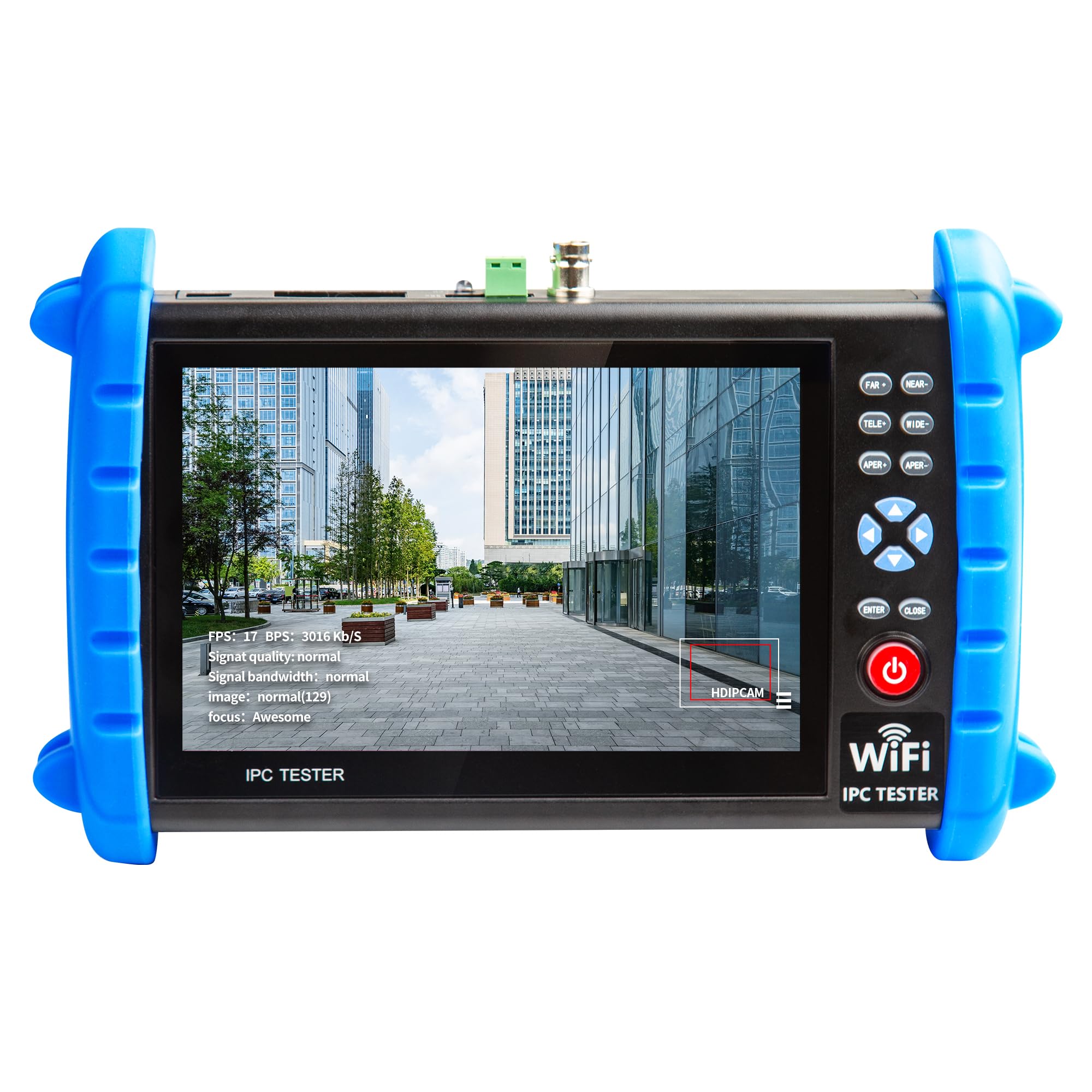

7" IPS Touch Screen CCTV Camera Tester - 6K 12MP IP Camera Tester with WiFi, POE, RJ45, TDR Test, PTZ Control & HDMI Output - Professional Network Tool for Security System Installation & Maintenance
$130.34
$236.99
Safe 45%
7 7 7 7 7 7 7 7 7
7
7
7
7
7
7
7
7
7
7" IPS Touch Screen CCTV Camera Tester - 6K 12MP IP Camera Tester with WiFi, POE, RJ45, TDR Test, PTZ Control & HDMI Output - Professional Network Tool for Security System Installation & Maintenance
$130.34
$236.99
45% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
28 people viewing this product right now!
SKU: 49427487
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description

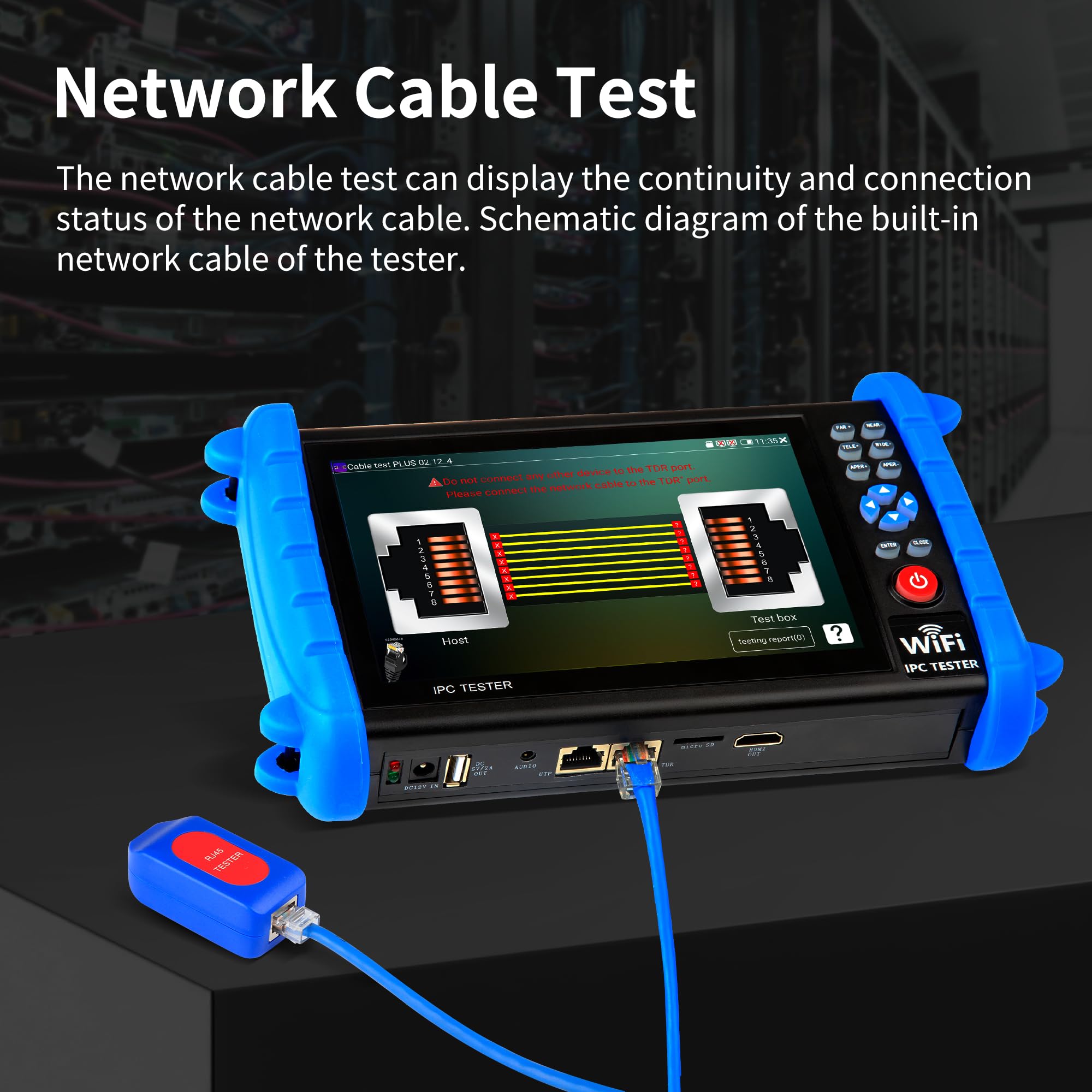

Cable Tester •Test network cable connection status •Test the line sequence of the network cable •Network cable fault location Network Cable TDR Tester •Cable TDR test requires cable length 2-195 meters. •Test result may have an accuracy error,error range ±1.2%. PSE Voltage Tester PSE voltage test enables you to test the POE network cable port power voltage and power supply cable sequence. RS485 Serial Port Tools RS485 tools can accept,send and analyze RS485 port data. lt can be used to analyze PTZ protocols. Touch 'Series' icon to enter the serial port function interface,you can set Baud rate ,Data bit, Parity bit and Stop bit,you can set the data type to character or HEX to display and send Touch 'Clr Recv',or 'Clr Send',to clear the screen. Cable Tester Network Cable TDR Tester PSE Voltage Tester RS485 Serial Port Tools Power Management DC24V/12A、RS485 Serial Port、DC12V/3A、Charging Port DC12V/2A、USB5V/2A Input/Output Port、POE48V Upgrade Center Upgrade center is used for application management,you can install or uninstall instrument Apps here,it supports to connect remote server to install online or install locally. HDMI Out Notice:HDMI output only support colors bar output and using computer to operate IPC tester. Package Listing Power Management Upgrade Center HDMI Out Package Listing
More
Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

!!!!!!!NOTE!!!! The " IP+CVBS CAMERA TESTER" type cctv tester is designed solely for CVBS analog camera functionality and does not support AHD/TVI/CVI coaxial HD capabilities. For using the CVBS function, please refer to the following instructions a. The CVBS function should only be used with standard analog cameras. b. Ensure that high-definition coaxial cameras (labeled AHD, CVI, or TVI) are excluded. c. To use the CVBS function, connect the analog camera to the CCTV tester's IN port using the included BNC video cable, and power the camera using the provided Power Output Converter connected to the DC12V/3A OUT port. Then, simply open the "CVBS" application to use it.

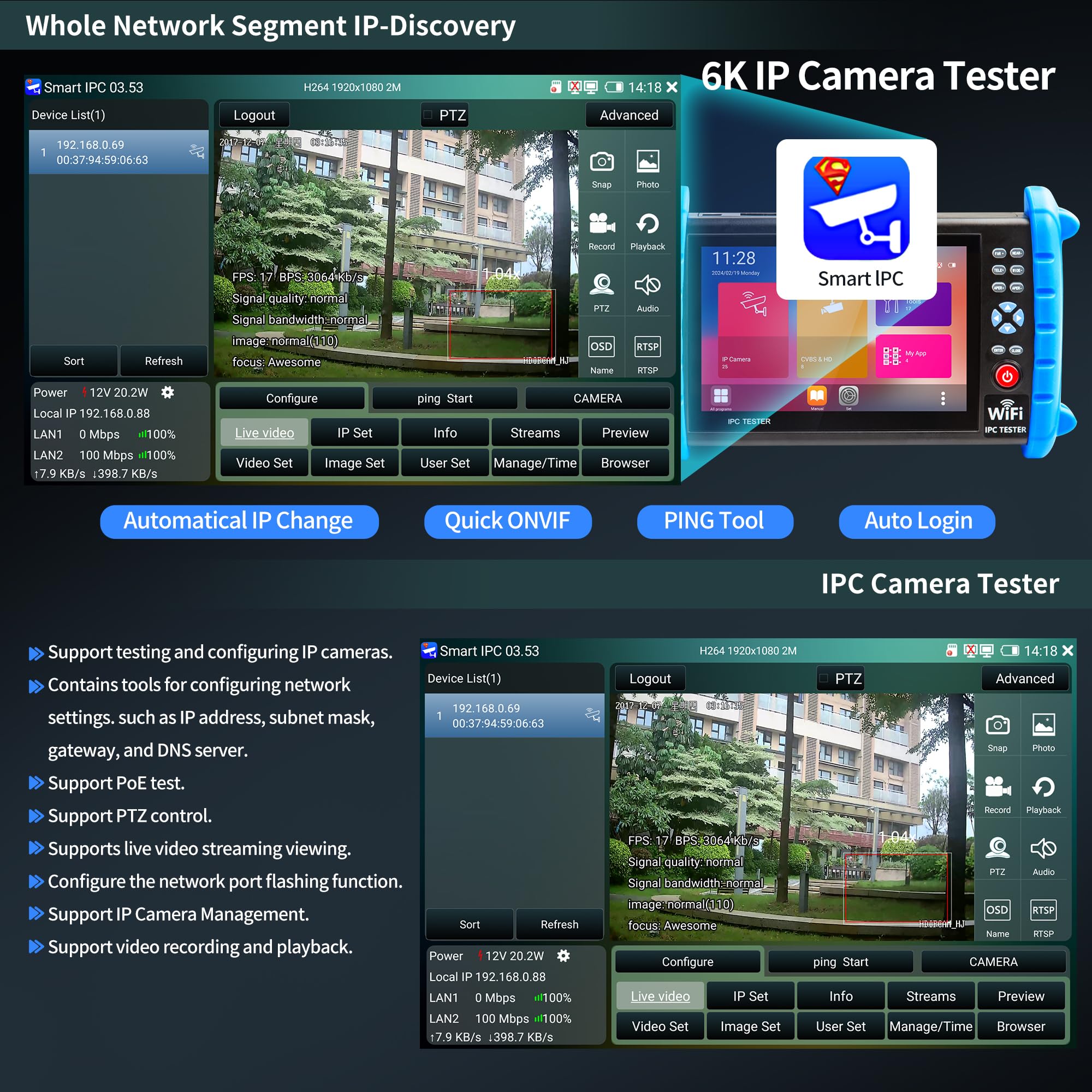

【Network Camera Tester】RAINLEOTI IP camera tester supports up to 6K 32MP IP POE camera testing. IP detection, fast recording, RTSP playback, IPC testing, automatic video viewing, and test report generation. Powerful network tools to help you detect and set various network parameters. Supports UTP network cable test, POE test, RJ45 TDR network cable test. RAINLEOTI's portable and high-precision CCTV camera tester ensures the efficiency and convenience of your work.

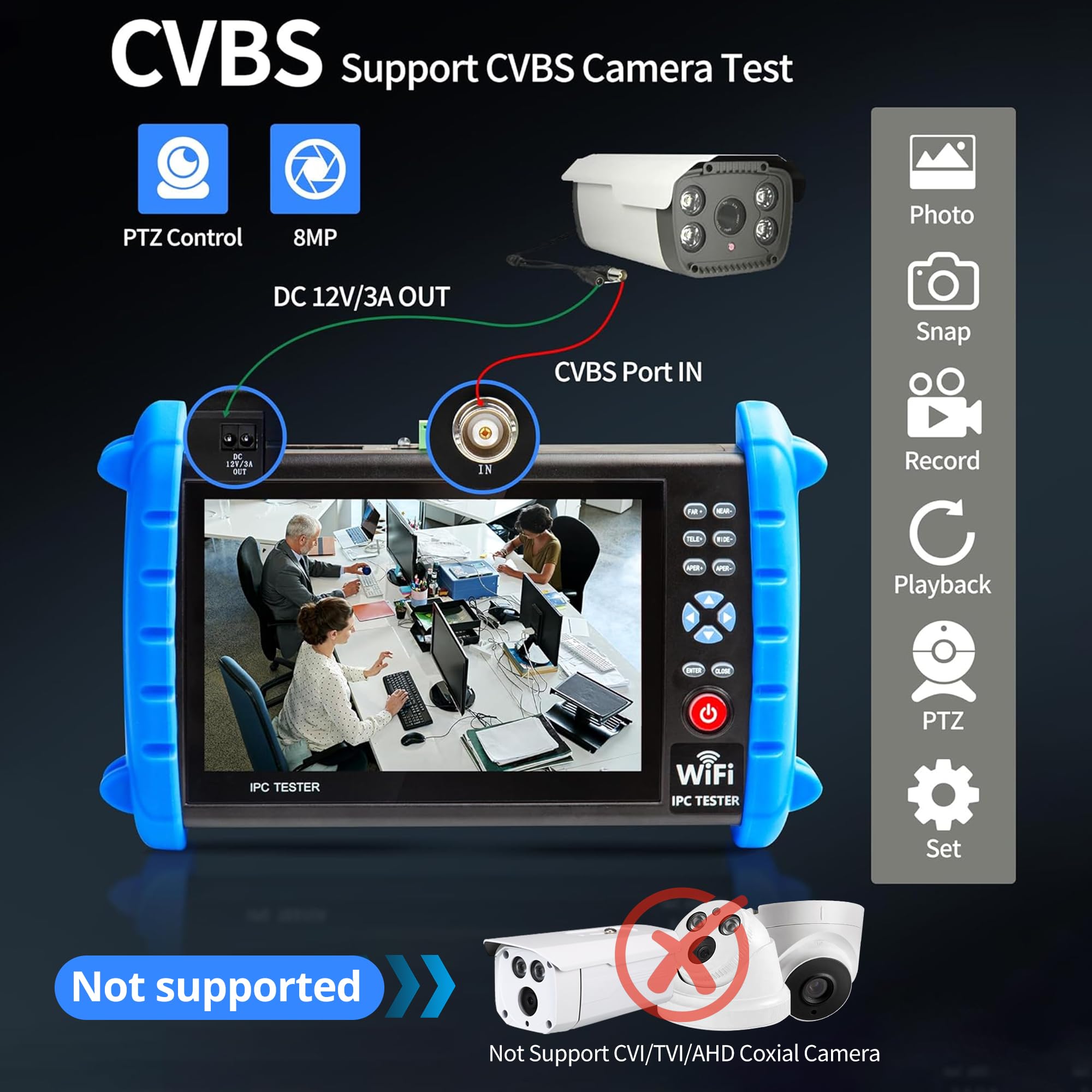

【CVBS analog camera test】The 7-inch high-definition full-view CCTV camera tester supports CVBS analog camera testing, supports UTC PTZ control and calls OSD menu. You can enlarge the video page 1-8 times to more accurately match your work needs.

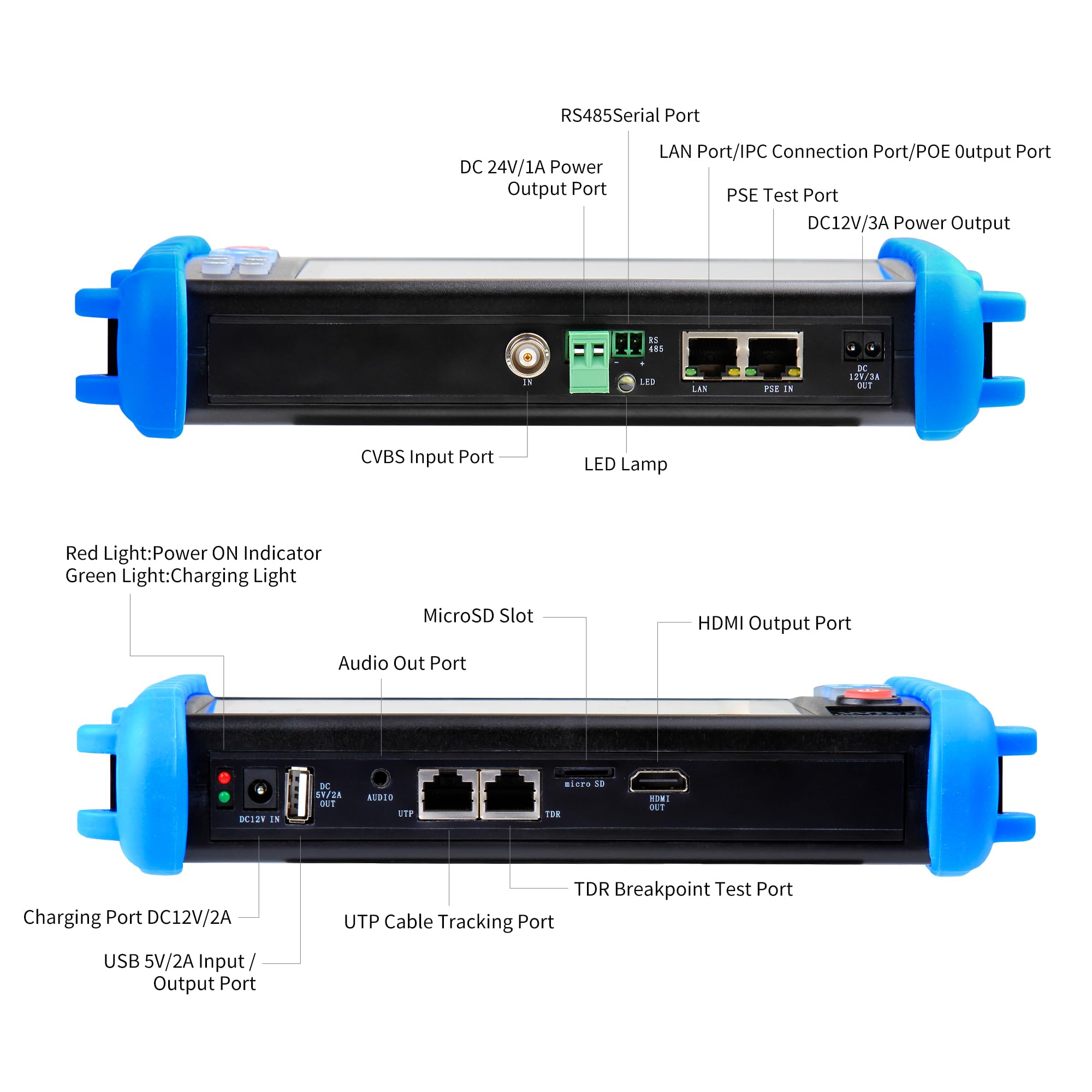

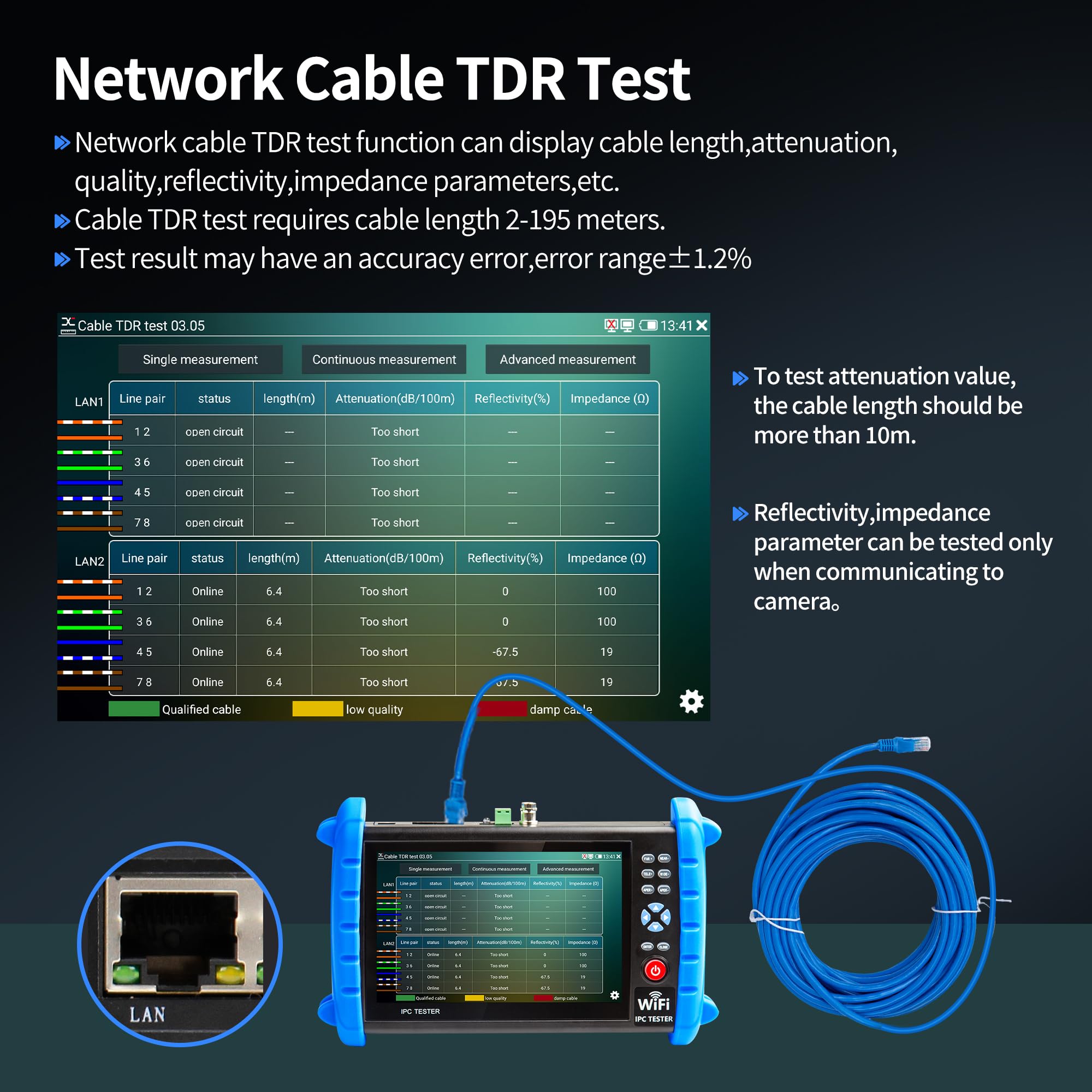

【Professional testing tool】RAINLEOTI IPC Tester is a powerful network tool with full functions, supporting IP detection, PING test, network port flashing, one-click video, POE, UTP cable testing. RJ45 TDR cable The test can test network cable length, attenuation, quality, reflectivity, impedance, skew and other parameters, with a measurement range of 195 meters. Security IP Camera Tester is also equipped with HDMI output interfaces. 5 power management methods, POE48V output, 24V/1A output , 12V/3A output, USB 5V/2A output and DC12V/2A input.

【More parameters】IP camera tester is equipped with a 7-inch IPS touch screen, 1920*1200 resolution. Built-in 7.4V/7000mAh battery. Ethernet port 10/100/1000Mbps, support RS485; audio input test; HDMI Outpt; built-in wireless WiFi; DC output 24V/1A, 12V/3A, 5V/2A; LED light; configuration upgrade center, you can do it here Manage, install and uninstall APP and other operations. CVBS Cemera Tester Dimensions/Net Weight 9.06x 5.51x 1.77 inches/0.9 kg (1.98 lbs).

【Quality Service】RAINLEOTI cooperates with a manufacturer that specializes in R&D and production of IPC Tester to jointly launch this basic Security IP Camera Tester. We will continue to launch optimized and upgraded models in the future, so stay tuned! If this product has quality problems under normal use without manual damage, it will be guaranteed for free within one year. If you have any usage or technical questions about this product, please feel free to contact us, we will serve you wholeheartedly and guarantee that your problem will be solved within 24 hours!
