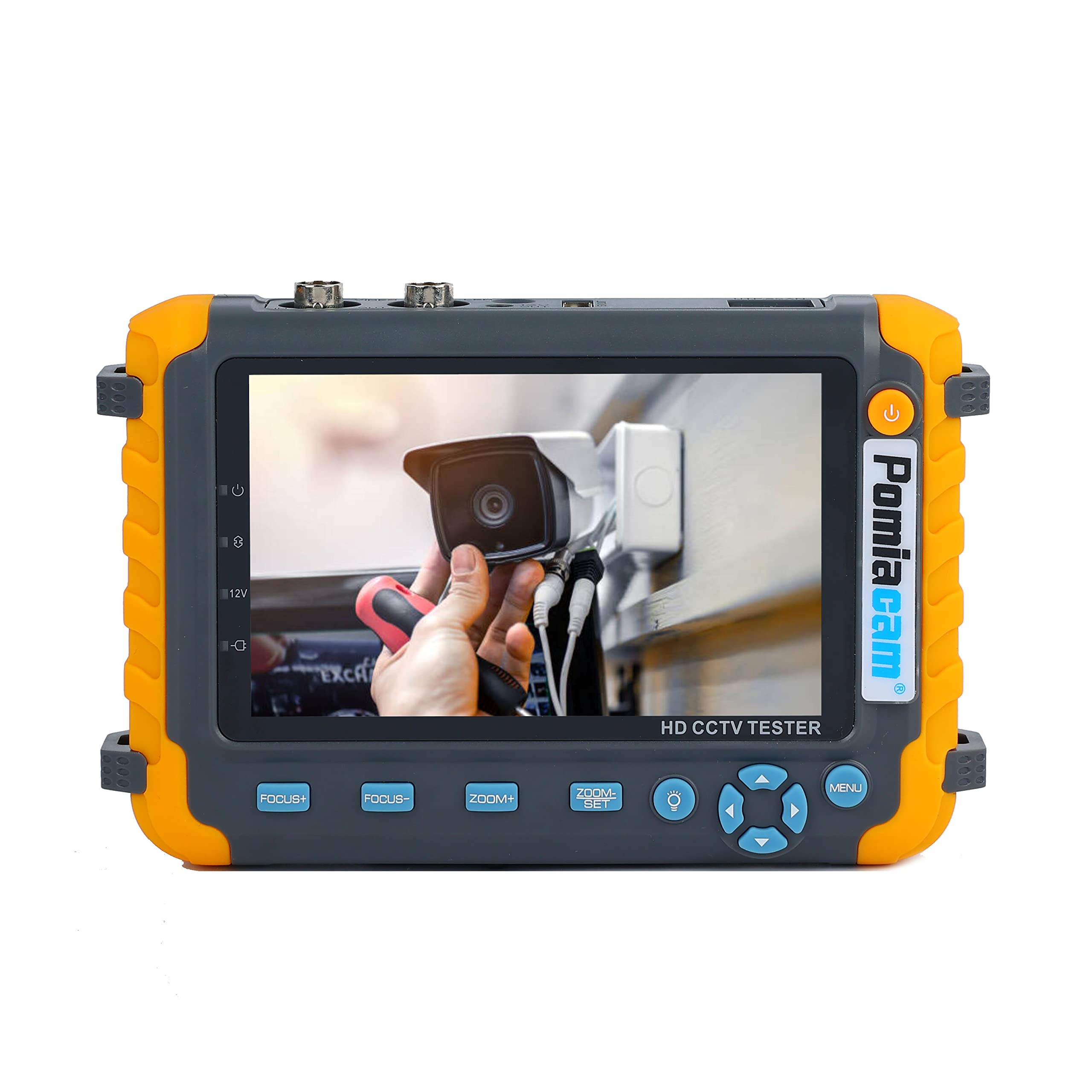

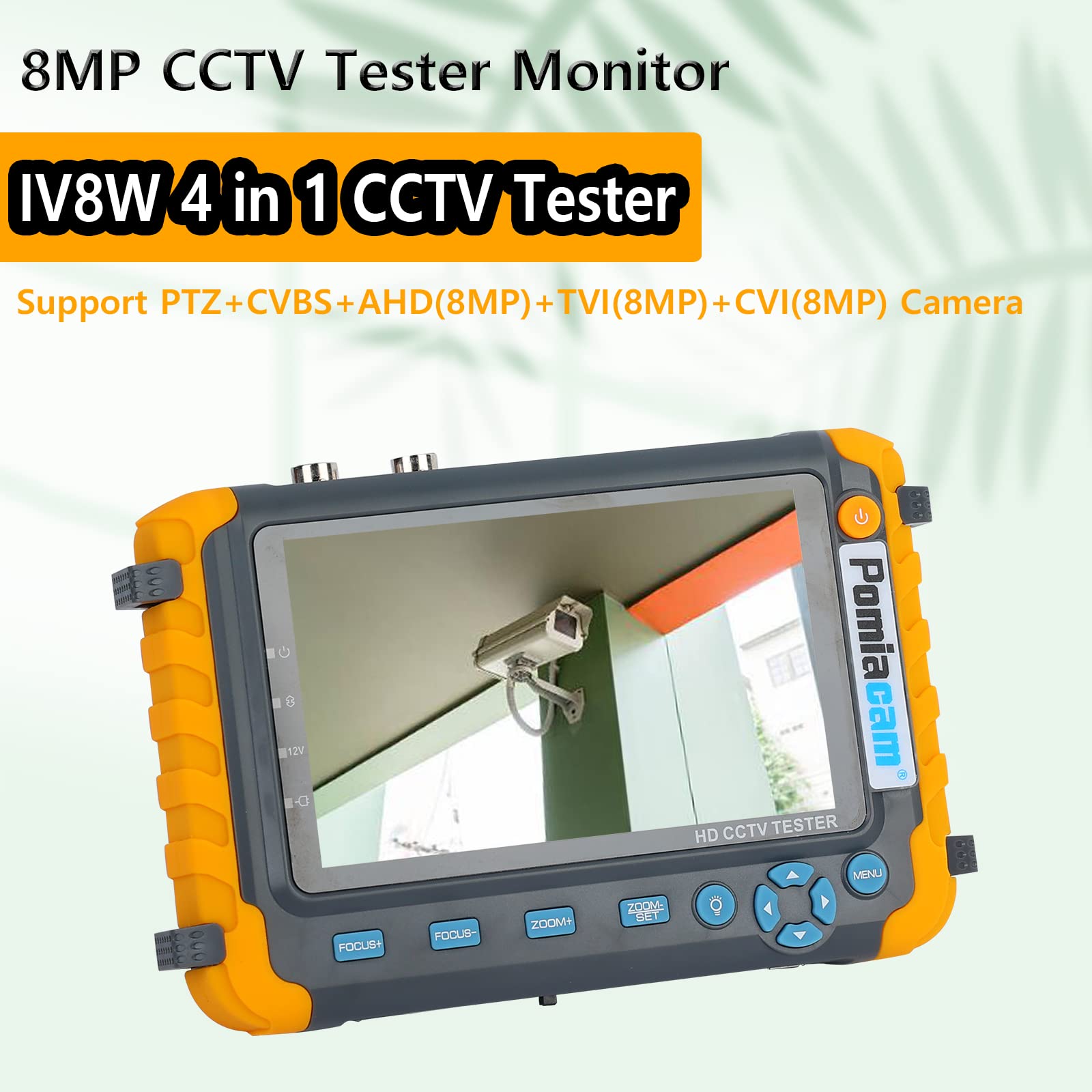

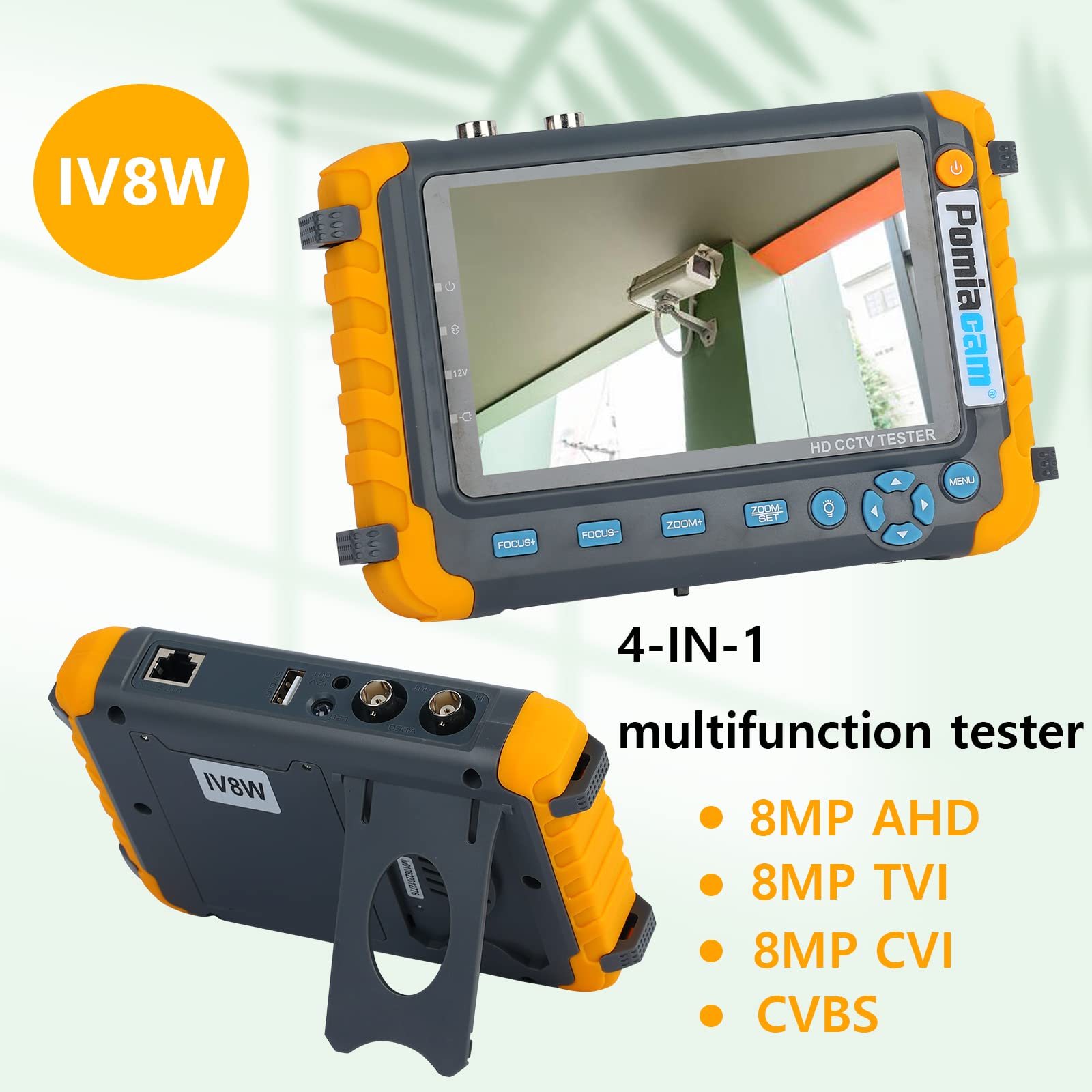

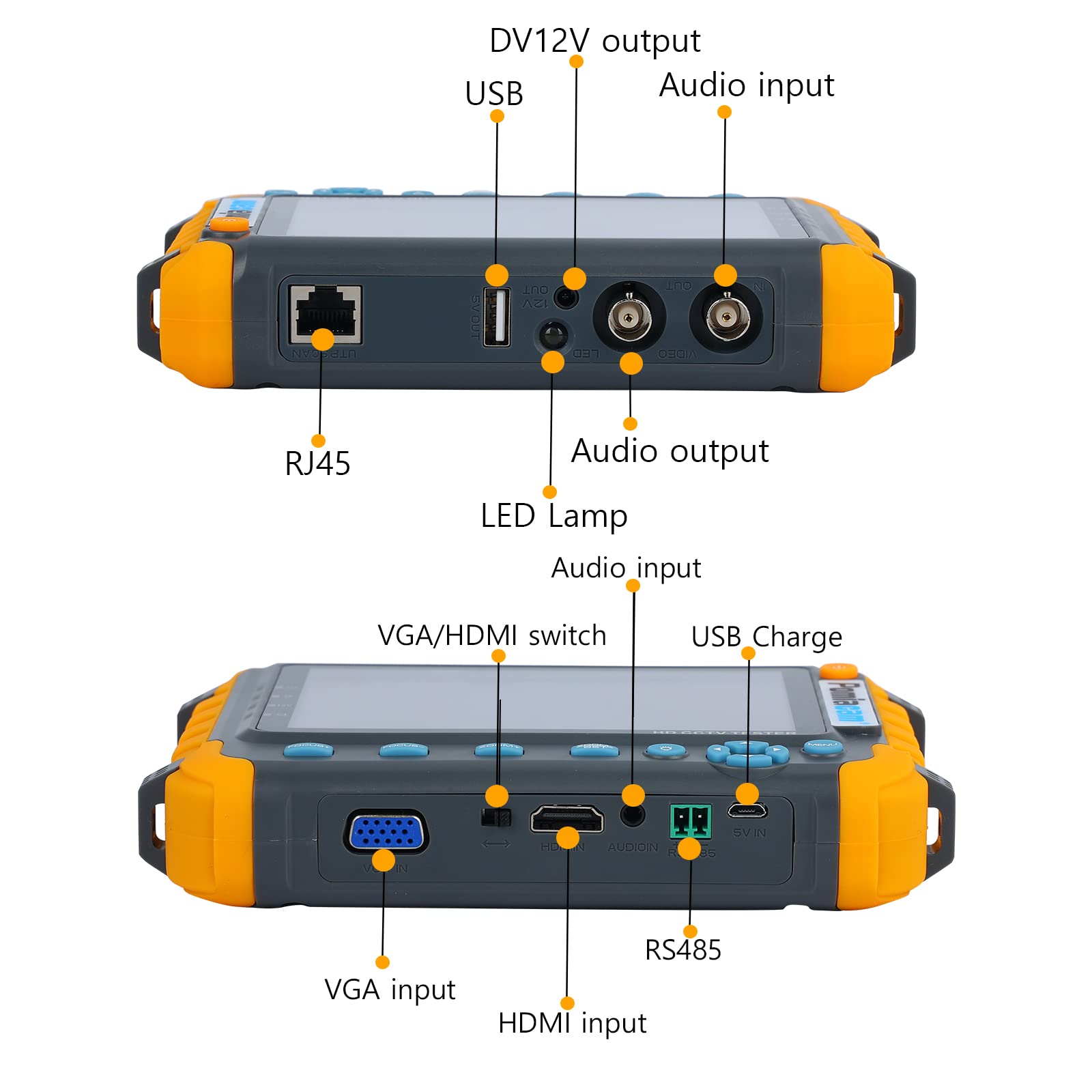

CCTV tester monitor 4-in1 camera test 5inch CCTV tester monitor This is a 5inch CCTV tester monitor . The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having 8MP TVI, AHD, CVI camera testing . It also provides many useful functions, such as video display, PTZ control,DC 12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multimeter, LED lamp etc. cctv tester monitor tips cctv tester monitor tips 1. IP camera can not be tested by the cctv monitor The cctv tester monitor not supports any IP cameras testing, it can only be used to test analog cameras and TVI camera test AHD camera test CVI camera test 2. The cctv tester can not produce pictures. When the device is switched to CVI mode, only connected to CVI camera can be tested.Please switch the Cctv tester mode yourself (Other mode ahd tvi cvbs) 3. Cctv monitor HDMI or VGA isn’t recognized. If HDMI is used as the cctv monitor input, because it can only be connected to the cctv NVR or DVR Do not connect the computer’s or TVs hdmi signal output.once connect VGA/HDMI video, please switch and select HDMI or VGA mode. 5inch 4-in-1 5inch CCTV tester monitor Video monitor tester have High-resolution 5.0 inches 800 x480 wide viewing angle display, more intuitive and easy to display the camera image quality. 8MP camera tester 8MP camera tester for AHD TVI CVI camera test 4-in1 8MP camera testing : Audio testing: Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.Enhanced network cable testing: By UTP CABLE TEST port on the meter, you can test the connection of network cable.The maximum resolution is 1920X1440.TVI camera test ,HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP,6MP,7MP,8MP. When TVI signal input, the tester will display HD TVI camera image.AHD camera test , HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP,6MP,7MP,8MP.. When AHD signal input, the tester will display the AHD camera image.CVI camera test, HD video surveillance testing, support 1MP, 2MP, 3MP, 4MP,5MP,6MP,7MP,8MP.. When CVI signal input, the tester will display the CVI camera image. more detail of cctv tester : powered camera tester monitor LED lamp :It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate. mini size of CCTV tester monitor The 5inch large display monitor is equipped with a small-sized shell, Silicone Case for Protection, which protects the CCTV tester monitor from being broken during daily use. The width of 1.4inch allows you to hold the monitor firmly in your hand and prevent it from falling. Lanyard It is guaranteed that you can hang it on your body when installing the camera. It is especially convenient packing list of CCTV tester : HD coaxial testerAdapter DC5V 1A (with USB cable)BNC cableRS485 connectorAudio CableLanyardTool BagInstruction Manual cctv tester monitor cctv tester monitor PTZ Controller by the cctv tester Support RS485, compatible with protocols Video Signal Testing on the cctv test monitor Video monitor tester, high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Support PAL/NTSC standard video signal. . UTP cable test supported by the cctv camera tester tester security monitors & displays coaxial signal tester cctv tester| Auto power off: 1-30 (mins) Working temperature: 14℉ ~ 122℉ (-10℃ ~ +50℃ ) Humidity: 30%-90% Rh Dimension: 221mm x 175mm x 91mm Weight: 1.65lb (0.75kg) Language settings: English, Chinese ,Spanish, Keywords cctv tester, cctv monitor, cctv tools ,portable camera, cctv test analog, cctv camera ,cctv test monitor ,monitor for security cameras, camera tester coax signal,camera tester,Coax signal tester, security monitors & displays,coaxial signal tester PTZ CCTV tester monitor PS485 PTZ controller of CCTV tester monitor Video signal testingVideo monitor tester, High-resolution 5.0 inches 800 x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol,etc., through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.Image generator: Mufti-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section.DC12V1A output power: Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
